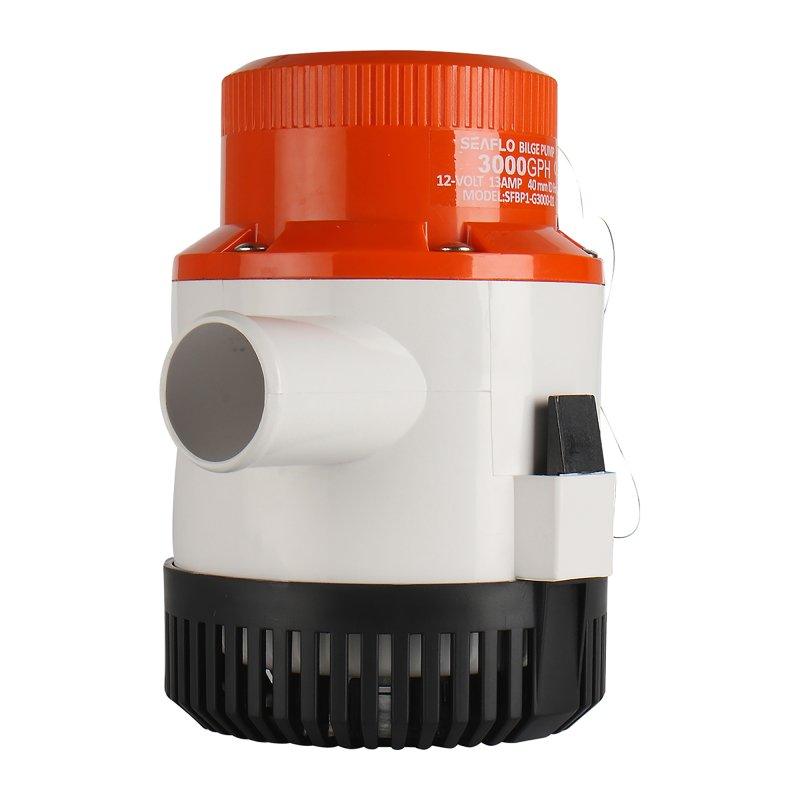

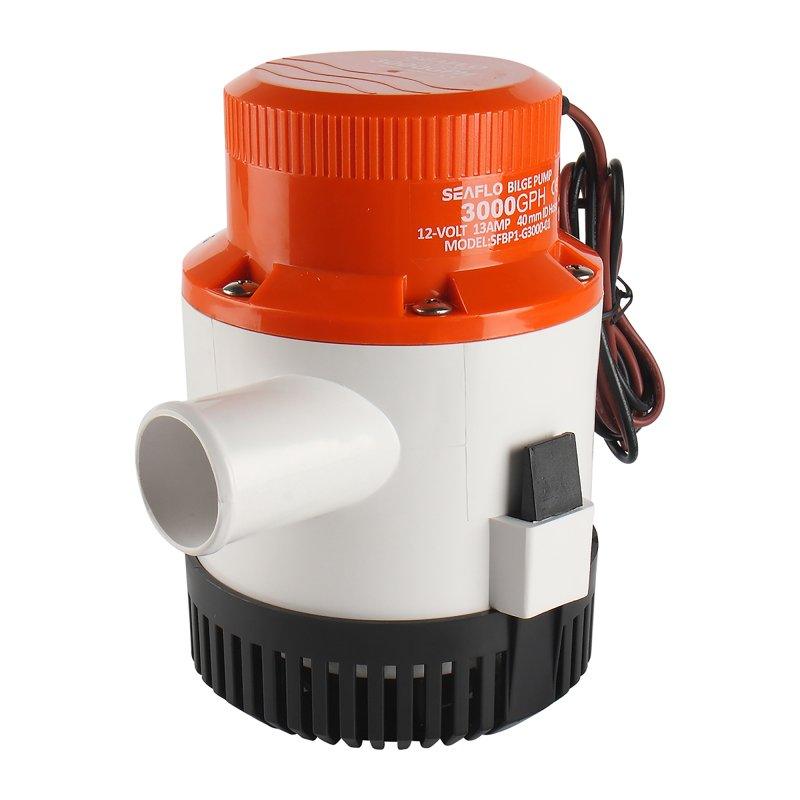

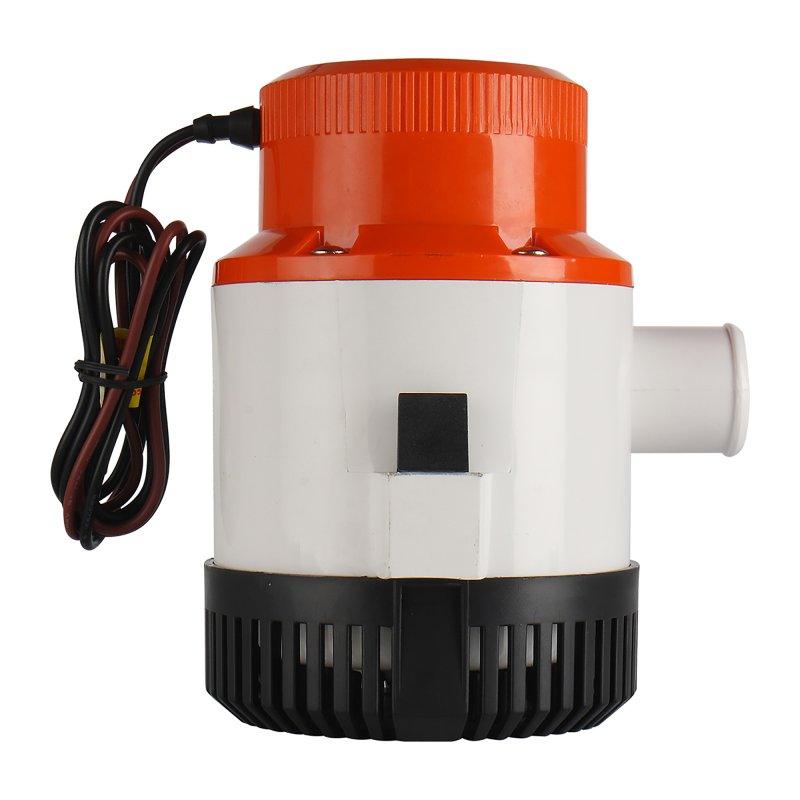

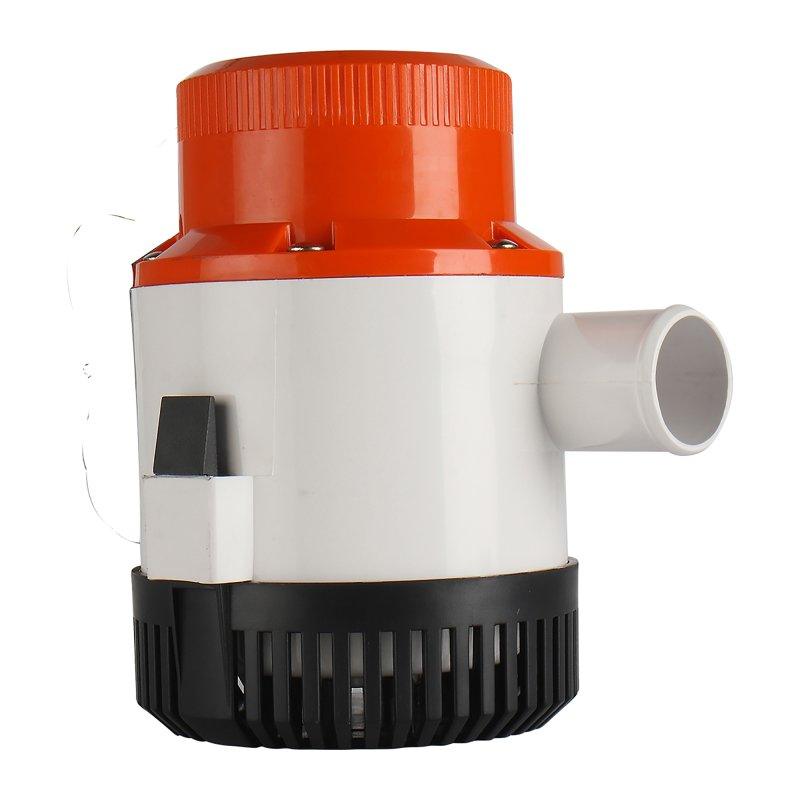

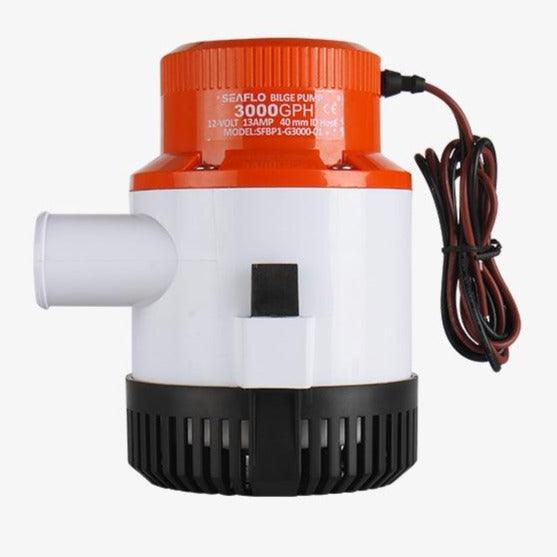

SEAFLO 24V 3000 GPH Submersible Bilge Pump Non-Automatic 01 Series BP2G300001
SEAFLO 24V 3000 GPH Submersible Bilge Pump Non-Automatic 01 Series BP2G300001
Couldn't load pickup availability
SEAFLO 24V 3000 GPH BILGE PUMP
Premium 01-Series High-Capacity Marine Drainage
The SEAFLO BP2G300001 is a heavy-duty, non-automatic submersible bilge pump designed for high-volume water evacuation in demanding marine and commercial environments. Capable of moving 3,000 gallons per hour, this 01-Series model is built with high-efficiency motors and a stainless steel shaft for superior durability.

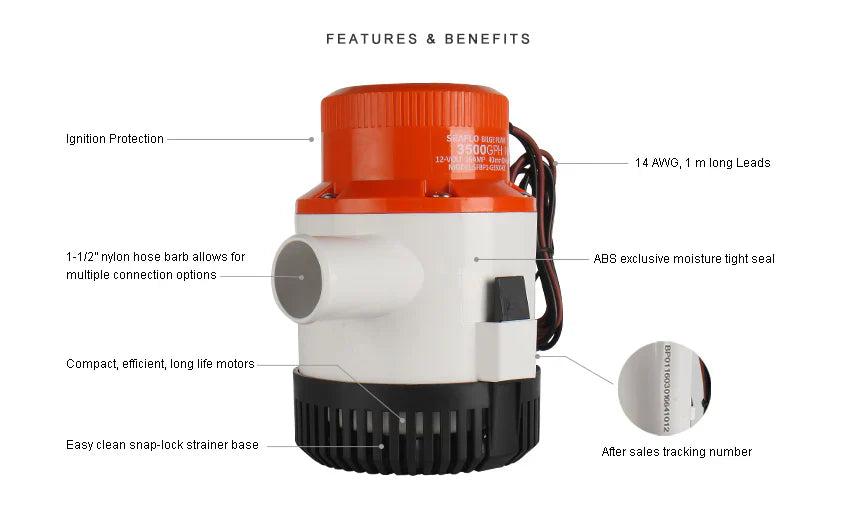

Key Features
- ✔ Direct fit for industry standard mounting bases
- ✔ Snap-off strainer for quick cleaning
- ✔ Entirely submersible & moisture tight
- ✔ Silent and vibrationless operation
- ✔ Ignition protected (ISO 8846)
Technical Specs
| Model: | BP2G300001 |
| Flow Rate: | 3000 GPH / 11356 LPH |
| Voltage: | 24V DC |
| Current Draw: | 7.0A (Max 9.0A) |
| Outlet Dia: | 1-1/2" (40mm) |

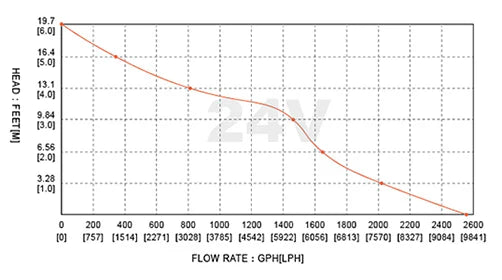

| Max Head: | 8m / 26ft |
| Wire Lead: | 14AWG x 1m |
Compatibility / Fitment Guide
| Make/System | Application | Notes |
|---|---|---|
| 24V Marine Systems | Yachts, Tugs, Workboats | Requires 24V DC power source |
| Manual Operation | Switch or Float Activated | Non-auto; needs external switch |
| Industrial / RV | High Volume Transfer | Intermittent duty only |
OEM Cross Reference
| SEAFLO Part Number | BP2G300001 / SFBP2-G3000-01 |
| Rule Equivalent | Replaces Rule 3000 / 3700 (24V Models) |
| Mounting Pattern | Industry Standard Conventions |
Questions & Answers
Is this an automatic pump?
No, this is a non-automatic manual bilge pump. It must be used with an external float switch or a manual dashboard panel switch to operate.
What size hose do I need for the outlet?
This pump requires a 1-1/2 inch (40mm) internal diameter hose for maximum flow performance.
Can this be used with a 12V battery?
No, the BP2G300001 is designed specifically for 24V DC systems. Using it with 12V will result in significantly reduced performance or motor failure.
Note: Please verify your original part number and system voltage against the references above before purchasing. For support, visit 4boats.co.uk.
