SEAFLO 24V 2000GPH Marine Bilge Pump Non-Automatic SFBP2-G2000-01
SEAFLO 24V 2000GPH Marine Bilge Pump Non-Automatic SFBP2-G2000-01
Couldn't load pickup availability
SEAFLO SFBP2-G2000-01 BILGE PUMP
2000 GPH | 24V DC | Heavy Duty 01-Series
The Seaflo 01-Series SFBP2-G2000-01 is a high-capacity, non-automatic bilge pump designed for the toughest marine environments. Engineered for high-volume water evacuation, this 24V pump is ideal for larger leisure boats and commercial vessels requiring reliable performance. Its robust motor is liquid-cooled for extended longevity, and the unit features a quick-release strainer for effortless maintenance.

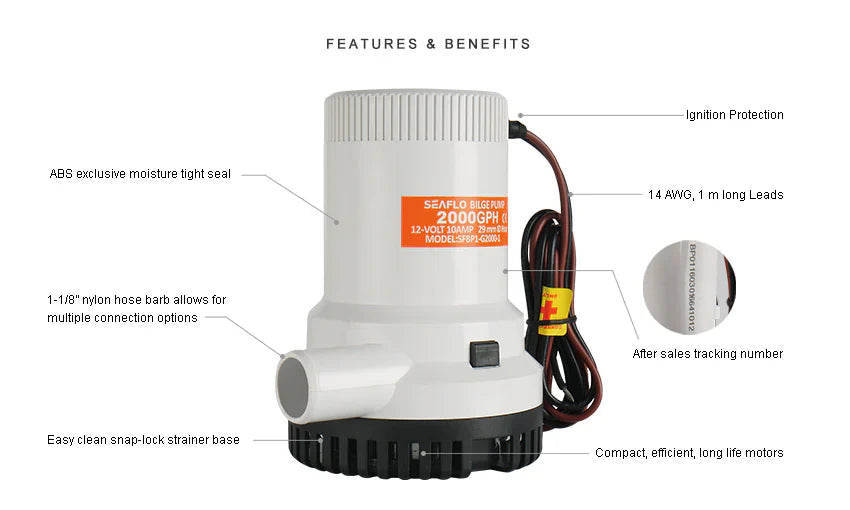

Key Features
- ✔ 2000 GPH (7571 LPH) High-Flow Output
- ✔ Heavy Duty Liquid Cooled Motor
- ✔ Snap-lock Strainer Base for Easy Cleaning
- ✔ Completely Submersible & Ignition Protected
- ✔ Stainless Steel Shaft & Moisture Tight Seals
Technical Specs
| Model: | SFBP2-G2000-01 |
| Voltage: | 24V DC |
| Flow Rate: | 2000 GPH |
| Amp Draw: | 4.0A |
| Fuse Amps: | 7.0A |
| Head (Lift): | 6m (20') |
| Outlet Dia: | 29mm (1-1/8") |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Application Guide
| System Type | Application | Notes |
|---|---|---|
| Marine | Bilge Water Removal | Non-automatic; requires float switch or panel switch. |
| Commercial | Fishing Vessels / Workboats | High capacity for demanding environments. |
| Solar / Off-grid | Water Transfer | Suitable for 24V DC battery systems. |
OEM Cross Reference
| Brand | Part Number / Equivalent |
| Seaflo | SFBP2-G2000-01 / BP2G200001 |
| Rule | Rule 2000 (Model 12 / 12A) - 24V Version |
| Johnson | L2200 (24V) |
Questions & Answers
Is this a genuine original part?
This is a genuine Seaflo premium quality marine part, manufactured to high industry standards. Seaflo is a leading global manufacturer of marine and RV water systems.
How do I know if it is compatible?
Check your existing pump's voltage and GPH rating. This is a 24V system. If your original part matches the cross-reference numbers (like Rule Model 12 24V), this is a compatible high-performance replacement.
Does this pump turn on automatically?
No, the 01-Series is a non-automatic pump. It must be used with a separate float switch or a manual dashboard toggle switch to activate.
Note: Please verify your original system voltage (24V) before purchasing. For 12V applications, please see the SFBP1-G2000-01. Available at 4boats.co.uk.
