SEAFLO 24V 800GPH Bilge Pump 13A Non-Automatic Marine Boat

SEAFLO 24V 800GPH Bilge Pump 13A Non-Automatic Marine Boat

£33.82 GBP
£33.82 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Serviceable 24V non-automatic bilge pump

A compact, cartridge-style submersible pump for bilge drainage on 24V boats. It is operated by a panel switch or compatible external float switch and uses a quick-release motor cartridge and snap-lock strainer to simplify cleaning and replacement.

Technical specifications

Manufacturer model SFBP2-G800-13A
Supply voltage 24V DC
Maximum open-flow rating 800 GPH (approximately 3,028 L/h)
Rated current 2.0A
Maximum head 3m / 9ft
Operating mode Non-automatic; external switching required
Construction Submersible and ignition protected; stainless-steel motor shaft and moisture-tight seals
Installation features Anti-airlock protection, check valve, threaded discharge and removable straight fitting
Approximate size 12.27 x 7.6 x 12cm
Unit weight Approximately 0.47kg
Compliance CE, RoHS, ISO 8846 and ISO 8849
Manufacturer warranty 2 years

Applications and compatibility

  • For 24V DC motorboats, yachts, RIBs, fishing craft and workboats needing a compact 800GPH-class pump.
  • Suitable as a controlled primary or auxiliary bilge pump when capacity is appropriate for the vessel.
  • Compatible with a properly rated 24V panel switch or external float switch; control components are not integrated.
  • Actual flow depends on discharge head and plumbing resistance.

Installation and package contents

  • Mount the strainer securely at the lowest practical bilge point and keep the cartridge accessible for maintenance.
  • Use smooth-bore marine hose of the correct outlet size with minimal bends and an above-waterline discharge arrangement.
  • Provide correctly sized marine cable and circuit protection; do not connect this 24V pump to 12V.

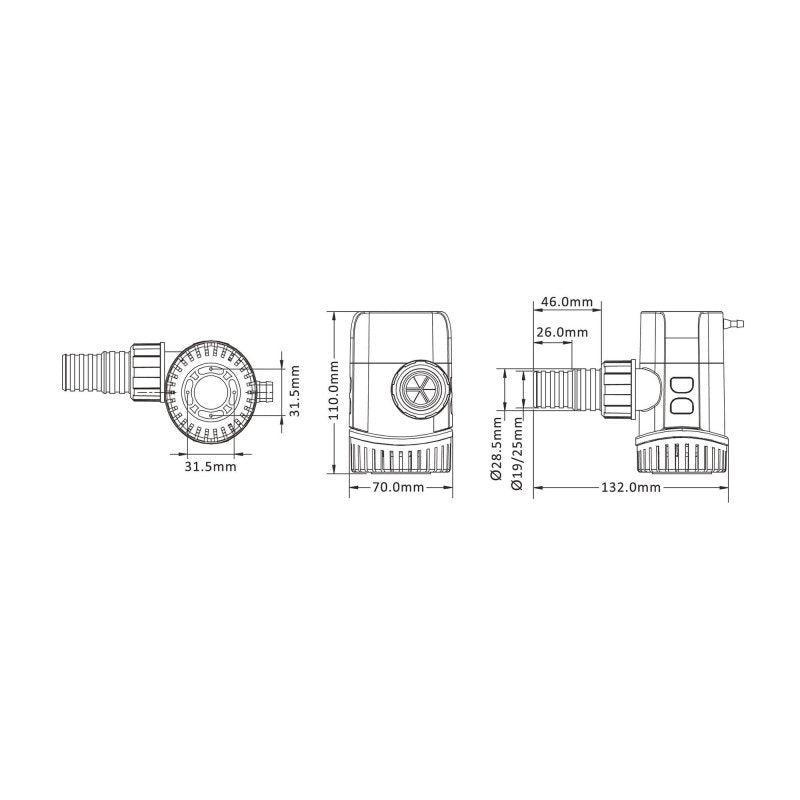

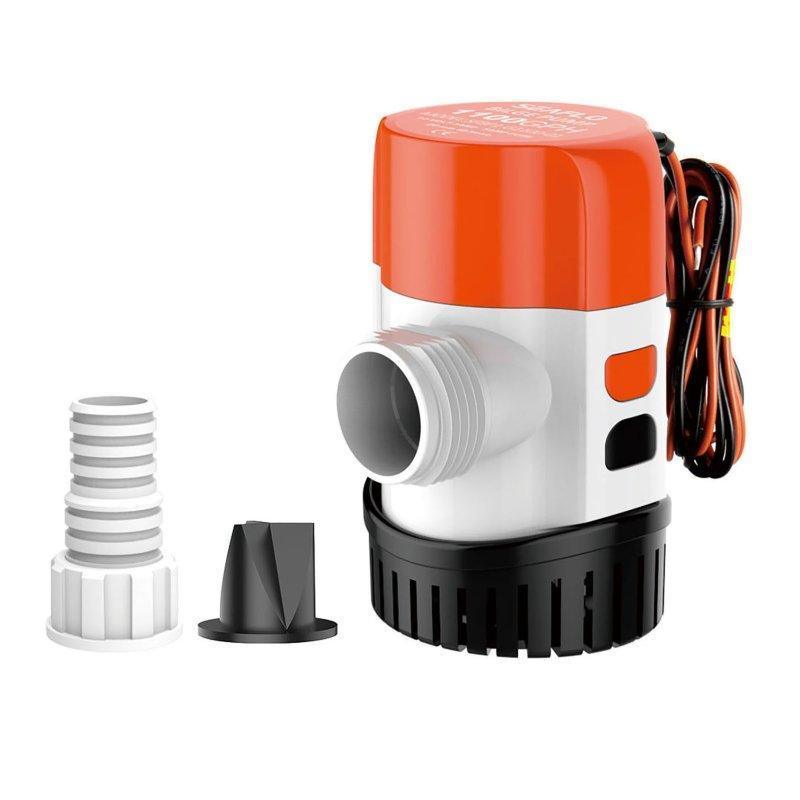

  • Package contains one SEAFLO 13A pump with strainer/base, check valve, removable straight discharge fitting and wiring. Verify hose size and footprint from the installation drawing before ordering.

Frequently asked questions

Does it switch itself on when water rises?

No. Add a compatible float switch or operate it from a panel switch.

Can I use it on a 12V electrical system?

No. This model is designed for 24V DC.

Is the motor removable for cleaning?

Yes. The cartridge-style design allows the motor module to be removed from the strainer/base.

Is 800GPH the installed flow rate?

It is the nominal open-flow rating; lift and hose resistance reduce real output.
