SEAFLO 12V 1100GPH Auto Bilge Pump Low Profile Water Sensing BP1G110014A
SEAFLO 12V 1100GPH Auto Bilge Pump Low Profile Water Sensing BP1G110014A
Couldn't load pickup availability

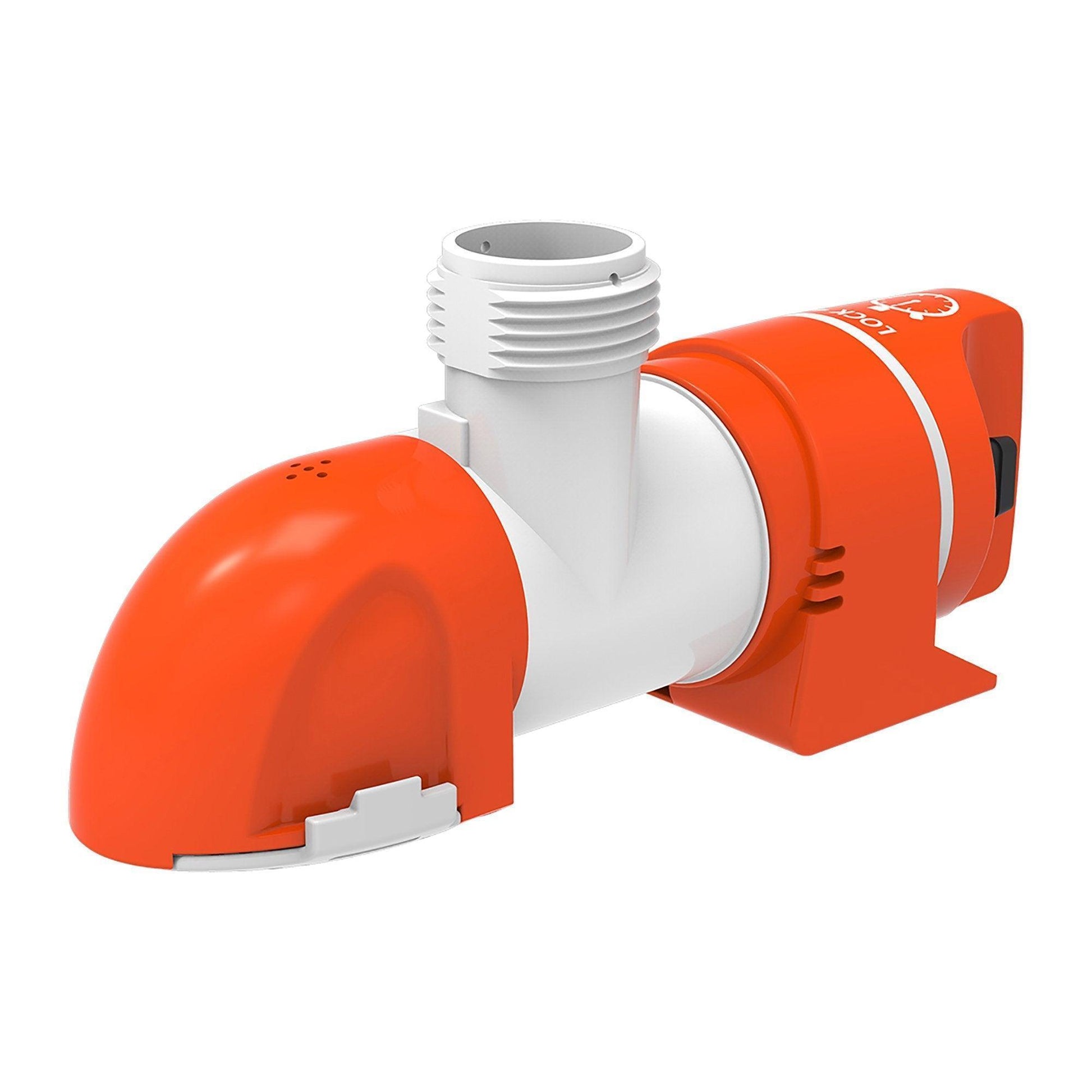

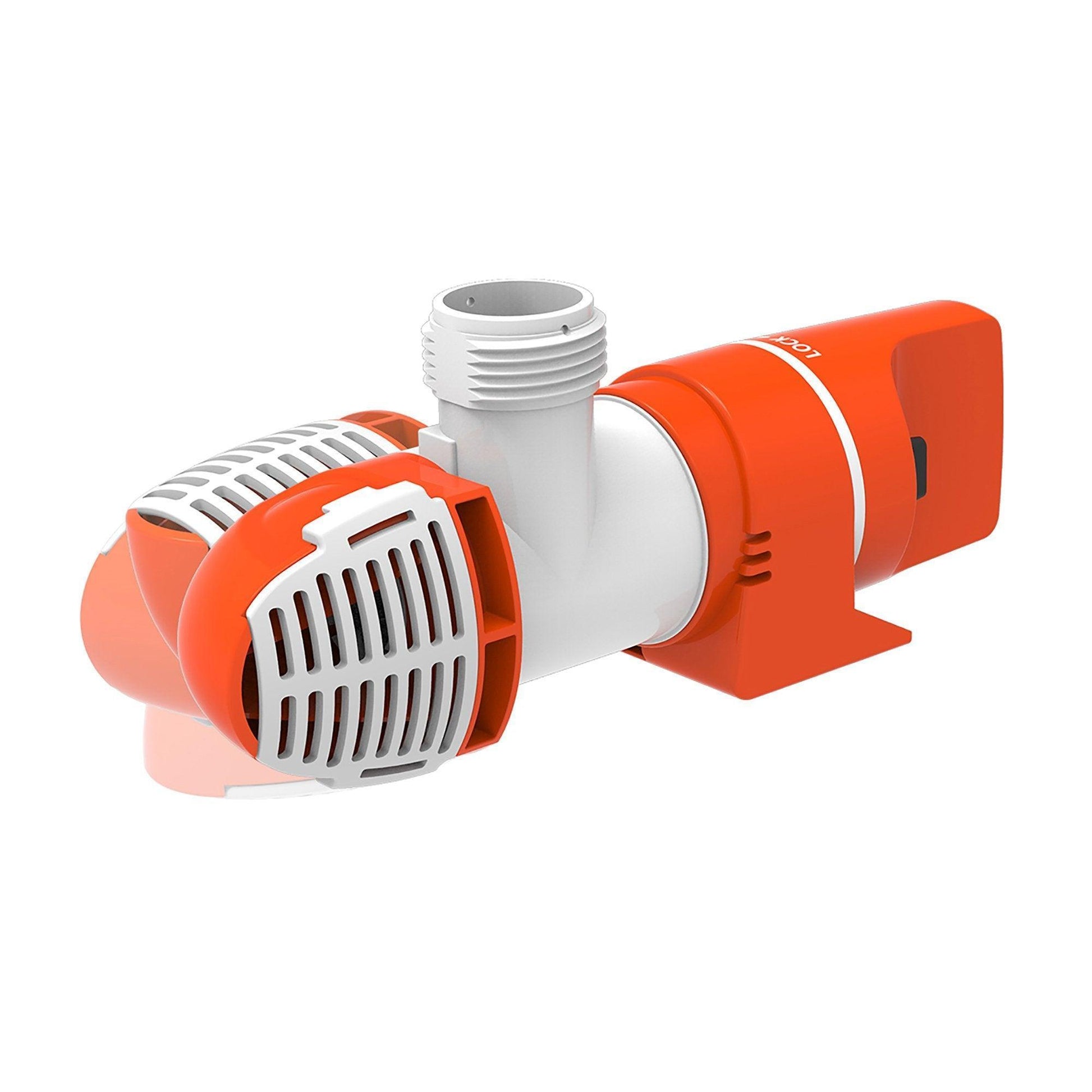

SEAFLO 1100GPH Low Profile Auto Bilge Pump
Model: BP1G110014A | 14A Series Water Level Sensing
The SEAFLO 14A Series represents the next generation in low-profile bilge management. This 1100 GPH automatic pump is specifically engineered for narrow or shallow bilge areas where traditional upright pumps simply won't fit. Featuring advanced water level sensing technology, it automatically activates when water reaches 4.5cm (1.77") and deactivates when levels drop, ensuring your vessel remains dry without the need for a separate float switch.
Key Features
- ✔ Narrow Low Profile: Fits deep into small or awkward bilge spaces.
- ✔ 360° Discharge: Outlet rotates to suit your plumbing layout.
- ✔ Anti-Airlock Protection: Engineered to prevent air pockets.
- ✔ Included Check Valve: Prevents water back-flow into the bilge.
- ✔ Drain Down: Leaves the bilge almost dry (down to 10mm).
Technical Specs
| Flow Rate: | 1100 GPH (4164 LPH) |
| Voltage: | 12V DC |
| Max Current: | 4.2 Amps |
| Max Head: | 4.0m (13') |
| Wire Lead: | 1m (18 AWG) |
| Dimensions: | 230 x 145 x 70 mm |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Marine Vessels | Small craft up to 24m (78ft) | Certified per ISO 8849 |
| Bilge Systems | Shallow or narrow bilges | Vertical or Horizontal mounting |

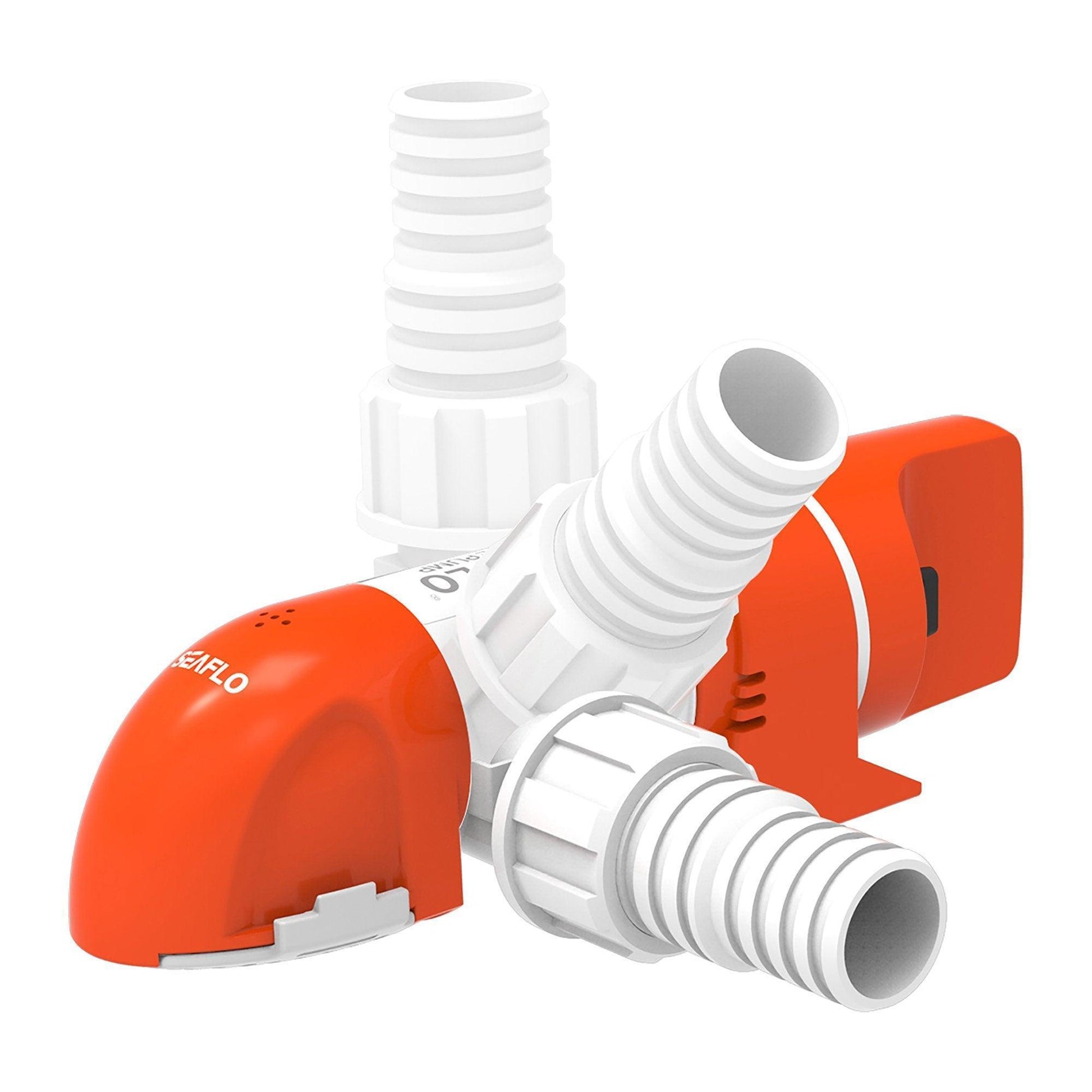

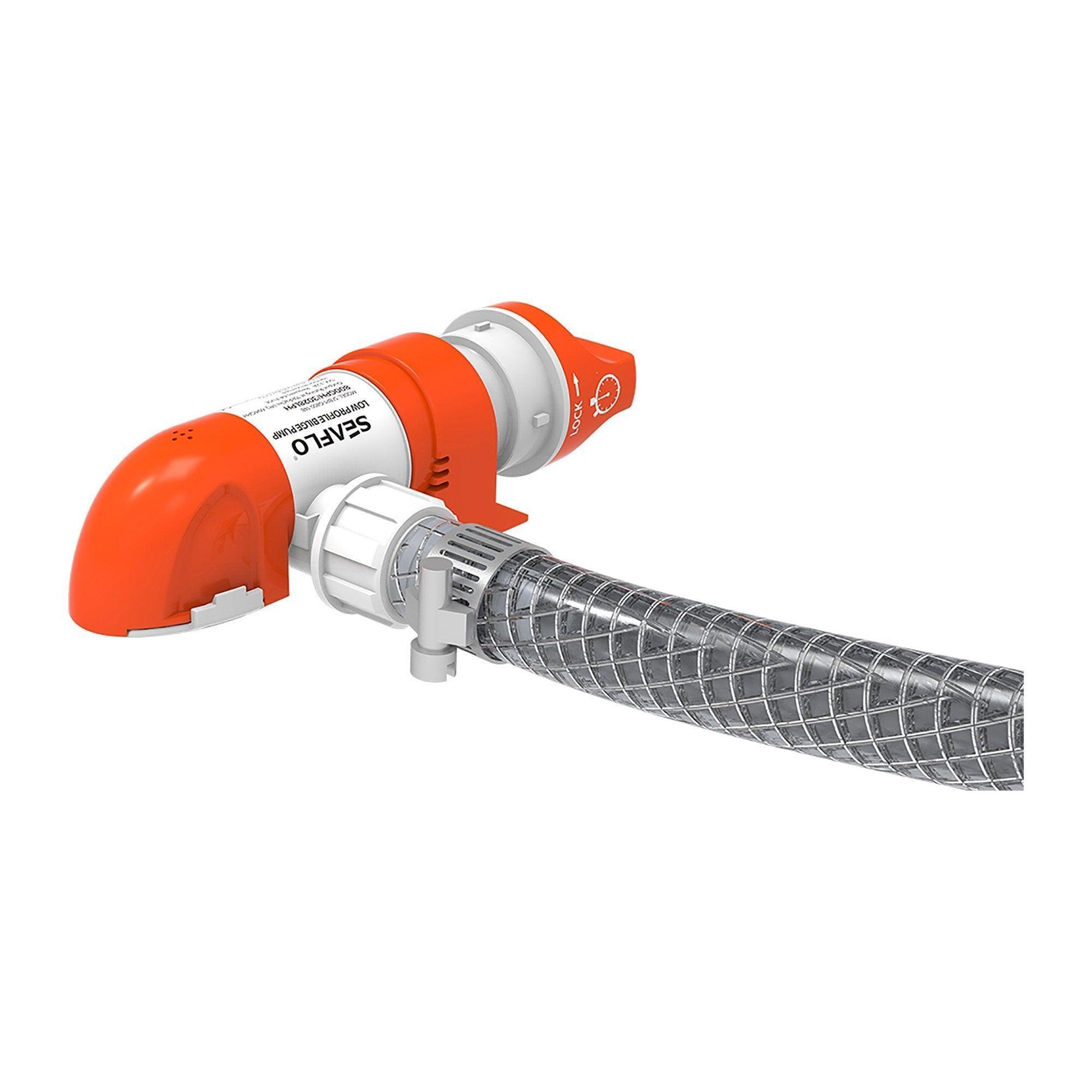

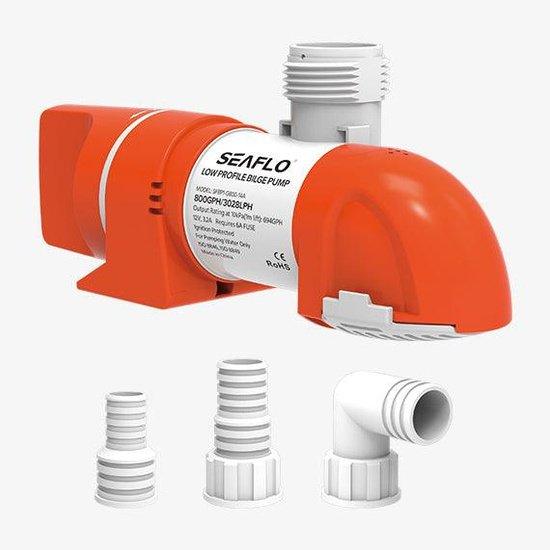

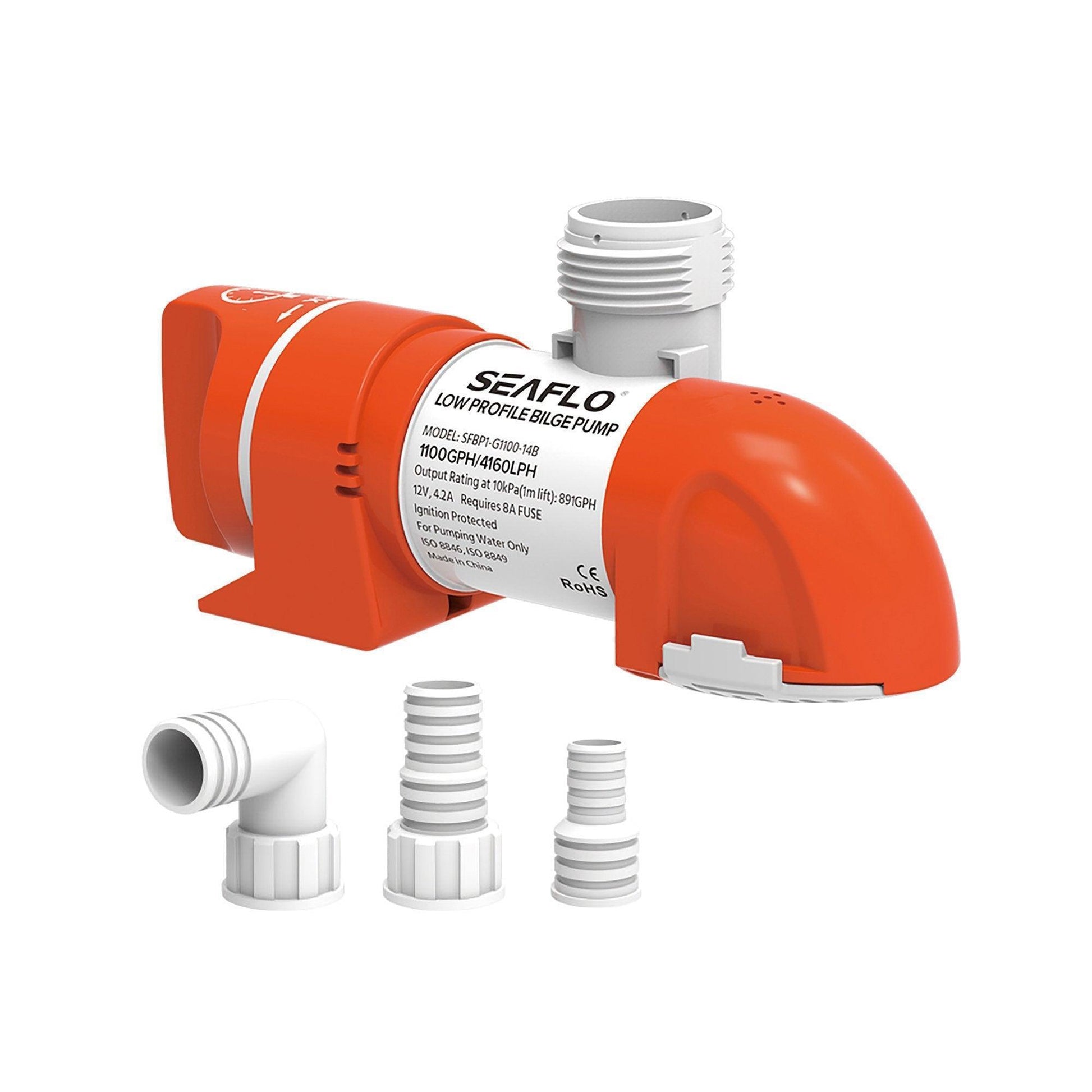

| Hose Connection | 19mm (3/4"), 25mm (1"), 29mm (1-1/8") | Multi-size straight barbs + elbow included |
OEM Cross Reference
| SEAFLO SKU | BP1G110014A |
| SEAFLO MPN | SFBP1-G1100-14A |
| Competitor Equivalent | Rule LP900S (Similar Profile) |
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO 14A Series premium marine component, manufactured to international standards (CE, RoHS, ISO) for high-performance bilge management.
How do I know if it is compatible?
If you have a 12V electrical system and require a low-profile automatic pump, this unit is highly compatible. Verify the dimensions (230x70mm) to ensure it fits your specific bilge cavity.
Does it require a separate float switch?
No. The BP1G110014A features built-in water level sensing technology that automatically starts and stops the pump based on the presence of water.
Note: Please verify your original mounting space and voltage (12V) against the references above before purchasing. Domain: 4boats.co.uk.
