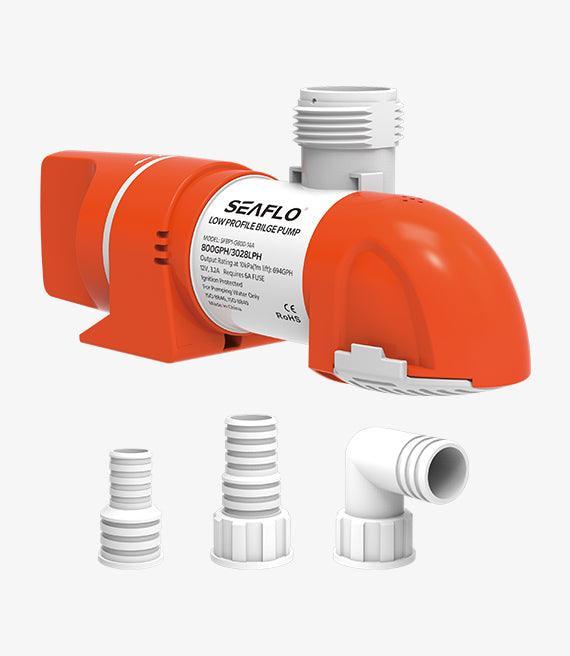

SEAFLO 24V 800 GPH Automatic Low Profile Bilge Pump 14A Series BP2G80014A
SEAFLO 24V 800 GPH Automatic Low Profile Bilge Pump 14A Series BP2G80014A
Couldn't load pickup availability
SEAFLO BP2G80014A 24V 800 GPH
Automatic Low-Profile Bilge Pump (14A Series)
The SEAFLO 14A Series represents the next generation of automatic bilge pumping. This low-profile, narrow-designed pump is engineered specifically for tight or awkward bilge spaces where traditional pumps cannot fit. Featuring advanced water-level sensing technology, the BP2G80014A automatically activates when water levels reach 4.5cm, removing the need for a separate float switch.
Key Features
- ✔ Integrated Sensor: No float switch needed.

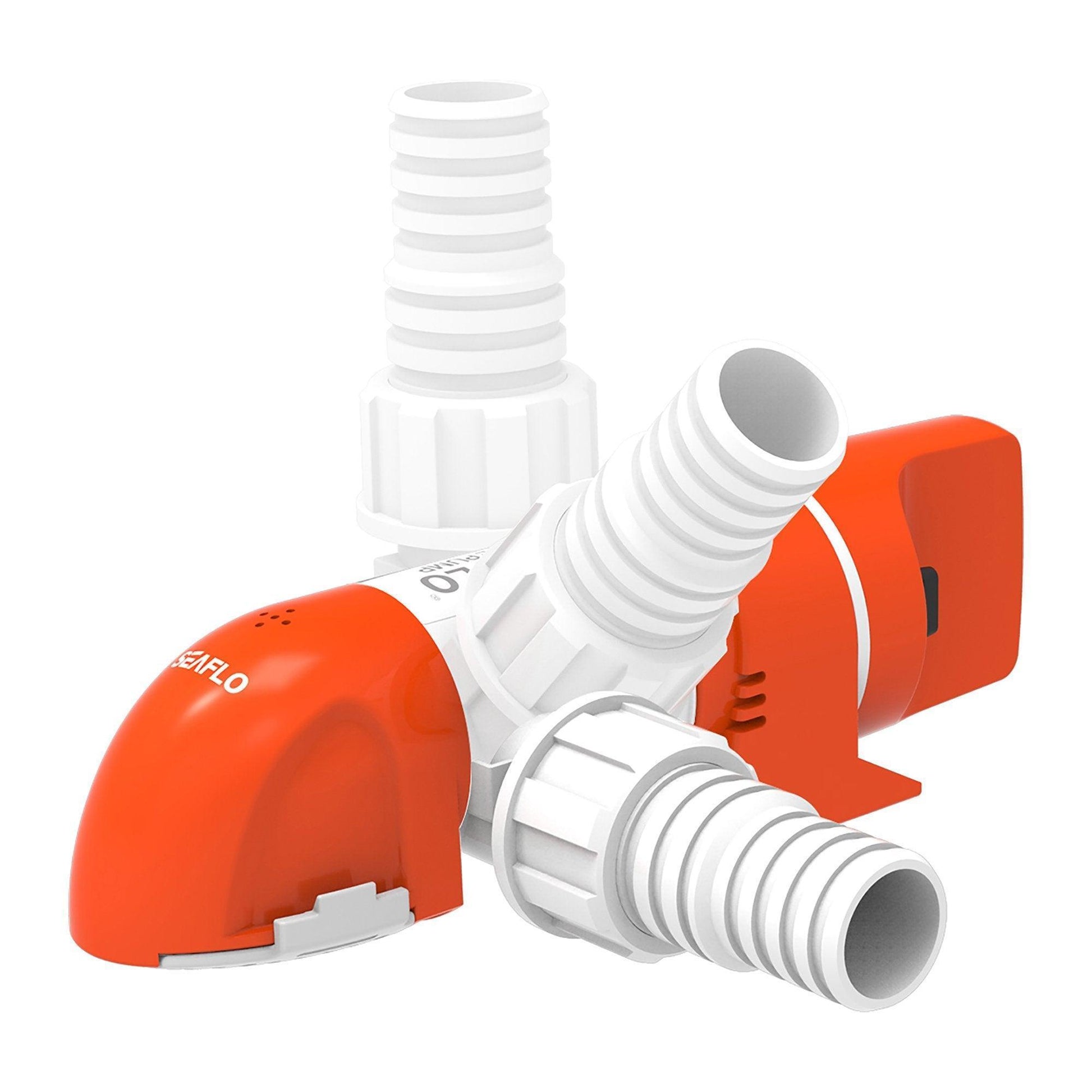

- ✔ Flexible Installation: Body & outlet rotate 360°.
- ✔ Low Profile: Drains down to 10mm (1/3").
- ✔ Non-Return Valve: Prevents backflow.
- ✔ Anti-Airlock: Efficient five-blade impeller.
Technical Specs
| Voltage | 24V DC |
| Flow Rate | 800 GPH (3028 LPH) |
| Current Draw | 2.0A |
| Max Head | 3.2m (10.5') |
| Outlet Size | 19mm, 25mm, 29mm |
| Wire Lead | 1m (18 AWG) |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| 24V DC Marine | Boat & Yacht Bilges | Suitable for crafts up to 24m. |
| Narrow Bilges | Low Clearance Spaces | Can be mounted horizontally or vertically. |
| Replacement | Automatic Systems | Replaces manual pump + float switch setups. |
OEM Cross Reference
| SEAFLO SKU | BP2G80014A |
| SEAFLO MPN | SFBP2-G800-14A |
| Comparable Model | Rule LP800S-24 / Whale Supersub Smart |
Questions & Answers
Is this a genuine original part?
This is a premium quality SEAFLO replacement part, manufactured to meet or exceed original equipment (OE) standards for marine performance. It is supplied by 4Boats.
How do I know if it is compatible?
If your current system is 24V and you require an automatic pump for a narrow space, the BP2G80014A is an ideal fit. Check the cross-reference list to match your existing part number.
Does this pump require a separate float switch?
No. The 14A series features built-in electronic water level sensing. The pump will turn on automatically when water reaches 4.5cm and shut off once the water is cleared.
Note: Please verify your original voltage (24V) and part number against the references above before purchasing. Distributed by 4boats.co.uk.
