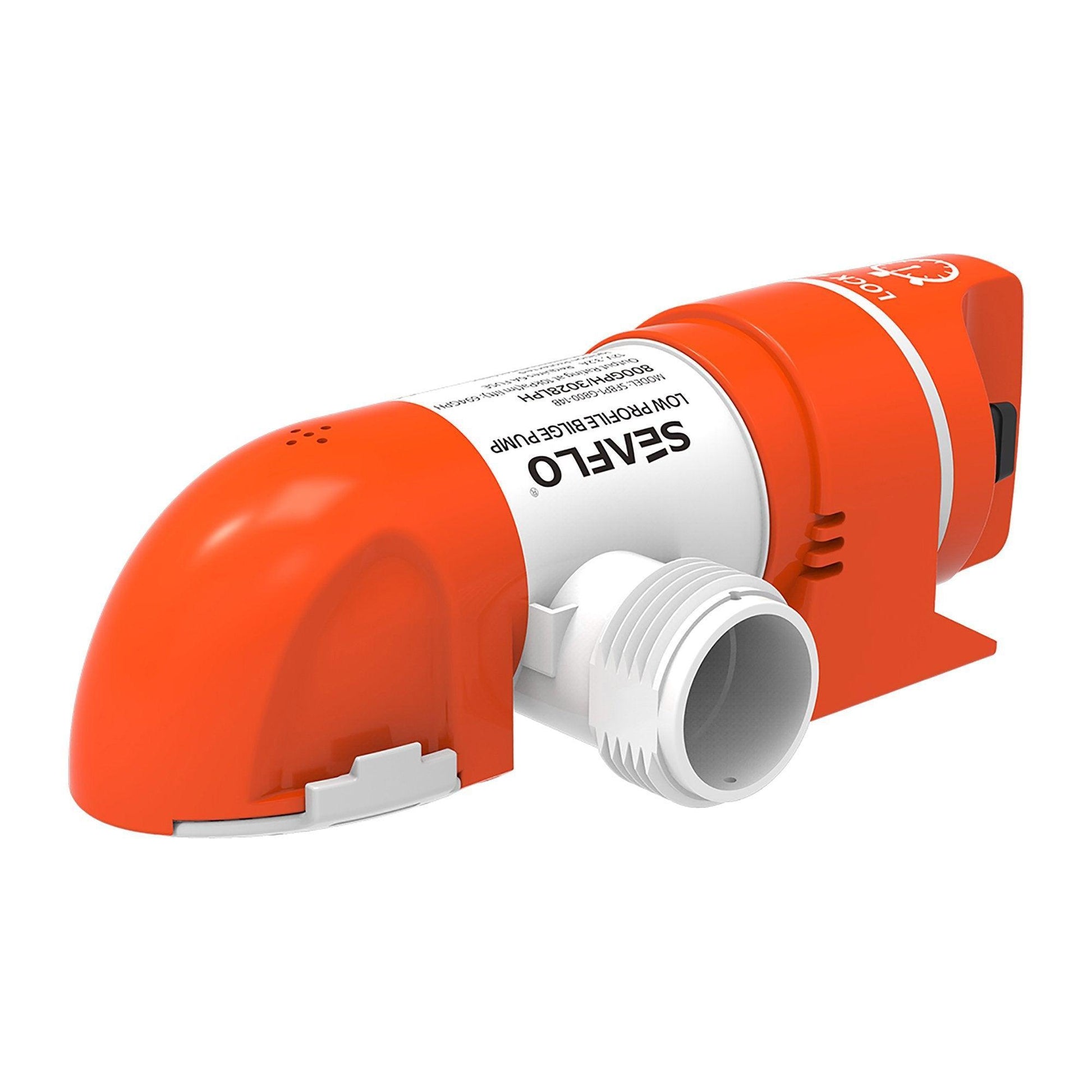

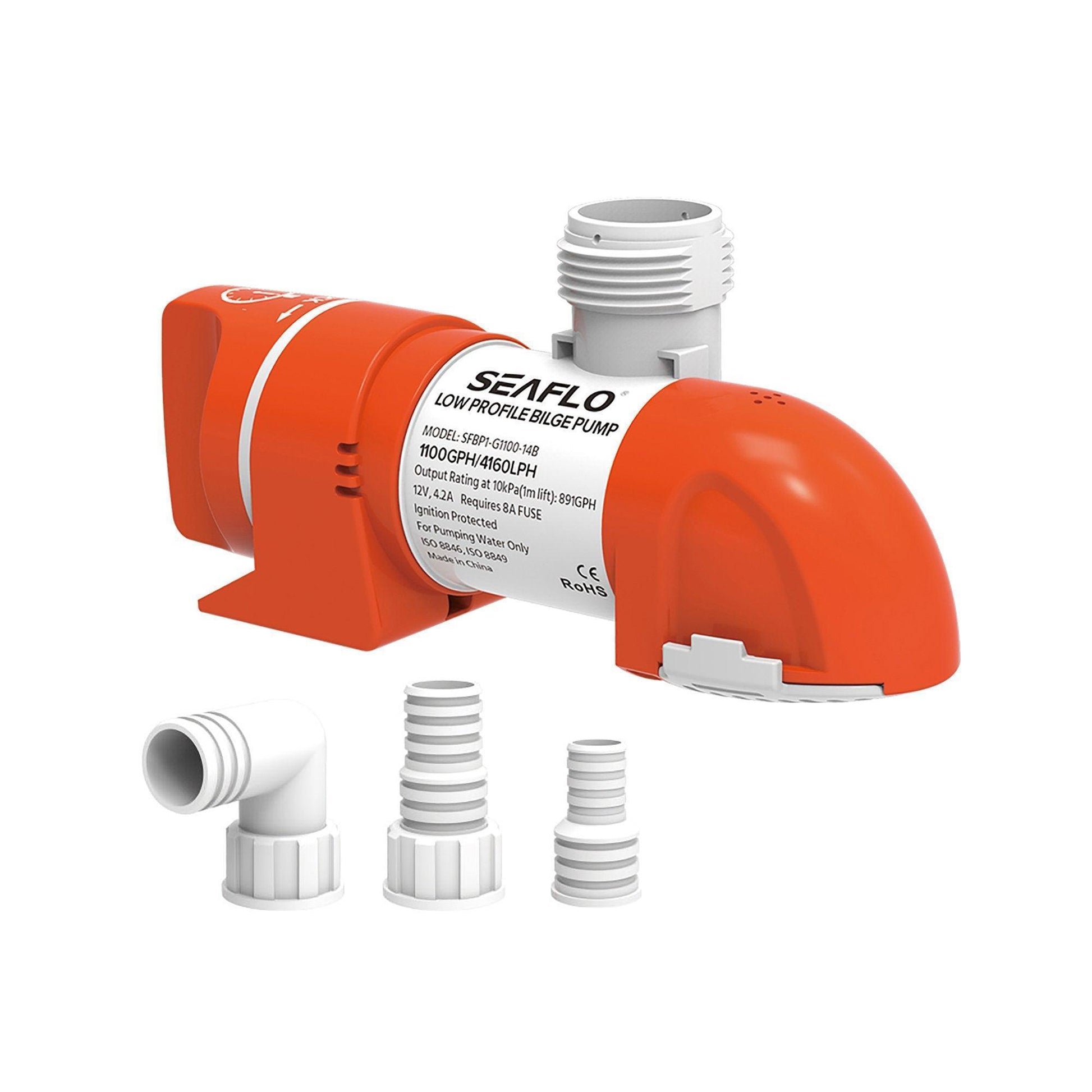

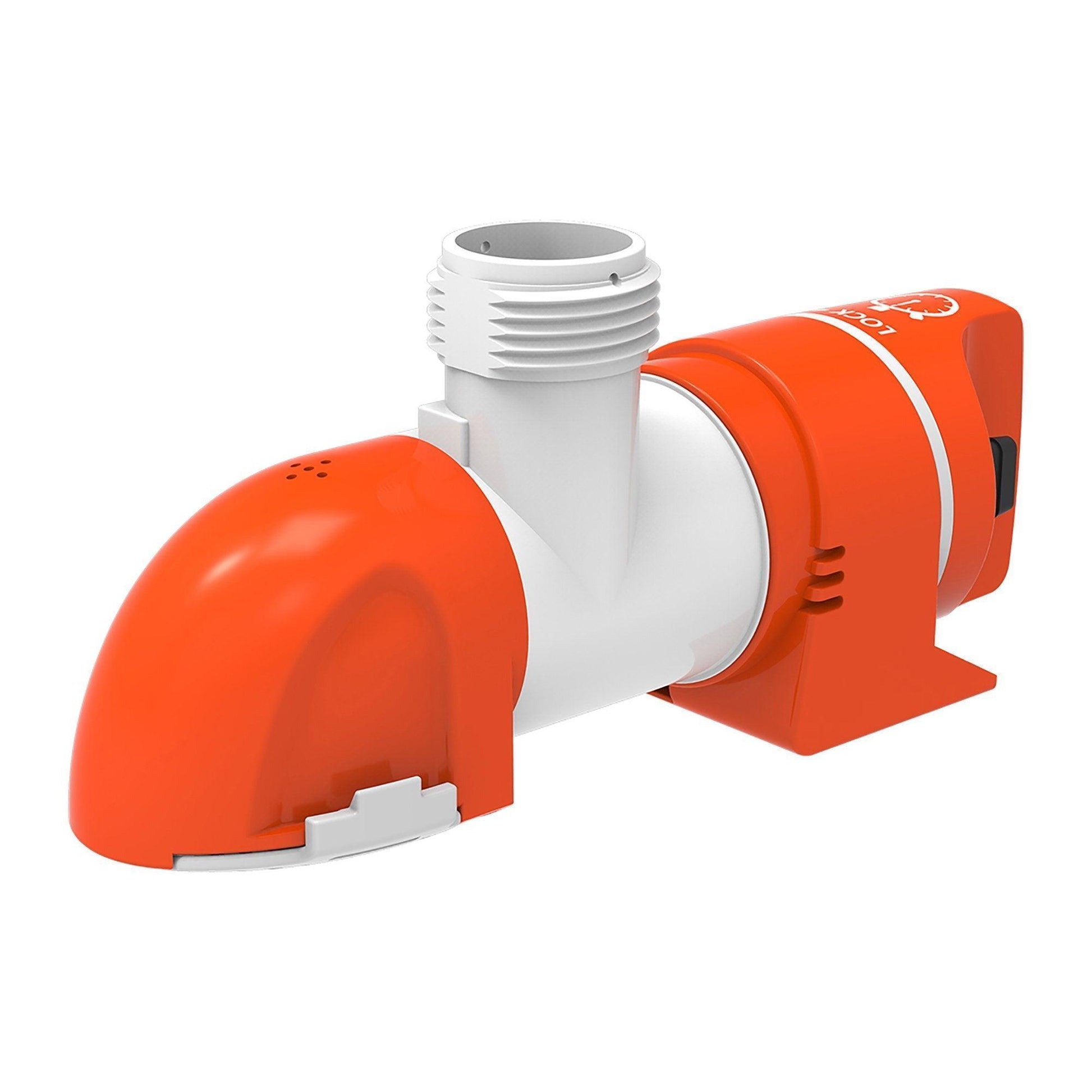

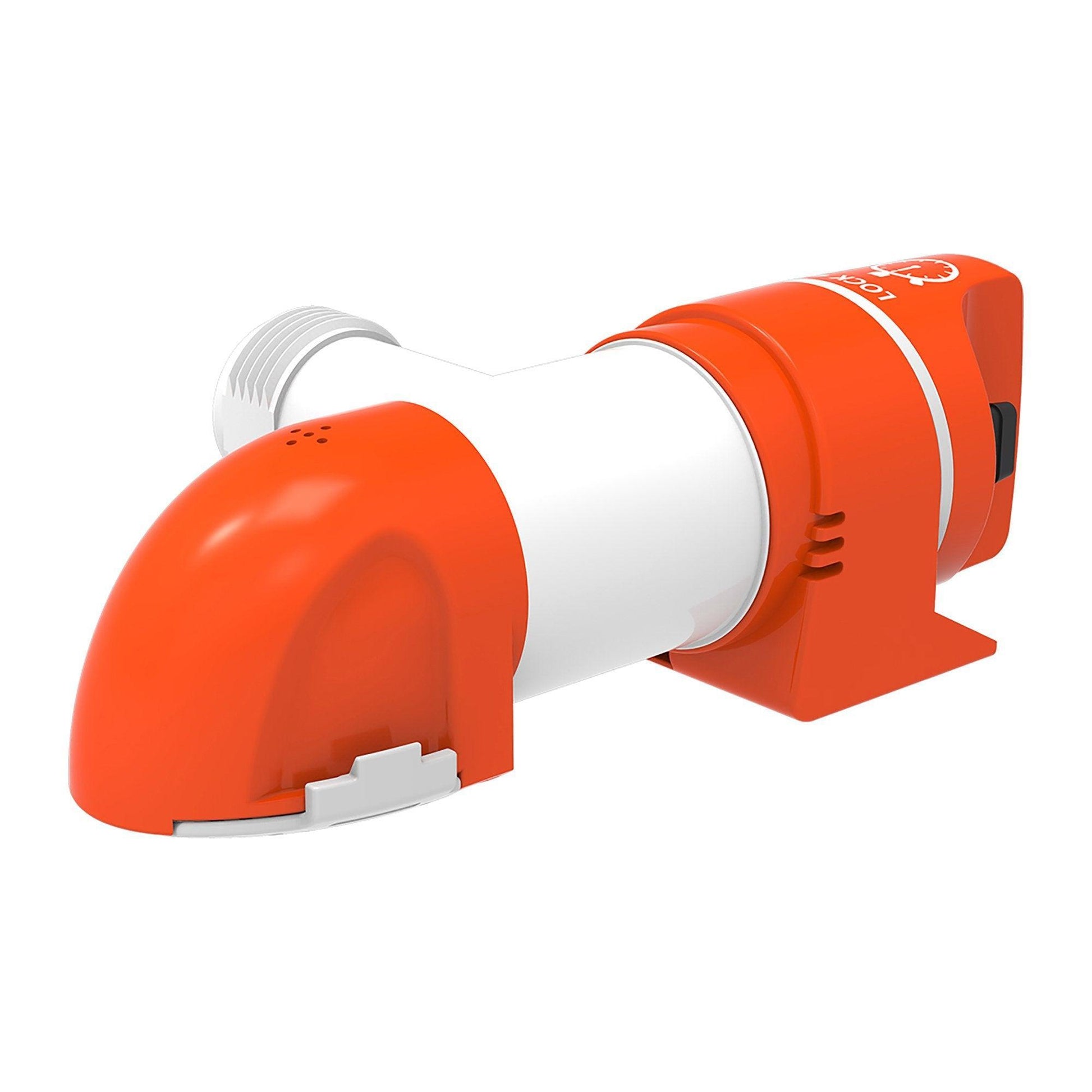

SEAFLO BP1G110014B 1100GPH AUTO PUMP
14B Series Low Profile | 12V Timer Sensing Technology
The SEAFLO BP1G110014B is a high-performance, low-profile automatic bilge pump engineered for vessels where space is at a premium. Unlike traditional pumps, the 14B Series utilizes intelligent timer-sensing technology, eliminating the need for a separate float switch. The pump automatically checks for water every 2.5 minutes, ensuring your bilge remains dry without manual intervention.
Key Features
- ✔ No Float Switch Needed: Fully automatic operation.
- ✔ Low Profile Design: Fits into tight, narrow bilge areas.

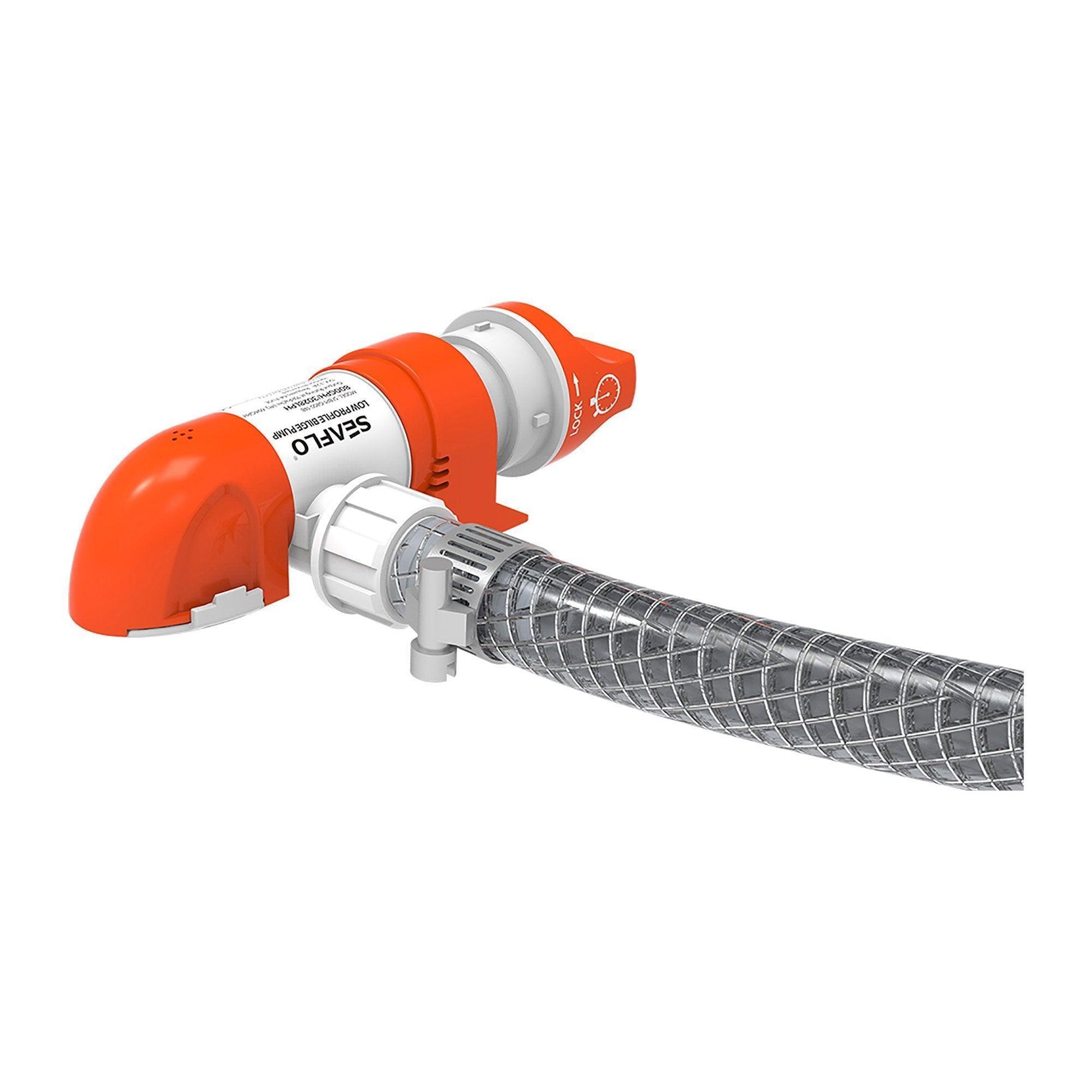

- ✔ 360° Rotation: Body and outlet rotate for easy plumbing.
- ✔ Anti-Airlock Protection: Prevents pump air-binding.
- ✔ Marine Grade: Tin-coated wiring & stainless shaft.
Technical Specs
| Voltage: | 12V DC |
| Flow Rate: | 1100 GPH (4164 LPH) |
| Max Current Draw: | 4.2A |
| Max Head: | 4.0m (13 ft) |
| Hose Outlet: | 19mm, 25mm, 29mm |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine Vessels | Boats up to 24m (79ft) | Ideal for yachts, bass boats, and RIBs. |
| Tight Bilge Spaces | Low Profile Install | Fits where standard vertical pumps cannot. |
| Automated Drainage | Timer Sensing | Replaces manual or float-switch systems. |
OEM Cross Reference
| SEAFLO MPN: | BP1G110014B / SFBP1-G1100-14B |
| Category: | 14B Series Automatic Low Profile Pumps |
| Standards: | CE, RoHS, ISO 8846, ISO 8849 |
Questions & Answers
Is this a genuine original part?
This is a genuine SEAFLO 14B Series product, manufactured to strict marine industry standards for reliability and durability.
How do I know if it is compatible?
This pump is compatible with any 12V marine system. It is designed to replace 1100 GPH pumps in tight spaces. Check your hose diameter (19mm to 29mm supported).
Does this pump run constantly?
No. It uses a "smart" timer. It quickly pulses for 0.5 seconds every 2.5 minutes. If it feels the resistance of water, it stays on. If not, it shuts off immediately to save battery.
Note: Distributed by 4boats.co.uk. Please verify your power supply (12V DC) before installation.
