Seaflo 24V 800GPH Auto Bilge Pump

Model: BP2G80014B | 14B Series Timer Sensing

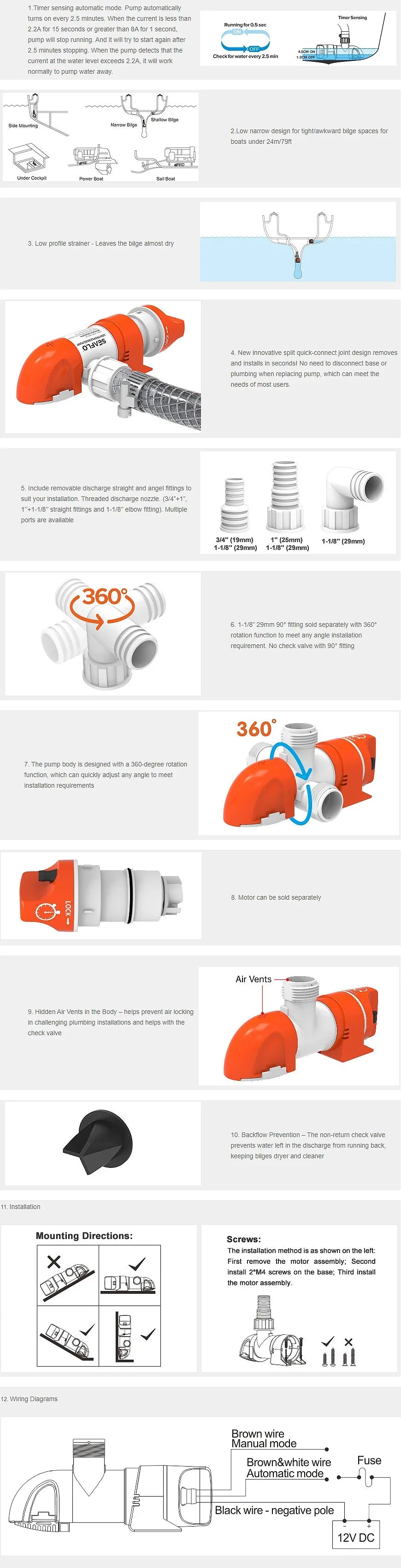

The Seaflo 14B Series BP2G80014B is a high-performance, low-profile automatic bilge pump designed specifically for narrow or awkward bilge spaces where traditional pumps won't fit. Featuring intelligent Timer Sensing Technology, this pump automatically checks for water every 2.5 minutes, eliminating the need for a separate float switch and simplifying your vessel's electrical system.

RELIABILITY: Engineered with a stainless steel motor shaft and moisture-tight seals, this pump is built to withstand the harshest marine environments while providing a clean, dry bilge.

Key Features

  • ✔ Timer Sensing: Runs for 0.5s every 2.5 mins to detect water
  • ✔ Low Profile: Ideal for tight/shallow bilge areas
  • ✔ Versatile Mounting: Horizontal, Vertical, or Diagonal
  • ✔ 360° Discharge: Rotatable outlet for easy plumbing
  • ✔ Non-Return Valve: Integrated check valve prevents backflow

Technical Specs

Voltage 24V DC
Flow Rate 800 GPH (3028 LPH)
Max Draw 2.0 Amps
Fuse Size 3.0 Amps
Max Head 3.2m (10.5')
Outlet Dia 19mm / 25mm / 29mm
Wire Lead 18 AWG (1 meter)

Compatibility / Fitment Guide

System Voltage Application Type Notes
24V Marine Systems Commercial & Leisure Vessels Suitable for boats up to 24 meters
Compact Bilge Narrow/Shallow Keels Low 70mm height profile

OEM Cross Reference

Seaflo MPN SFBP2-G800-14B / BP2G80014B
Seaflo Series 14B Series Automatic (Timer)
Standard Certs CE, RoHS, ISO 8846, ISO 8849

Questions & Answers

Is this a genuine Seaflo part?

Yes, this is an authentic Seaflo 14B Series unit, specifically the BP2G80014B 24V model, known for its compact footprint and reliable automatic sensing.

How do I know if it is compatible?

We recommend checking your existing system voltage (must be 24V) and ensuring the GPH rating matches your discharge needs. If your part number matches BP2G80014B, this is the correct replacement.

Does this pump stay on constantly?

No. It uses "Smart Running" logic, checking for water every 2.5 minutes for a half-second. It only continues to run if it detects the resistance of water, saving battery power.

Note: Please verify your original part number and vessel voltage (24V) against the references above before purchasing. Distributed by 4boats.co.uk.
