SEAFLO 12V 800GPH Automatic Bilge Pump 14A Series BP1G80014A Water Level Sensing
SEAFLO 12V 800GPH Automatic Bilge Pump 14A Series BP1G80014A Water Level Sensing
Couldn't load pickup availability
SEAFLO BP1G80014A 800GPH PUMP
14A Series Low Profile Automatic Water Level Sensing
The SEAFLO 14A Series represents the pinnacle of narrow-profile bilge technology. Specifically designed for tight or awkwardly shaped bilge spaces, this 800 GPH pump features an integrated water level sensor that eliminates the need for a separate float switch. Its unique 360-degree rotating discharge allows for effortless installation in any orientation, ensuring your vessel remains dry even in the most restricted areas.
Key Features
- ✔ Auto-Sensing: Internal sensor starts at 4.5cm water level
- ✔ Low Profile: Ideal for narrow/shallow bilges

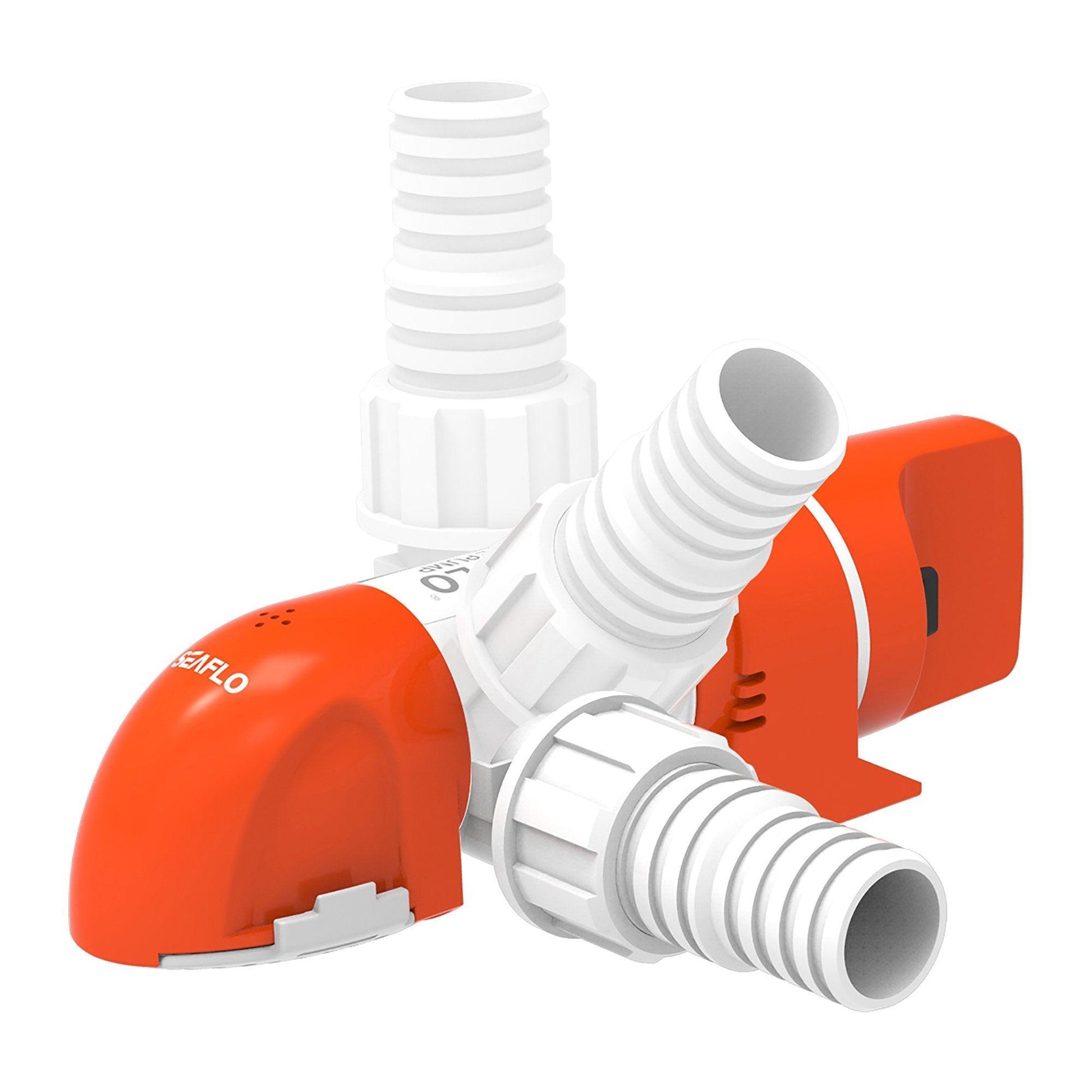

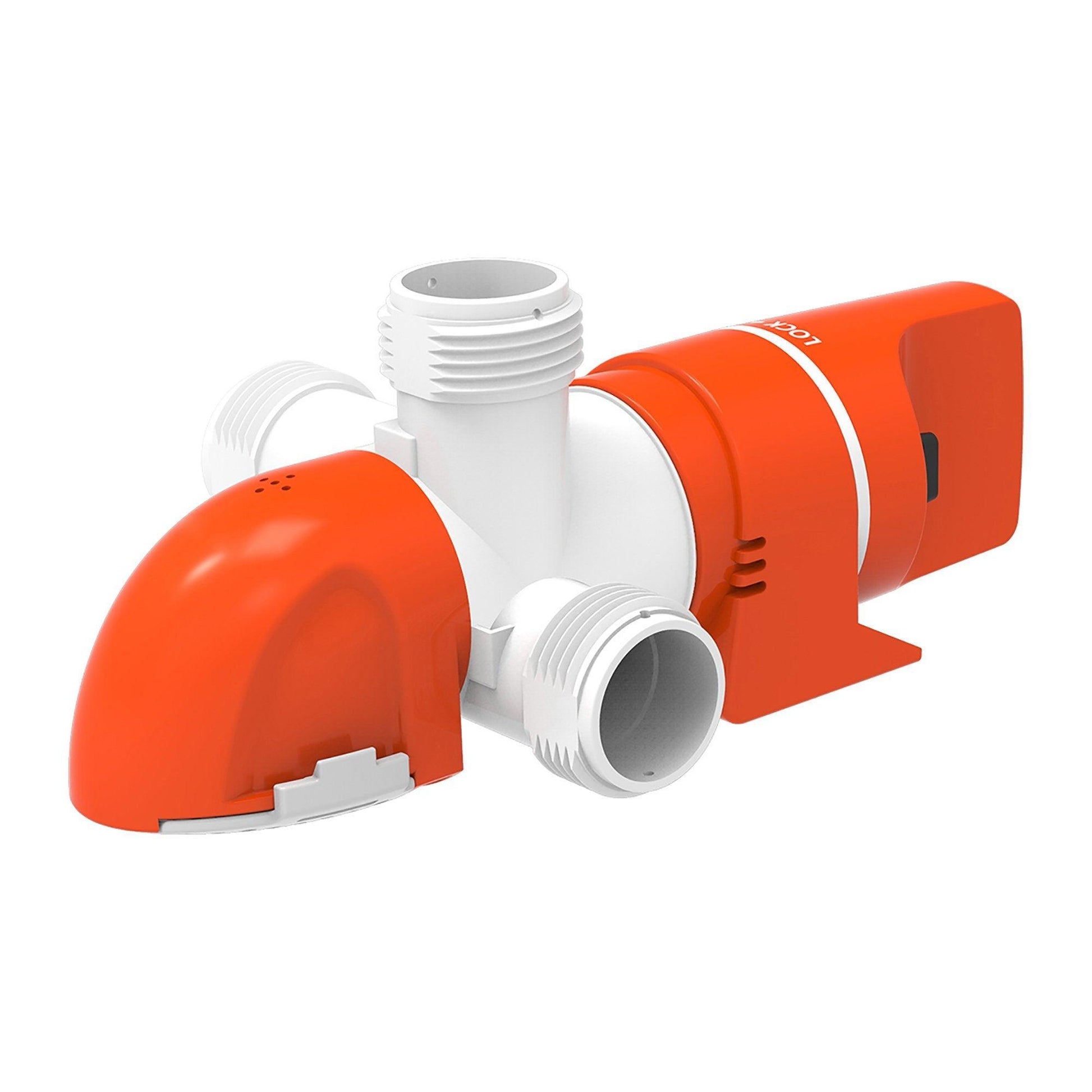

- ✔ 360° Rotation: Pump body rotates to fit plumbing
- ✔ Check Valve: Integrated non-return valve included
- ✔ Ignition Protected: Safe for all marine engine rooms
Technical Specs
| Flow Rate: | 800 GPH (3028 LPH) |
| Voltage: | 12V DC |
| Current Draw: | 3.2 Amps |
| Fuse Size: | 6.0 Amps |
| Max Head (Lift): | 3.2m (10.5') |

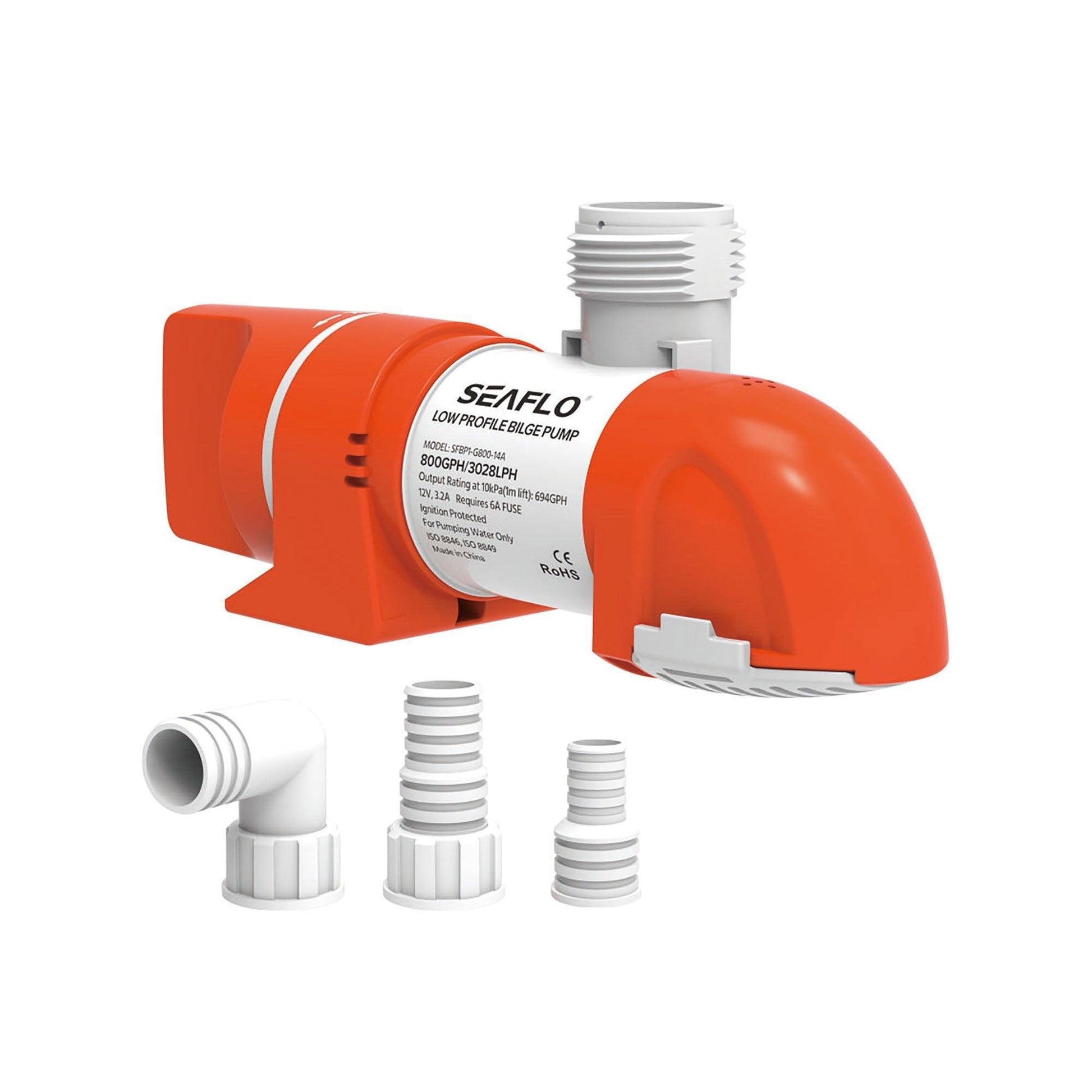

| Outlets Included: | 19/25/29mm Barbs |
| Wire Lead: | 1m (18 AWG) |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Marine Vessels | Boats up to 24m (79ft) | Primary Bilge Pump |
| Low Clearance Bilge | Kayaks, Bass Boats, Cruisers | Narrow Profile Application |
| 12V DC Systems | Universal Replacement | Standard Marine Wiring |
OEM Cross Reference
| SEAFLO SKU | BP1G80014A |
| Alternative SKU | SFBP1-G800-14A |
| Series Group | 14A Series (Automatic) |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine SEAFLO 14A Series automatic bilge pump, manufactured to exceed marine standards and ISO 8846/8849 certifications.
How do I know if it is compatible?
We recommend checking the SKU BP1G80014A. If your existing pump is a standard 12V 3/4" outlet pump, this will fit perfectly, especially in narrow bilge areas where vertical space is limited.
Does this pump require a separate float switch?
No, the 14A series features a built-in water level sensor. It automatically turns on when the water reaches approximately 4.5cm (1.77") and shuts off when the level drops below 1cm (0.39").
Note: Please verify your original part number and bilge dimensions against the specifications above before purchasing. Part of the 4boats.co.uk marine equipment range.
