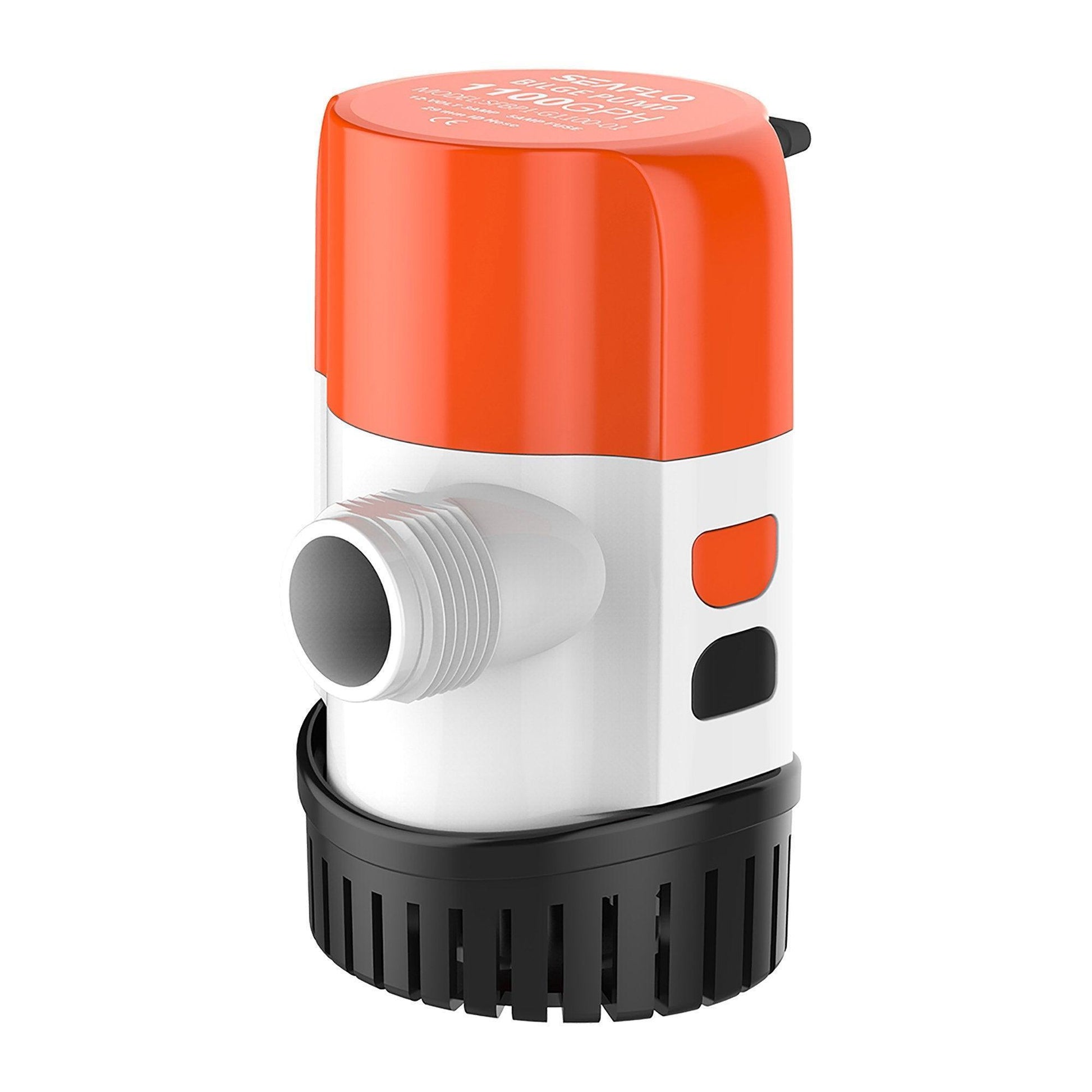

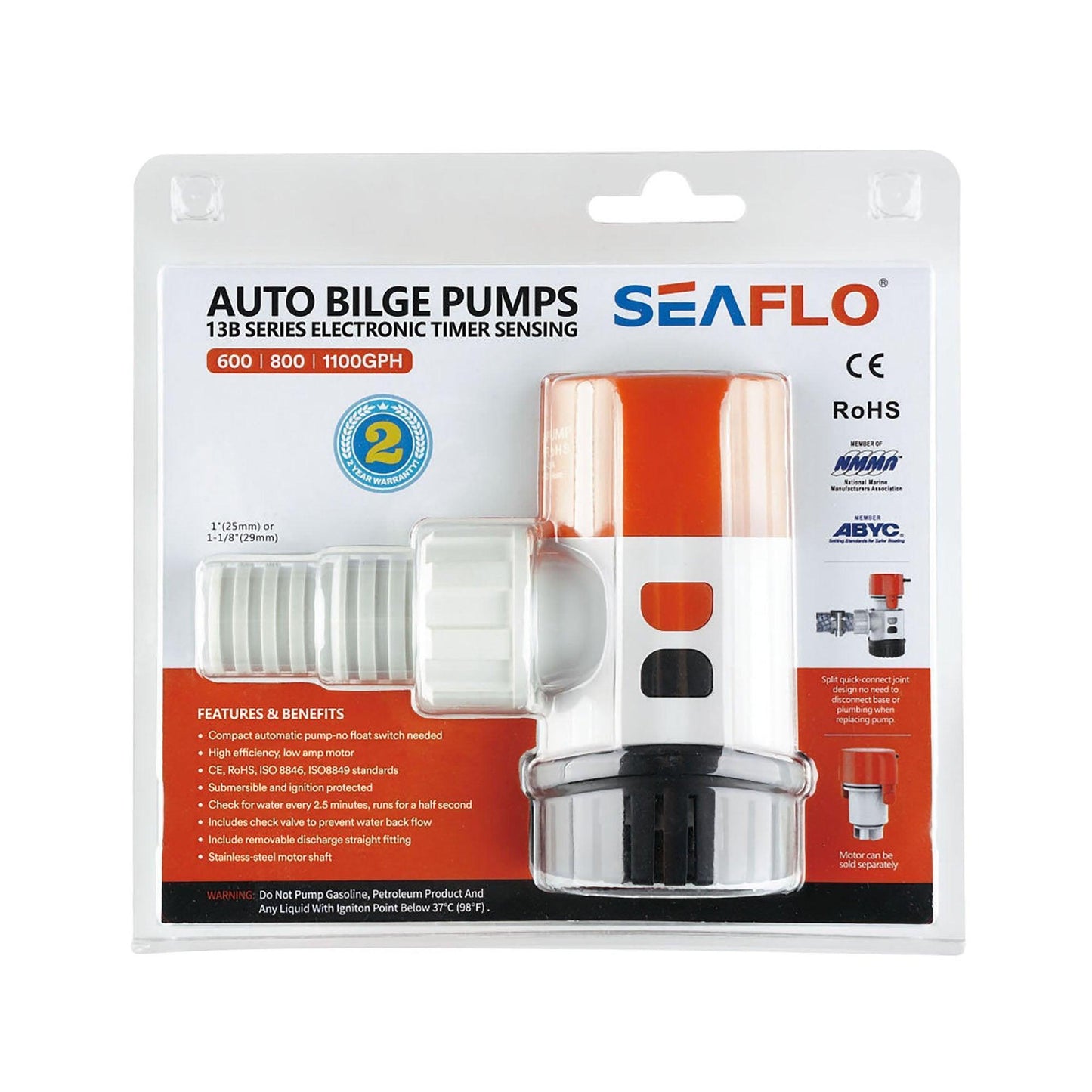

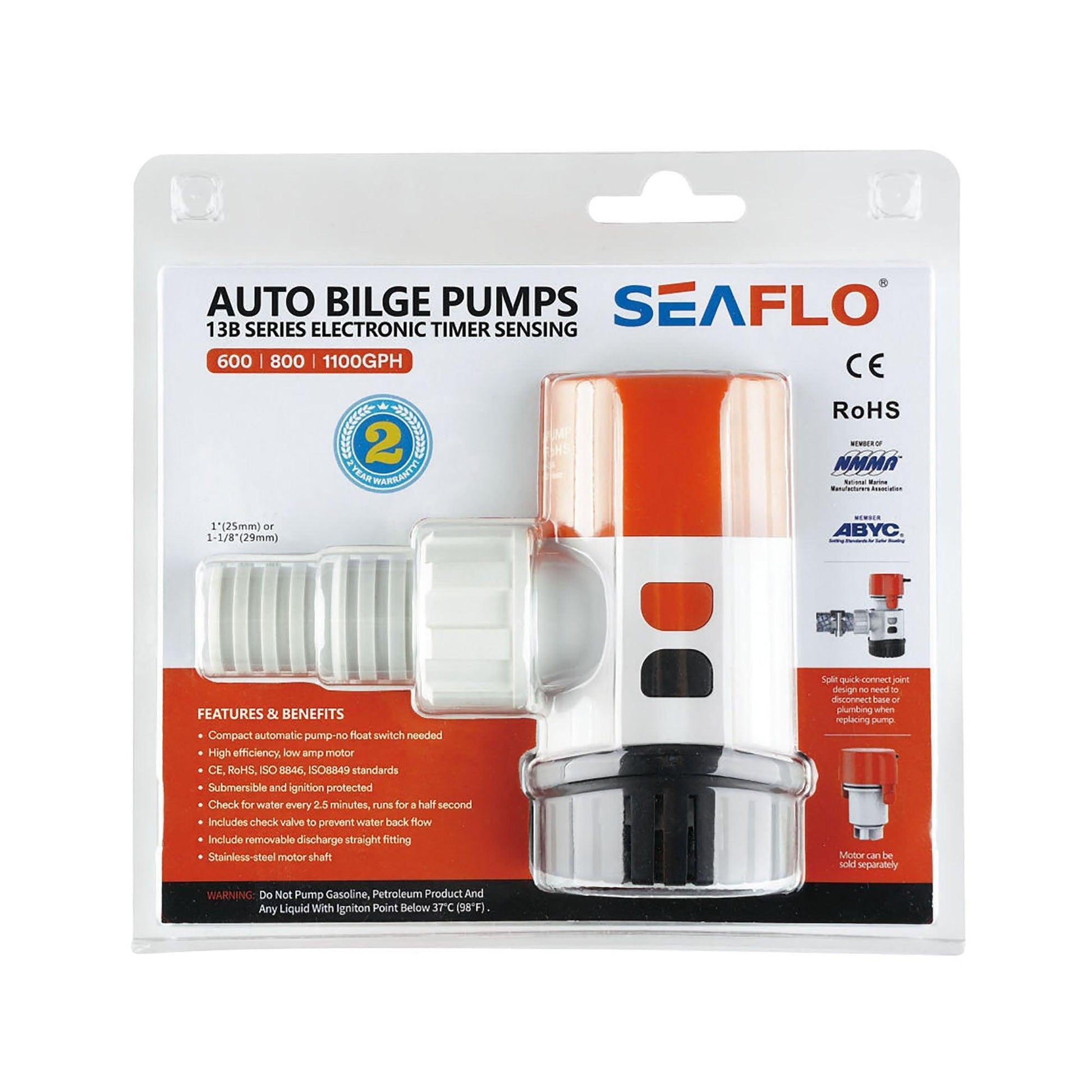

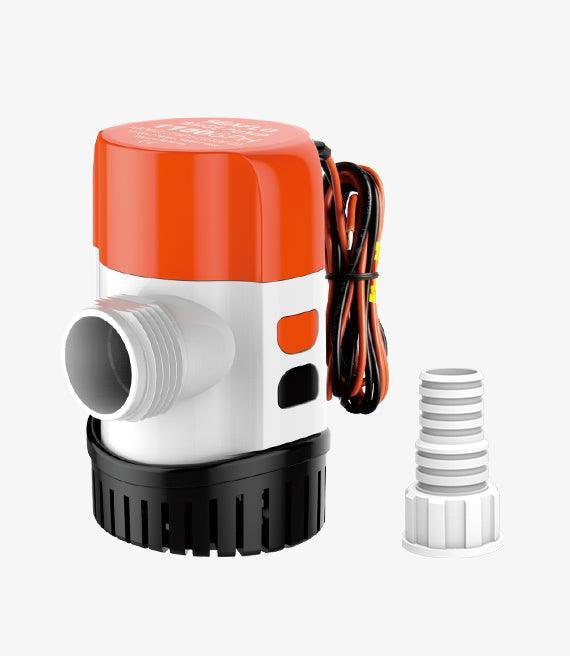

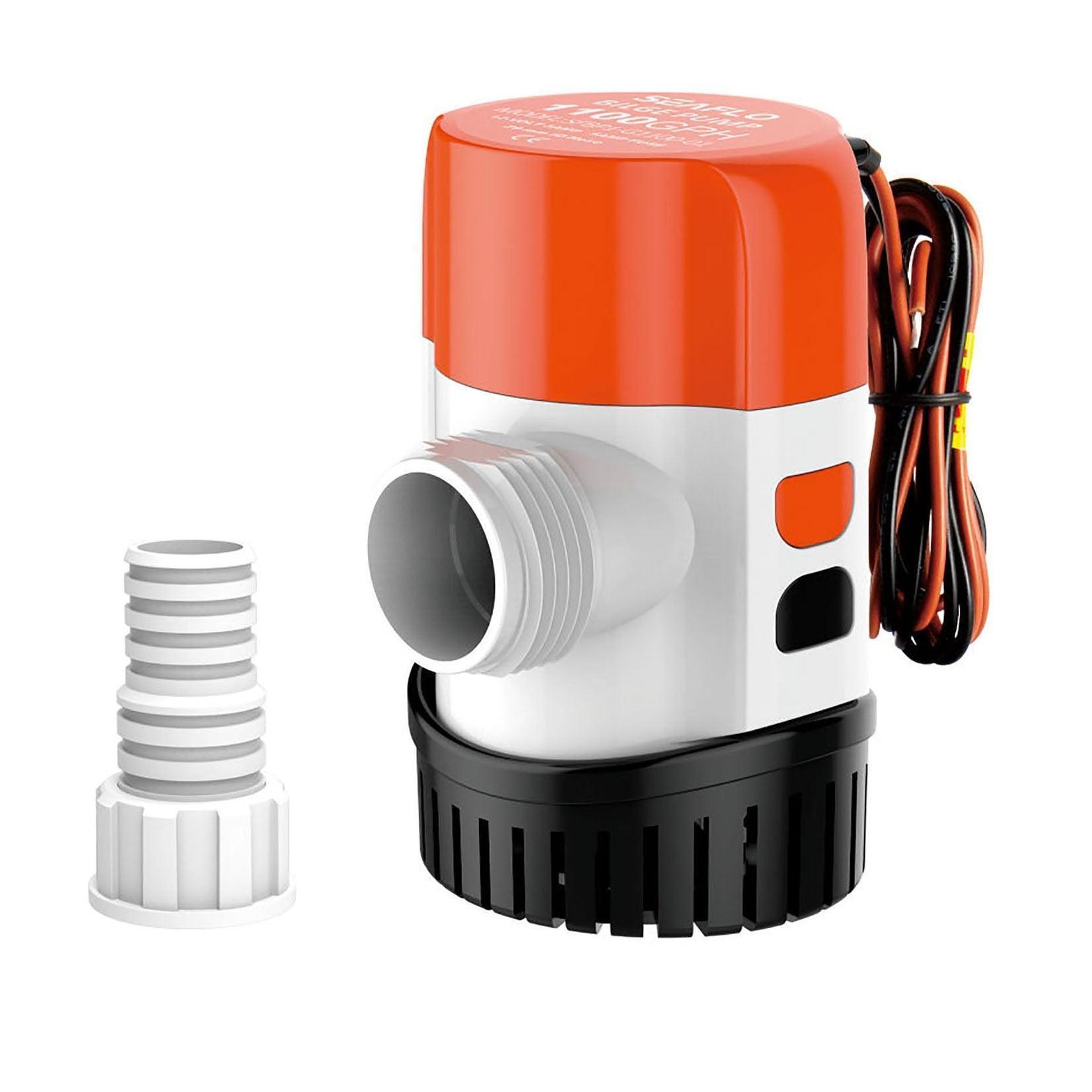

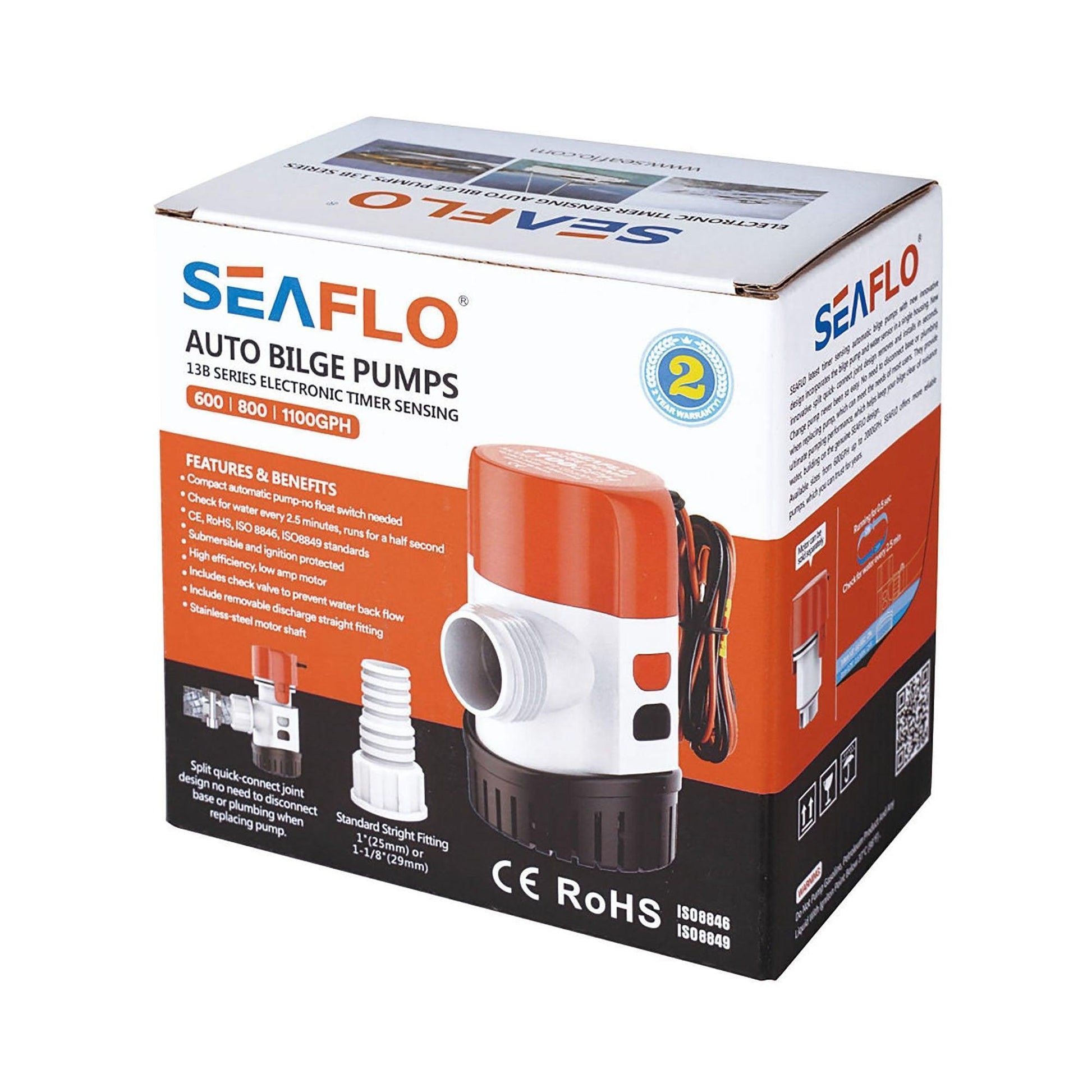

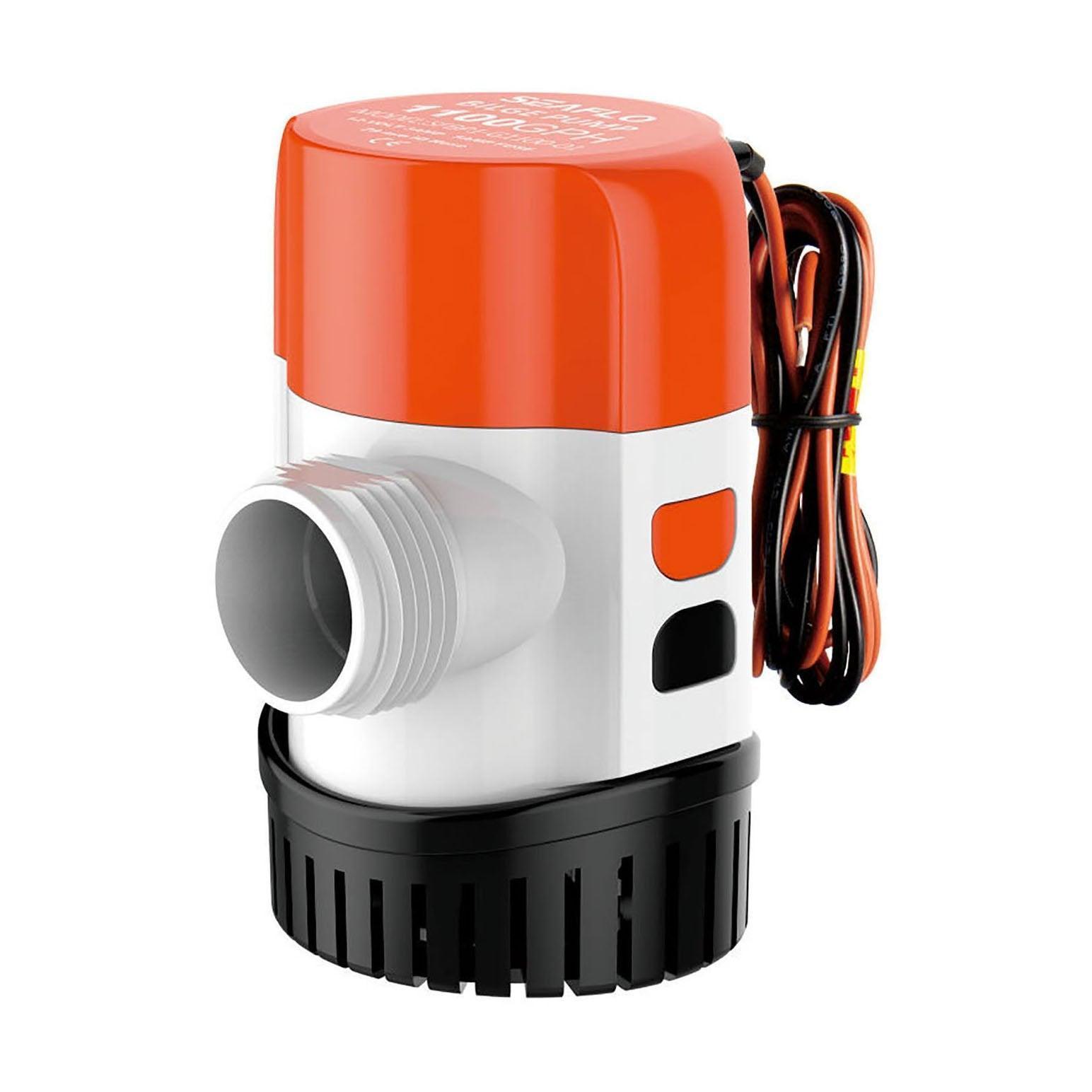

SEAFLO BP2G110013B 24V AUTO PUMP
1100 GPH Electronic Sensing Marine Bilge Pump
The SEAFLO 13B Series BP2G110013B represents the latest in "smart" marine pumping technology. Designed for 24V systems, this 1100 GPH automatic pump utilizes internal electronic sensing to detect water levels. Unlike traditional pumps that require a bulky external float switch, the 13B series automatically activates its impeller every 2.5 minutes to check for water resistance. If water is detected, it continues to run until the bilge is dry.
Key Features
- ✔ No Float Switch Needed: Integrated electronic sensor.
- ✔ Anti-Airlock Protection: Vented housing prevents air-locking.

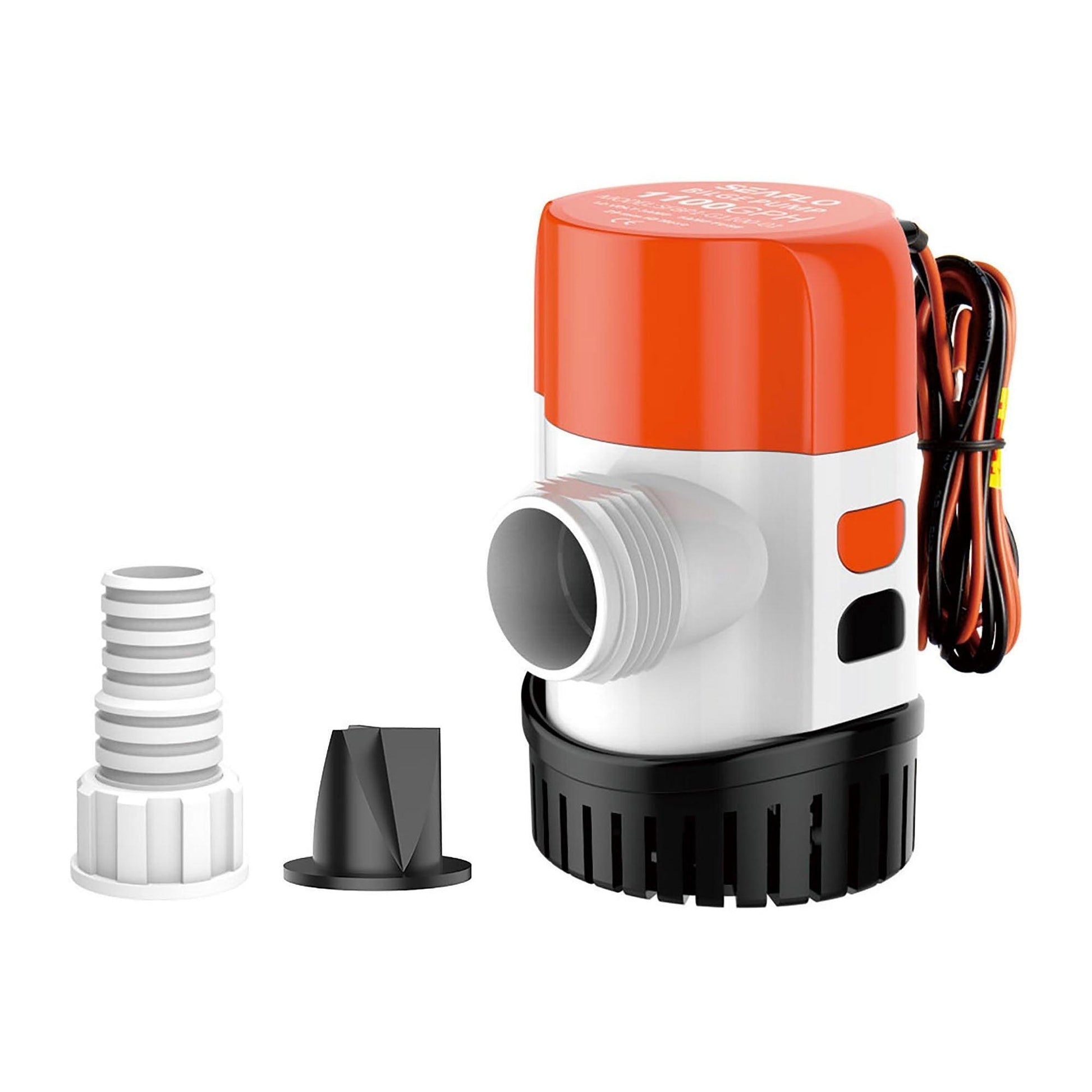

- ✔ Check Valve Included: Prevents water backflow.
- ✔ Split Quick-Connect: Easy removal for maintenance.
- ✔ Submersible: Marine-grade silicon blocked wiring.
Technical Specs
| Model: | BP2G110013B |
| Voltage: | 24V DC |
| Flow Rate: | 1100 GPH / 4164 LPH |
| Max Amp Draw: | 2.5A |
| Max Head: | 4.0m (13') |
| Outlet Dia: | 29mm (1-1/8") |
| Wire Lead: | 18 AWG x 1m |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine Vessels | 24V DC Electrical Systems | Boats, Yachts, Fishing Vessels |
| Commercial Craft | Main/Auxiliary Bilge | Up to 24m hull length |
| Industrial/RV | Water Transfer | Fresh or Salt Water Only |
OEM Cross Reference
| SEAFLO MPN | SFBP2-G1100-13B |
| Rule Equivalent | Rule 27SA-24 (Automatic 1100) |
| Standard Replacement | Replacement for 1100GPH 24V Non-Auto Pumps |
Questions & Answers
Is this a genuine original part?
This is a premium quality SEAFLO replacement part, supplied by 4Boats / Aftermarket, manufactured to meet or exceed original equipment (OE) standards.
How do I know if it is compatible?
Verify that your boat uses a 24V DC system. Check the outlet size (this unit requires a 1-1/8" hose) and the GPH requirements for your hull size.
Does it cycle when no water is present?
Yes, the electronic sensing logic turns the impeller for approximately 0.5 seconds every 2.5 minutes to check for water resistance. It consumes very minimal power during these checks.
Note: Please verify your original part number and system voltage against the references above before purchasing. Distributed by 4Boats.
