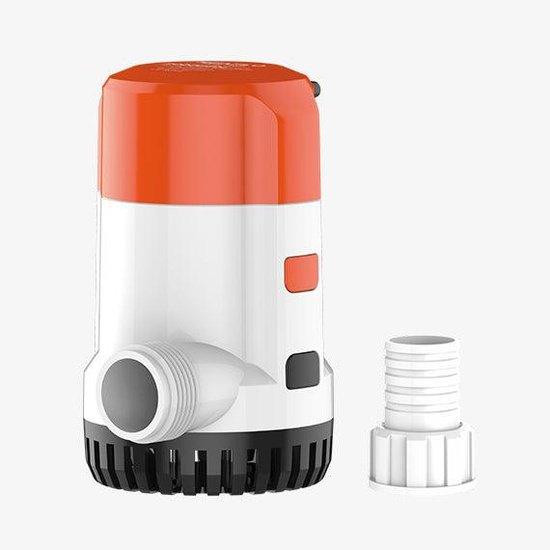

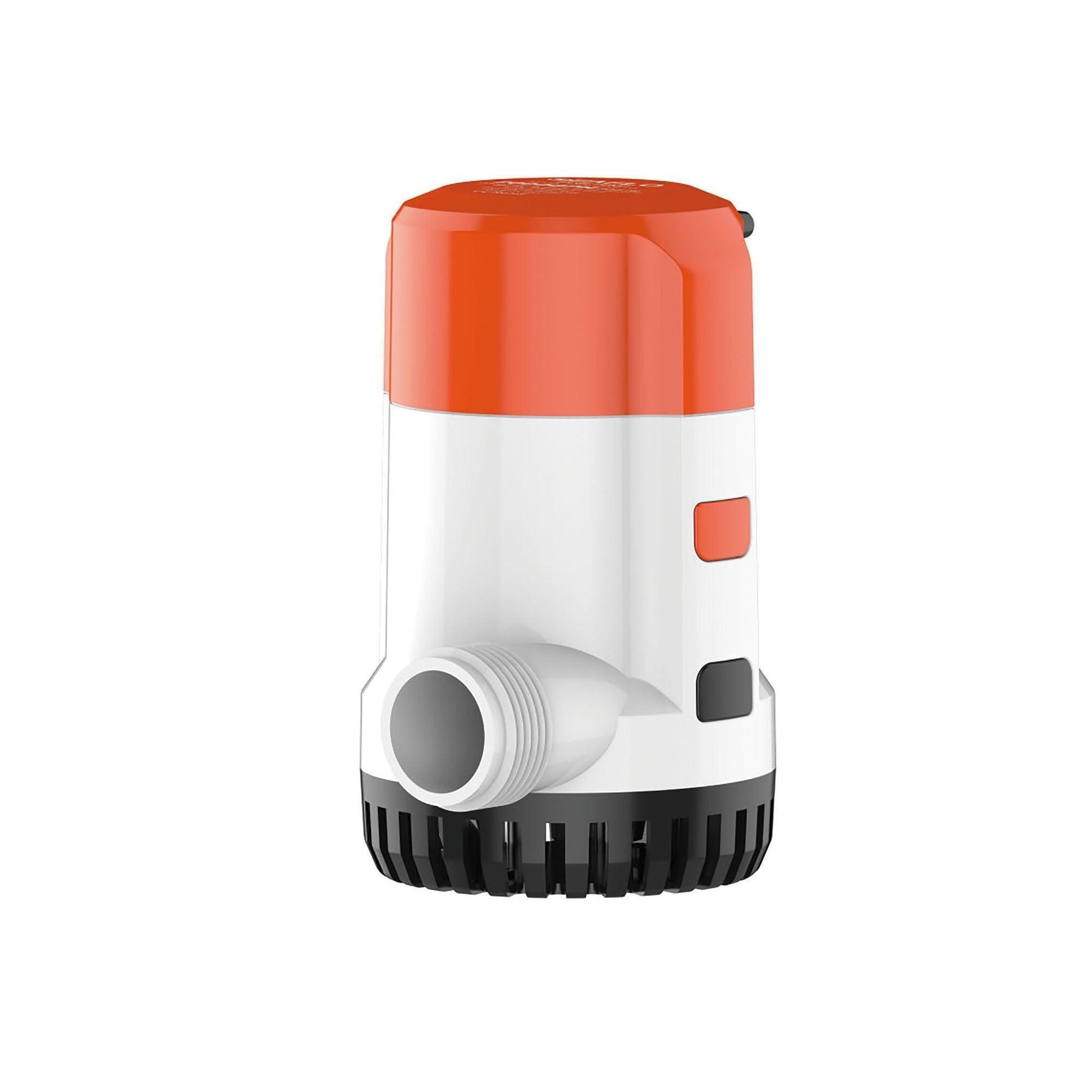

SEAFLO 12V 1500GPH Automatic Bilge Pump 13B Electronic Sensing

SEAFLO 12V 1500GPH Automatic Bilge Pump 13B Electronic Sensing

£159.99 GBP
£159.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

SEAFLO 12V 1500GPH Automatic Bilge Pump 13B Electronic Sensing

Automatic high-capacity bilge drainage

A compact 12V submersible pump for automatic removal of bilge water on motorboats, sailing yachts, RIBs, fishing boats and workboats. The 13B electronic-sensing system checks for water every 2.5 minutes, runs for approximately half a second and continues pumping when impeller resistance indicates water is present. No separate float switch is required.

Key Features

  • ✔ Suitable as an automatic bilge pump in 12V DC installations where 1500GPH nominal capacity matches the vessel’s drainage plan.
  • ✔ Appropriate for leisure and commercial craft including powerboats, yachts, RIBs, fishing boats and small workboats.
  • ✔ Not a substitute for a correctly sized primary/secondary emergency bilge arrangement on larger vessels.
  • ✔ Flow reduces with lift, hose length, bends and restrictions; size the hose, fuse and wiring for the installed load.

Technical Specifications

Manufacturer model SFBP1-G1500-13B
Supply voltage 12V DC
Maximum open-flow rating 1500 GPH (approximately 5,678 L/h)
Rated current 4.5A
Maximum head 5m / 16.4ft
Operating control Automatic electronic timer sensing
Construction Submersible, ignition protected, stainless-steel motor shaft, moisture-tight seals
Installation features Anti-airlock protection, removable straight discharge fitting and non-return valve
Compliance CE, RoHS, ISO 8846 and ISO 8849
Manufacturer warranty 2 years

Installation and package contents

  • Mount at the lowest practical point of the bilge on a clean, level surface with access for strainer cleaning.
  • Route the discharge continuously upward to a suitable above-waterline outlet and avoid low loops that can trap water.
  • Connect only to a protected 12V DC marine circuit using the fuse and cable size specified in the installation manual.

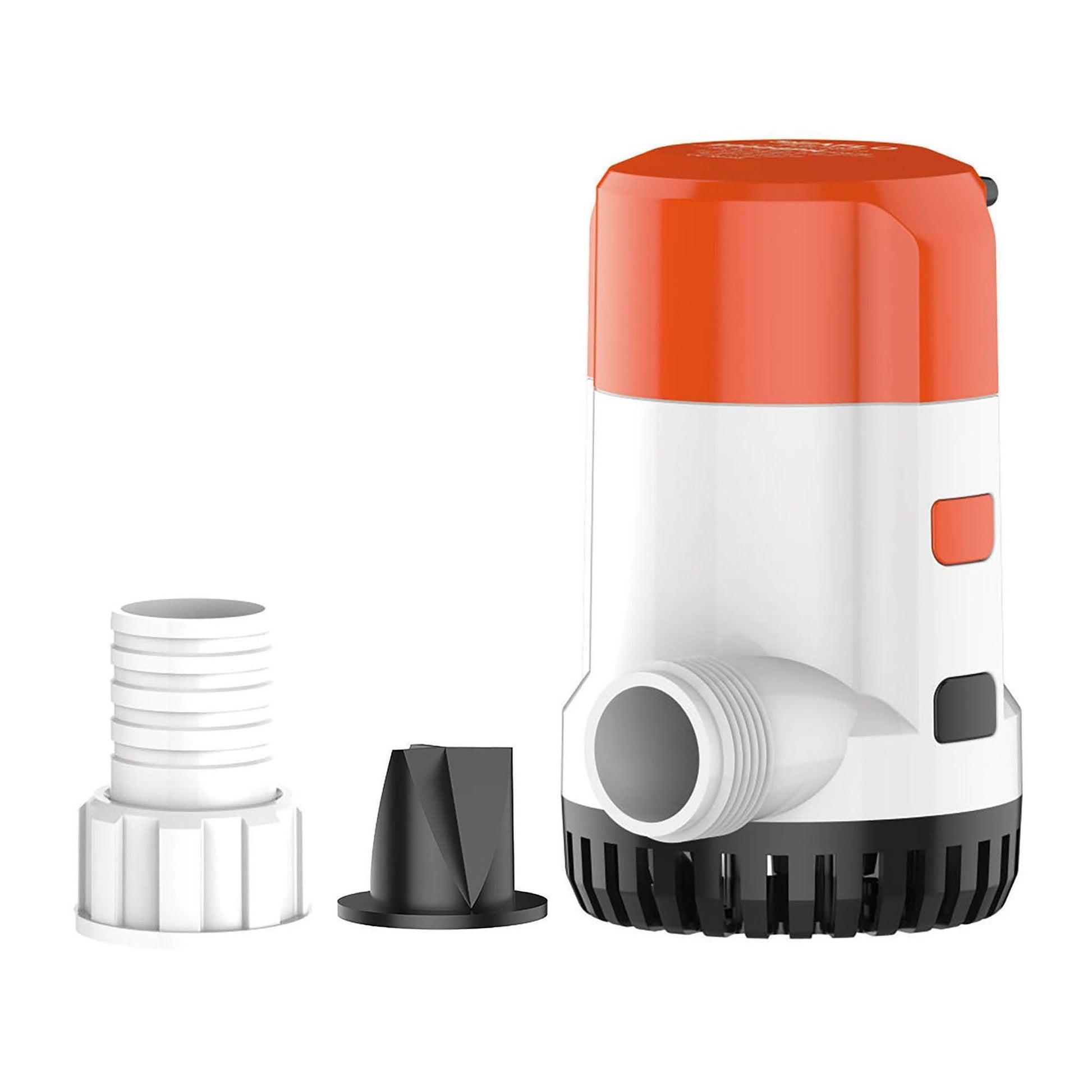

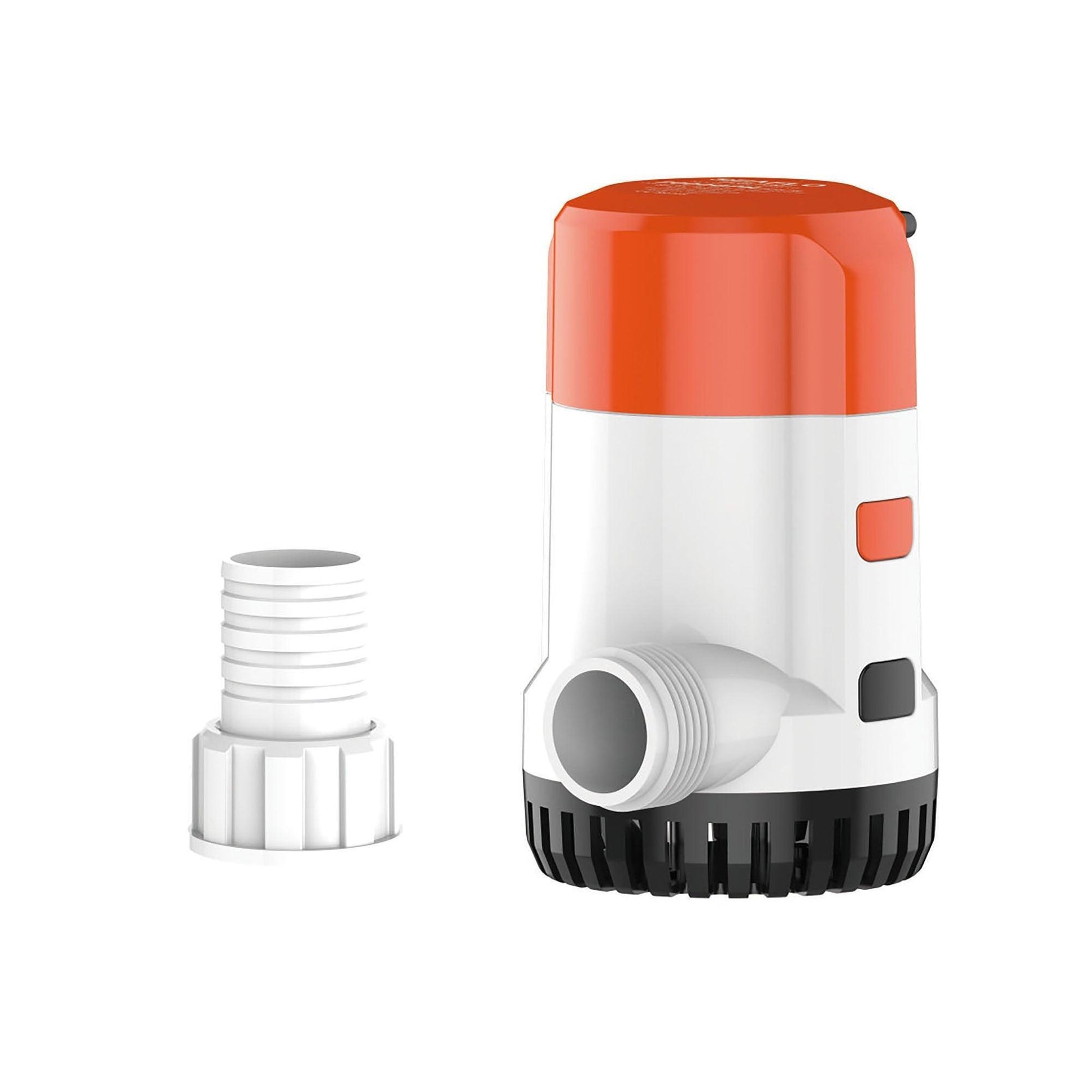

  • Package contains one SEAFLO 13B automatic bilge pump with strainer/base, removable outlet fitting and integrated wiring. Verify hose connection and available space against the installation drawing before ordering.

Questions & Answers

Does it need a separate float switch?

No. It uses periodic electronic sensing and checks for water every 2.5 minutes.

Will it draw power while the boat is unattended?

Yes. The brief periodic test cycle creates a small recurring battery load, so battery condition and isolation strategy must be considered.

Is 1500GPH the flow at every installation?

No. It is the nominal open-flow rating; real output falls as head height and hose resistance increase.

Can it be used on a 24V boat?

Not directly. This is the 12V version; use the corresponding 24V model for a 24V supply.

Note: Please verify voltage, capacity and fitting sizes against your boat before ordering. For technical support, contact us via 4boats.co.uk.
