Seaflo 12V 600GPH Automatic Bilge Pump BP1-G600-11 Marine Submersible All-in-One
Seaflo 12V 600GPH Automatic Bilge Pump BP1-G600-11 Marine Submersible All-in-One
Couldn't load pickup availability
Seaflo BP1-G600-11 Automatic Bilge Pump
600 GPH | 12V | Integrated Magnetic Float Switch
The Seaflo 11-Series BP1-G600-11 is a premium, all-in-one automatic submersible bilge pump designed for demanding marine environments. Featuring Seaflo's patented internal magnetic float switch, this pump requires no additional external switches, making installation significantly easier and reducing potential failure points.

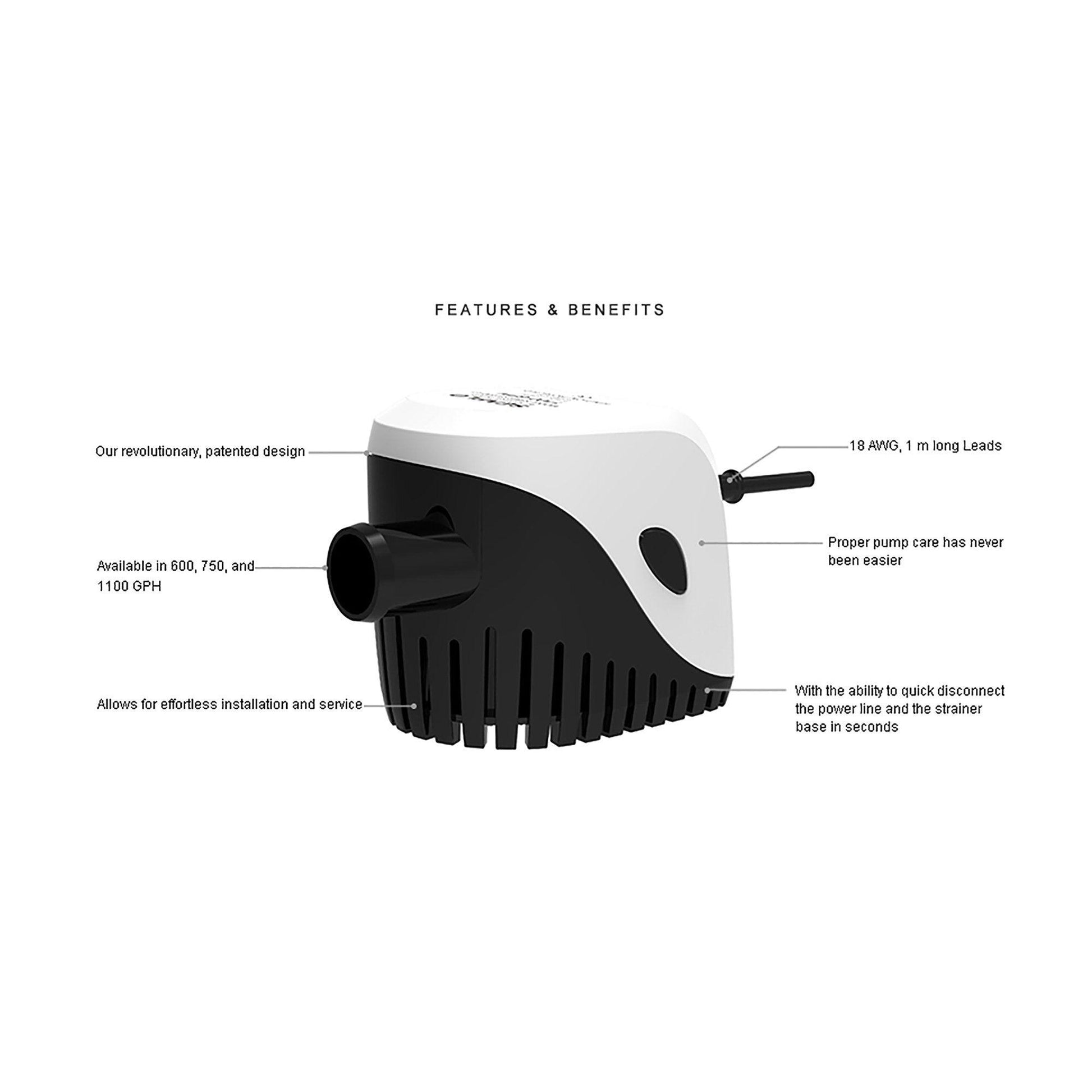

Key Features
- ✔ All-in-one pump & magnetic float switch
- ✔ Fully submersible and ignition protected
- ✔ Snap-off strainer base for easy maintenance
- ✔ Sealed, long-life, efficient motor
- ✔ Quick-change system for effortless service
Technical Specs
| Flow Rate: | 600 GPH (2271 LPH) |
| Voltage: | 12V DC |
| Current Draw: | 2.5 Amps |
| Fuse Size: | 4.0 Amps |
| Head (Max Lift): | 2.5m (8.2ft) |
| Outlet Dia: | 19mm (3/4") |

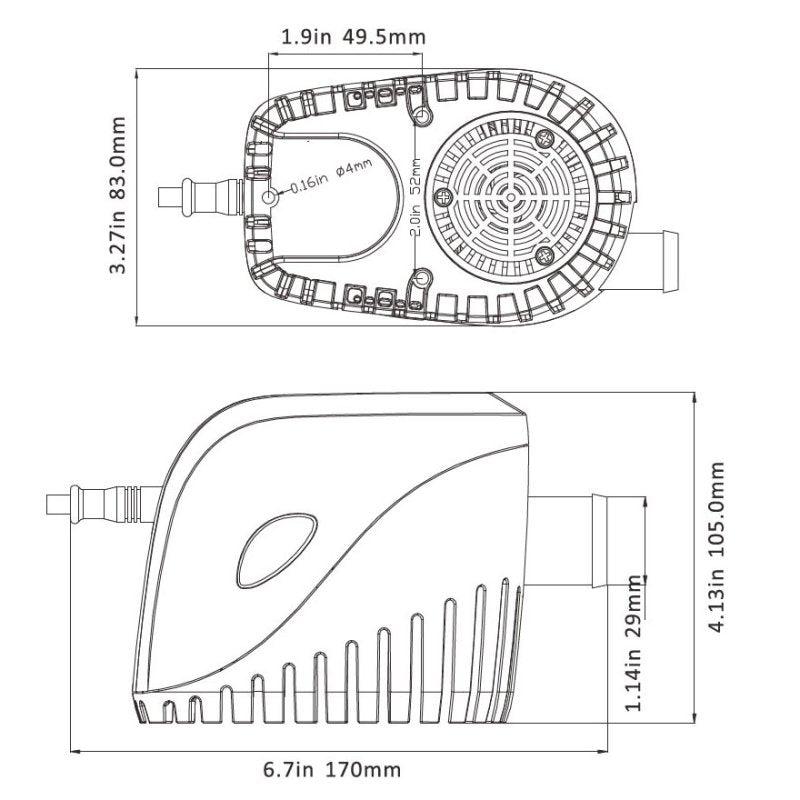

| Dimensions: | 170 x 83 x 105 mm |
Compatibility / Fitment Guide
| Application | System Type | Notes |
|---|---|---|
| Marine Vessels | 12V DC Bilge Systems | Standard for most fishing boats and yachts |
| Leisure Craft | Small to Medium Bilge Wells | Fits standard 19mm (3/4") hose plumbing |
OEM & Competitor Cross Reference
| Brand | Model/Reference |
|---|---|
| Seaflo MPN | BP1-G600-11 / SFBP1-G600-11 |
| Rule Replacement | Rule-Mate 500 / 750 Series (3/4" Port) |
| Johnson Pump | Ultima Combo 600 GPH |
Questions & Answers
Is this a genuine original part?
This is a premium quality Seaflo branded unit, manufactured to ISO 8846/8849 standards for marine performance.
How do I know if it is compatible?
Check that your current plumbing uses a 19mm (3/4") hose and your electrical system is 12V. This unit replaces most standard 500-600 GPH automatic pumps.
How does the automatic function work?
The pump utilizes a built-in magnetic float. When water enters the bilge and reaches the activation height, the internal float rises, triggering the sensor to start the pump. It shuts down automatically when the water level recedes.
Note: Please verify your plumbing diameter (3/4") and voltage (12V) before purchasing. Always use a 4A fuse as specified. Visit 4boats.co.uk for more technical support.
