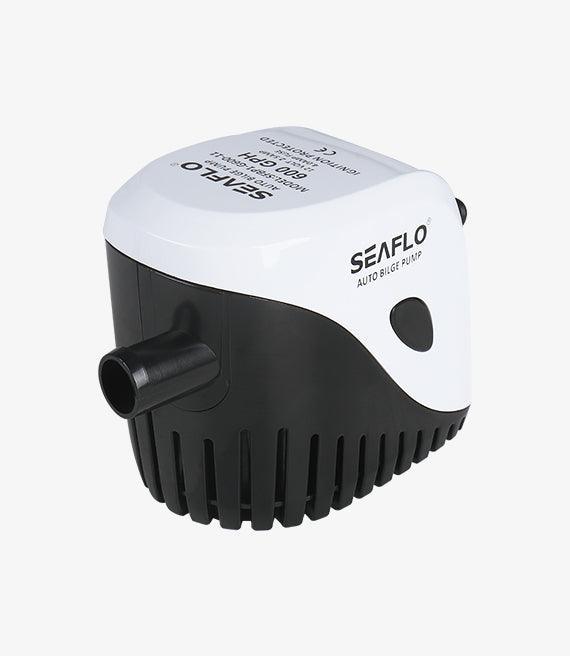

SEAFLO 24V 600GPH Automatic Bilge Pump 11 Series Magnetic Float

Automatic bilge pump with magnetic float control

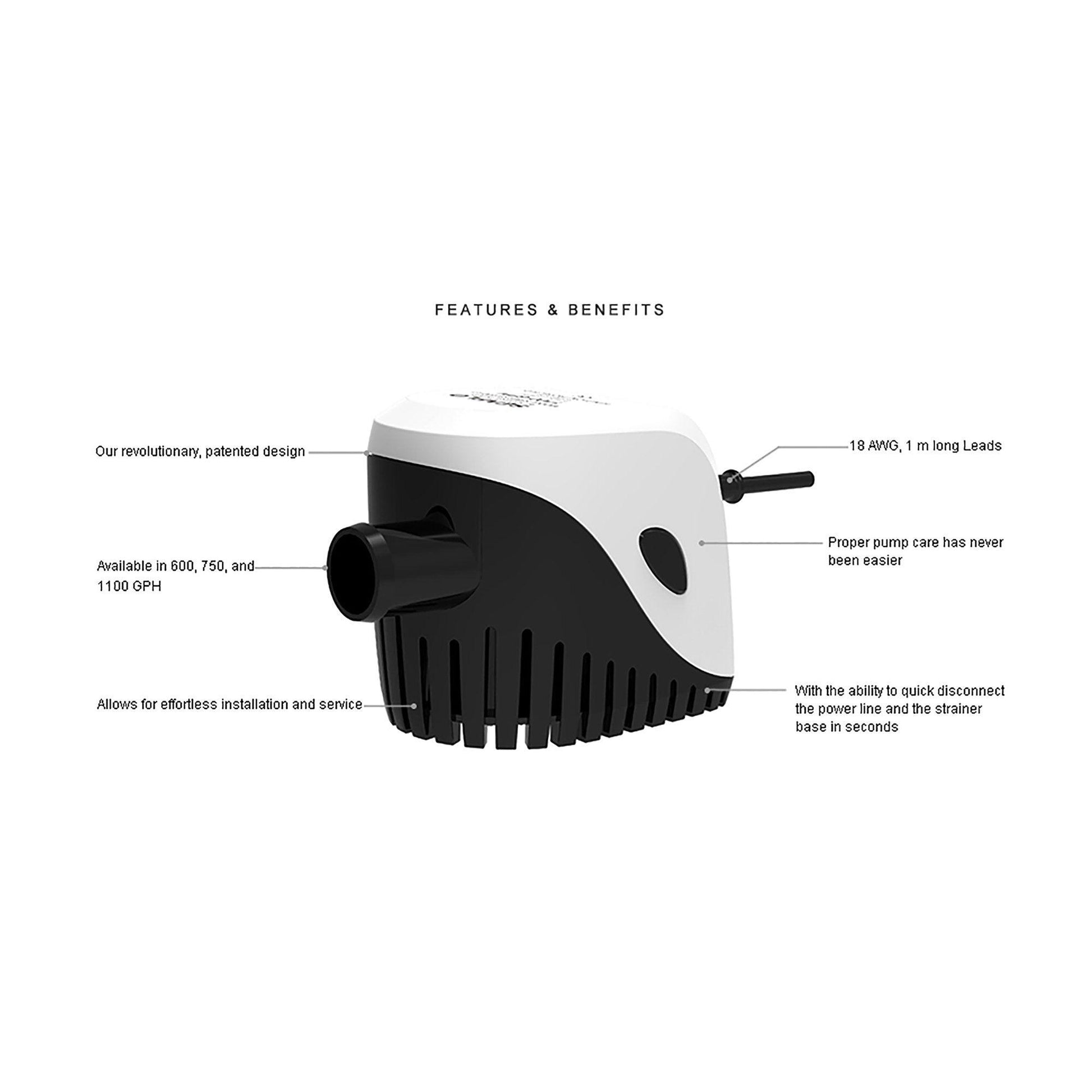

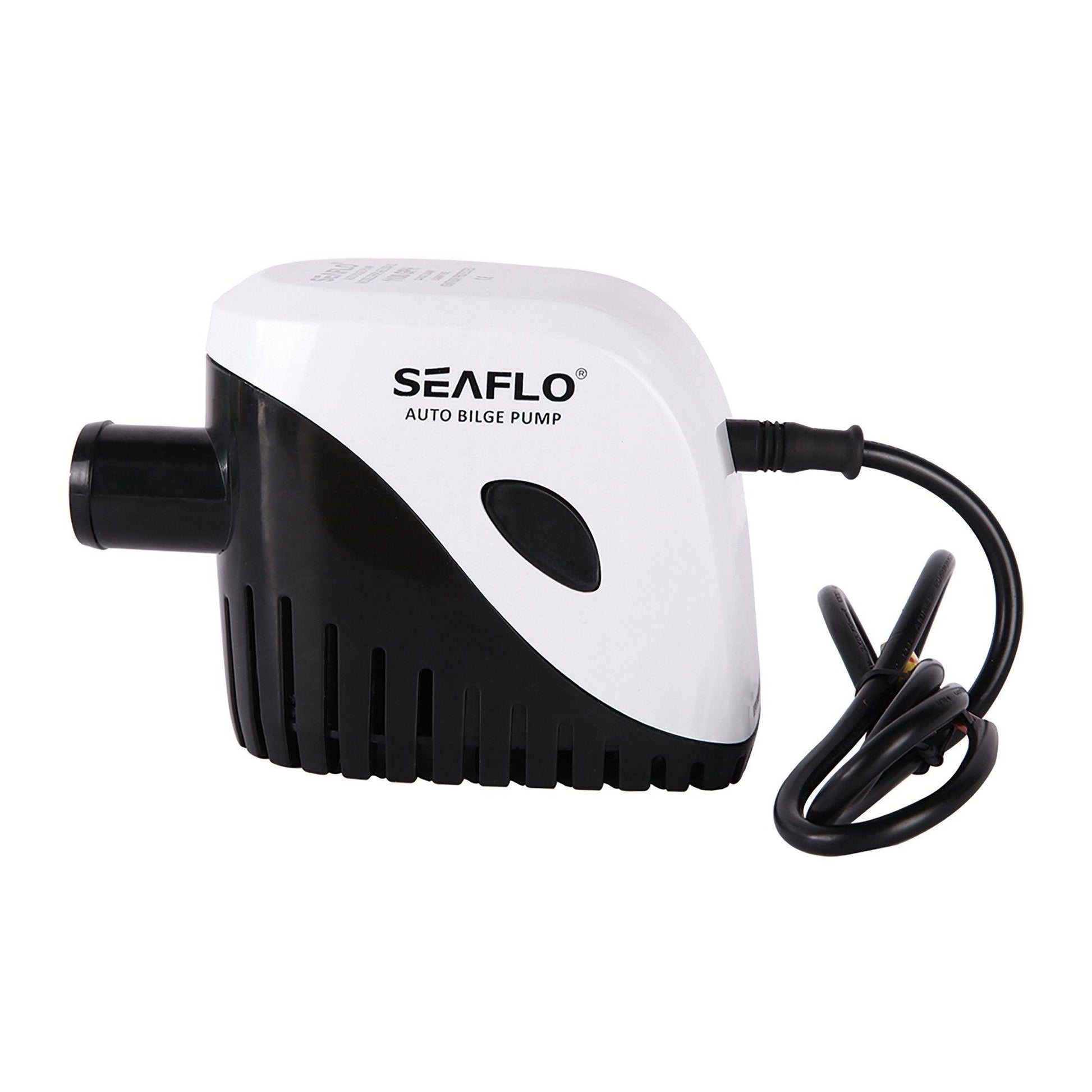

A compact 24V automatic bilge pump with an integrated magnetic-drive float switch. The sealed combined unit is designed for routine bilge drainage on boats where a separate switch would take extra space, while the quick-disconnect power lead and snap-off strainer simplify servicing.

Technical specifications

Applications and compatibility

• For automatic routine bilge drainage on 24V DC motorboats, yachts, RIBs and small workboats.
• Best suited to compartments where the 600GPH nominal capacity and 2.3m shut-off head meet the vessel’s requirements.
• The magnetic float mechanism must remain unobstructed; install away from hoses, loose wiring and accumulated debris.
• For higher ingress risk or larger vessels, use capacity and redundancy specified by the vessel’s drainage plan.

Installation and package contents

• Mount level at the lowest accessible point with room to release the strainer and service the pump.
• Keep the discharge run short and unrestricted, with a safe above-waterline outlet arrangement.
• Connect only to a fused 24V marine circuit and size cable/protection for maximum current and run length.
• Package contains one SEAFLO 11 Series automatic bilge pump with integrated magnetic float, strainer/base, quick-disconnect lead and wiring. Hose and through-hull are not stated as included.

Frequently asked questions

Does it need a separate float switch?

No. Automatic control is integrated through a magnetic-drive float mechanism.

Can it operate on 12V?

No. This listing is for the 24V version.

Is 600GPH the flow at maximum head?

No. It is the nominal open-flow rating; output falls with lift and reaches zero near the shut-off head.

Can the pump be removed without disturbing the base?

Yes. The snap-off strainer and quick-disconnect design are intended to simplify servicing.
