SEAFLO 12V 750GPH Automatic Bilge Pump 11-Series BP1G75011 Marine Boat Pump
SEAFLO 12V 750GPH Automatic Bilge Pump 11-Series BP1G75011 Marine Boat Pump
Couldn't load pickup availability

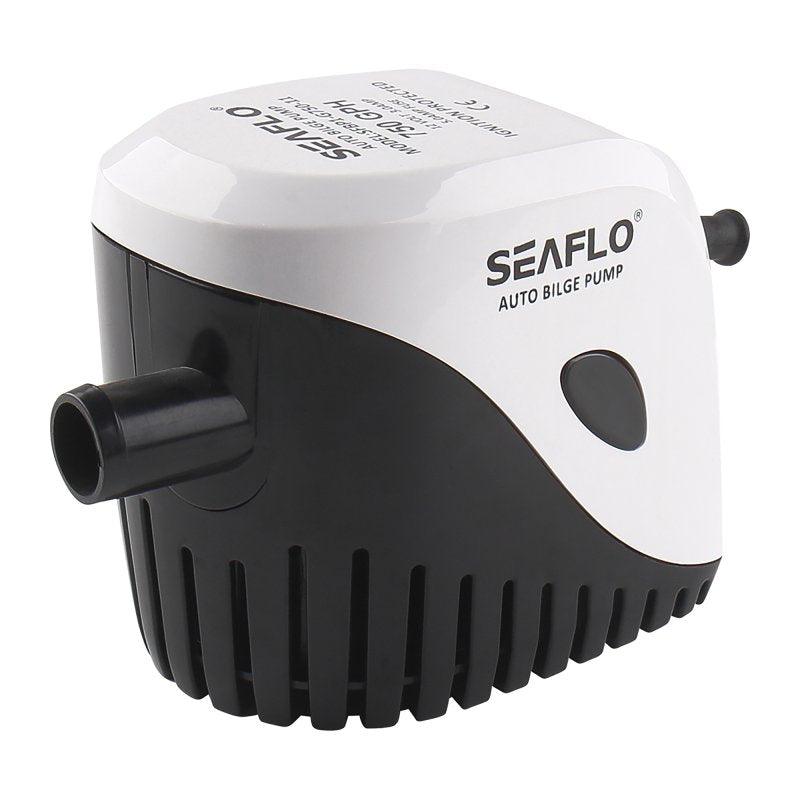

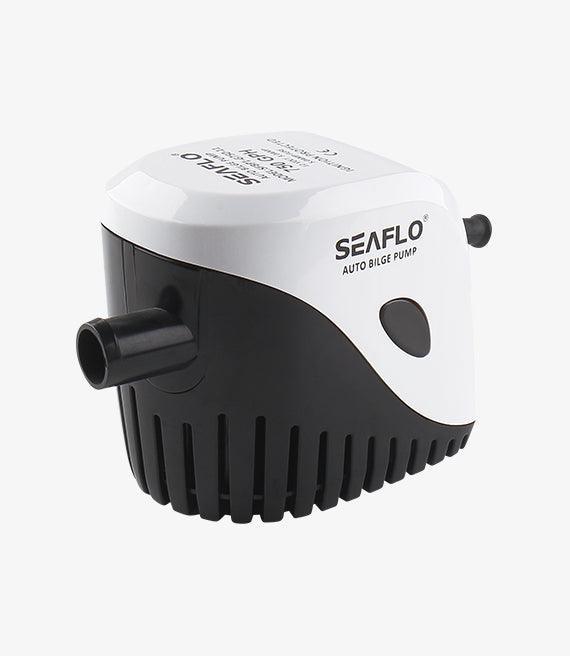

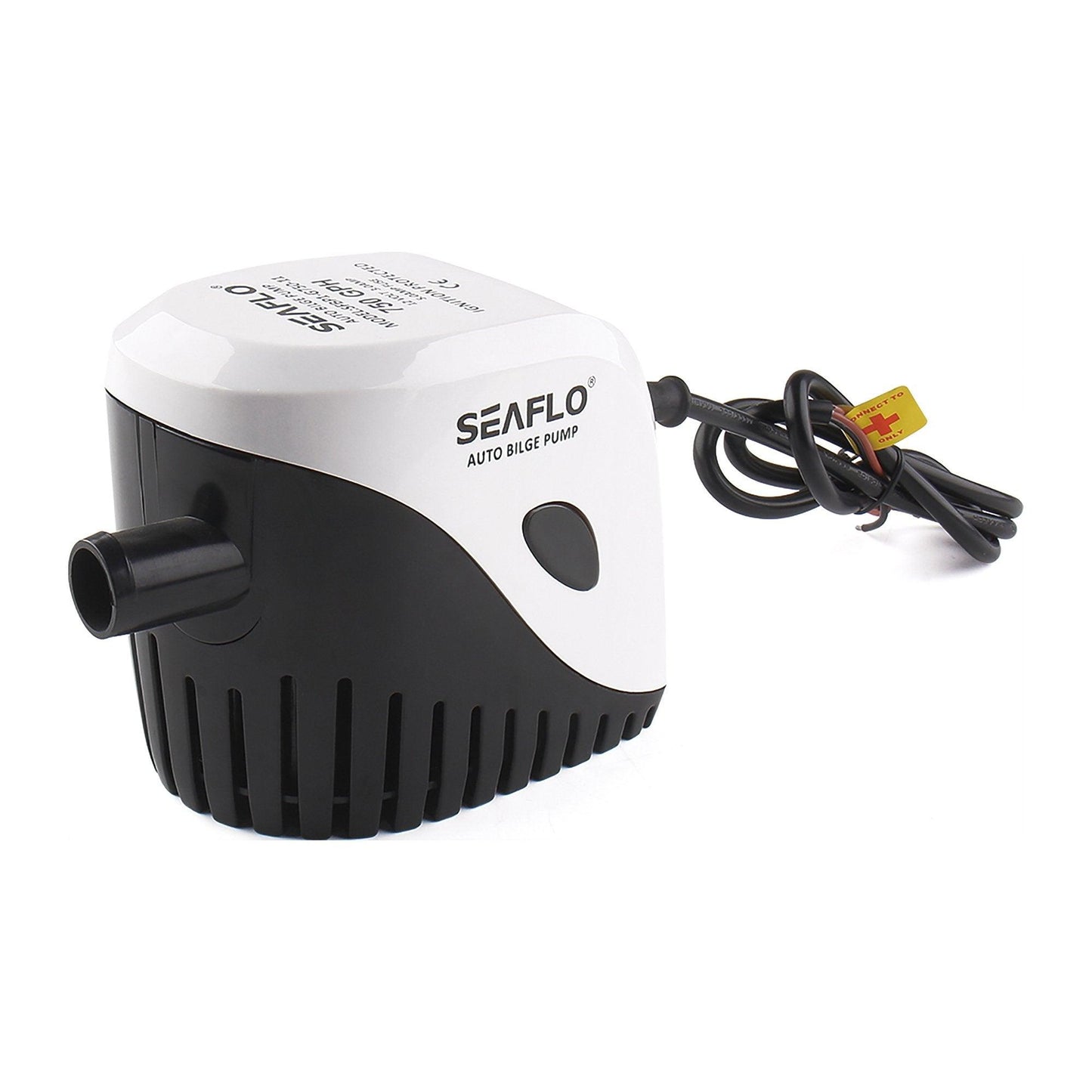

SEAFLO BP1G75011 AUTO BILGE PUMP
11-Series | 12V | 750 GPH | All-In-One Automatic Operation
The SEAFLO BP1G75011 is a high-performance, fully automatic submersible bilge pump designed for the demanding marine environment. As part of the 11-Series, this pump eliminates the need for a separate float switch by using an integrated magnetic sensor that activates the pump when water levels rise and deactivates it once the water is removed.

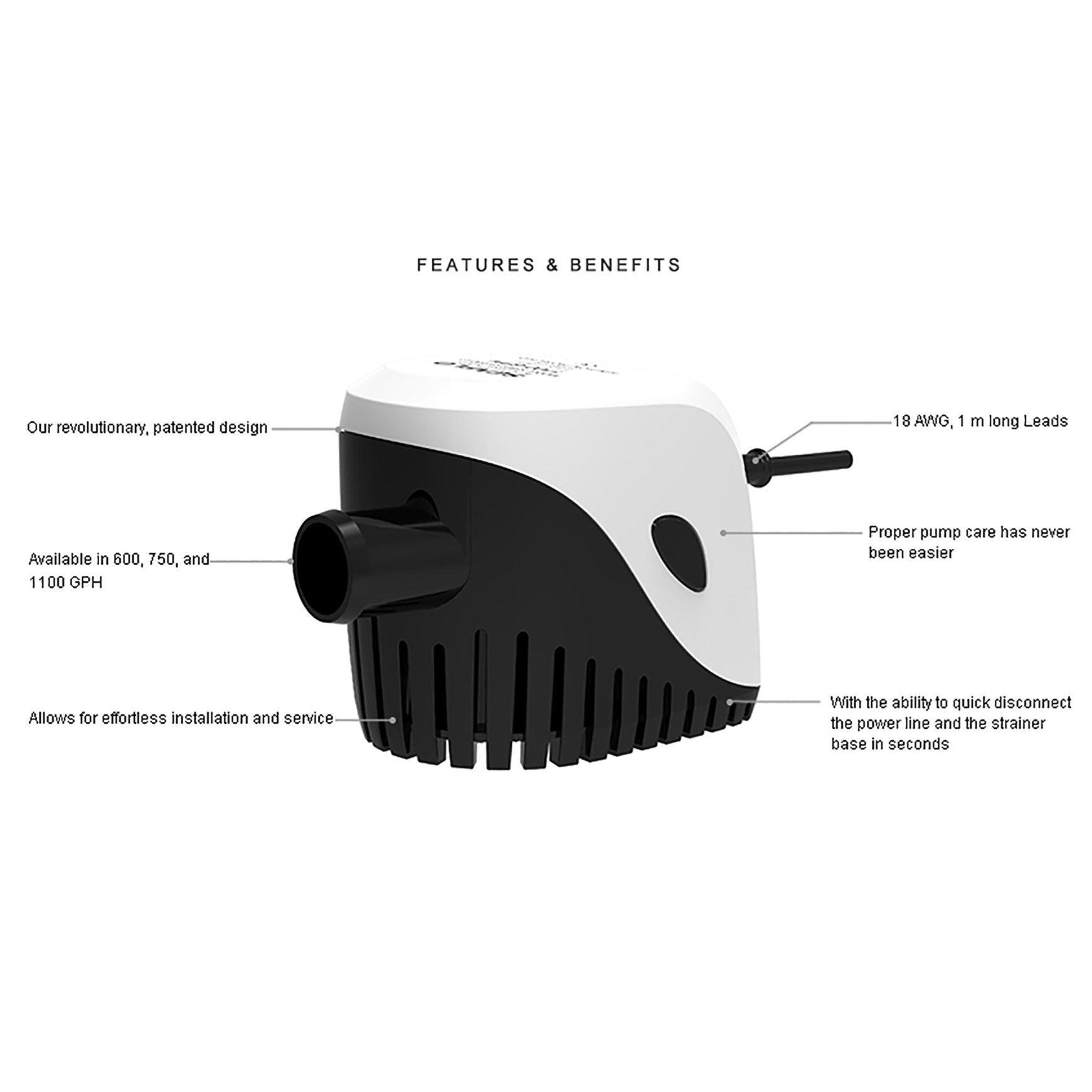

Key Features
- ✔ Integrated Float Switch: No additional wiring required.
- ✔ Snap-Off Strainer: Quick-release base for easy cleaning.
- ✔ Anti-Airlock Protection: Ensures consistent water flow.
- ✔ Ignition Protected: Meets ISO 8846 & CE standards.
- ✔ Quiet & Vibrationless: Efficient, long-life motor.
Technical Specs
| Flow Rate: | 750 GPH (2839 LPH) |
| Voltage: | 12V DC |
| Current Draw: | 3.0 Amps |
| Fuse Rating: | 5.0 Amps |
| Head (Lift): | 3.0m (10ft) |
| Outlet Dia: | 19mm (3/4") Hose Barb |

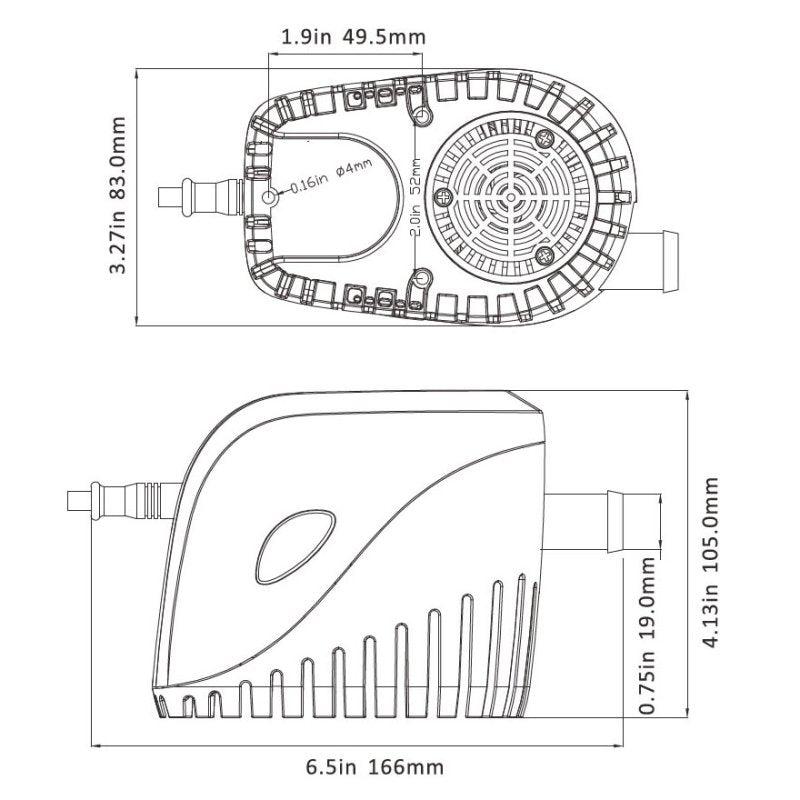

| Dimensions: | 170 x 83 x 105 mm |
Compatibility / Fitment Guide
| Application | Requirement | Notes |
|---|---|---|
| Marine Vessels | 12V Power System | Boats, Yachts, Fishing Vessels |
| Plumbing | 19mm (3/4") ID Hose | Standard Marine Discharge Hose |
| Installation | Submerged Base | Must be installed at the deepest point |
OEM Cross Reference
| Seaflo MPN | BP1-G750-11 / BP1G75011 |
| Rule Comparison | Rule-Mate 750 (RM750) / RM800 Series |
| EAN Barcode | 6971170931798 |
Questions & Answers
Is this a genuine original part?
This is a premium Seaflo brand product, designed as a high-quality alternative to major marine brands like Rule. It meets or exceeds ISO marine standards.
Does this pump require a separate float switch?
No, the 11-Series features an internal electromagnetic sensor. It is a true "all-in-one" automatic pump that handles everything internally.
Will it draw power when the boat is sitting idle?
The pump uses no power while in standby. It only consumes current once the internal float switch is triggered by rising water levels.
Note: Always ensure wire connections are kept above the water line and sealed with marine-grade sealant. Visit 4boats.co.uk for further technical support.
