RELIABILITY: Engineered with a built-in 3-second delay to eliminate false alarms caused by sloshing water, ensuring performance you can trust during heavy seas.

Key Features

• ✔ Audible & Visual: 85dB+ buzzer and bright red LED.
• ✔ 3-Way Control: Manual, Off, and Auto switch positions.
• ✔ Anti-False Alarm: Smart 3-second signal delay.
• ✔ Compact Design: Durable ABS black faceplate.

Technical Specs

Voltage:	24V DC
Current Draw:	10A Max
Alarm Volume:	≥85 dB
Wire Gauge:	16 AWG
Weight:	0.2 kg

System Type	Application	Notes
Marine Bilge Systems	24V DC Power Supplies	Standard for yachts and commercial vessels.
Pump Compatibility	Up to 10A Pumps	For higher draws, use with a relay.
Switch Pairing	SFWAS series / Float Switches	Compatible with most auto-float switches.

Is this a genuine Seaflo part?

Yes, this is an authentic Seaflo product sourced directly to ensure high performance and reliability on 4boats.co.uk.

Does this include the bilge float switch?

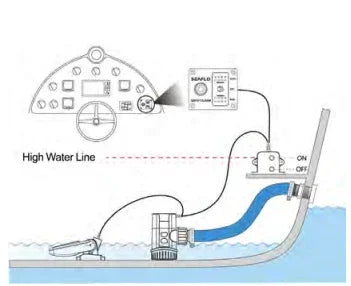

This listing is for the control panel with integrated alarm only. You will need to connect this to an external 24V float switch or electric field sensor in your bilge.

Can the audible alarm be muted?

The 3-way switch allows you to control the pump state. When water is detected, the alarm will sound to alert you, which is a key safety feature that should not be bypassed during active monitoring.
