Scanstrut Through Through TBH | 4 Through | Bulkhead Cable Se | 4Boats

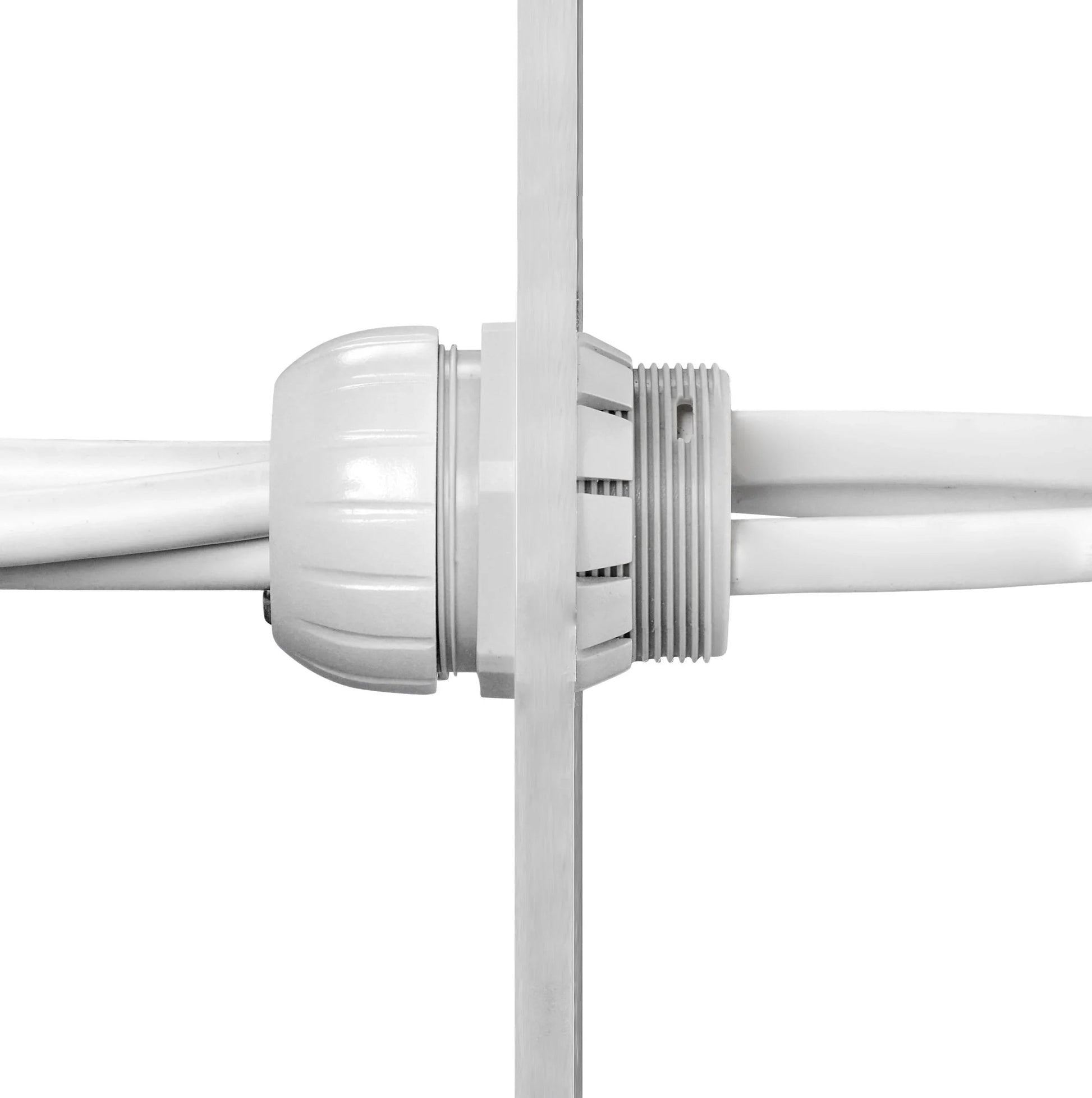

The TBH-4 through-bulkhead cable seal provides IP67 waterproof routing and anchoring for up to 5 cables and fits bulkheads 10-35 mm (0.39-1.37") thick.

• IP67 waterproof rating
• Accommodates up to 5 cables
• Fits bulkhead thickness 10-35 mm (0.39-1.37")
• Moulded high-strength nylon with over-moulded internal seal

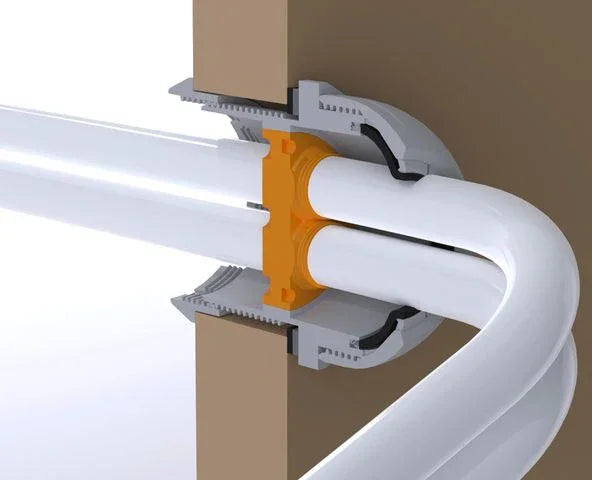

• Single-person quick-fit installation from one side - no specialist tools required
• Secures and anchors cables to prevent chafe
• Ideal for marine windlass power, control and navigation cables
• Technical drawing available

Download the technical drawing: TBH-4 Technical Drawing.
