Scanstrut NEW NEW NEW FM | 1 Flex Mount (Small) for SPH | 9 | 4Boats

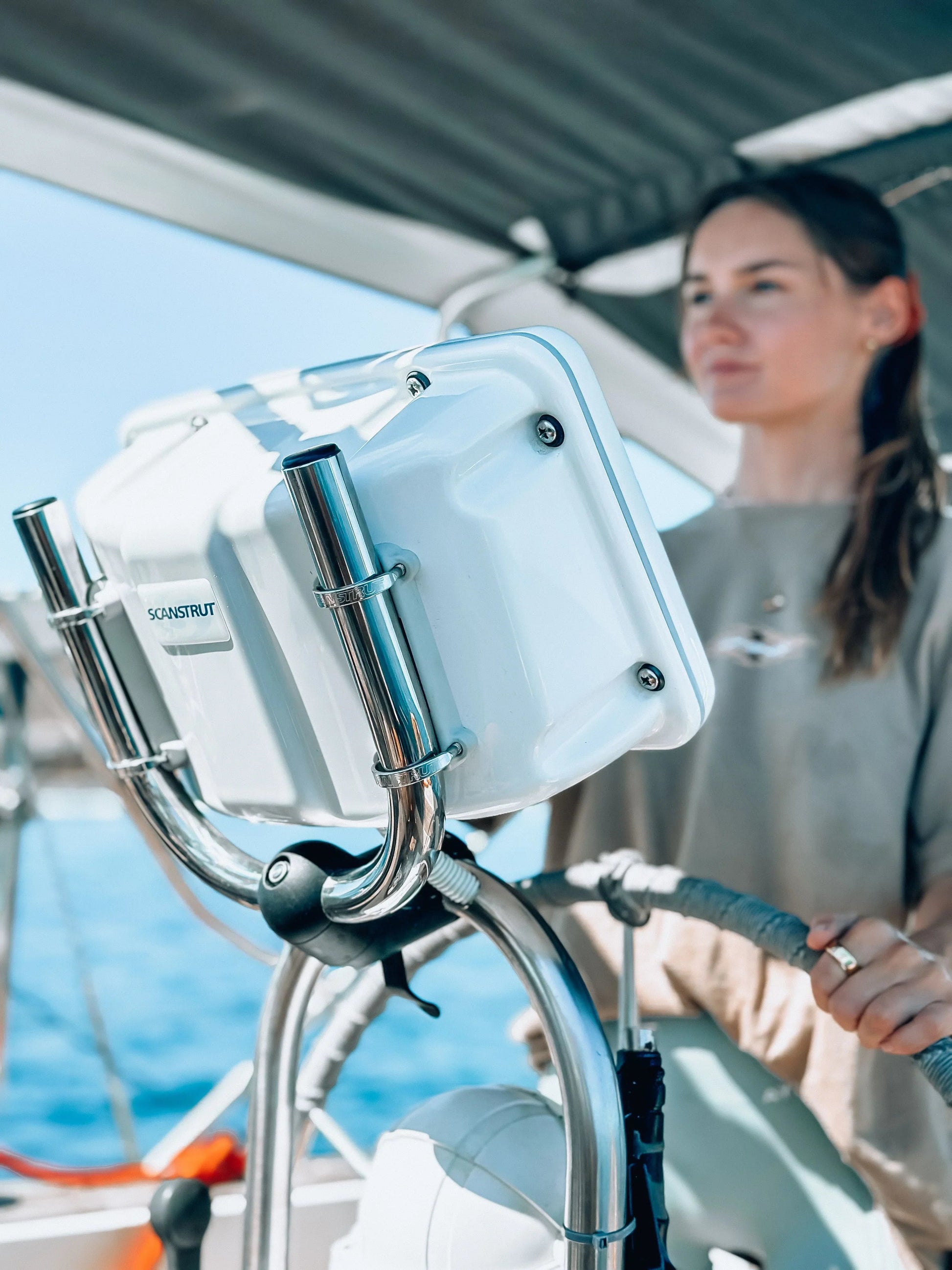

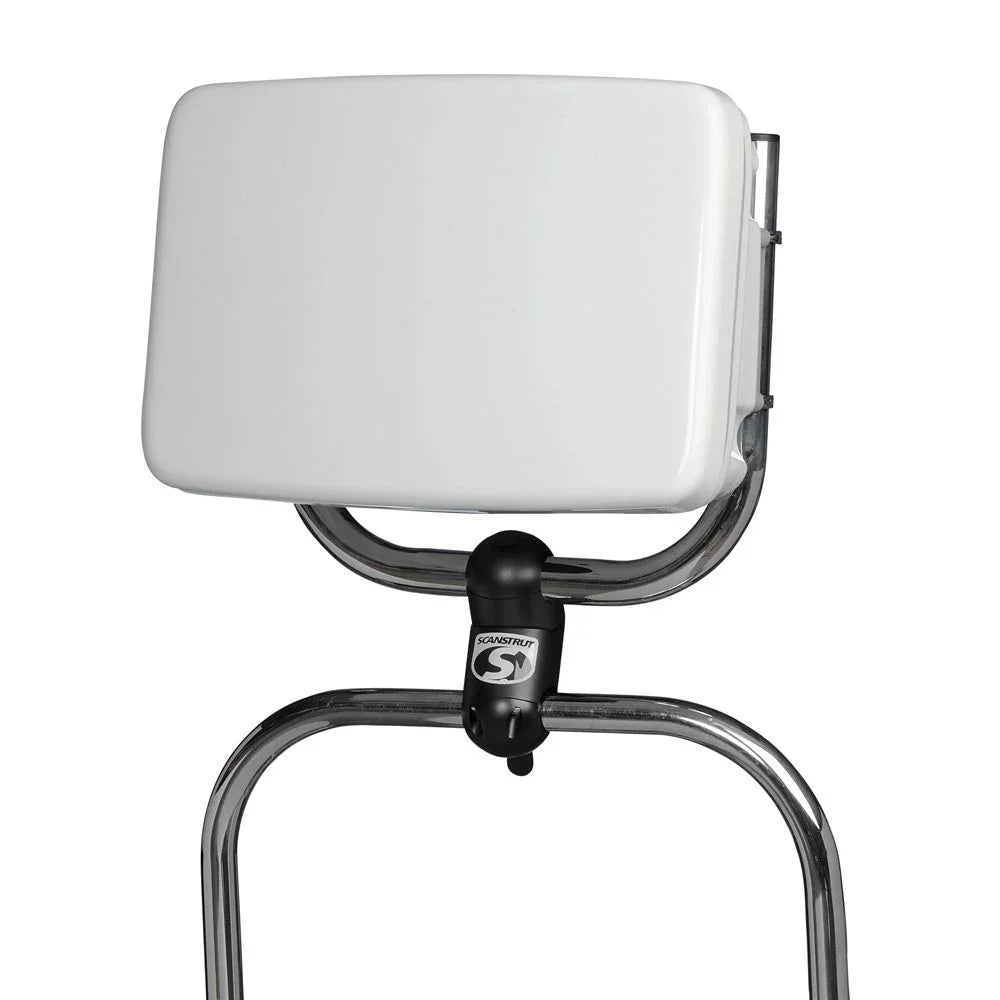

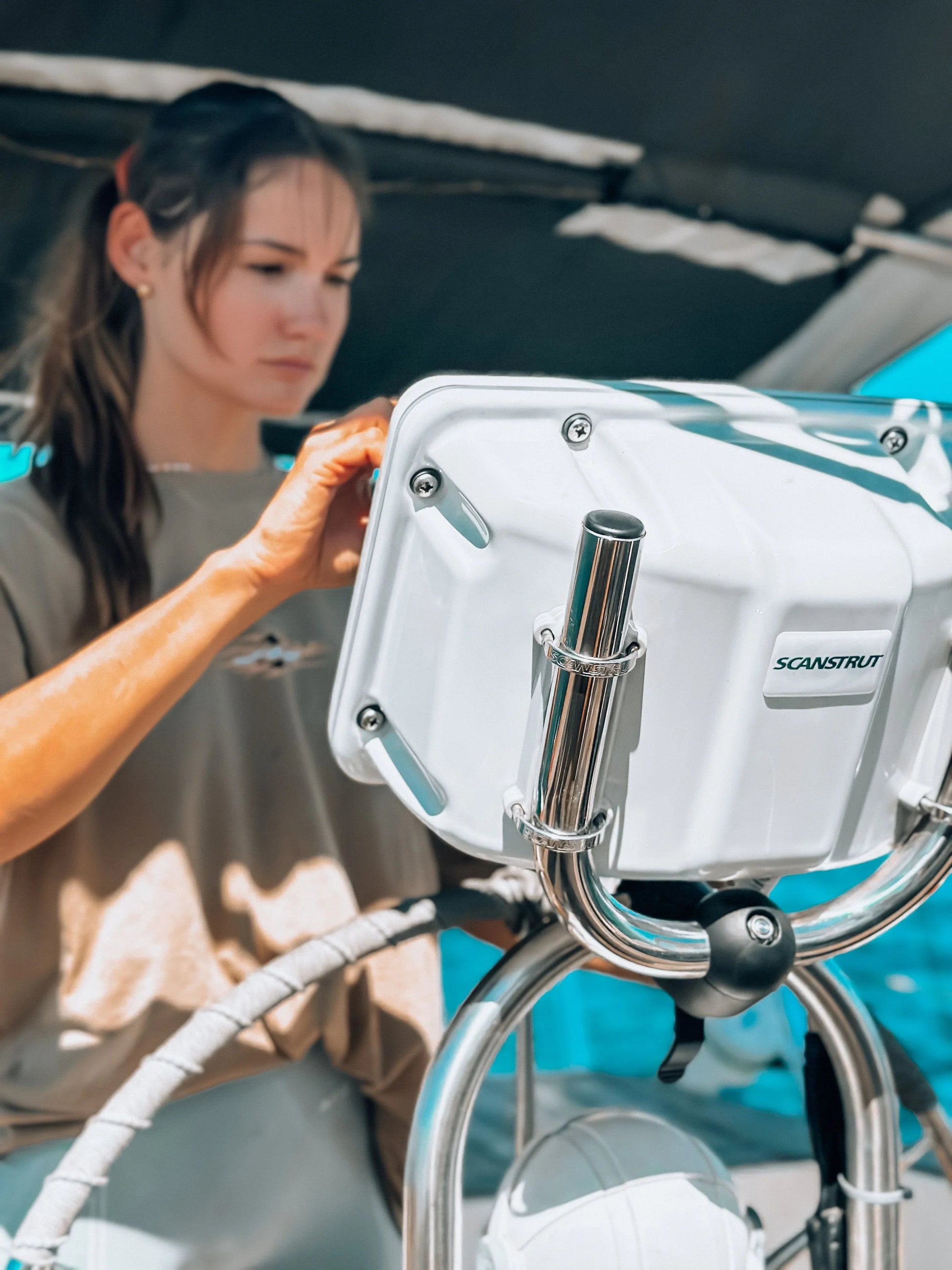

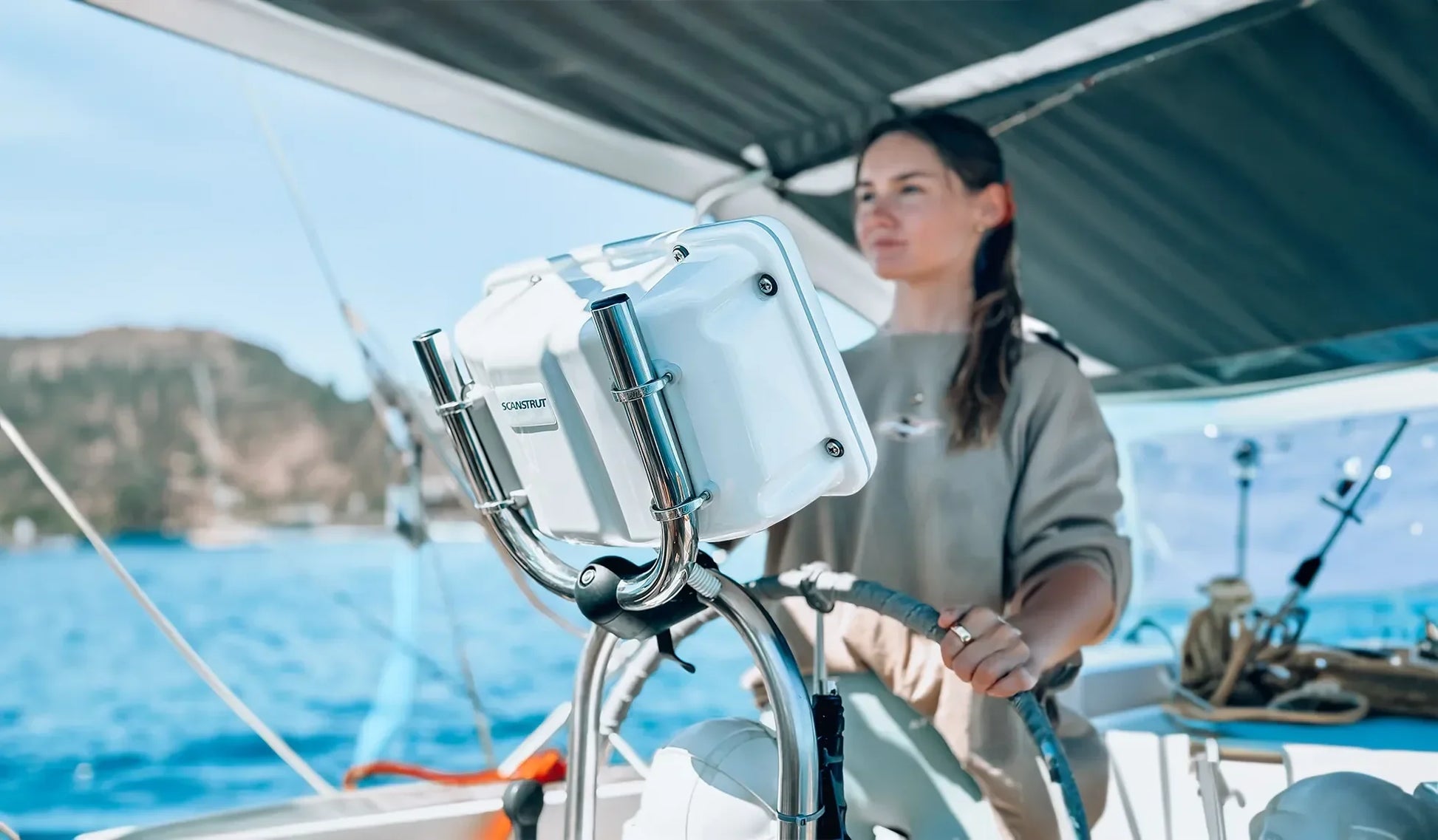

FM-1 Flex Mount (Small) positions your ScanPod display at the ideal angle on pedestal rails for improved instrument viewing.

• Model: FM-1 Flex Mount (Small)
• Rail diameter: 25 mm-33.7 mm (0.98-1.33 in)
• Rail sizes: Fits 1 in and 1¼ in rails; requires minimum 60 mm (2.4 in) of straight rail to mount

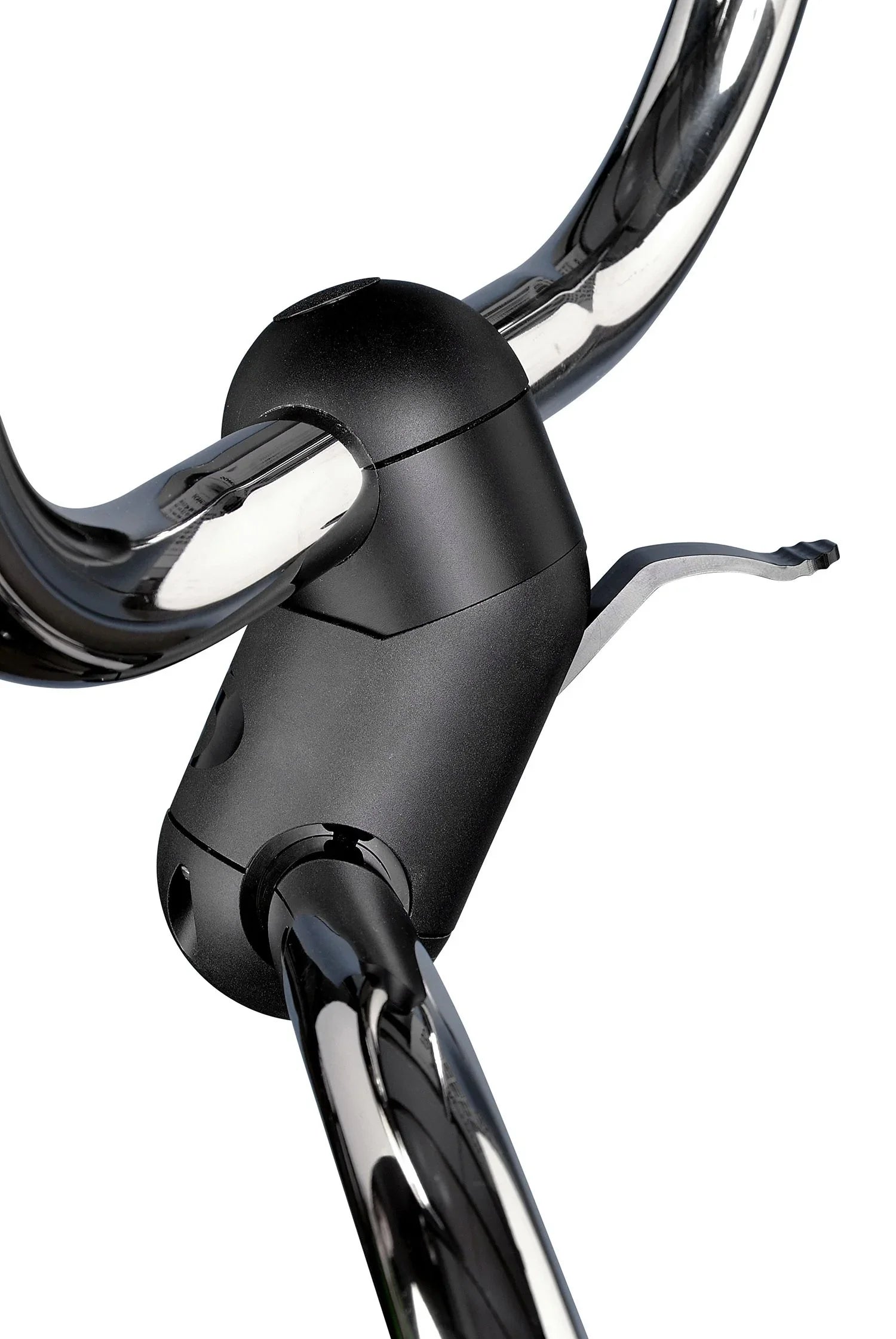

• Adjustment: Easy quick‑release lever to tilt display forward or back

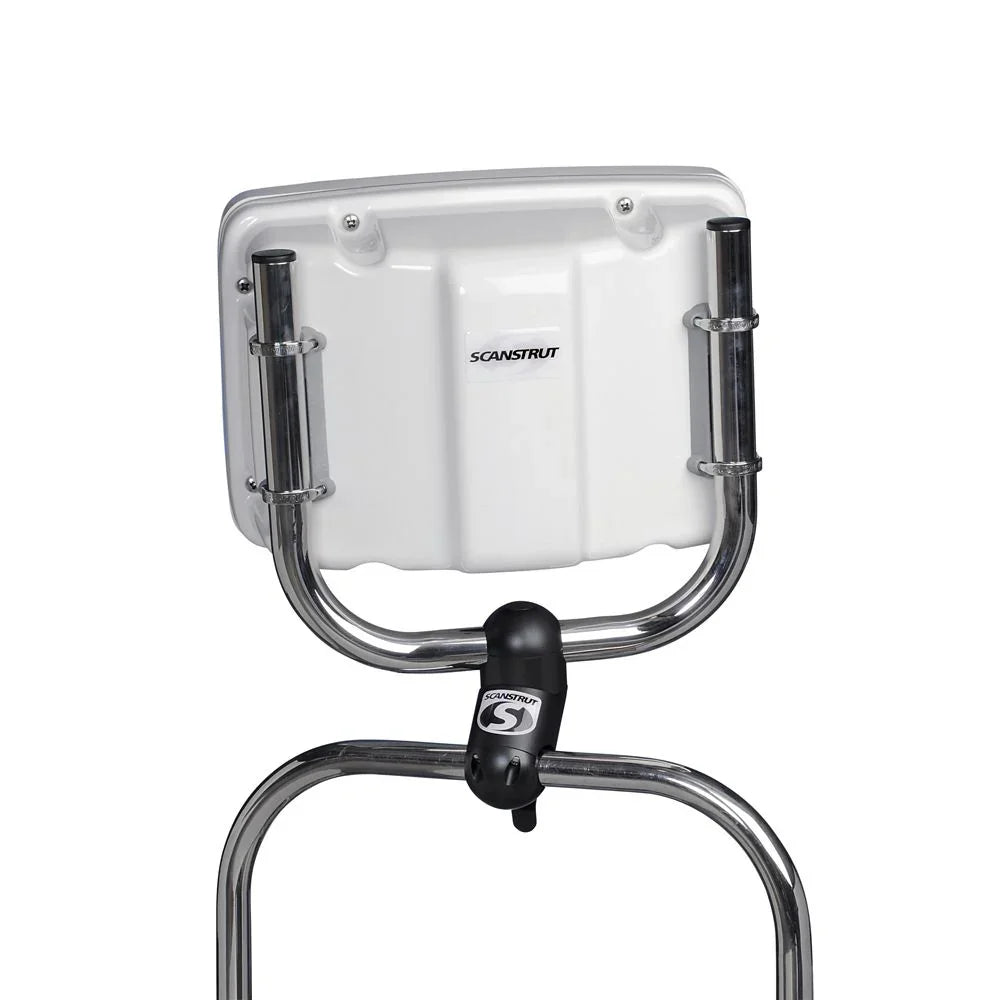

• Cabling: Cables exit rear into the pedestal/rail via a watertight grommet
• Compatible with: SPH-9-W, SPH-3i-W, SPH-4i-W, SPH-4xi-W
• Tech drawing: FM-1 Technical Drawing

Clamp-on installation requires no permanent modification and provides quick, precise positioning when used with your ScanPod Helm Pod.
