Scanstrut LMM-1 Self-Levelling Radar Mast Mount Garmin Raymarine Simrad B&G
Scanstrut LMM-1 Self-Levelling Radar Mast Mount Garmin Raymarine Simrad B&G
Couldn't load pickup availability

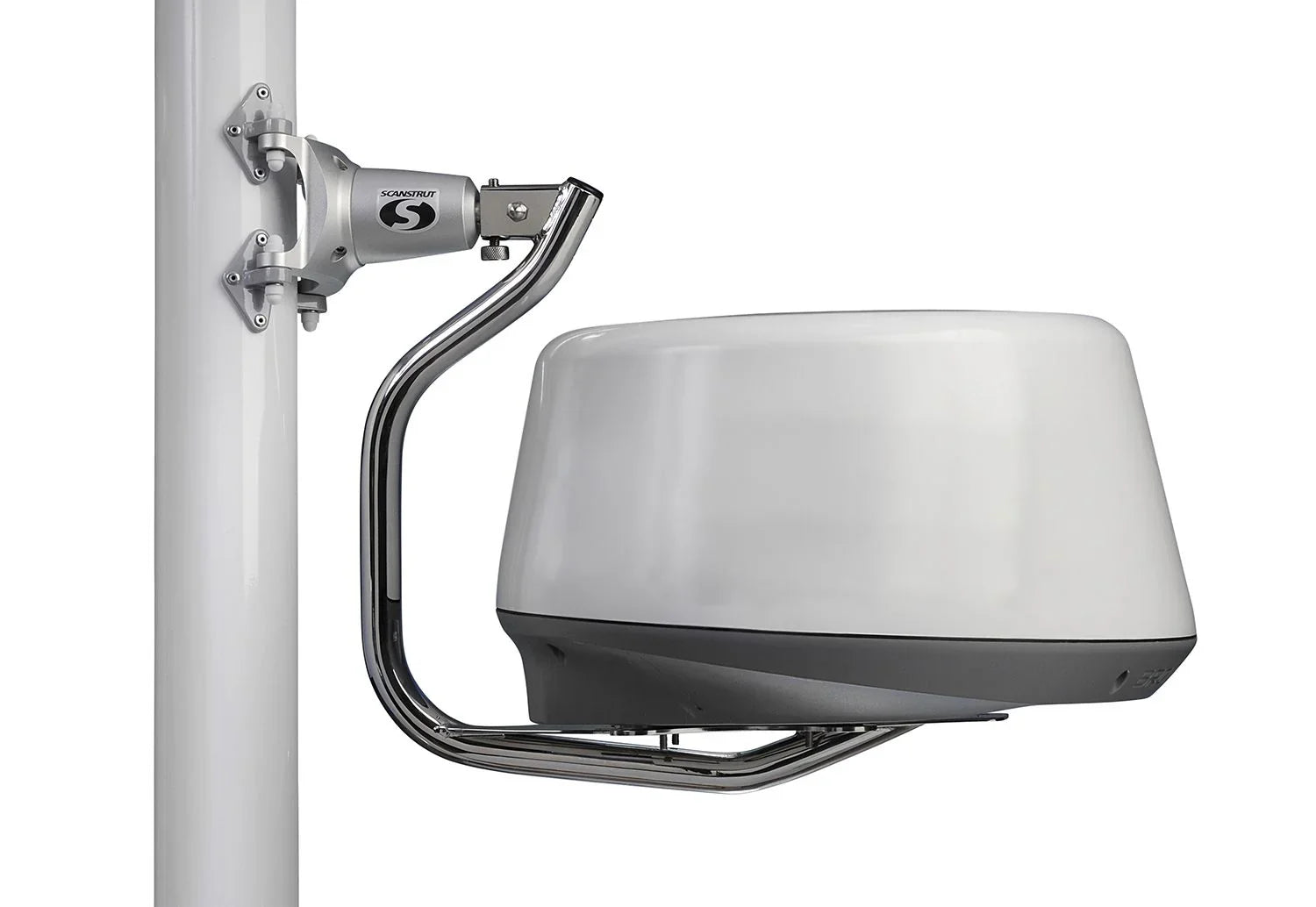

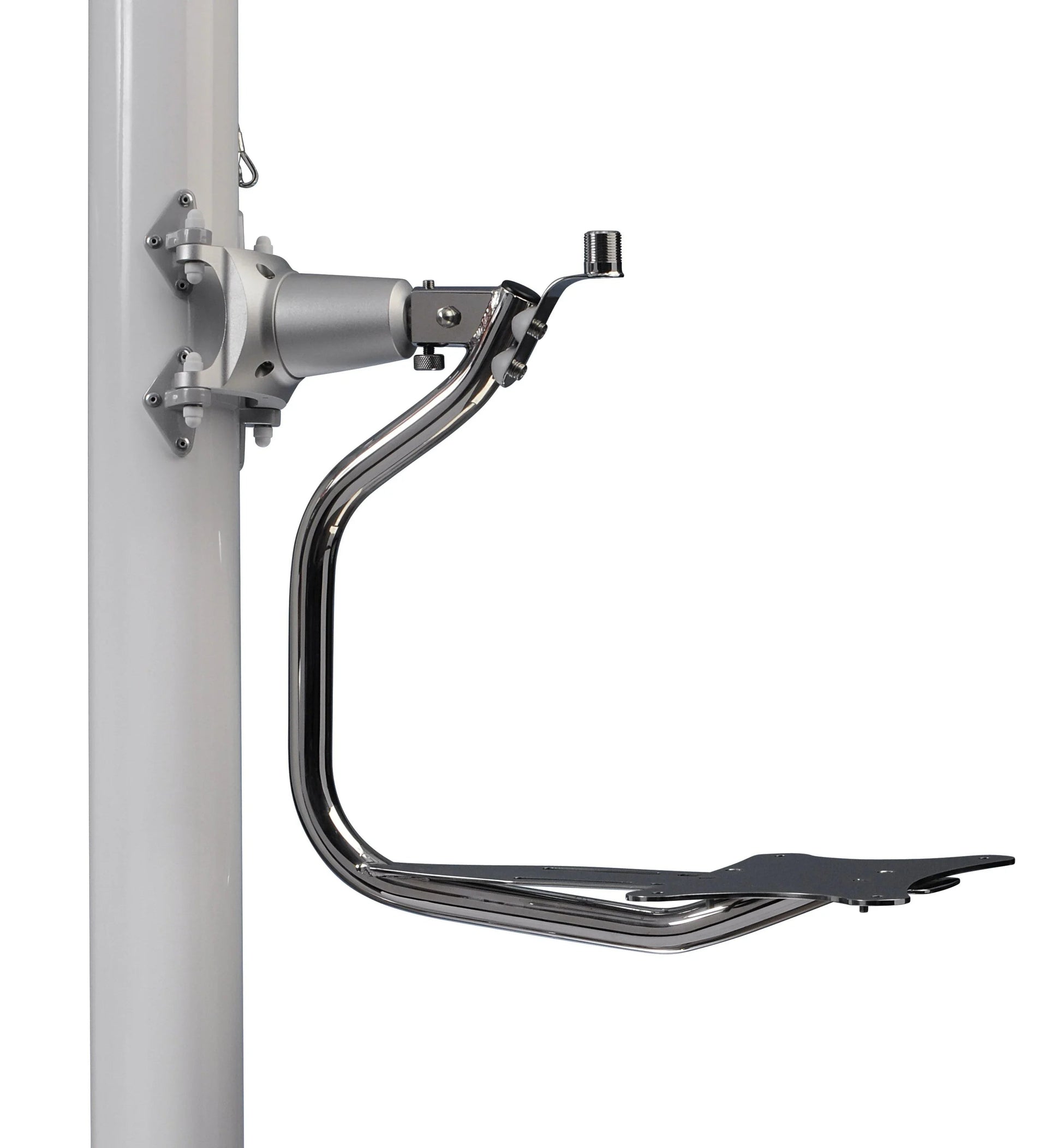

Scanstrut LMM-1 Self-Levelling Radar Mount
Mast Mounted | Hydraulic Damping | Lightweight Design
The Scanstrut LMM-1 Self-Levelling Mast Mount is the ultimate solution for offshore sailors looking to optimize their radar performance. By keeping your radar scanner level with the horizon regardless of the boat's heel or roll, this mount prevents target loss and ensures the clearest possible radar return in all sea states.
Key Features
- ✔ Passive System: No external power required
- ✔ Hydraulic Damping: Eliminates image jitter
- ✔ Lightweight: Entire system weighs just 3.4kg
- ✔ Universal Fit: Matches any mast profile via swivel feet
- ✔ Direct Upgrade: Same footprint as SC20 and M92722
Technical Specs
| SKU: | LMM-1 |
| Material: | 316 Stainless / Anodized Alum. |
| Weight: | 3.4kg (7.5 lbs) |
| Height: | 506 mm |
| Width: | 223 mm |
| Length: | 646.5 mm |
Compatibility / Fitment Guide
| Manufacturer | Compatible Models |
|---|---|
| Garmin | Fantom 18/24, GMR18 (HD/xHD), GMR24 (HD/xHD), GMR40 |
| Raymarine | Quantum, Quantum 2, RD418D, RD418HD, RD218, RD424 |
| Simrad / B&G | Halo 20/20+/24, 3G/4G Broadband, DX45, DX60 |
| Lowrance | Halo 20/20+/24, 3G/4G Broadband radomes |
OEM Cross Reference
| Scanstrut SKU: LMM-1 | EAN: 5060114791152 | Replaces: SC20 / M92722 |
Questions & Answers
Is this a genuine Scanstrut part?
Yes, this is an authentic Scanstrut LMM-1 Self-Levelling Radar Mount, supplied in original packaging with all necessary mounting hardware.
How do I know if it is compatible?
This mount is specifically designed for the radomes listed in the compatibility guide above. If your radar is a standard 18" or 24" dome from Garmin, Raymarine, or Navico (Simrad/B&G/Lowrance), it will likely fit.
Does it require maintenance for the hydraulic oil?
No, the hydraulic damping unit is a completely sealed, "fit and forget" system that is maintenance-free for the life of the product.
Note: Please verify your radome model against the compatibility chart. Includes mount only; radar scanner unit is sold separately. Visit 4boats.co.uk for technical support.
