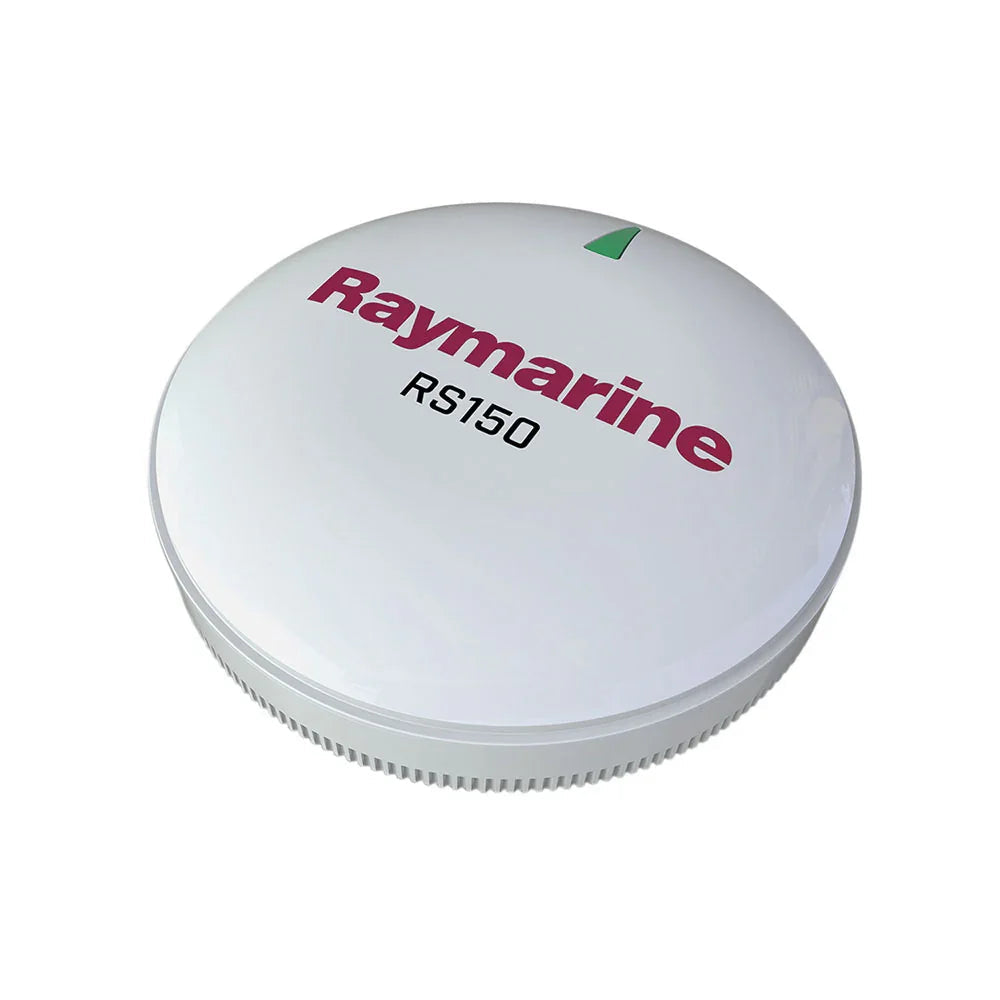

Raymarine Raystar 150 GPS/GLONASS Antenna Kit
Premium High-Performance GNSS Receiver (T70327)
The Raymarine RS150 (Raystar 150) is a high-performance, 72-channel, remotely mounted GPS/GNSS sensor designed specifically for Raymarine navigation systems. Providing an industry-leading 10Hz position update rate, it ensures fluid and accurate chart plotting even at high speeds or in challenging maritime environments.
Key Features
- ✔ 72-Channel GNSS Receiver
- ✔ Fast 10Hz position updates
- ✔ SeaTalkng & NMEA 2000 Compatible
- ✔ Low Power Consumption (30mA / 1 LEN)
- ✔ Includes 6m Spur Cable & Pole Mount
Technical Specs
| Voltage | 12V DC (8-32V range) |
| Power | 30 mA max (1 LEN) |
| Waterproof | IPX6 / IPX7 |
| Cold Start | < 45s (typical) |
| Accuracy | < 5m (with SBAS) |
| Protocols | SeaTalkng / NMEA 2000 |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Raymarine Axiom | Axiom / Axiom Pro / Axiom XL | Direct SeaTalkng connection |
| Raymarine Displays | aSeries / cSeries / eSeries / gS Series | Standard network integration |
| Legacy Displays | C-Classic / E-Classic / Widescreen | Requires E22158 Converter Kit |
| Instruments | i70 / i70s Display | Provides SOG and Position data |
OEM Cross Reference
| Raymarine MPN (Antenna) | E70310 |
| Raymarine SKU (Kit) | T70327 |
| Successor To | Raystar 130 (E22158) |
| UPC | 723193796917 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Raymarine product. It is the official RS150 kit supplied with the original manufacturer's accessories.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your system supports SeaTalkng or NMEA 2000, this antenna is compatible. If you are replacing an older Raystar 125/130 on a legacy system, an adapter cable or converter may be needed.
Does this kit include the connection cable?
Yes, the T70327 kit includes a 6-metre SeaTalkng spur cable to connect the antenna directly to your vessel's network backbone.
Note: Please verify your original part number or network type against the references above before purchasing. For technical support regarding NMEA 2000 integration, contact 4boats.co.uk support.
