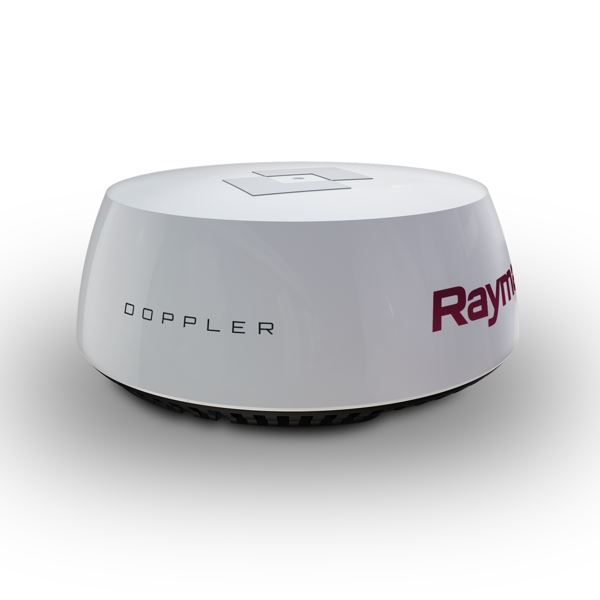

Raymarine Quantum 2 Q24D 18" Doppler Radar Radome + 15m Cables E70498
Raymarine Quantum 2 Q24D 18" Doppler Radar Radome + 15m Cables E70498
Couldn't load pickup availability
Raymarine Quantum 2 Q24D (E70498)
18" Doppler Radar with 15m Power & Data Cables
The Raymarine Quantum 2 Q24D is the next generation of marine radar, integrating advanced Doppler target processing to instantly highlight moving radar contacts. By color-coding targets (Red for inbound, Green for outbound), the Quantum 2 allows for immediate situational awareness in high-traffic waterways. This specific package includes the premium 15-metre power and data cable set, ensuring a clean and versatile installation for larger vessels.
Key Features
- ✔ Doppler moving target display
- ✔ CHIRP Pulse Compression technology
- ✔ MARPA target tracking (25 targets)
- ✔ 24 Nautical Mile detection range
- ✔ Instant-On start-up in seconds
- ✔ Wired RayNet & Wi-Fi connectivity
Technical Specs
| Voltage | 12V / 24V DC (10.8 to 31.2V) |
| Power (Transmit) | 17 Watts |
| Max Range | 24 Nautical Miles |
| Minimum Range | 18 Feet (6 Metres) |
| Beam Width | 4.9° Horiz / 20° Vert |
| Weight | 5.6 kg (12.35 lbs) |
| Waterproofing | IPX6 |
Compatibility / Fitment Guide
| Display Series | Operating System | Notes |
|---|---|---|
| Axiom / Axiom Pro / XL | LightHouse 3 or later | Full Doppler support |
| eS Series | LightHouse 3 or later | Full Doppler support |
| gS Series | LightHouse 3 or later | Full Doppler support |
| Legacy MFDs (a, c, e) | LightHouse 2 | Radar only (No Doppler) |
Package Contents & Identification
| Product SKU | E70498 (Bundle) |
| Radome Model | Quantum 2 Q24D |
| Cable Length | 15 Metres (49.2 ft) Power & Data |
| UPC/EAN | 0723193823101 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Raymarine product, supplied in original retail packaging with all standard manufacturer accessories.
Does it include the mounting hardware?
Yes, the kit includes M8 mounting bolts with spring and flat washers, along with a mounting template for precise installation.
What is the benefit of the 15m cable vs the 10m cable?
The 15m (49.2ft) cable is designed for larger vessels or sailboats where the distance between the mast/arch mount and the MFD requires additional length without needing extensions.
Note: Doppler functionality requires a compatible Raymarine MFD running LightHouse 3 or higher. Visit 4boats.co.uk for more electronics and marine hardware.
