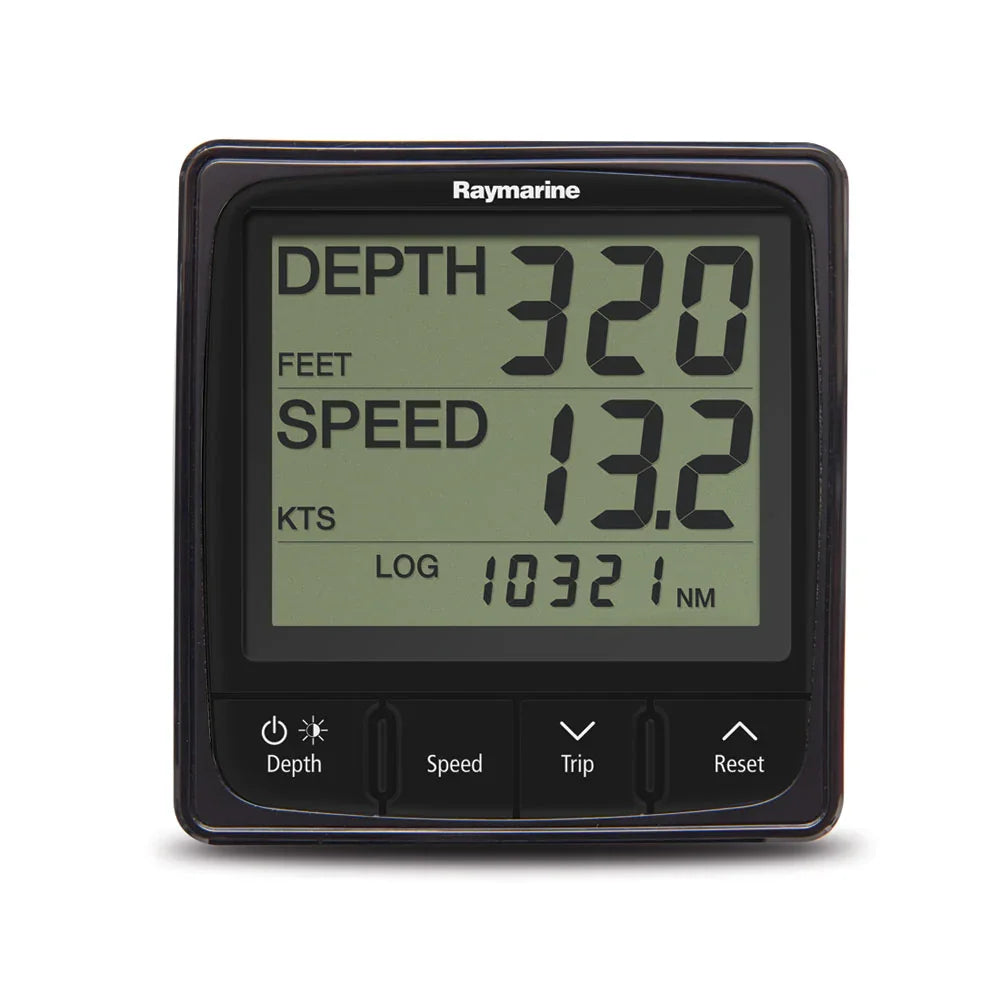

Raymarine i50 Tridata Display E70060
Digital Depth, Speed, and Temperature Instrument
The Raymarine i50 Tridata (E70060) is a dedicated digital instrument designed to consolidate essential marine data into one space-saving unit. By combining depth and speed data on a crisp, three-line LCD, it provides boaters with instantaneous access to trip/log details, surface sea temperature, and speed over ground (SOG) via network integration. Its large, high-contrast digits and adjustable red backlighting ensure perfect legibility in both direct sunlight and total darkness.
Key Features
- ✔ 3-line display for Depth, Speed, and Temp
- ✔ Oversized 1.1" digits for easy reading
- ✔ Red backlighting for night-time visibility
- ✔ Identical footprint to legacy ST60+ units
- ✔ Dual SeaTalkng and NMEA 2000 support
Technical Specs
| MPN: | E70060 |
| Voltage: | 12V DC (10-16V range) |
| Power: | < 1W (Display Only) |
| IP Rating: | IPX6 |
| Dimensions: | 110 x 115 x 44 mm |
| Current: | 45–65 mA (Typical) |
Compatibility / Fitment Guide
| System/Network | Requirement | Notes |
|---|---|---|
| SeaTalkng | Native Backbone/Spur | Plug & Play with Raymarine MFDs |
| NMEA 2000 | DeviceNet Adapter Cable | Standard network integration |
| Legacy SeaTalk | SeaTalk Converter Kit | Backwards compatible with older sensors |
| Analog Sensors | Direct Connection | Supports depth/speed/temp transducers |
OEM Cross Reference
| Raymarine MPN | E70060 |
| Successor to | ST60+ Tridata (A22013-P / A22017-P) |
| System Pack Ref | E70149 (Pack including transducers) |
Questions & Answers
Is this a genuine original part?
Yes, this is an authentic Raymarine i50 Tridata instrument (MPN E70060), supplied in original packaging with a standard sun cover and mounting kit.
How do I know if it is compatible?
We recommend checking the SKU/MPN (E70060). If you are replacing an ST60 or ST60+ Tridata, this unit is a direct footprint match and will fit your existing dashboard cutout.
Can I use my existing analog transducers with this display?
Yes. The i50 Tridata has built-in analog transducer interfaces on the rear of the unit, allowing you to connect legacy Raymarine depth and speed/temperature transducers directly.
Note: This listing is for the Display Only. Transducers and SeaTalkng backbone cables are sold separately if required for a first-time installation.
