Raymarine CP100 CHIRP DownVision Sonar Module Fishfinder E70204
Raymarine CP100 CHIRP DownVision Sonar Module Fishfinder E70204
Couldn't load pickup availability

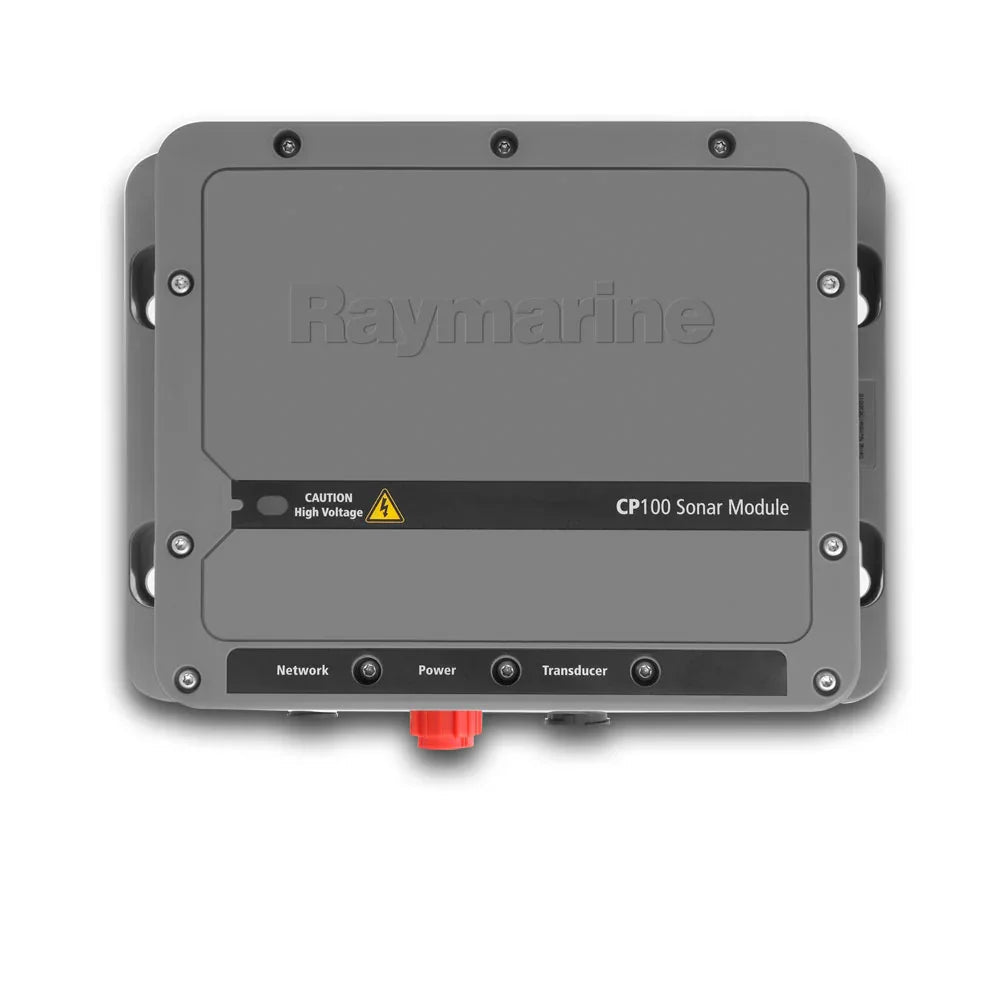

Raymarine CP100 DownVision Sonar (E70204)
Professional CHIRP Sonar Module for Enhanced Underwater Vision
The Raymarine CP100 DownVision Sonar module brings award-winning CHIRP technology to your Raymarine multifunction display. Unlike conventional imaging sonars that transmit on a single frequency, the CP100 uses CHIRP technology to transmit across a wide spectrum of frequencies with each pulse. This results in much higher-resolution, photo-like sonar images of bottom structure and superior fish targeting.
Key Features
- ✔ Photo-like CHIRP DownVision imagery
- ✔ Dual-channel sonar (Structure + Fish)
- ✔ Depth performance up to 600ft (183m)
- ✔ Simple RayNet (Ethernet) networking
- ✔ IPX6/IPX7 Waterproofing
Technical Specs
| Supply Voltage: | 12V / 24V DC |
| Voltage Range: | 10.8V to 31.2V DC |
| Power Consumption: | 3W (Average) |
| DV Frequency: | 350 kHz (Centered) |
| Sonar Frequency: | 200 kHz (Centered) |
| Interface: | RayNet / 9-pin Transducer |
Compatibility / Fitment Guide
| Raymarine Series | Model Families | Notes |
|---|---|---|
| a-Series | a65, a67, a68, a75, a77, a78, a9x, a12x | Requires LH v7.35+ |
| c-Series / e-Series | c95, c97, c125, c127, e7, e7D, e95, e127 | Network via RayNet |
| gS-Series / eS-Series | gS95, gS125, gS165, eS78, eS98, eS128 | Full CHIRP Support |
| Axiom / Axiom Pro | Axiom 7, 9, 12, Axiom Pro RV/S | Compatible via RayNet |
OEM Cross Reference
| Raymarine SKU/MPN | E70204 |
| Raymarine Bundle SKU | E70205 (Includes CPT-100 Transducer) |
| UPC / EAN | 723193783351 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Raymarine sonar module (MPN: E70204) supplied in original packaging.
Does this unit include a transducer?
This SKU (E70204) is the sonar module only. A compatible Raymarine DownVision transducer (such as CPT-100, CPT-110, or CPT-120) is required for operation and sold separately.
How do I know if it is compatible?
If you own a Raymarine "a", "c", "e", "eS", "gS" or Axiom series display with RayNet networking, this module is compatible. Ensure your MFD is updated to LightHouse software v7.35 or higher.
Note: Please verify your original part number and system networking requirements before purchasing. Domain: 4boats.co.uk
