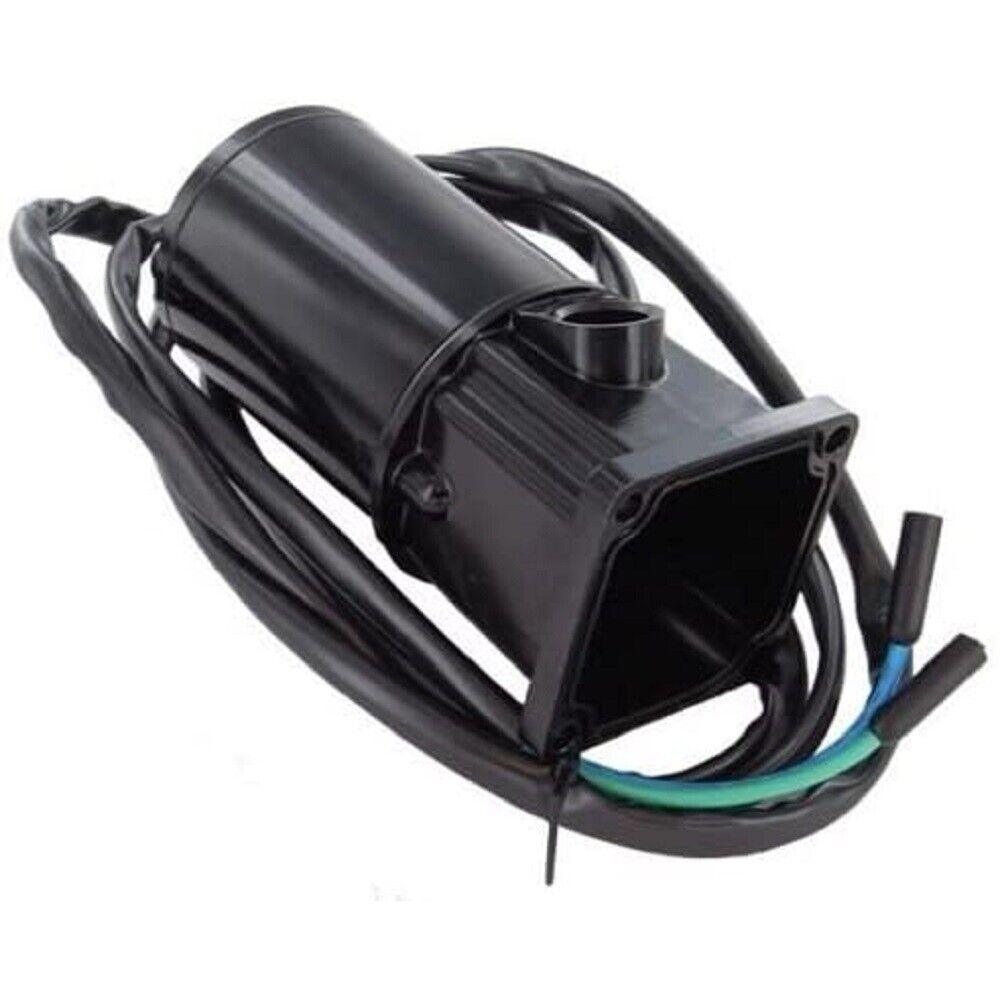

Power Trim Tilt Motor 824051
Premium Replacement for Mercury & Mariner Outboards
Restore the smooth operation of your outboard's trim and tilt system with this high-performance replacement motor. Specifically engineered for Mercury and Mariner single-ram systems, this 12V reversible motor is built to withstand the rigors of marine environments. This unit is a 2-wire configuration that includes the necessary relay harness to seamlessly replace older 3-wire motor designs, providing a more efficient and modern electrical setup.
Key Features
- ✔ Direct fit for 4-bolt mounting patterns
- ✔ Female 4mm Hex drive shaft

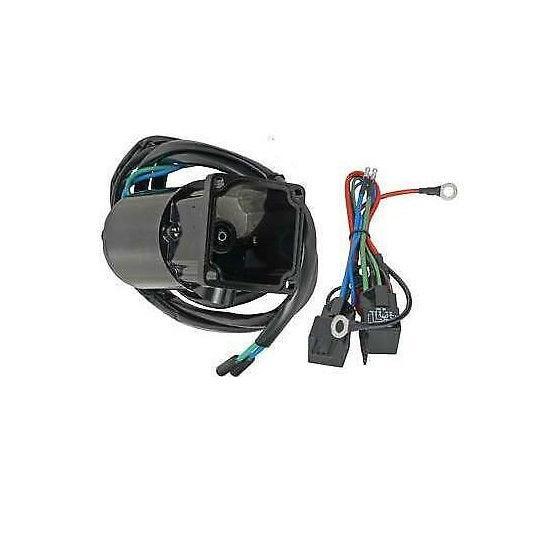

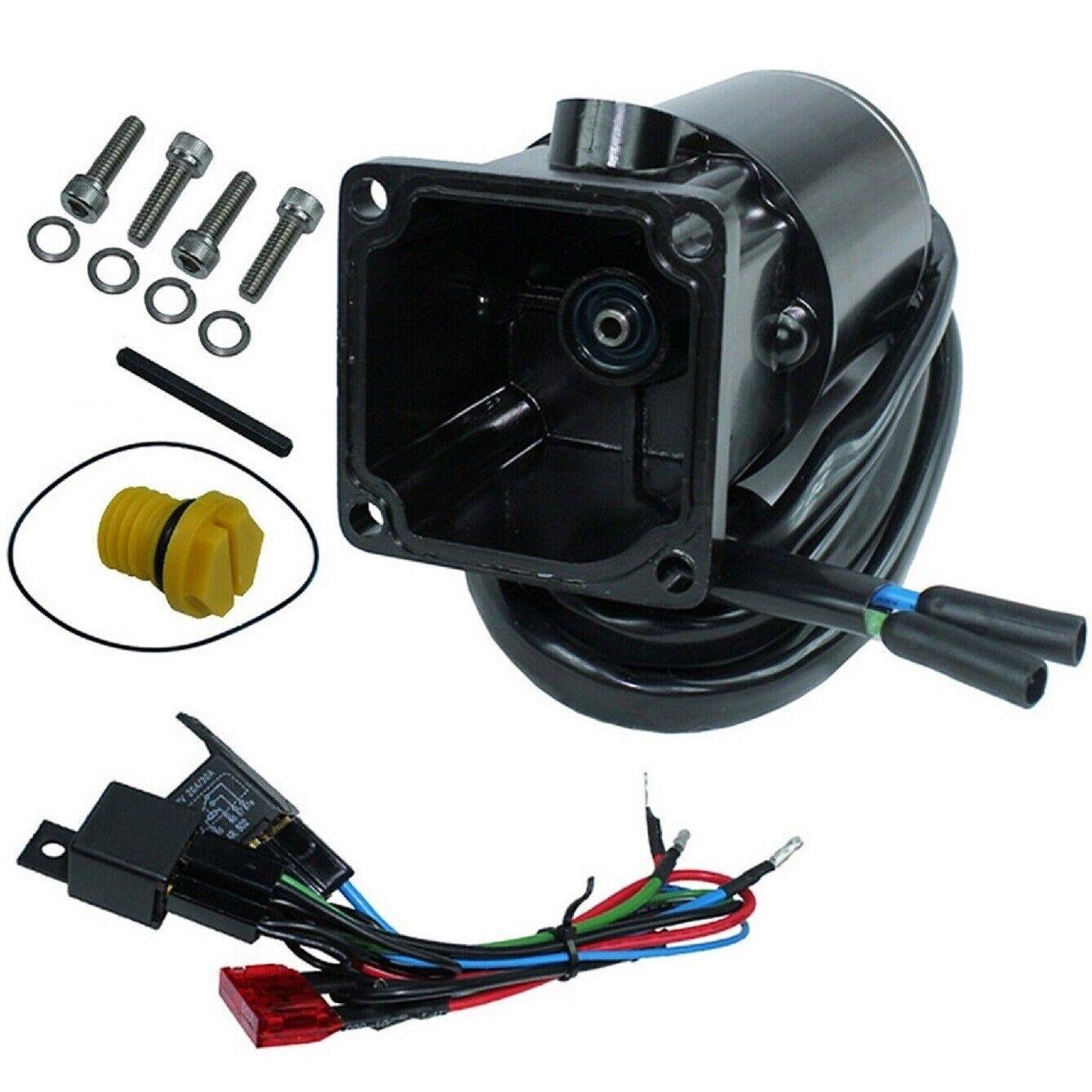

- ✔ Includes relay harness for 3-wire conversion
- ✔ Marine-grade epoxy coating for corrosion protection
Technical Specs
| Voltage | 12V DC |
| Rotation | Reversible |
| Mounting Type | 4-Bolt Flange |
| Shaft Style | 4mm Female Hex |
| Housing OD | 78mm (3.071") |
| Overall Length | 160mm (6.299") |
Compatibility / Fitment Guide
| Make/System | Model/Application | Years |
|---|---|---|
| Mercury / Mariner | 65HP to 125HP (3 & 4 Cylinder) | 1989 - 1998 |
| Force Outboards | 85HP to 150HP | 1984 - 1999 |
| Trim System | Single Ram Side-Fill Units | Various |
OEM Cross Reference
| Mercury Marine | 824051, 824051A1, 824051A2, 824051T, 830250A6, 8M6007532 |
| Arco Marine | 6274 |
| Sierra Marine | 18-6775 (Motor), 18-6784 (Kit) |
| Other Refs | API PT495NK, WAI 10821N, Lester 10821 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number is 824051 or any of the cross-references, this is the correct unit.
What if my original motor has 3 wires?
This kit is specifically designed to replace the older 3-wire style. It includes the necessary relay harness to convert your system to the more reliable 2-wire motor configuration used in later models.
Note: Please verify your original part number and mounting pattern (4-bolt) against the references above before purchasing. Part of the 4Boats premium electrical range.
