Suzuki Power Trim Motor 38100-96J00 38100-96J01 DF60 DF90 DF115 DF140 DF250 DF300
Suzuki Power Trim Motor 38100-96J00 38100-96J01 DF60 DF90 DF115 DF140 DF250 DF300
Couldn't load pickup availability

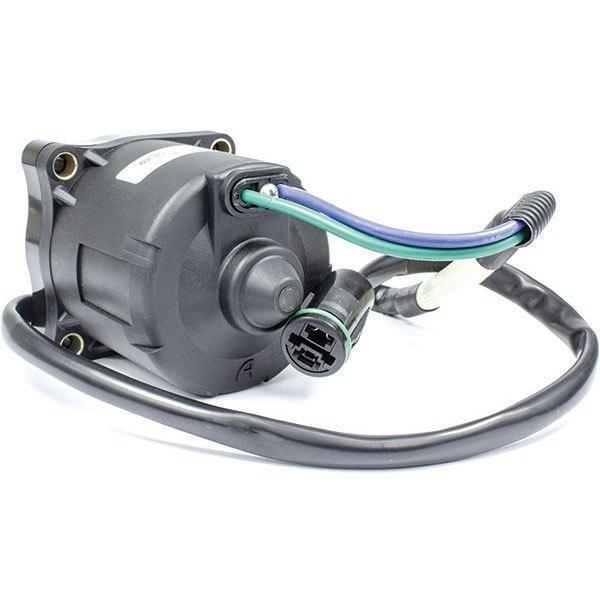

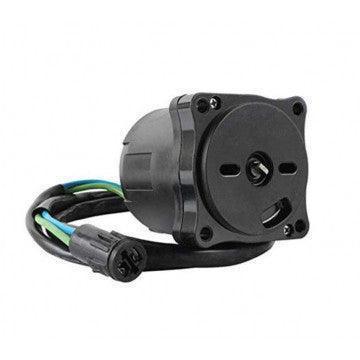

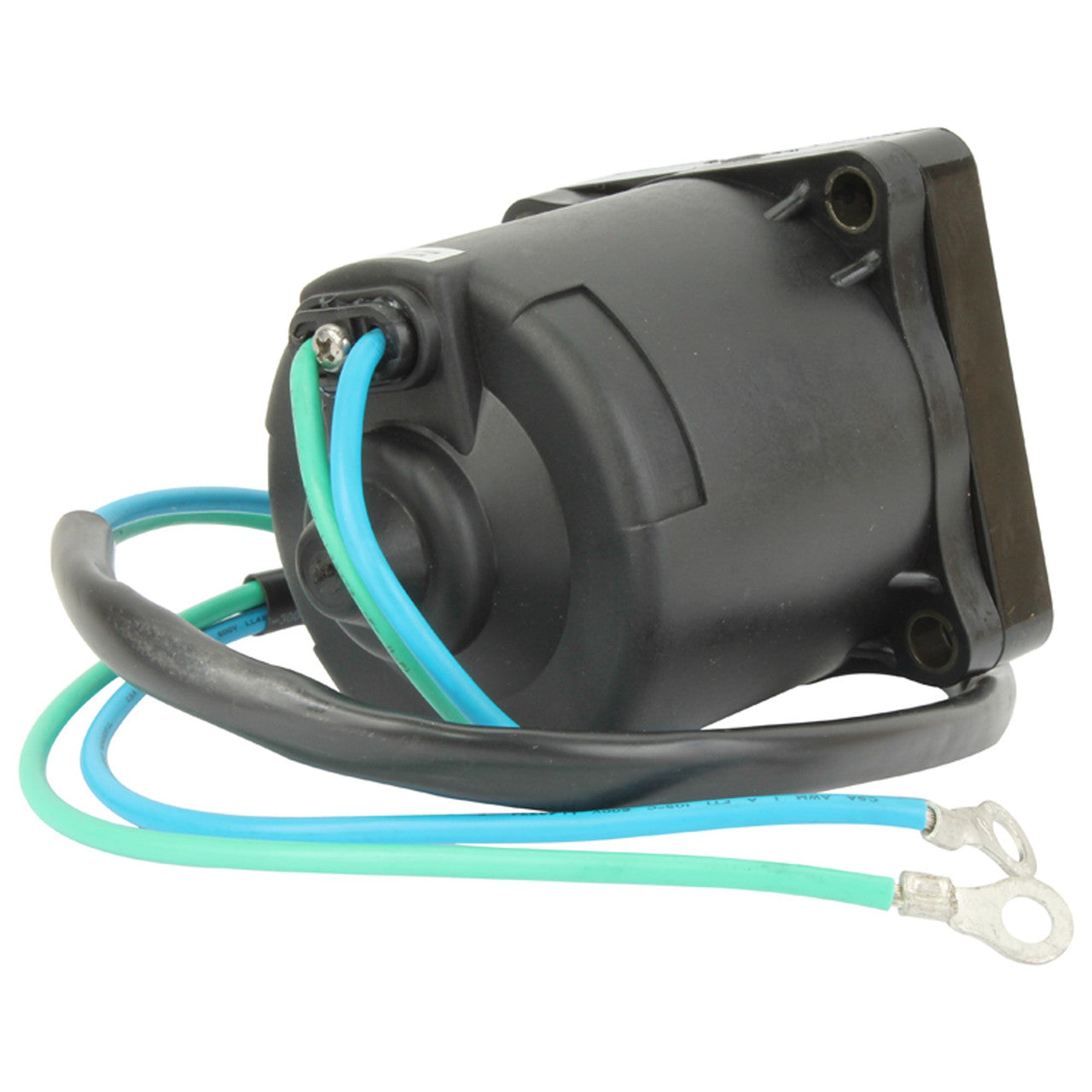

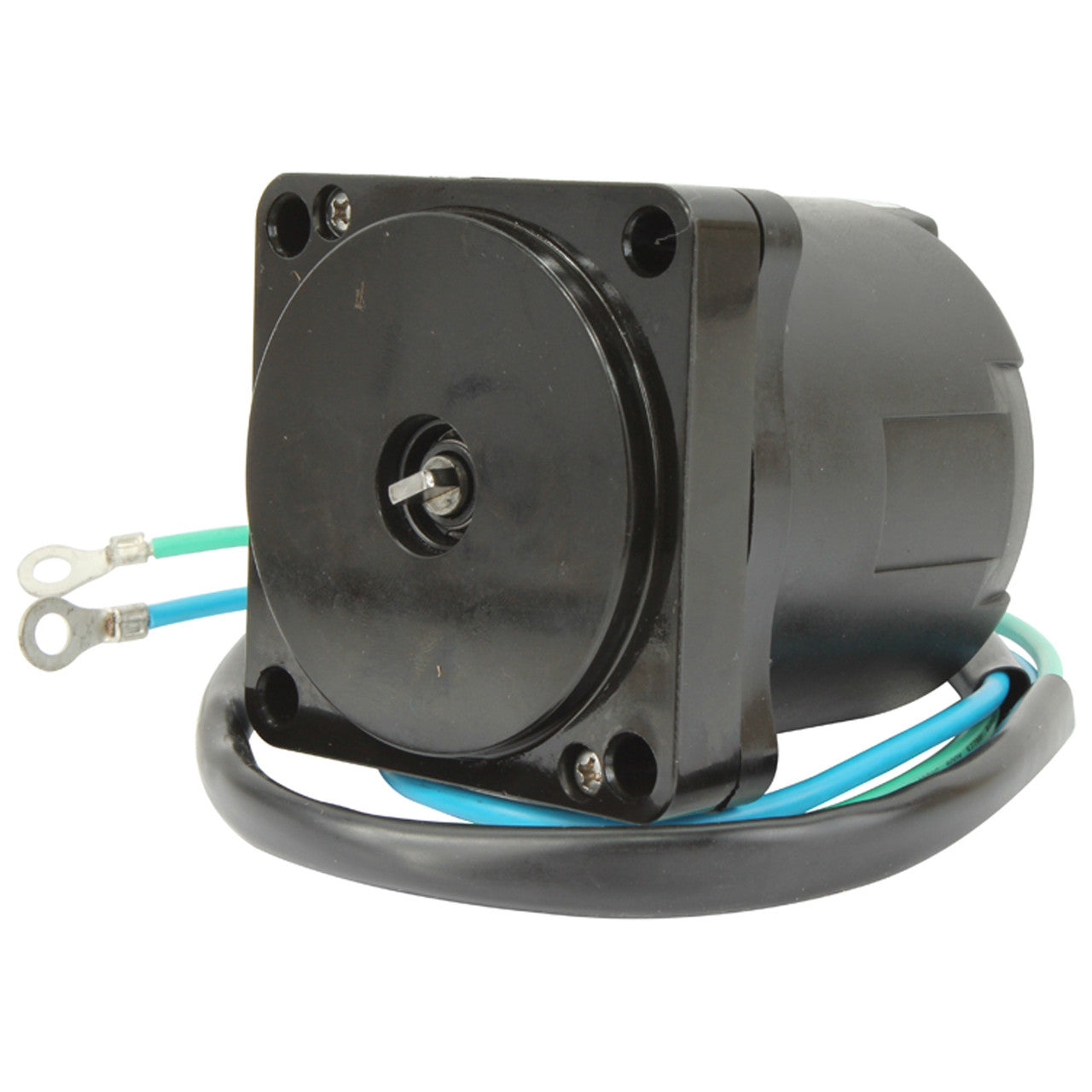

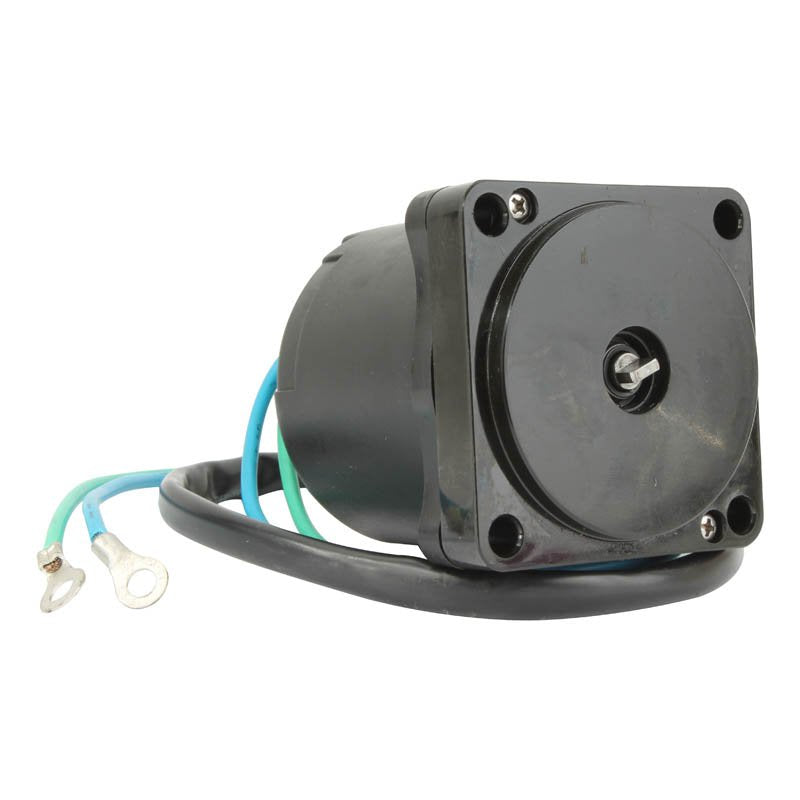

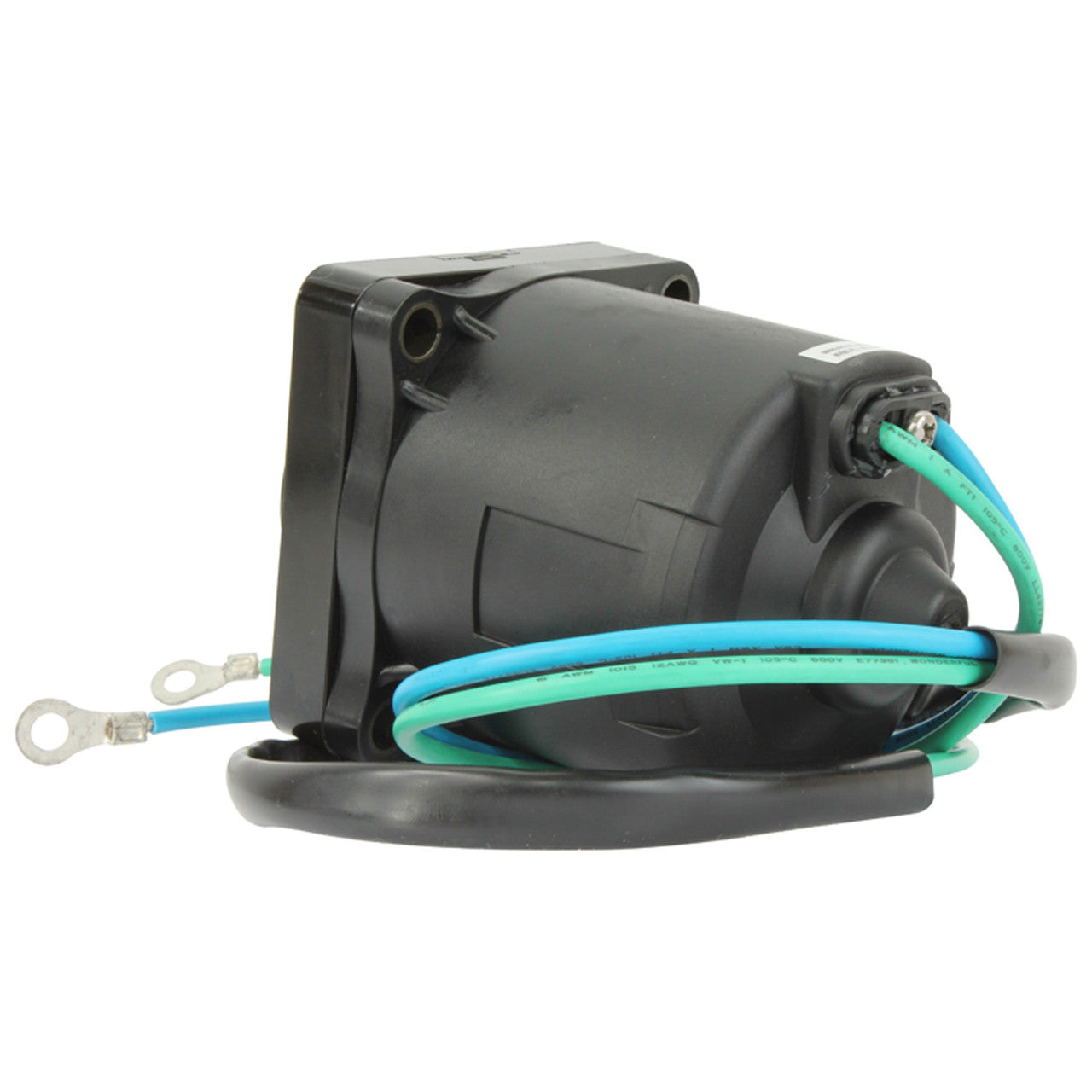

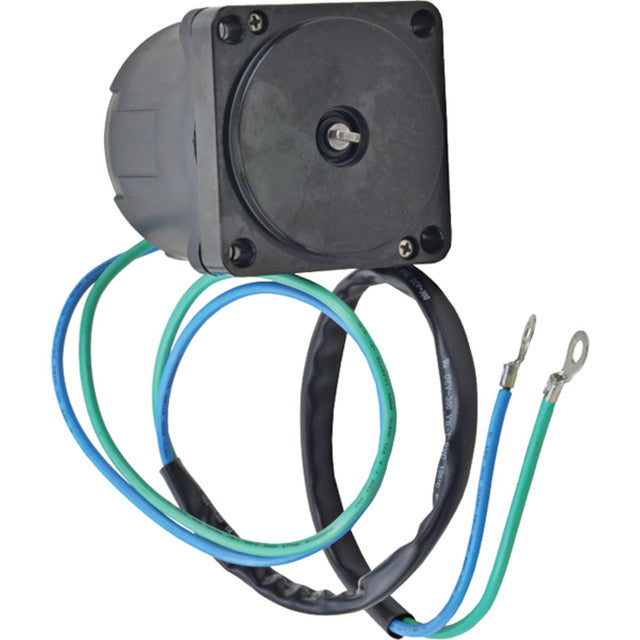

Suzuki Power Trim Motor 38100-96J00
Premium Quality Replacement for DF60 - DF300 Series
Restore the smooth operation of your outboard's tilt and trim system with this heavy-duty 38100-96J00 replacement motor. Engineered specifically for Suzuki 4-stroke engines, this motor provides the torque and reliability required to adjust your engine's trim angle for optimal fuel efficiency and handling in all water conditions.
Key Features
- ✔ Direct fit for 4-bolt mounting systems
- ✔ 2-Wire connection with ring terminals
- ✔ Sealed housing for marine environment protection
- ✔ Reversible rotation (Tilt Up / Trim Down)
Technical Specs
| Voltage: | 12V DC |
| Rotation: | Reversible |
| Shaft Type: | 2.6mm Drive Tang |
| Field Case OD: | 76mm (2.99") |
| Wiring: | 2-Wire (Blue/Green) |
Compatibility / Fitment Guide
| Make / Model | Year Range | Notes |
|---|---|---|
| Suzuki DF60 / DF70 | 2001 - 2010 | 4-Stroke Models |
| Suzuki DF90 / DF115 / DF140 | 2001 - Current | All 4-Stroke Configurations |
| Suzuki DF150 / DF175 | 2006 - Current | Inline 4 Models |
| Suzuki DF200 / DF225 / DF250 | 2004 - Current | V6 Models |
| Suzuki DF300 | 2007 - Current | V6 Models |
| Johnson / Evinrude 60-140HP | 2001 - 2007 | Suzuki-Powered 4-Stroke |
OEM Cross Reference
| Suzuki Parts: | 38100-96J00, 38100-96J01, 38100-96J02, 38100-96J10, 38100-96J11, 38100-92J02, 38100-93J01, 38100-99E01 |
| Johnson/Evinrude: | 5032636, 5033838, 5033925, 5034525, 5034526 |
| Lester / Other: | Lester 10860, Lester 10888, API PT653NM, Arrowhead TRM0095, J&N 430-22123 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
What do the wire colours mean?
This motor follows standard wiring logic: The Blue wire carries power to raise the engine (Blue sky), and the Green wire carries power to lower the engine (Green grass).
Note: Please verify your original part number against the references above before purchasing. Distributed by 4boats.co.uk.
