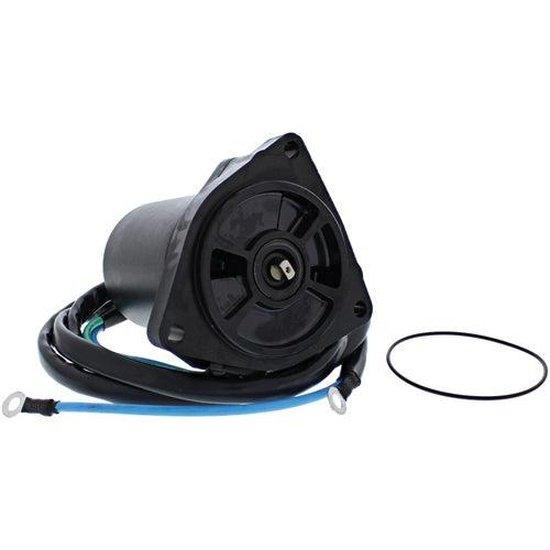

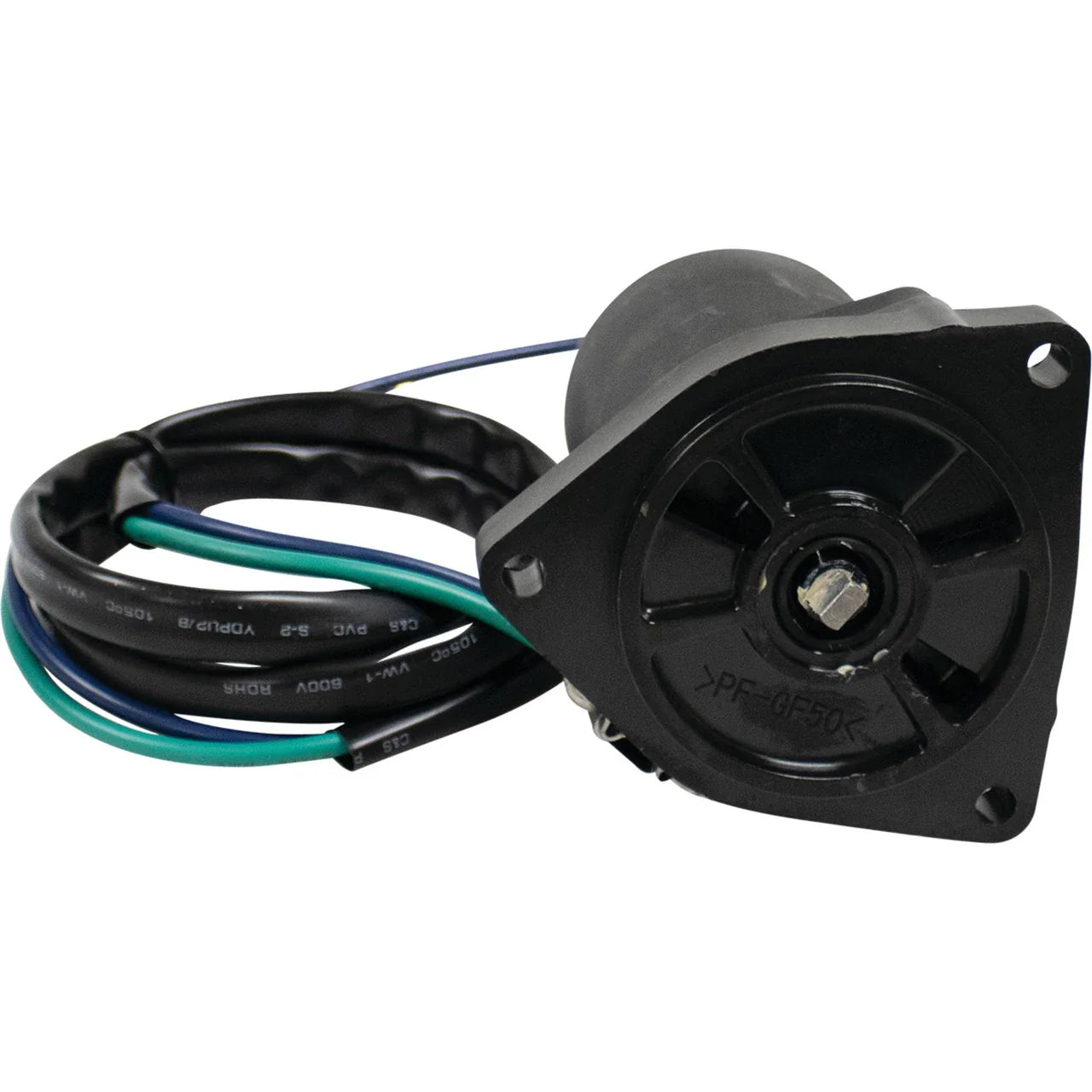

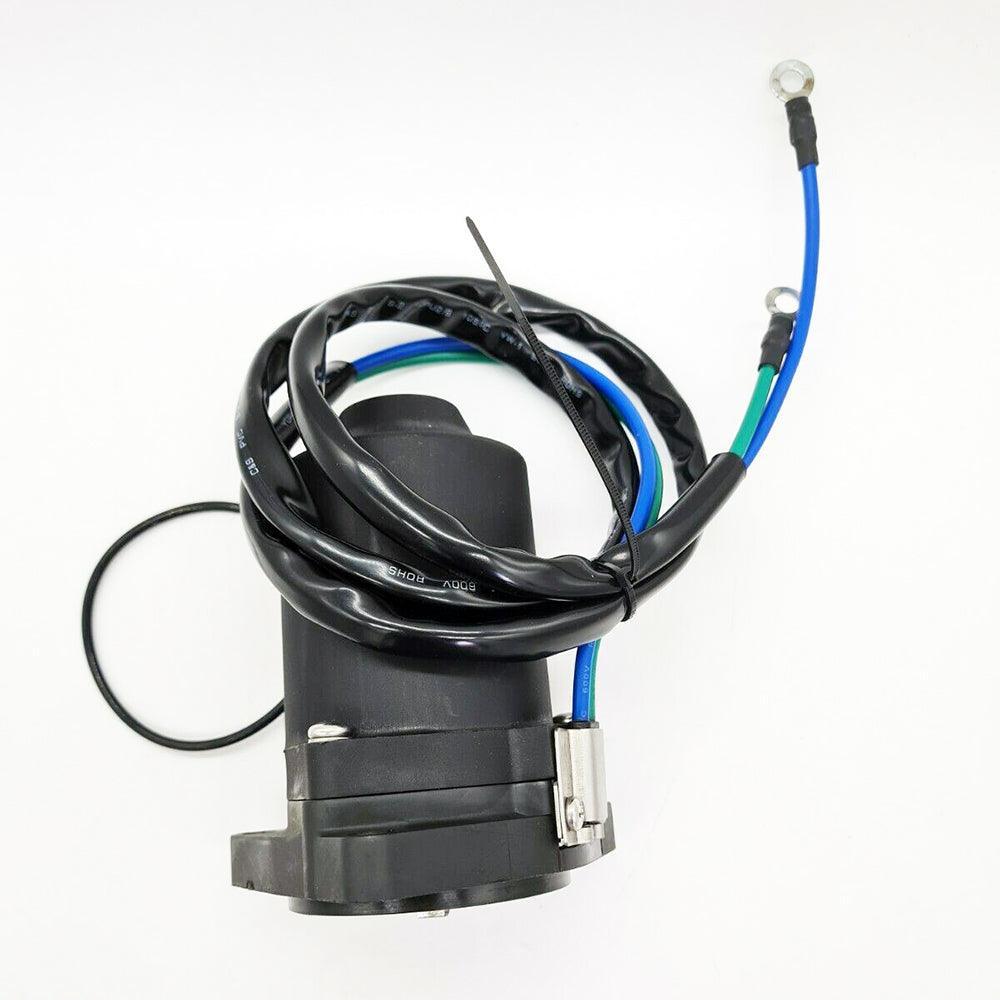

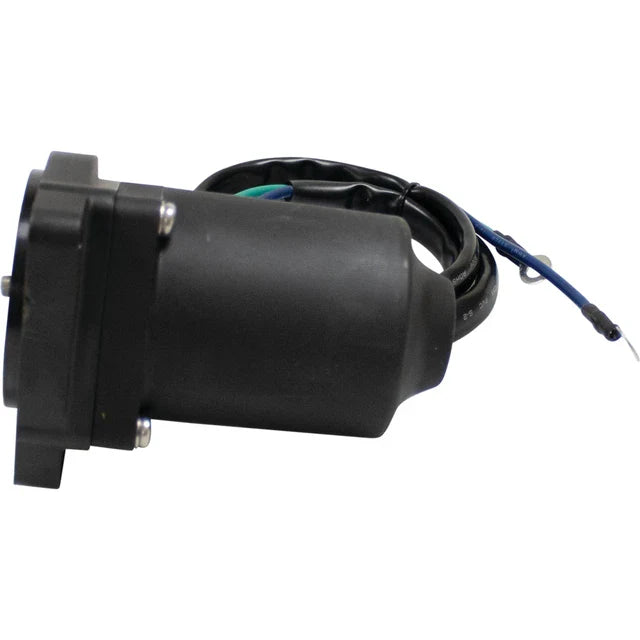

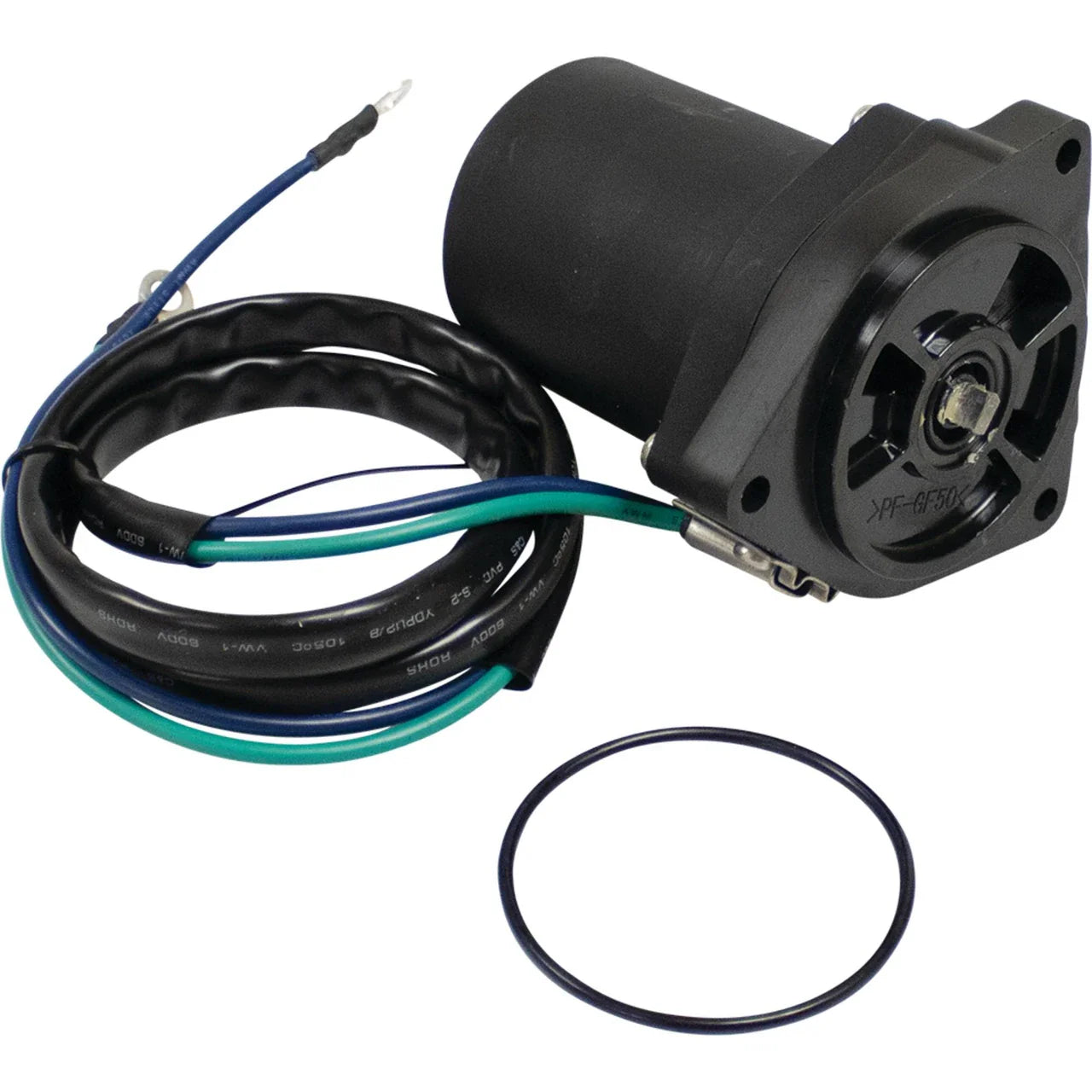

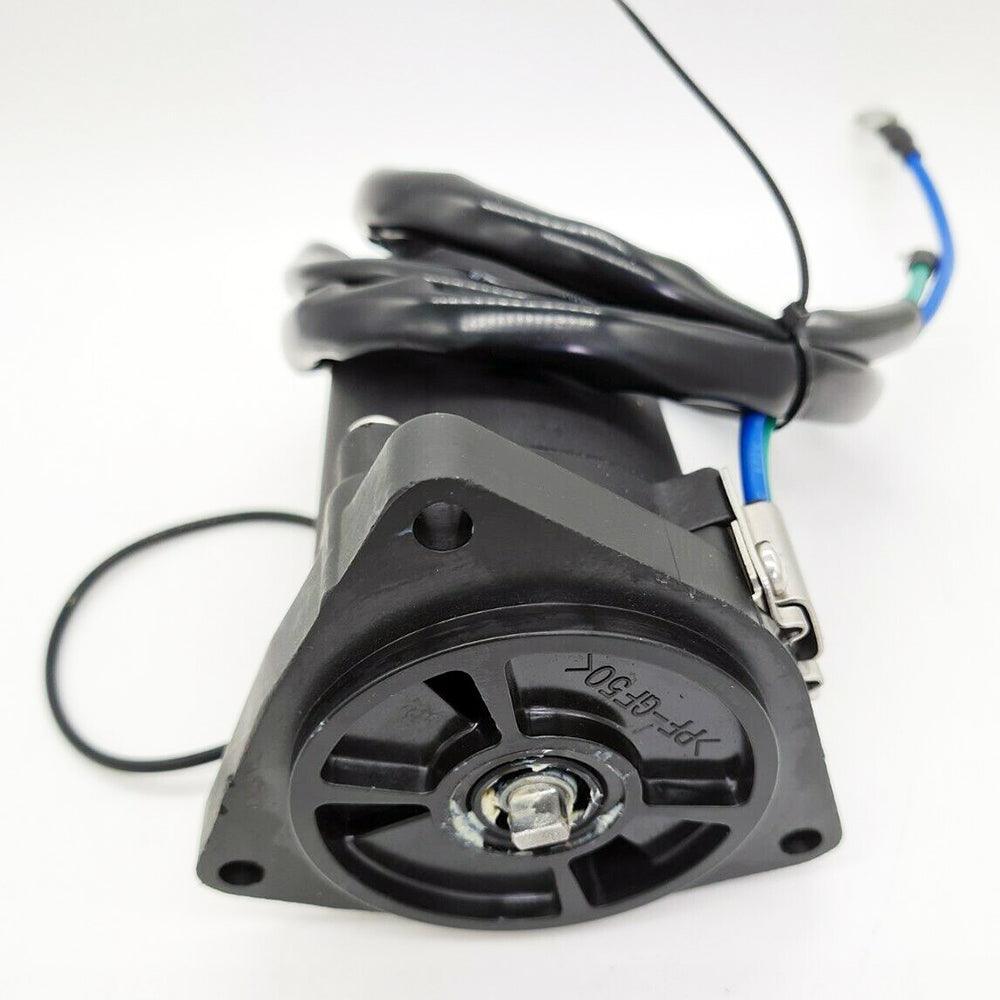

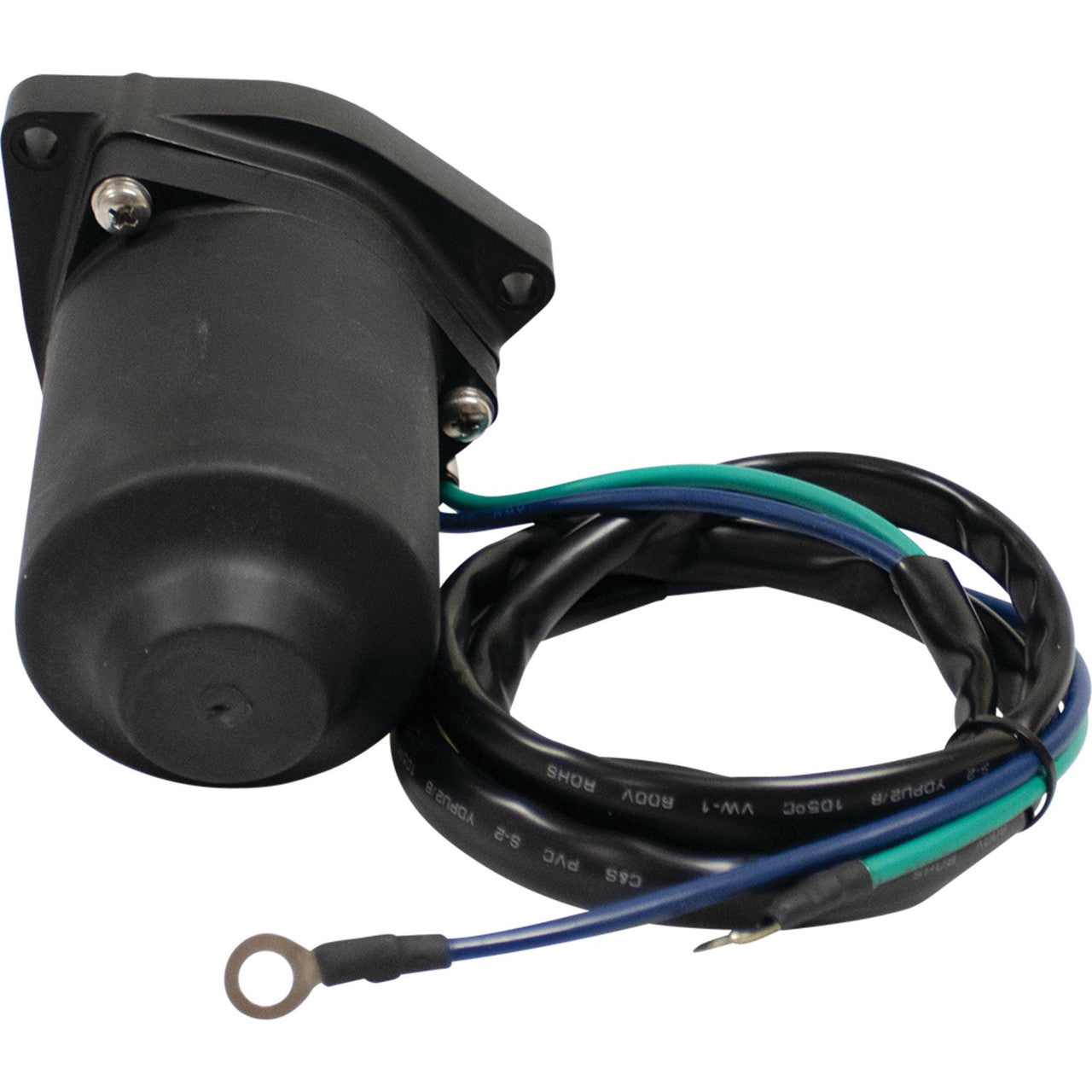

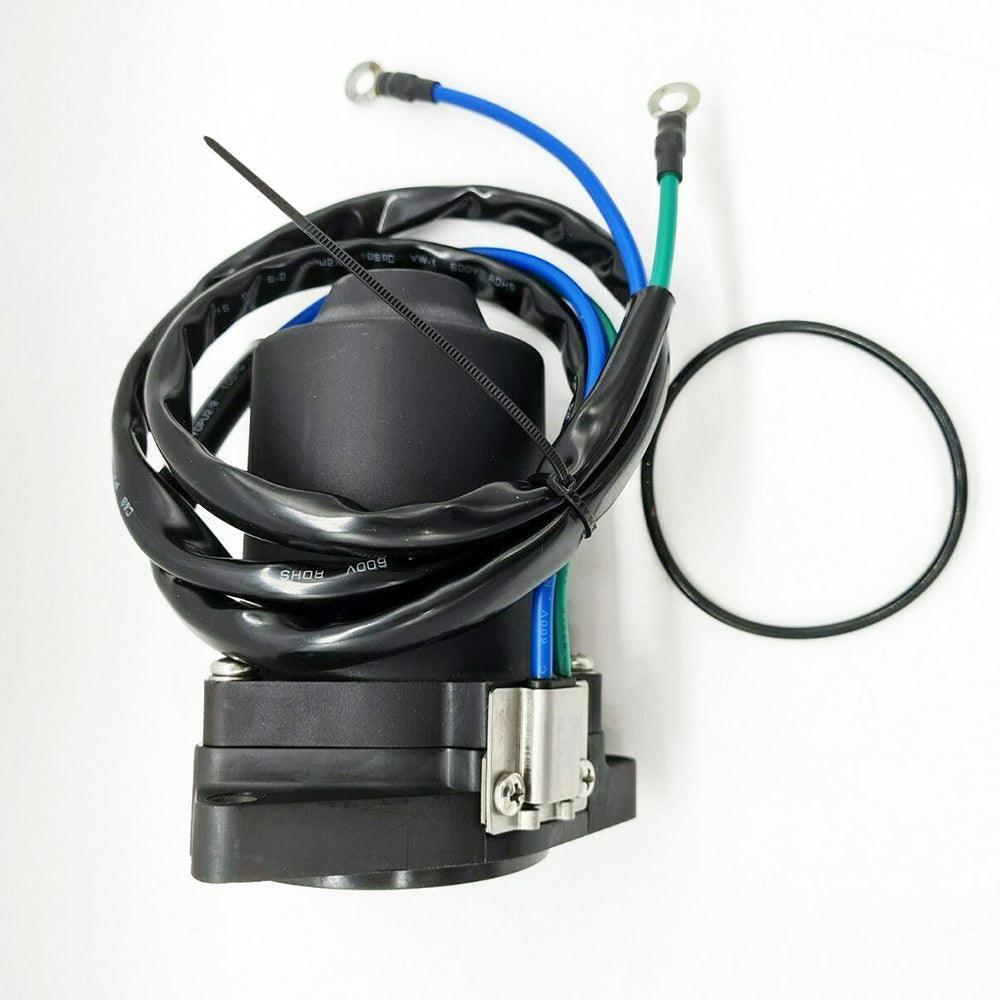

Power Trim Motor 63P-43880-10
Premium Replacement for Yamaha 150HP 4-Stroke
Restore the smooth operation of your outboard's tilt and trim system with this high-grade replacement motor. Specifically designed for Yamaha 150HP 4-stroke engines, this unit is built to withstand harsh marine environments, featuring enhanced corrosion resistance and sealed housings to prevent water ingress.
Key Features
- ✔ Direct fit 3-bolt mounting system
- ✔ Sealed 2-wire electrical configuration
- ✔ Corrosion-resistant powder coated finish
- ✔ Precision case-hardened motor shaft
Technical Specs
| Voltage: | 12V DC |
| Rotation: | Reversible |
| Wiring: | 2-Wire (Blue/Green) |
| Terminals: | 6.3mm ID Ring Eyelets |
| Shaft Style: | 3.9mm x 6.1mm Tang |
| Mounting: | 3-Bolt Flange |
Compatibility / Fitment Guide
| Make/System | Model/Application | Year Range |
|---|---|---|
| Yamaha Outboard | F150 (F150JA, F150LA, F150XA) | 2004 - 2021 |
| Yamaha Outboard | LF150 (Counter Rotation) | 2004 - 2018 |
| Yamaha Outboard | F150TJR, F150TLR, F150TXR | 2006 - 2012 |
| Yamaha Outboard | F130, F175, F200, F225, F250 | Check SKU Matching |
OEM Cross Reference
| Yamaha OEM | 63P-43880-10, 63P-43880-11, 63P-43880-12, 63P-43880-21, 63P-43880-22 |
| Yamaha Series | 63P-43880-01-00, 6KW-43880-00-00, 6KW-43880-01-00 |
| Arco Marine | 6293 |
| J & N / Arrowhead | 430-22162 / TRM0111 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
Will this motor fit a 2-bolt or 3-bolt mounting configuration?
This unit is specifically designed for the standard 3-bolt mounting configuration used on Yamaha Showa trim units from 2004 onwards. It is a 2-wire motor with ring terminals.
Note: Please verify your original part number and mounting bolt count against the references above before purchasing. All 4boats.co.uk products are shipped with care.
