Nuova Rade 43451 Plastic Fuel Tank Outlet 1/4in Thread 8mm Barb
Nuova Rade 43451 Plastic Fuel Tank Outlet 1/4in Thread 8mm Barb
Couldn't load pickup availability

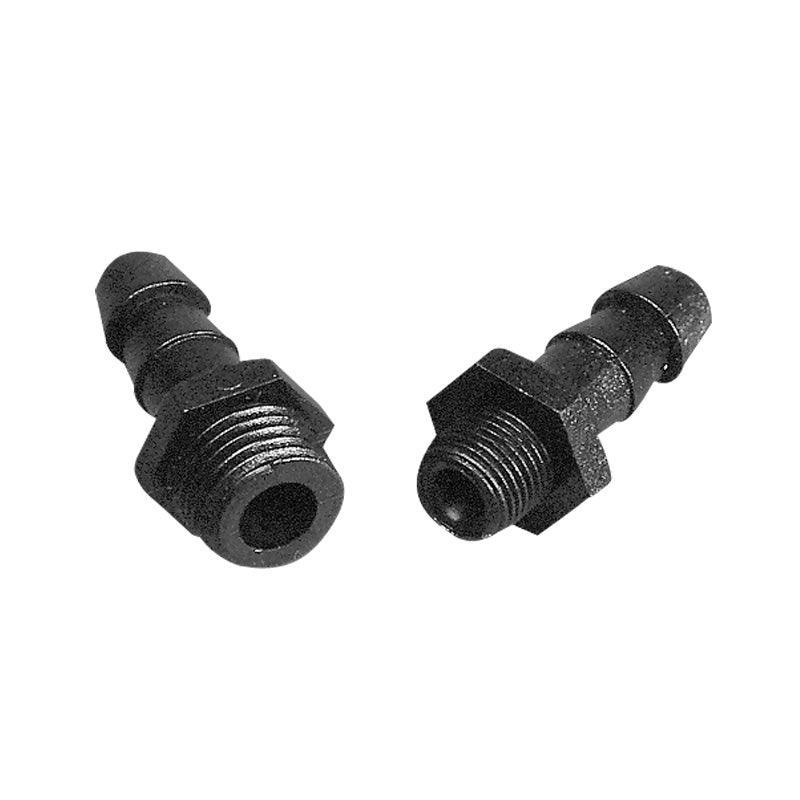

Nuova Rade Plastic Fuel Tank Outlet
1/4-inch Tank Thread | 8 mm Hose Barb | Code 43451
Nuova Rade 43451 is a plastic screw-in outlet/hose-tail connector for a fuel tank. It combines the catalogue's 1/4-inch tank connection with an 8 mm hose barb.
Key Features
- Plastic fuel-tank outlet fitting
- 1/4-inch catalogue tank connection
- 8 mm hose barb
- Corrosion-free plastic body
- Simple direct hose connection; not a quick-disconnect coupler
Technical Specs
| Nuova Rade code | 43451 |
| Tank connection | 1/4 inch; verify thread form |
| Hose barb | 8 mm |
| Recommended hose ID | 8 mm fuel-rated hose |
| Material | Plastic |
| Barcode | 5204980434519 |
Compatibility / Fitment Guide
This is a threaded tank outlet with a hose tail. Compatibility depends on both the tank's exact 1/4-inch port thread and the fuel hose's 8 mm inside diameter.
| Tank port | Must match the fitting's exact 1/4-inch thread form and available engagement |
| Hose | 8 mm ID marine fuel hose |
| Tank family | Commonly sold for Nuova Rade/Hulk portable-tank applications; verify the tank outlet drawing |
| Sealing | Use only the seal or fuel-compatible thread method specified by the tank manufacturer |
| Clamp | Secure the hose behind the barb with the correct fuel-hose clamp |
| Pressure test | Prime/pressurise only as the tank instructions allow and inspect both joints |
Exclusions: Not a 1/4-inch hose connector, not a quick-release fitting, and not automatically suitable for every 1/4-inch threaded tank port.
Part Number Cross Reference
| Nuova Rade code | 43451 |
| 4Boats SKU | 43451 |
| Barcode | 5204980434519 |
| Interface | 1/4-inch tank connection to 8 mm hose barb |
Do not convert 8 mm to 1/4 inch; 8 mm is approximately 5/16 inch and identifies the hose side.
Frequently Asked Questions
Is the hose size 1/4 inch?
No. The hose barb is 8 mm, approximately 5/16 inch. The 1/4-inch figure refers to the tank connection.
Is the thread NPT or BSP?
The available catalogue wording does not prove which form; check the tank specification before ordering.
Is this a quick connector?
No. It is a screw-in tank outlet with a fixed hose barb.
Can I use silicone sealant?
Use only a sealant approved for the fuel and thread system by the tank manufacturer.
Fuel fittings must remain accessible for inspection. Replace the connector if threads, barb or body show damage.
