Lalizas LZ-Hydrofoil Outboard Motor Stabilizer Up to 50HP 10121
Lalizas LZ-Hydrofoil Outboard Motor Stabilizer Up to 50HP 10121
Couldn't load pickup availability
Lalizas LZ-Hydrofoil (Up to 50HP)
Premium Performance Gull-Wing Stabilizer
The Lalizas LZ-Hydrofoil is a precision-engineered gull-wing stabilizing system designed to significantly enhance the performance of outboard motors up to 50HP. By increasing lift and reducing drag, this hydrofoil allows your boat to reach a plane faster and maintain it at lower speeds, leading to improved fuel efficiency and a smoother ride in choppy conditions.
Key Features
- ✔ Reduces planing time significantly
- ✔ Improves fuel economy & efficiency
- ✔ Minimizes bow rise & cavitation

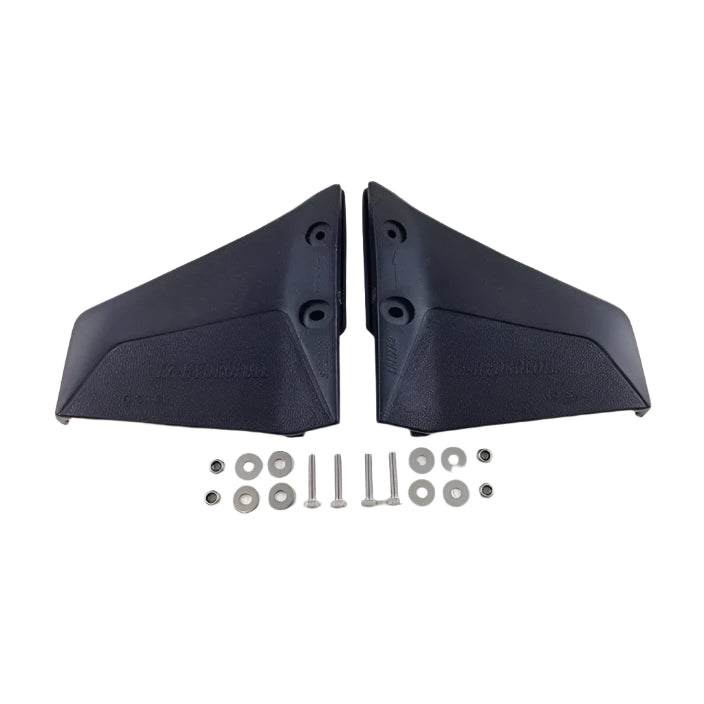

- ✔ Inox (Stainless Steel) hardware included
- ✔ Easy DIY installation

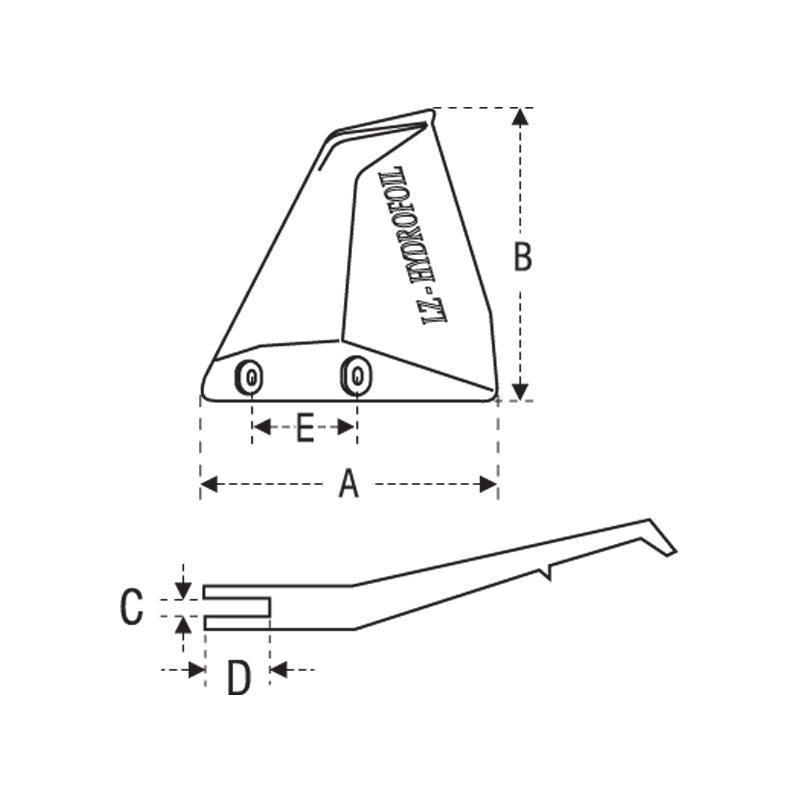

Technical Specs
| Model: | LZ-Hydrofoil Small |
| Rating: | 4HP to 50HP |
| Width (A): | 185 mm |
| Depth (B): | 180 mm |
| Thickness (C): | 5 mm |
| Mounting Gap (D): | 23 mm |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Universal Outboard | 4HP to 50HP Engines | Cavitation plate mount |
| Yamaha / Suzuki / Mercury | All models under 50HP | Requires drilling 4 holes |
| Tohatsu / Honda / Evinrude | All models under 50HP | Stainless hardware included |
OEM Cross Reference
| Lalizas MPN: | 10121 / 10121X |
| Nuova Rade: | 10121 |
| Internal Ref: | RWB1856 / 68.0018 |
Questions & Answers
Is this a genuine original part?
This is a premium quality genuine Lalizas marine part, manufactured under ISO 9001 standards for high performance and durability.
How do I know if it is compatible?
This model is designed specifically for outboard motors with a power rating between 4HP and 50HP. It is compatible with all major engine brands including Yamaha, Suzuki, Mercury, and Honda within this power range.
Does it require drilling into the engine?
Yes, this hydrofoil mounts directly to the cavitation plate using the provided stainless steel bolts, which requires drilling four small holes for a secure, permanent fit.
Note: Please verify your engine horsepower and cavitation plate clearance against the technical specifications above before purchasing. Part number 10121.
