NASA Marine EX-1 Exhaust Temperature Monitor Alarm Wet Exhaust Early Warning Kit
NASA Marine EX-1 Exhaust Temperature Monitor Alarm Wet Exhaust Early Warning Kit
Couldn't load pickup availability

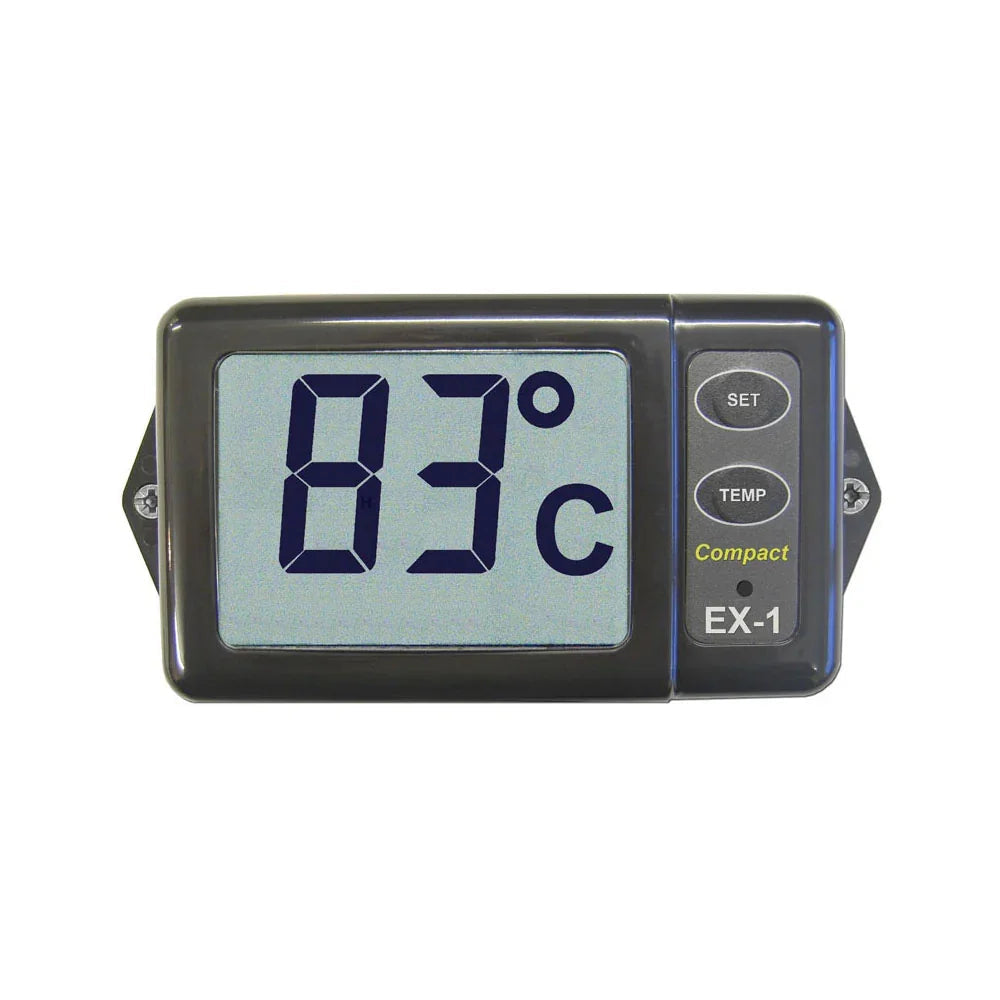

NASA Marine EX-1 Exhaust Monitor
Advanced Early Warning for Wet Exhaust Systems

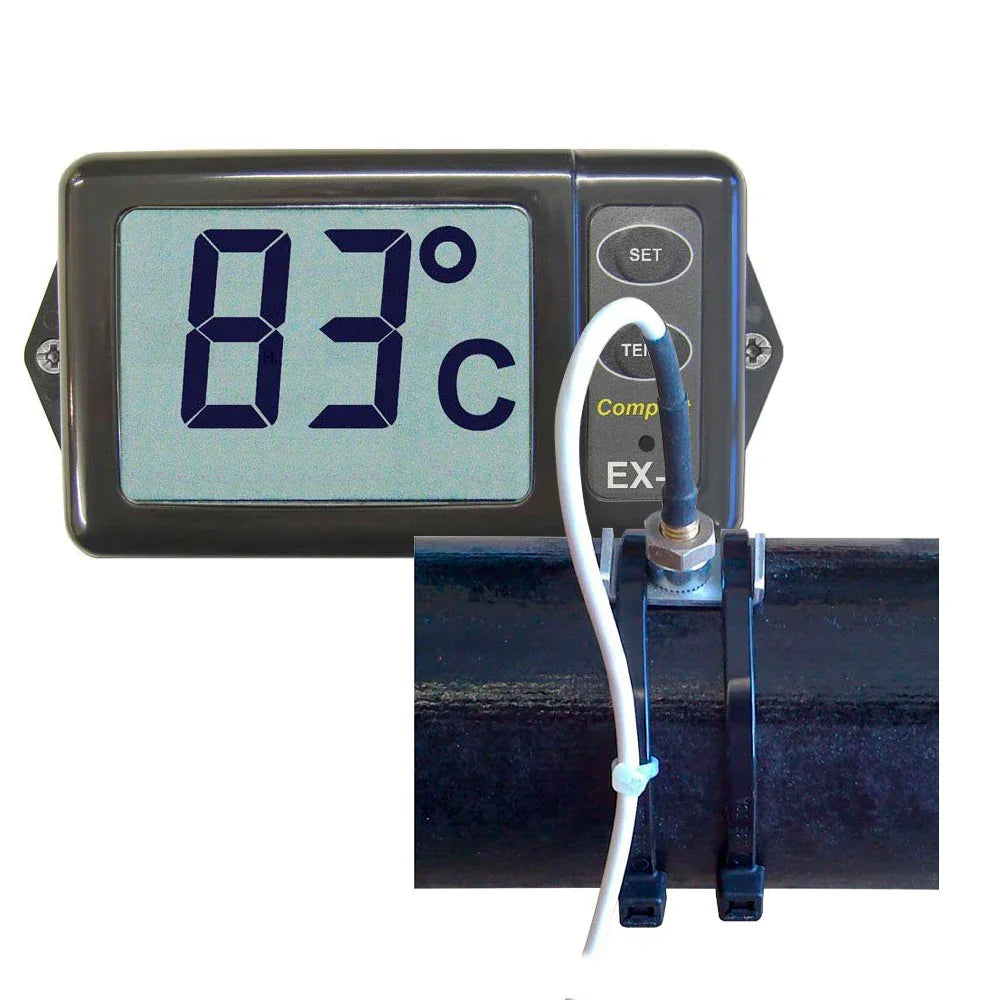

The NASA Marine EX-1 is a vital safety instrument for any vessel equipped with a wet exhaust system. Standard engine temperature gauges often react too slowly to raw water cooling failures; by the time the engine block heats up, the exhaust hose and internal components may already be damaged. The EX-1 monitors exhaust gas temperature directly, providing a nearly instantaneous warning of impeller failure, blockages, or pump issues.
Key Features
- ✔ Direct exhaust gas measurement
- ✔ High contrast LCD with backlight
- ✔ Audible and Visual alarm system
- ✔ User-programmable alarm threshold
- ✔ Simple DIY installation kit included
Technical Specs
| Voltage: | 8 to 15 Volts DC |
| Current: | Less than 1.5mA |
| Temp Range: | -35°C to +170°C |
| Dimensions: | 125 x 62 x 23mm |
| Cable Length: | 5 Metres (extendable) |
Compatibility / Fitment Guide
| System Type | Application | Notes |
|---|---|---|
| Wet Exhaust | Marine Engines (Diesel/Petrol) | Compatible with Yanmar, Volvo Penta, Beta, etc. |
| Hose Material | Rubber or Polymer | Sensor mounts directly into the hose. |
| Mounting | Dry Bulkhead/Cabin | Display unit is not waterproof. |
OEM Cross Reference
| Manufacturer Part Number | EX-1 / EX1 |
| Brand | NASA Marine Instruments |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine NASA Marine EX-1 kit, complete with the sensor, cable, and display unit, manufactured in the United Kingdom.
How do I know if it is compatible?
It is compatible with any marine engine that utilizes a wet (water-cooled) exhaust system. You simply drill a 5mm hole in the exhaust hose to insert the probe.
Can the sensor cable be extended?
Yes, the provided 5-metre cable can be shortened or extended as required during installation to suit your vessel's layout.
Note: The EX-1 display is designed for mounting in a dry area. Visit 4boats.co.uk for more technical support and marine instrumentation.
