RELIABILITY: Engineered by Navico to meet strict NMEA 2000 standards, ensuring plug-and-play reliability for Simrad, Lowrance, and B&G systems.

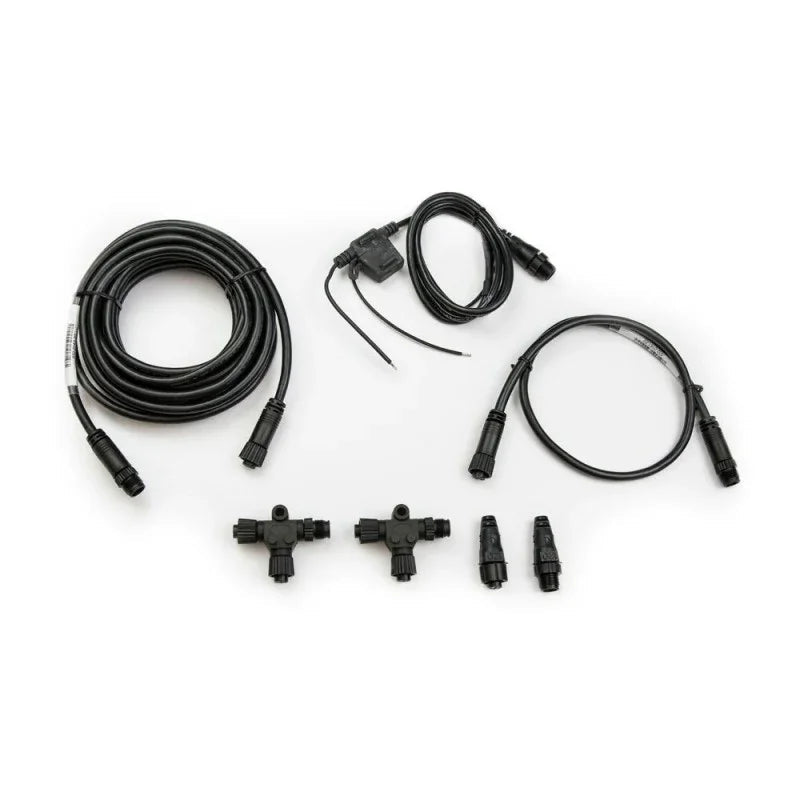

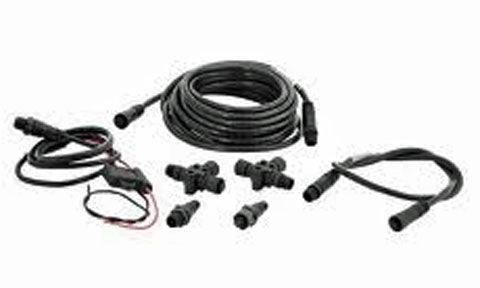

What's In The Box

• ✔ 2 x N2K-T-RD T-Connectors
• ✔ 1 x 2ft (0.6m) N2KEXT-2RD Cable
• ✔ 1 x 15ft (4.5m) N2KEXT-15RD Cable
• ✔ 1 x N2K-PWR-RD Power Cable
• ✔ 1 x Male Terminator (120 Ohm)
• ✔ 1 x Female Terminator (120 Ohm)

Technical Specs

Network Standard:	NMEA 2000 (N2K)
Connector Type:	Micro-C
Voltage Requirement:	12V DC
Max Current:	3 Amps (Fused)
Cable Rating:	IPX7 Waterproof

Brand / System	Series / Application	Notes
Simrad	NSS Evo2/Evo3, NSO, GO Series	Plug-and-play backbone
Lowrance	HDS Live/Carbon, Elite FS, Elite Ti2	Standard network kit
B&G	Zeus 2/3, Vulcan, Triton2	Micro-C compatible
General N2K	Garmin, Raymarine, Furuno	Requires brand-specific adapters if not Micro-C

Is this kit suitable for adding a single sensor to my boat?

Yes, this kit provides the complete backbone infrastructure needed to connect your first two or three devices. You can expand it later by adding more T-connectors and drop cables.

Does this work with Garmin or Raymarine?

Yes, it uses the industry-standard Micro-C connectors. It is natively compatible with Garmin. For Raymarine SeaTalkNG systems, an A06045 or similar adapter cable may be required.

Can I use this for engine data display?

Absolutely. This backbone is required to connect engine interface cables (such as those for Suzuki, Yamaha, or Mercury) to your display screen.
