Mercruiser Starter Motor 12V 11T 50-822330A2 4.3L 5.0L 5.7L V6 V8 Marine PMGR
Mercruiser Starter Motor 12V 11T 50-822330A2 4.3L 5.0L 5.7L V6 V8 Marine PMGR
Couldn't load pickup availability

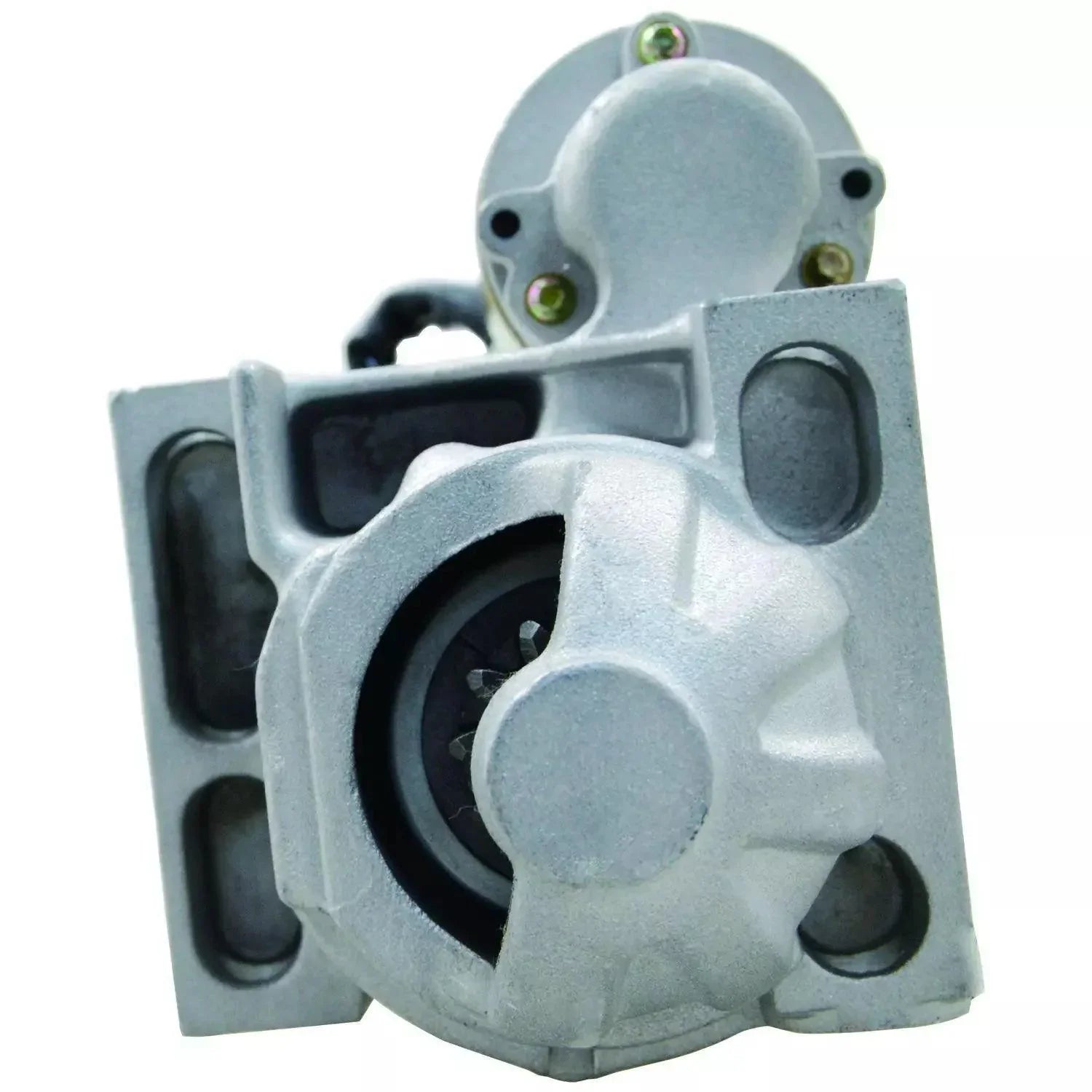

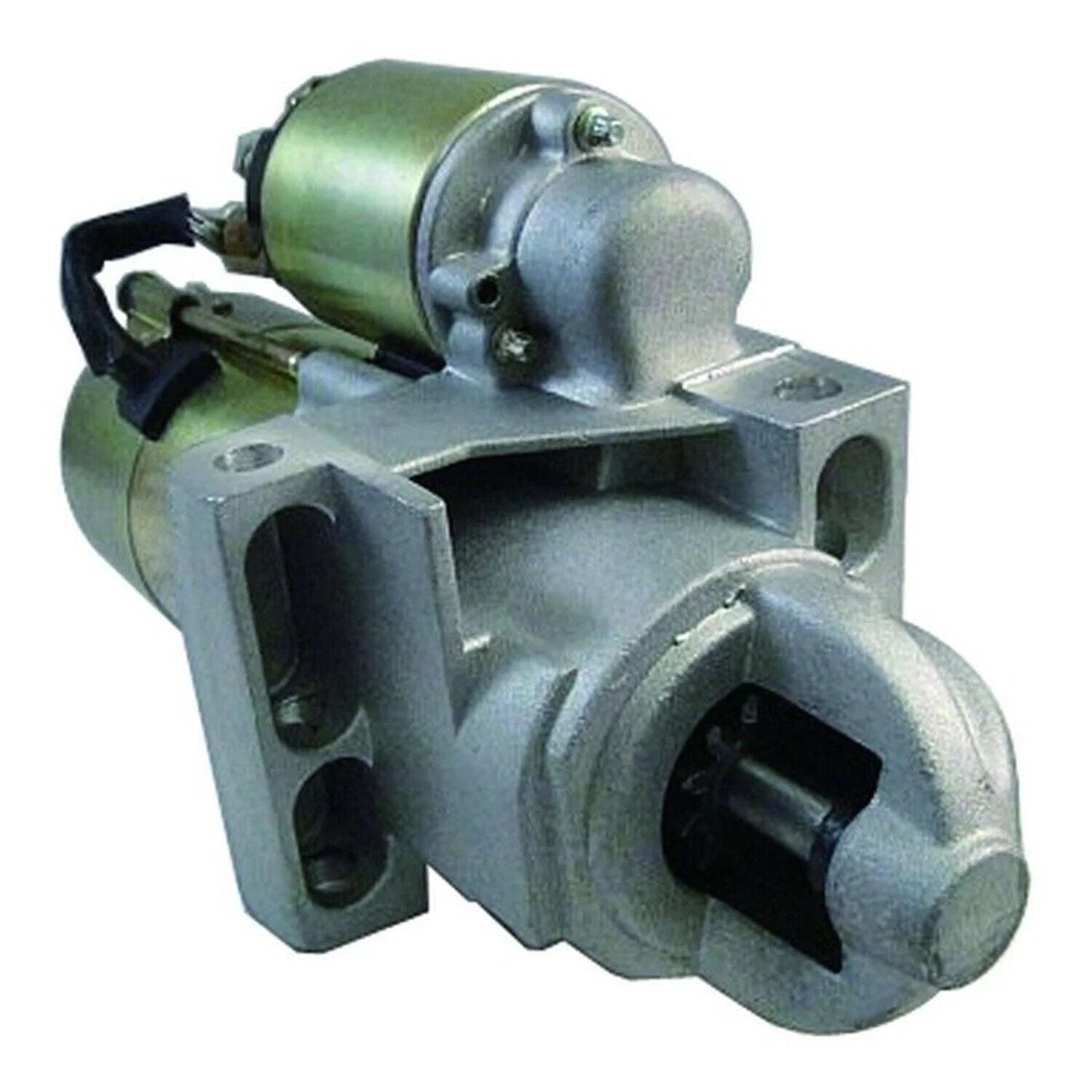

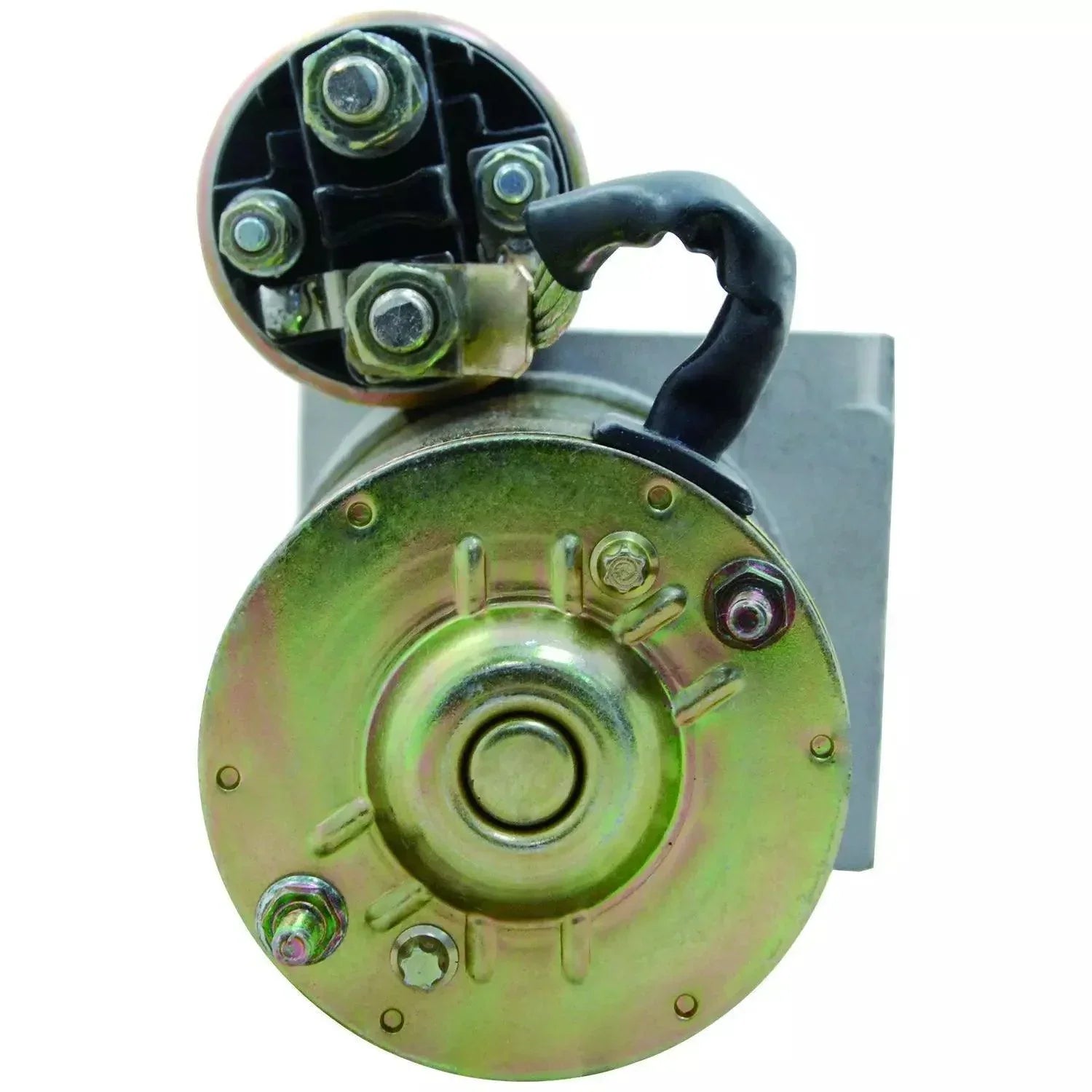

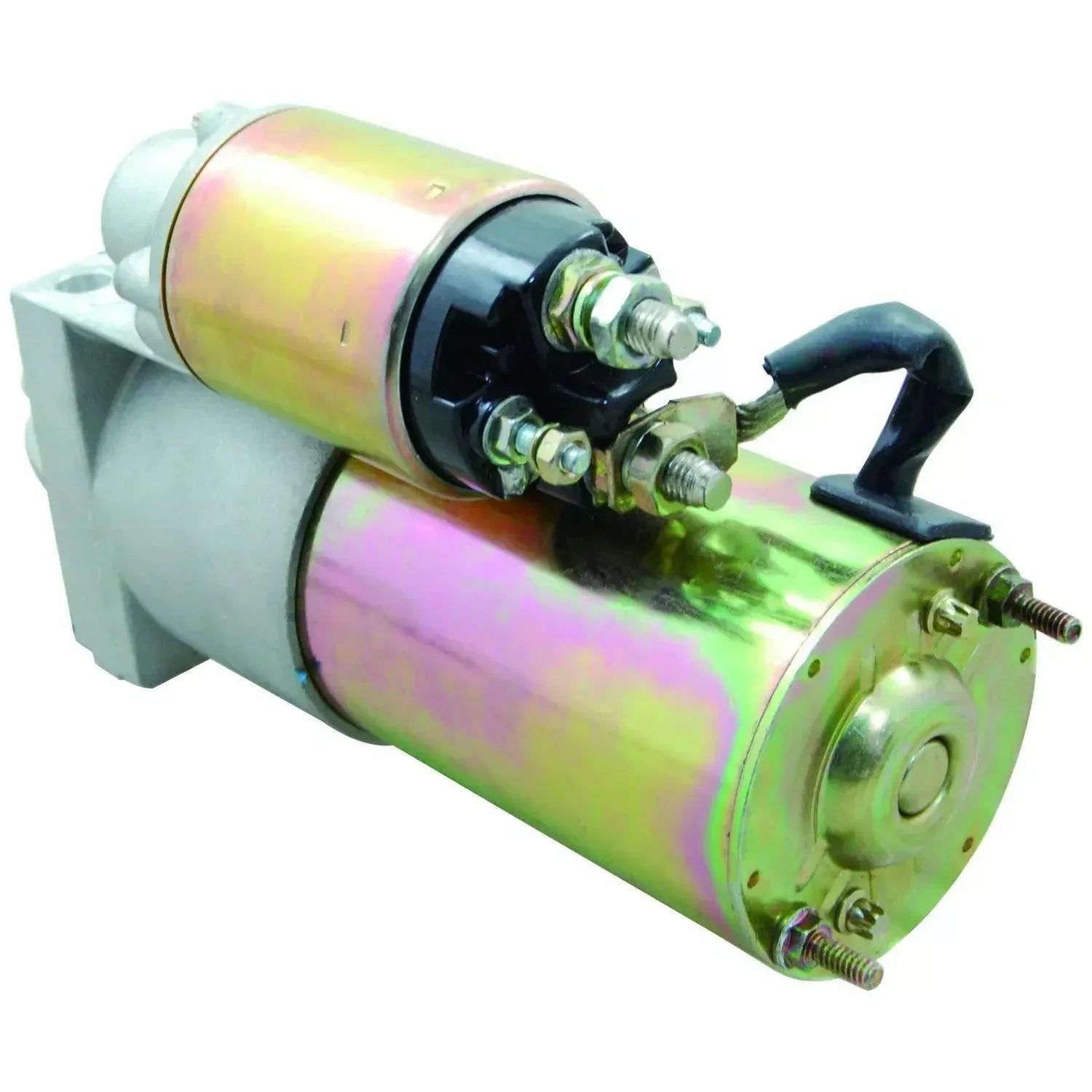

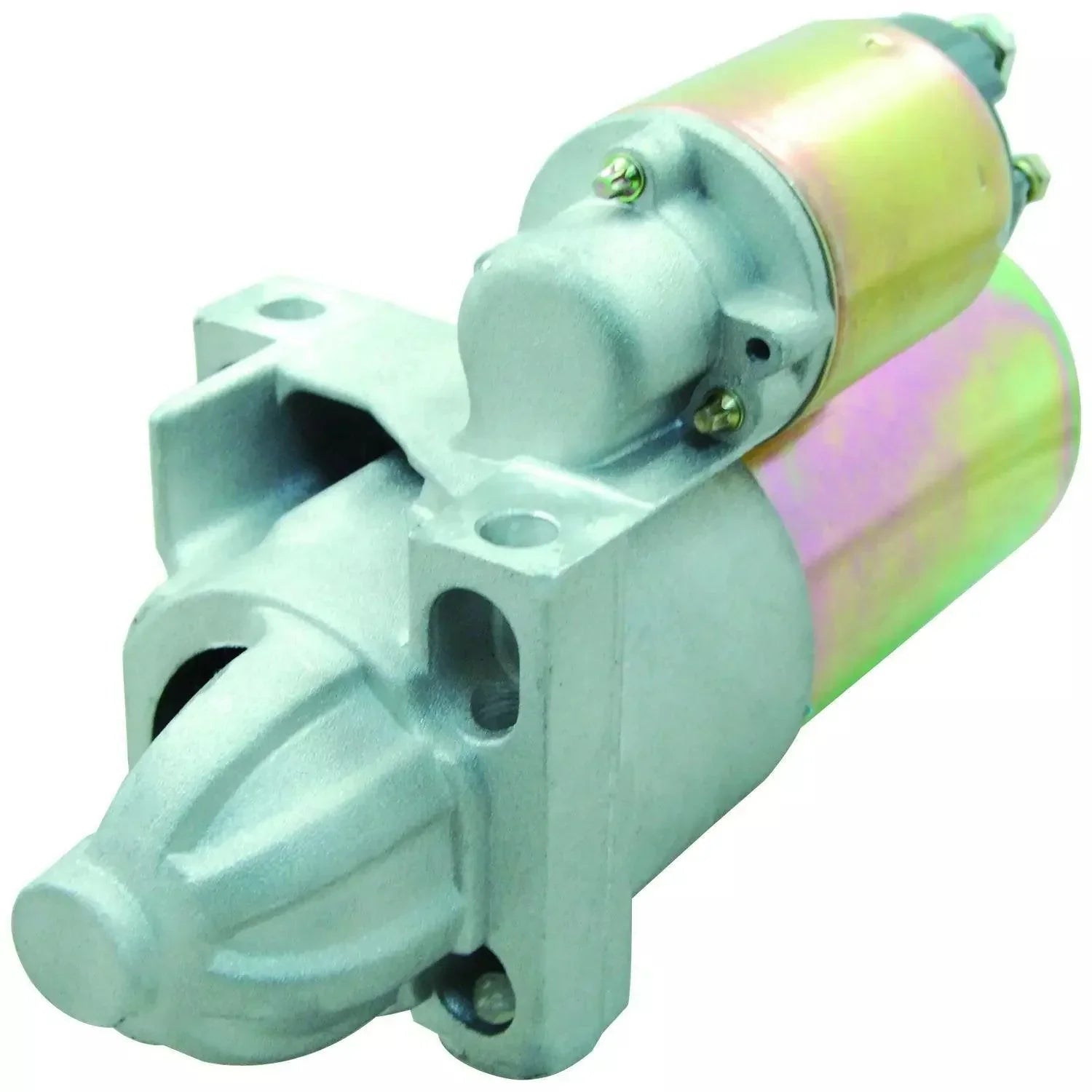

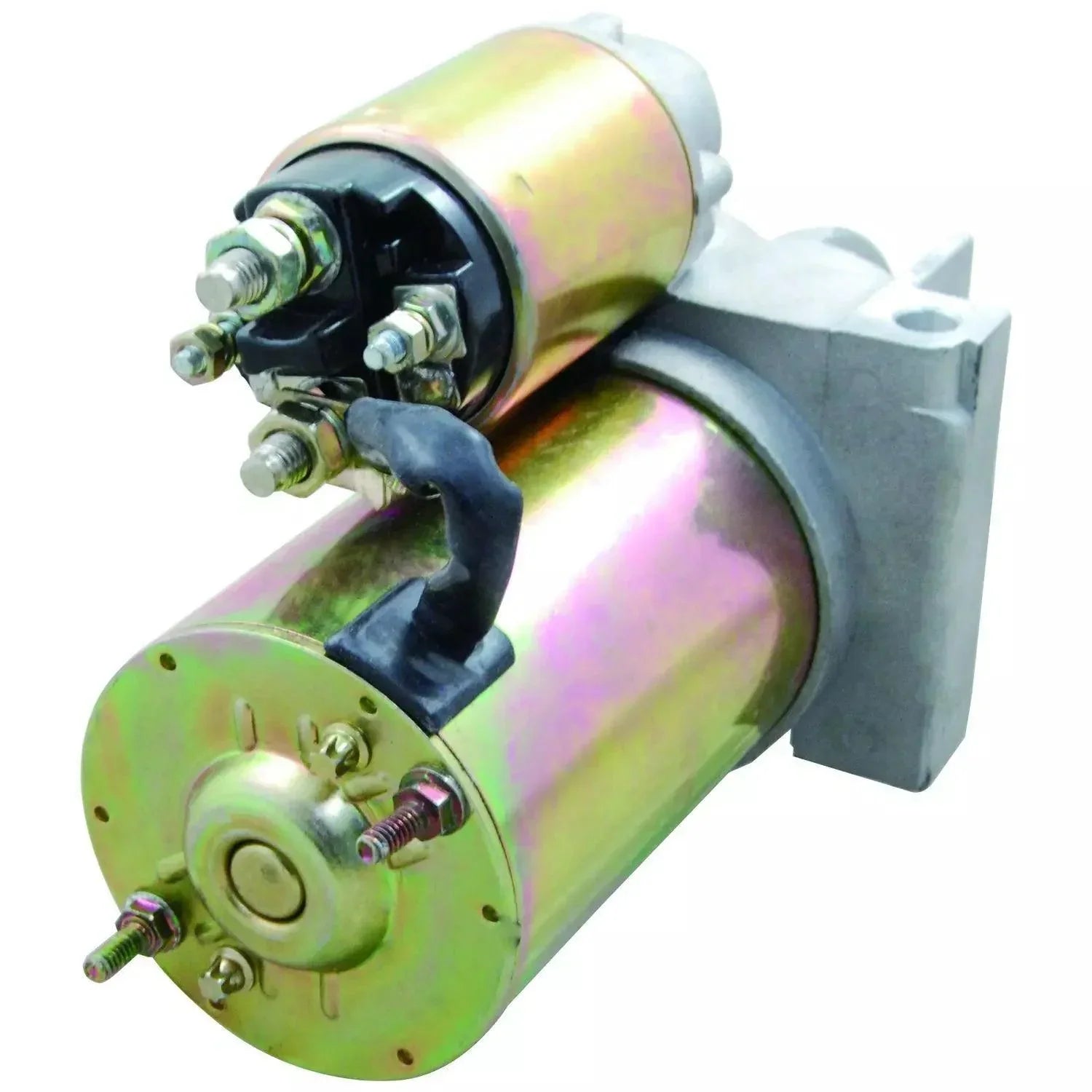

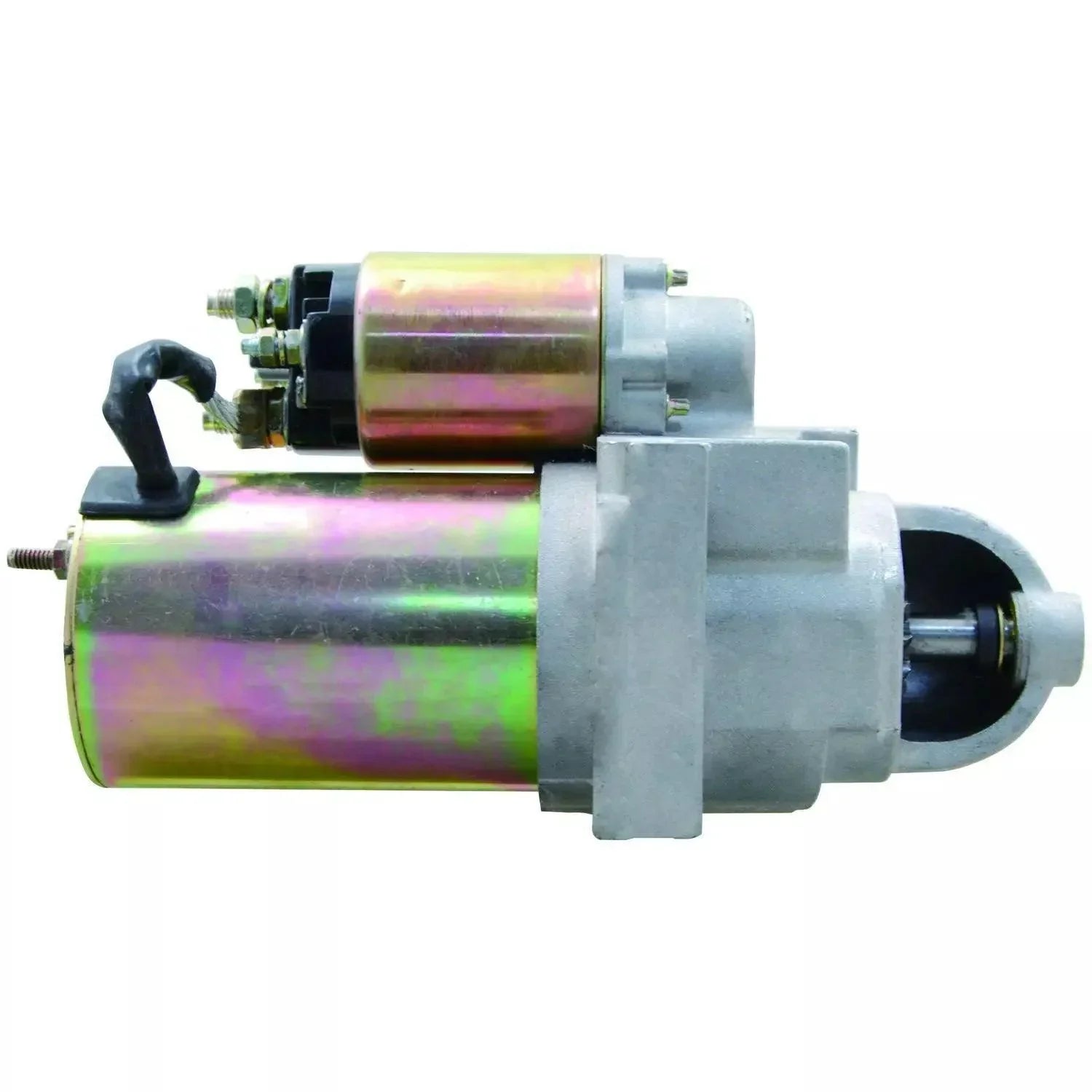

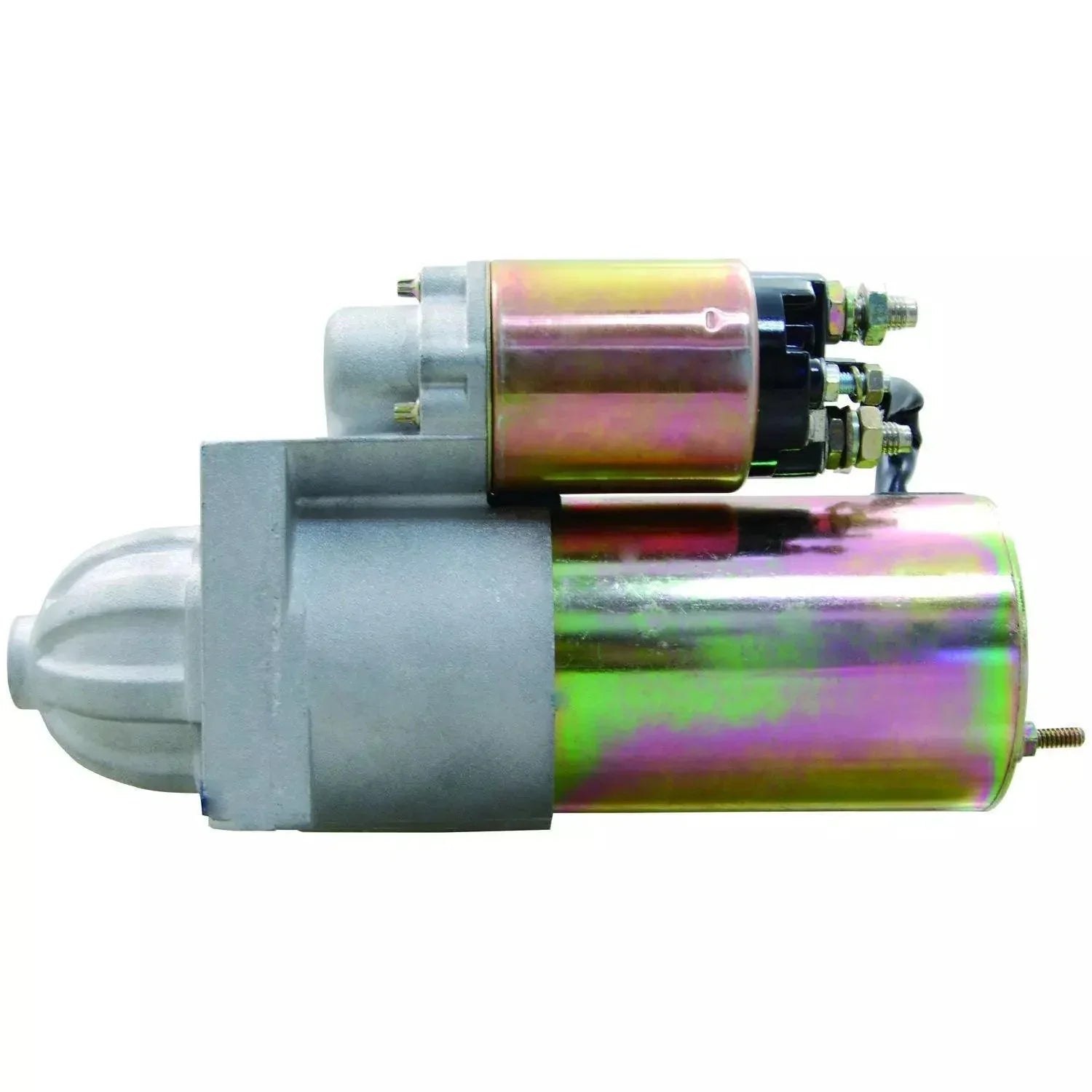

Starter Motor 50-822330A2
Premium PMGR High-Torque Marine Starter
Upgrade your marine engine's ignition system with this heavy-duty PMGR (Permanent Magnet Gear Reduction) starter motor. Engineered to provide higher torque with lower battery draw, this 11-tooth unit is a direct replacement for older, bulkier 9-tooth starters found on GM-based Mercruiser, Volvo Penta, and OMC engines.
Key Features
- ✔ High Torque: Gear reduction for fast cranking
- ✔ 11-Tooth Drive: Replaces 9-tooth for better engagement
- ✔ SAE J1171 Certified: Marine ignition protected
- ✔ Corrosion Resistant: Sealed for marine environments
Technical Specs
| Voltage | 12V |
| Power | 1.7 kW |
| Teeth | 11 |
| Rotation | Clockwise (CW) |
| Mounting | 2-Bolt Offset |
| Weight | Approx. 4.1kg |
Compatibility / Fitment Guide
| Make/Engine | Year Range | Flywheel Size |
|---|---|---|
| Mercruiser 3.0L / 3.0LX | 1990 - 2015+ | 14" Flywheel |
| Mercruiser 4.3L V6 (Carb/EFI/MPI) | 1987 - 2007+ | 14" Flywheel |
| Mercruiser 5.0L V8 (Carb/EFI/MPI) | 1986 - 2007+ | 14" Flywheel |
| Mercruiser 5.7L V8 (350 Mag) | 1986 - 2007+ | 14" Flywheel |
| Mercruiser 7.4L / 8.1L / 8.2L | 1990 - 2007+ | 14" Flywheel |
| Volvo Penta 4.3L / 5.0L / 5.7L | 1994 - 2007+ | GM-Block Models |
OEM Cross Reference
| Mercruiser: | 50-822330A2, 50-863007A1, 50-812604A2, 50-812428A3, 50-807904A1 |
| Delco: | 9000839, 9000840, 9000884, 9000762, 9000789 |
| Sierra / Arco: | 18-5913 (Sierra), 30450 (Arco) |
| Volvo / OMC: | 3854751, 3855177, 3856004, 3860764 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured by 4Boats to meet or exceed original equipment (OE) standards for fitment and performance.
My old starter has 9 teeth. Will this 11-tooth starter fit?
Yes. This 11-tooth PMGR starter is the modern superseding design for the older 9-tooth Delco units. It is designed to work perfectly with the same 168-tooth flywheel and provides better cranking reliability.
How do I know if I have a 14-inch flywheel?
If your starter uses the offset (staggered) bolt pattern where the two bolts are not in a straight line, you have a 14-inch (168-tooth) flywheel. This starter is specifically for that configuration.
Note: Please verify your original part number against the references above before purchasing. All 4Boats products are tested for marine use. Visit 4boats.co.uk for more info.
