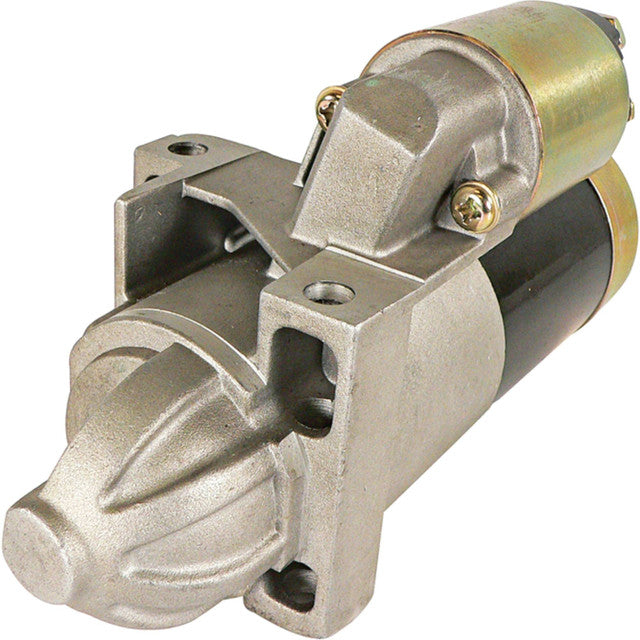

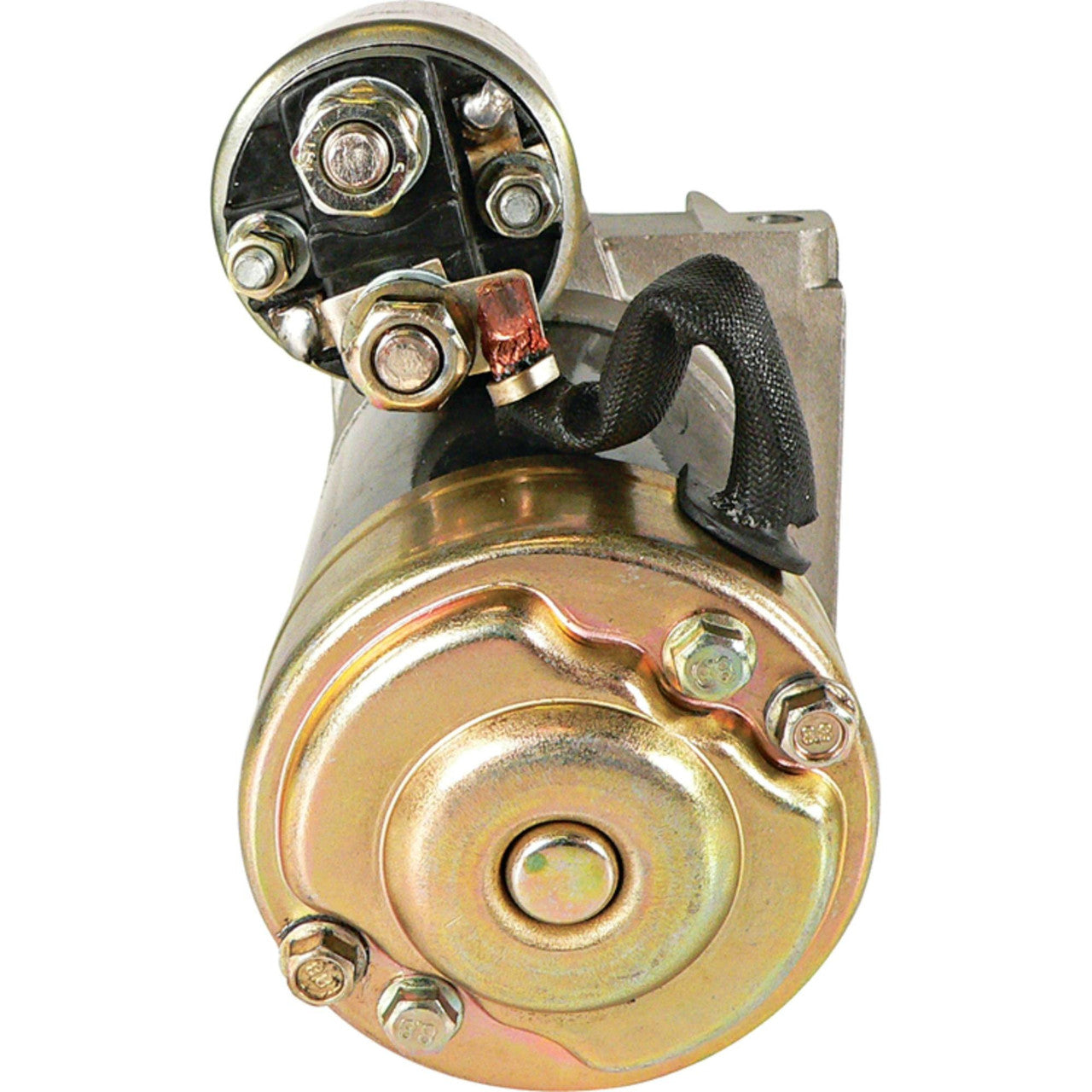

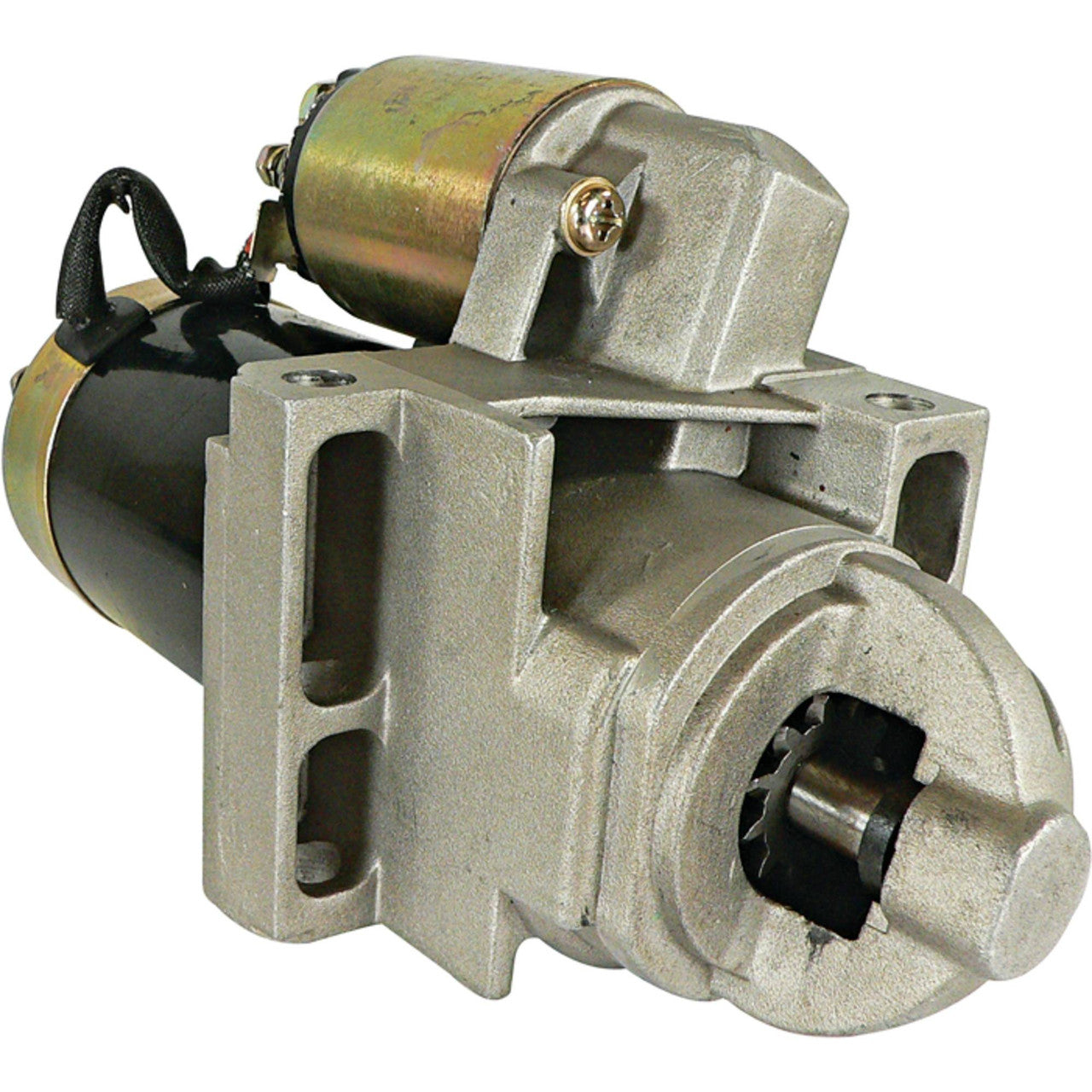

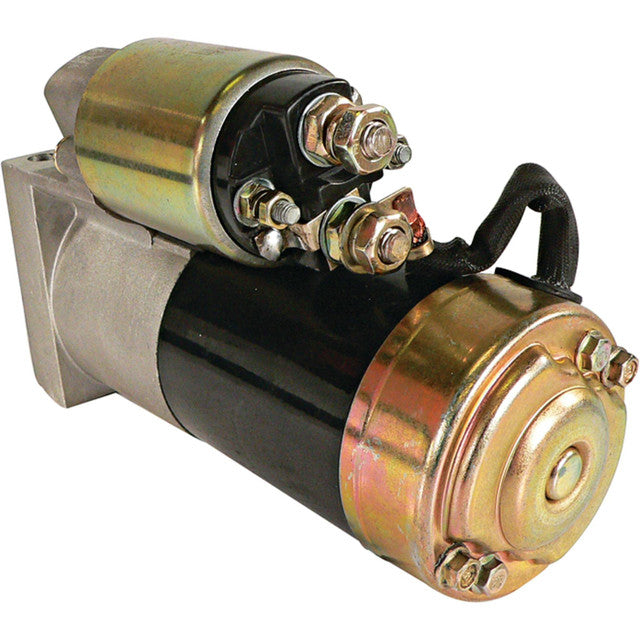

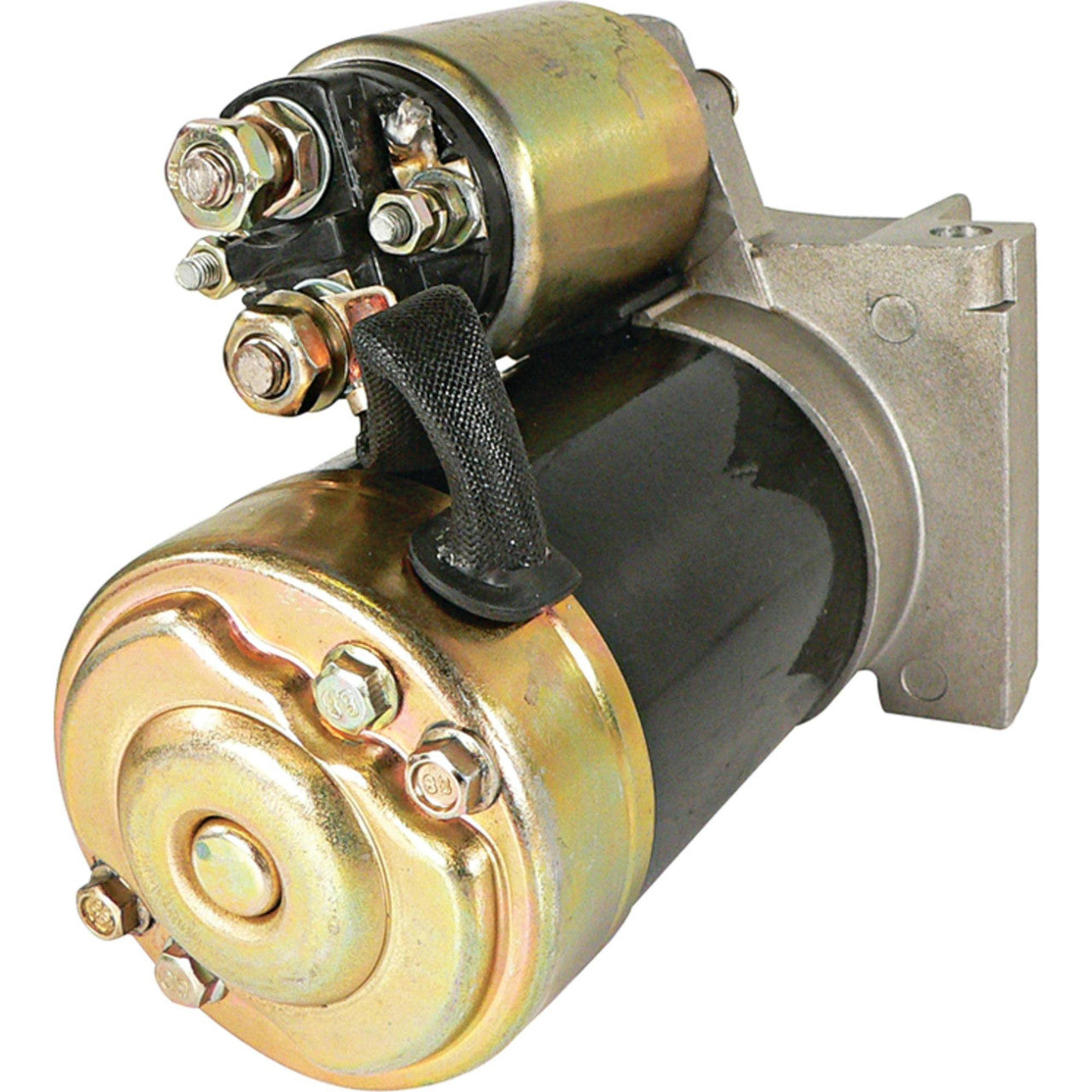

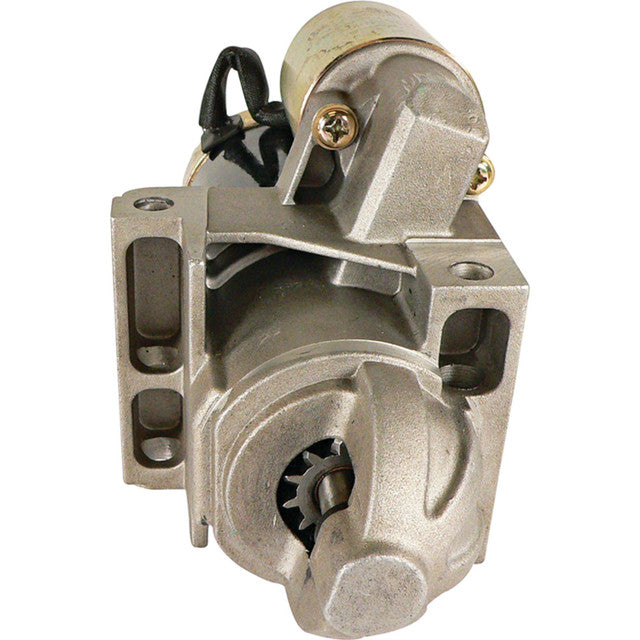

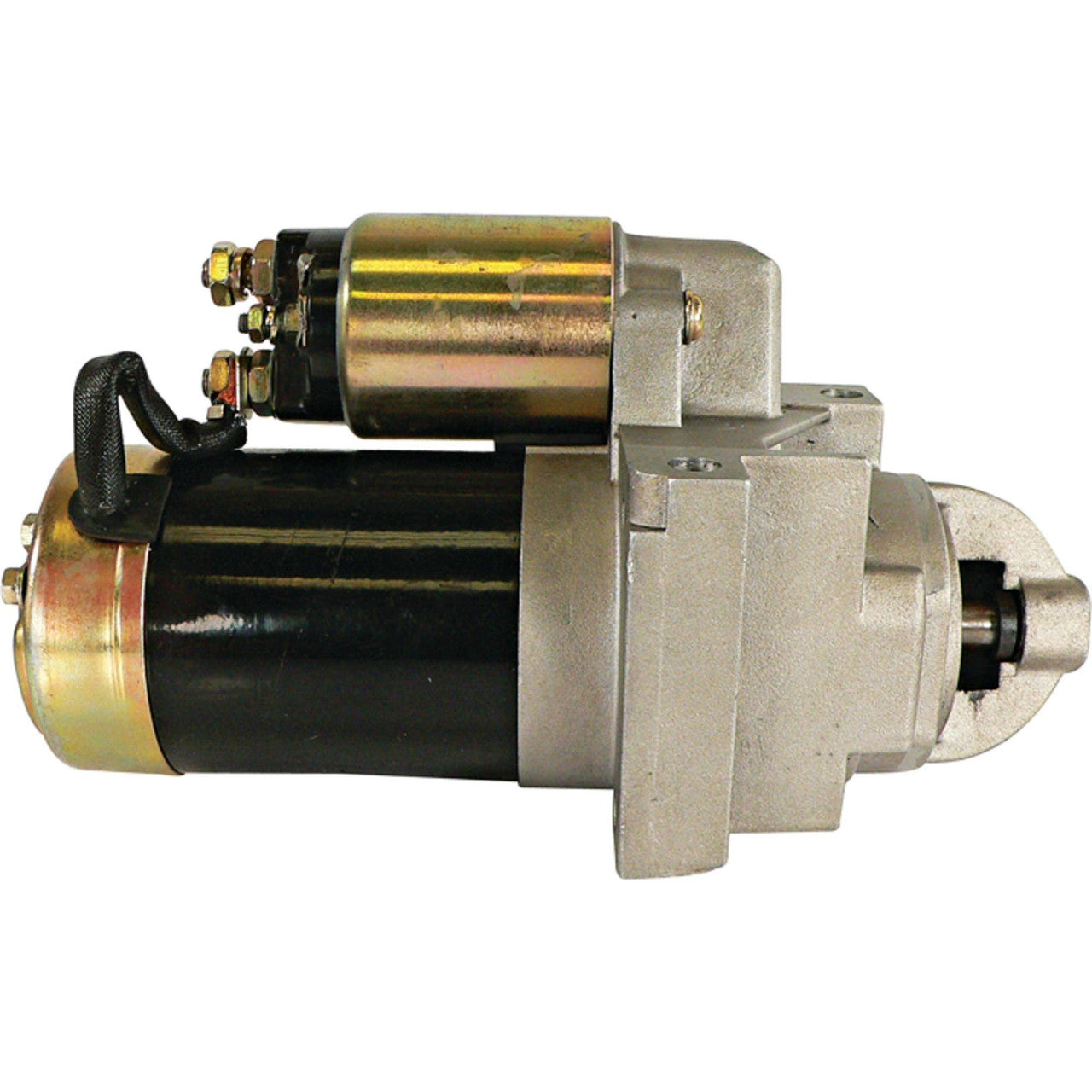

M1786 Marine Starter Motor
Premium Quality Replacement for GM-Based Marine Engines
The M1786 is a high-performance Permanent Magnet Gear Reduction (PMGR) starter motor specifically engineered for harsh marine environments. This unit features a staggered (offset) mounting pattern, making it the correct fit for GM marine engines equipped with a 14-inch (168-tooth) flywheel. Its high-torque output provides reliable starting even in cold conditions or with high-compression engines.
Key Features
- ✔ Permanent Magnet Gear Reduction (PMGR)
- ✔ Staggered (Offset) Bolt Pattern
- ✔ 11-Tooth drive for superior engagement
- ✔ Sealed housing to resist corrosion
Technical Specs
| Voltage | 12V |
| Rotation | Clockwise (CW) |
| Teeth | 11 |
| Pattern | Offset / Staggered |
| Flywheel | 14" (168 Tooth) |
Compatibility / Fitment Guide
| Application | Engine Model | Notes |
|---|---|---|
| Mercruiser | 3.0L, 4.3L, 5.0L, 5.7L, 7.4L, 8.2L | GM Blocks with 14" Flywheel |
| Volvo Penta | 3.0L, 4.3L, 5.0L, 5.7L, 7.4L, 8.1L | GI, GL, GXi, OSi Series |
| OMC Cobra | 3.0L, 4.3L, 5.0L, 5.7L | Offset Bolt Pattern Only |
OEM Cross Reference
| Mercruiser | 50-806964A2, 50-806964A3, 50-812428A3, 50-812604A2, 50-863030A1 |
| Volvo Penta | 3587625, 3853982, 3854751, 3856004, 3860764 |
| OMC | 3854751, 3856004 |
| Sierra / Arco | 18-5913, 18-5913-1 / 30460 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance in marine environments.
How do I know if I need the "Offset" pattern?

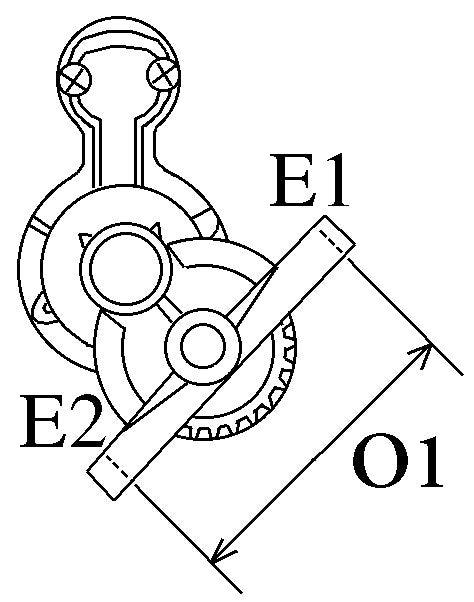

Engines with a 14-inch (168-tooth) flywheel require this offset/staggered pattern. If your current starter has the two bolts diagonal to each other, this M1786 is the correct part. If they are straight across, you need the M1699/Straight pattern version.
Does this replace my older, larger 9-tooth starter?
Yes. This modern PMGR starter is smaller, lighter, and more powerful than the original Delco 10MT starters. The 11-tooth gear is designed to provide better engagement with the flywheel than the old 9-tooth design.
Note: Please verify your original part number or flywheel size against the references above before purchasing. Domain: 4Boats.co.uk
