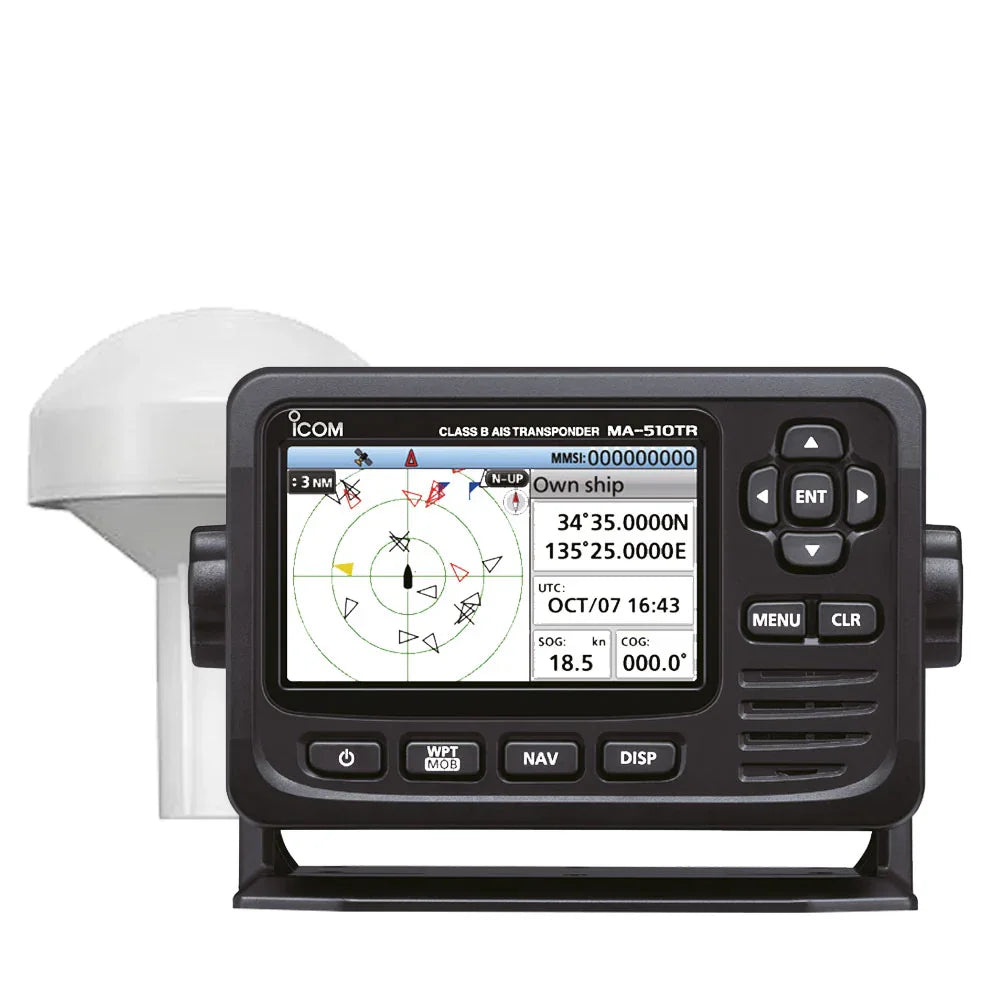

Icom MA-510TR Class B AIS Transponder with 4.3" Color Display & GPS Antenna
Icom MA-510TR Class B AIS Transponder with 4.3" Color Display & GPS Antenna
Couldn't load pickup availability
Icom MA-510TR Class B AIS Transponder
Standalone AIS Solution with 4.3" Color Display & GPS Antenna

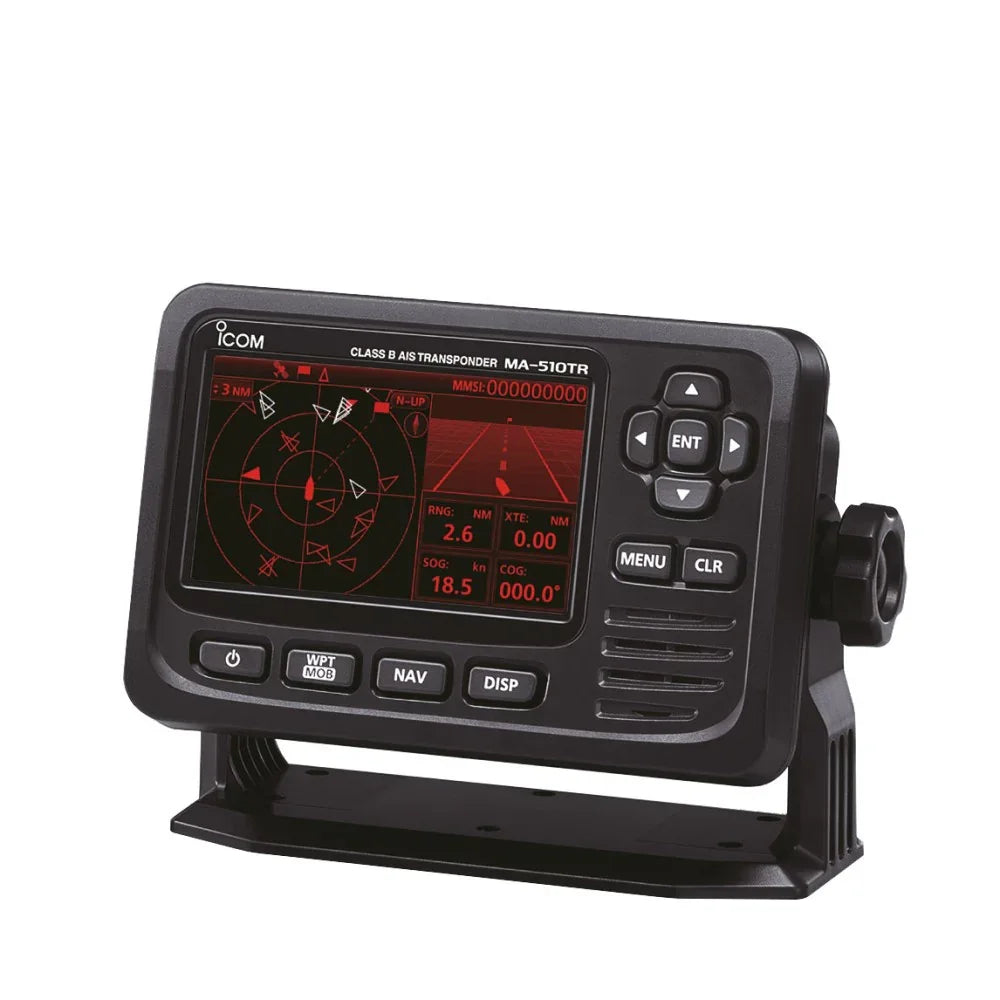

The Icom MA-510TR is a sophisticated Class B AIS transponder designed to enhance maritime safety by providing real-time tracking and visibility of surrounding vessels. Featuring a high-resolution 4.3-inch color TFT display, this standalone unit allows you to monitor Class A and Class B AIS transmissions even in direct sunlight. With its integrated GPS receiver and supplied external antenna, the MA-510TR provides precise positioning for advanced navigation, collision avoidance, and Man Overboard (MOB) tracking.
Key Features
- ✔ 4.3" Wide-Angle Color TFT LCD
- ✔ Dual NMEA 2000 & NMEA 0183 Connectivity
- ✔ Integrated GPS Receiver (72 Channels)
- ✔ Collision Alarm & Anchor Watch Functions
- ✔ Silent Mode for Privacy
- ✔ Individual DSC Call Capability (with Icom VHF)
Technical Specs
| Power Supply: | 12V / 24V DC |
| Output Power: | 2 Watts |
| Waterproof Rating: | IPX7 |
| Frequency Range: | 161.500–162.025 MHz |
| Current Drain: | TX: 1.5A / RX: 0.7A |
| Dimensions: | 166.2 × 110.2 × 92.5 mm |
Compatibility / System Integration
| Connection Type | Application | Compatible Models |
|---|---|---|
| NMEA 2000â„¢ | Chartplotters, Radars, Multi-function Displays | Universal (Plug-and-Play) |
| NMEA 0183 / HS | Legacy GPS, VHF, and Radar Systems | 38400 bps / 4800 bps |
| Icom VHF Link | Individual DSC Calls from AIS Target | IC-M605, M506, M424, M330 (Series) |
| USB (Mini-B) | PC-Based Navigation Software | Windows/Mac/Linux Apps |
What's In The Box?
| 1x MA-510TR AIS Transponder Main Unit |
| 1x GPS Antenna with 10m (32.8ft) Cable |
| 1x DC Power Cable |
| 1x Mounting Bracket Kit |
| 1x Accessory Connector |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Icom marine electronics product, supplied in original retail packaging with full manufacturer documentation.
How do I know if it is compatible?
The MA-510TR uses standard NMEA 2000 and NMEA 0183 protocols, making it compatible with almost all modern marine chartplotters and radars from Garmin, Raymarine, Simrad, and Lowrance.
Do I need a separate VHF antenna for this unit?
Yes, AIS transponders require a VHF antenna to transmit and receive. You can either install a dedicated AIS-tuned VHF antenna or use a high-quality AIS/VHF antenna splitter to share your existing radio antenna.
Note: Please ensure your vessel has a valid MMSI number before installation, as this is required for the AIS transponder to transmit. Check 4boats.co.uk for compatible AIS antennas and splitters.
