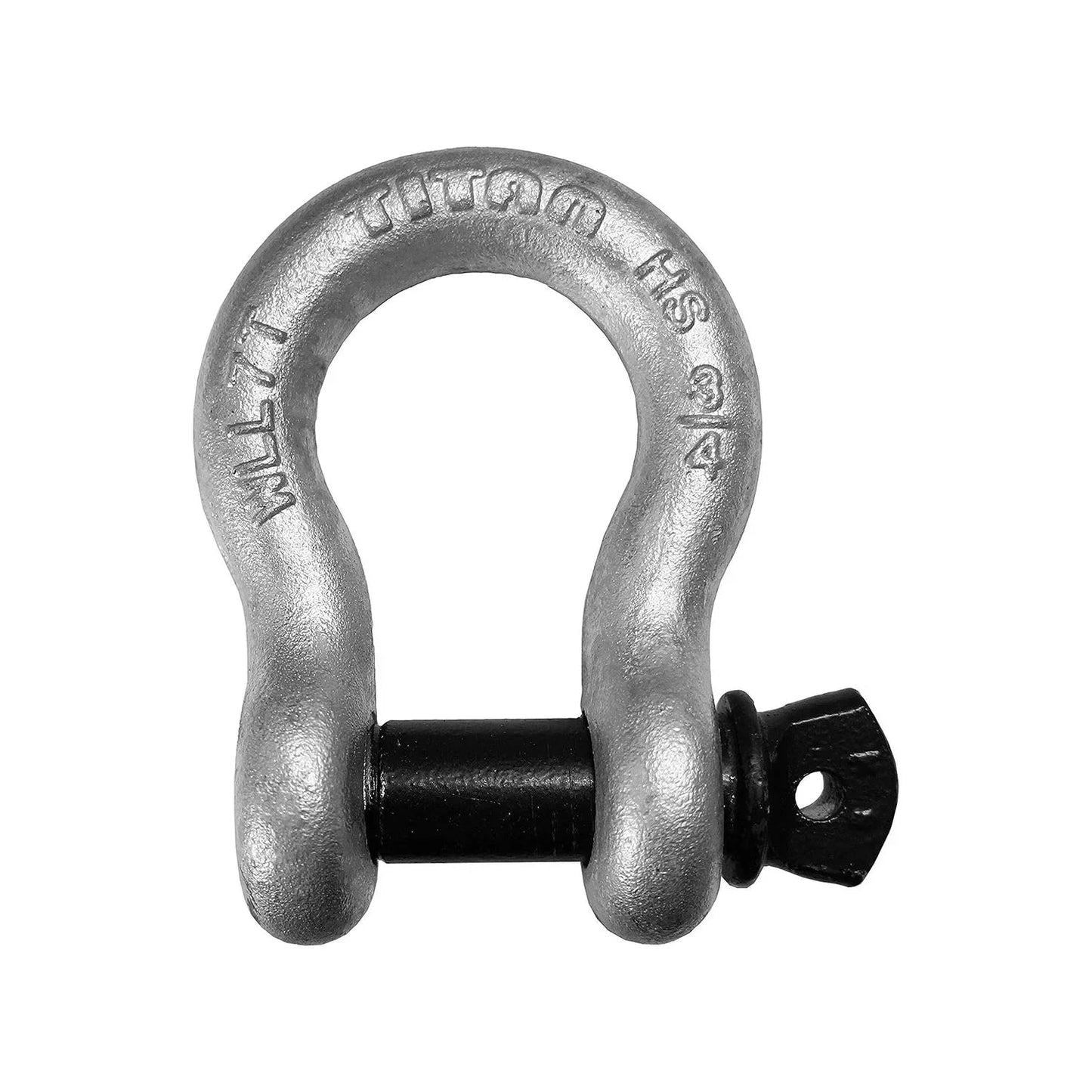

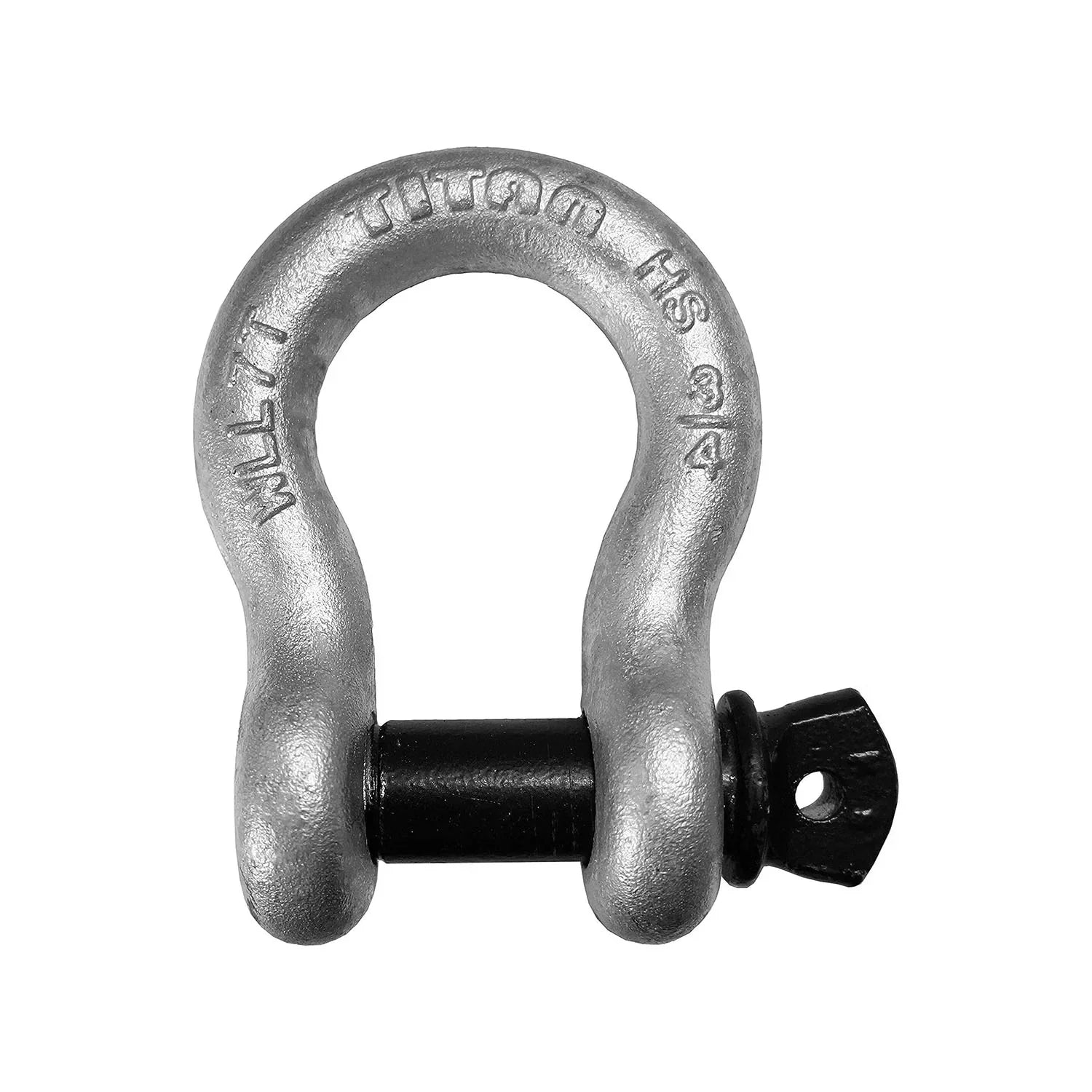

EXTREME DURABILITY: Both the bow and the alloy screw pin are hot-dip galvanised for superior corrosion resistance against saltwater and harsh elements.

Key Features

• ✔ High Tensile Forged Steel: Enhanced load-bearing capacity.
• ✔ Identification: Bold black-colored pin for easy HT identification.
• ✔ Standard Compliance: Meets RR-C-271 Type IV Grade B.
• ✔ Stamped Ratings: WLL and size permanently marked on the body.

Technical Specs

Trade Size:	3/4" (19mm)
Pin Diameter:	7/8" (22mm)
Working Load Limit:	14,000 lbs (6.35 Tons)
Breaking Strength:	70,000 lbs
Material:	Forged Alloy Steel

System Type	Recommended Use	Compatibility Notes
Anchor Rodes	Main Connection	Ideal for 3/8" or 1/2" G4 High Test Chain.
Mooring Systems	Heavy Duty Rigging	Suitable for permanent mooring deployments.
Commercial Marine	Lifting & Towing	Proof-tested design for professional use.

Is this a genuine original part?

Yes, this is an authentic Titan Marine product manufactured by CMP Group Ltd, the global leader in marine hardware and zinc anodes.

How do I know if it is compatible?

Check your chain size. A 3/4" shackle body is the standard match for anchor rollers and heavy-duty 1/2" chain leads. Verify that the 7/8" pin will pass through your anchor's shank or chain link.

Why is the pin colored black?

The black-coated pin is the industry-standard identifier for Titan's "High Strength" (Grade B) line. This ensures you can easily distinguish it from lower-rated standard galvanised shackles at a glance.
