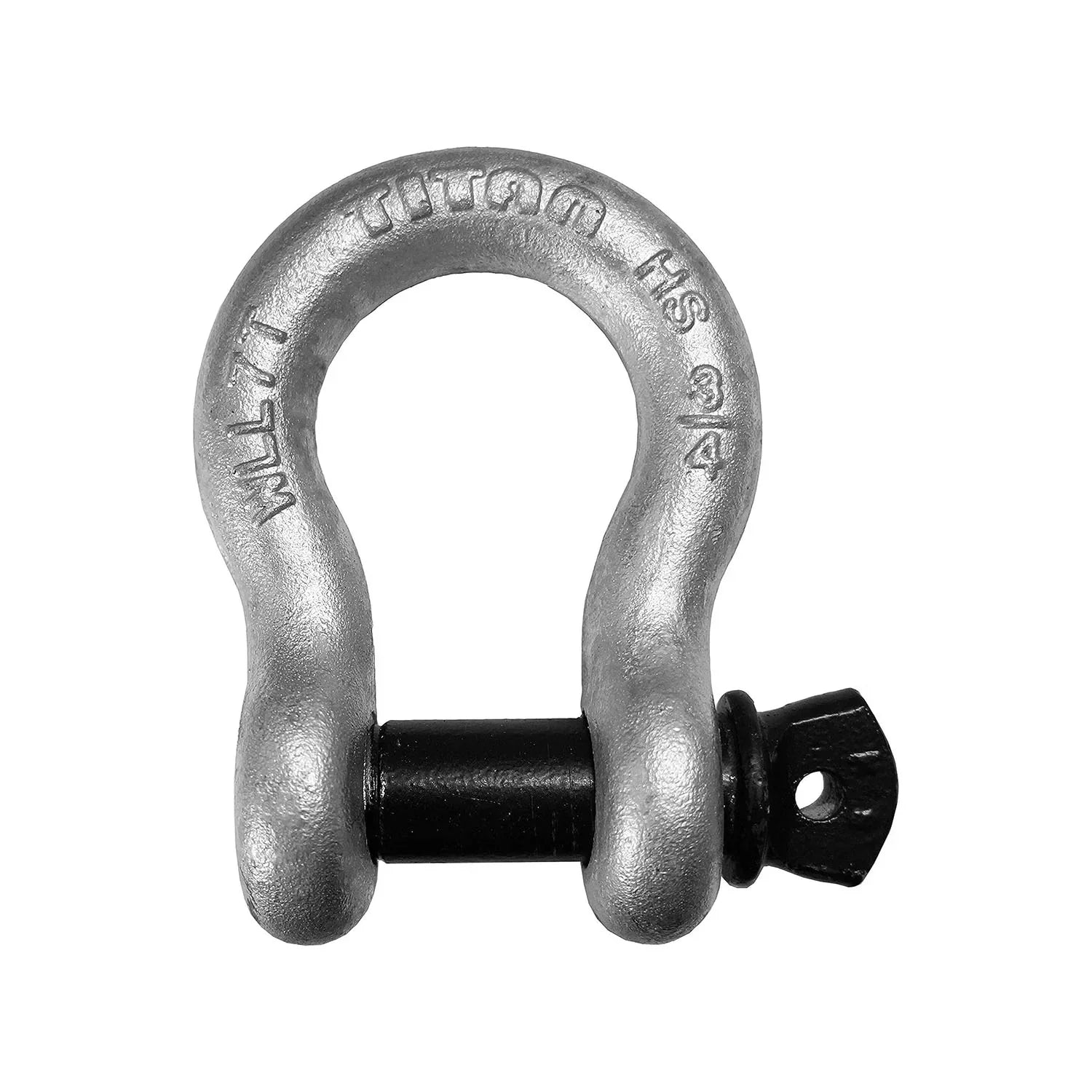

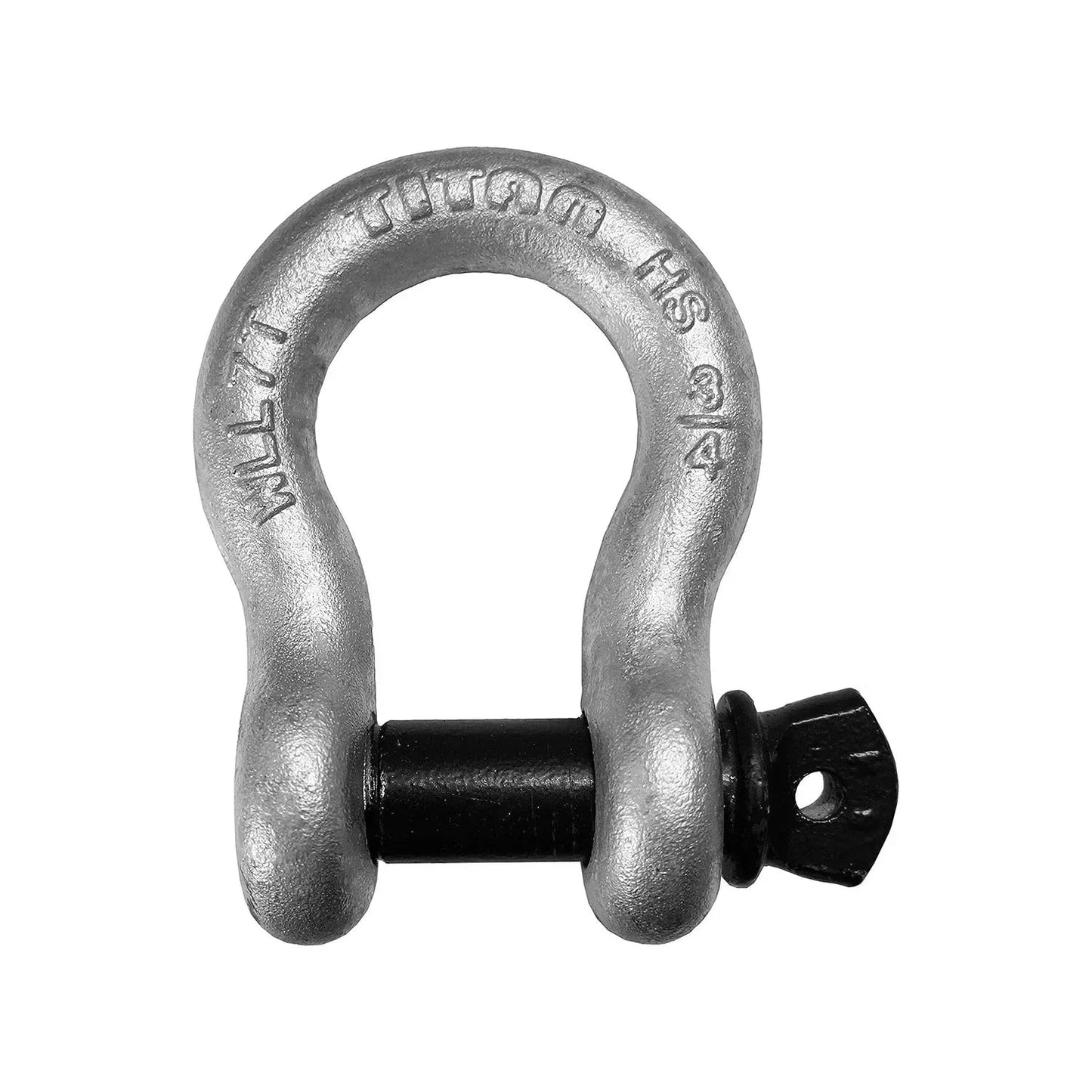

RELIABILITY: Hot-dipped galvanised on both the body and the pin to provide maximum corrosion resistance in harsh saltwater environments. Easily identified by its signature black-coated pin.

Key Features

• ✔ Forged High-Strength Carbon Steel
• ✔ Hot Dipped Galvanised Coating
• ✔ Distinctive Black Coloured Pin
• ✔ Meets RR-C-271 Type IV Grade A Specs
• ✔ Proof Tested and Load Rated

Technical Specs

Bail Size:	1 1/4" (32mm)
Pin Diameter:	1 3/8" (35mm)
WLL (lbs):	36,000 lbs
WLL (kg):	16,344 kg
Breaking Load:	163 kN

Application	Recommended Use	Notes
Marine Anchoring	Heavy Duty Anchor Connection	Matches High-Test G4 Chain
Commercial Rigging	Lifting and Towing	WLL Stamped on Body
Mooring Systems	Permanent Mooring Links	Galvanised for Longevity

Is this a genuine Titan Marine part?

Yes, this is a genuine Titan Marine (CMP Group) High Strength shackle. It features the official Titan logo and Working Load Limit (WLL) stamped directly into the forging.

What does the black pin signify?

The black pin is the industry-standard identifier for Titan's High Strength line. These shackles provide significantly higher load ratings compared to standard galvanised shackles of the same physical size.

Will this fit my 1 1/4" chain?

This shackle has a 1 1/4" body. Please note that the pin diameter is 1 3/8". Ensure your chain link or anchor attachment point can accommodate the 35mm pin diameter before purchasing.
