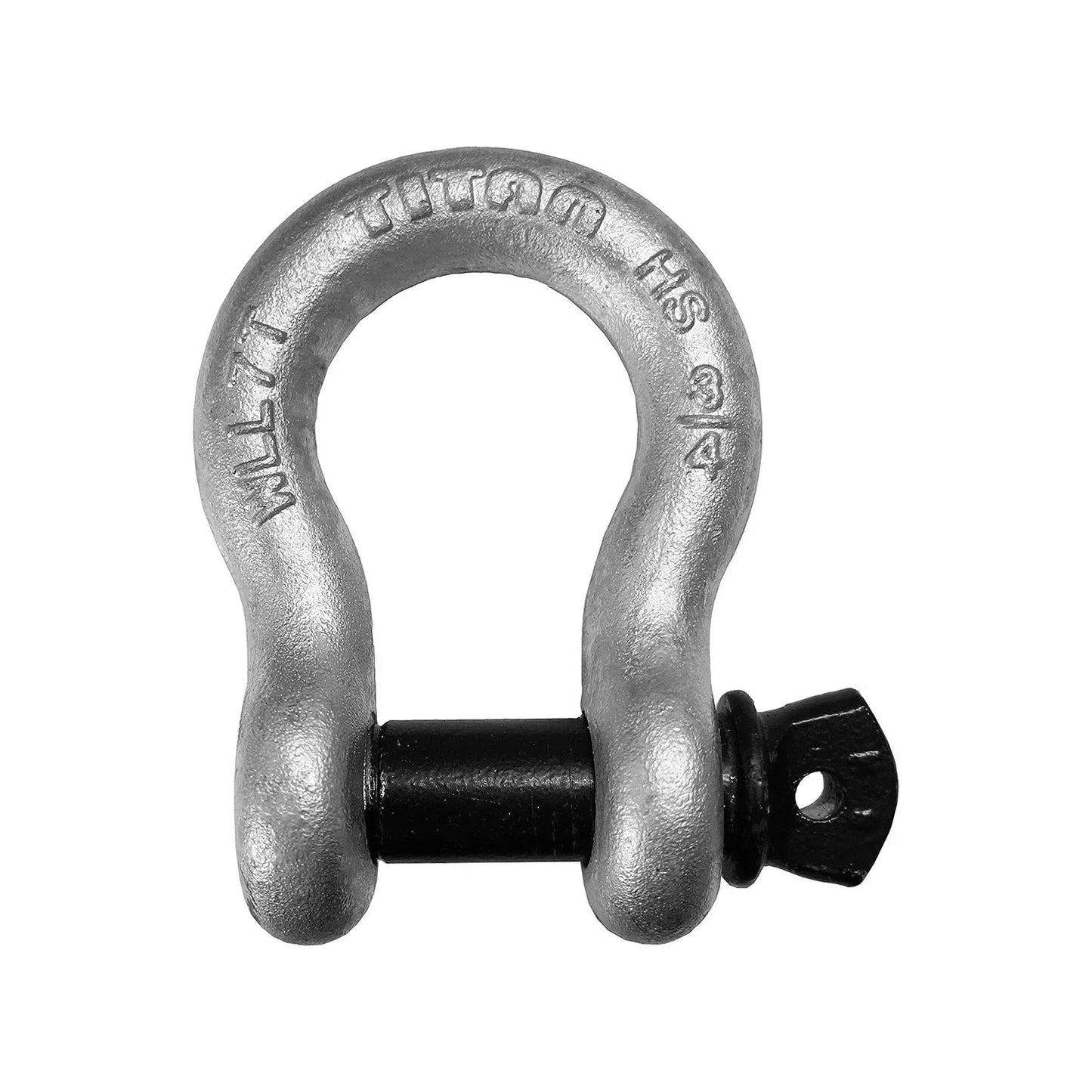

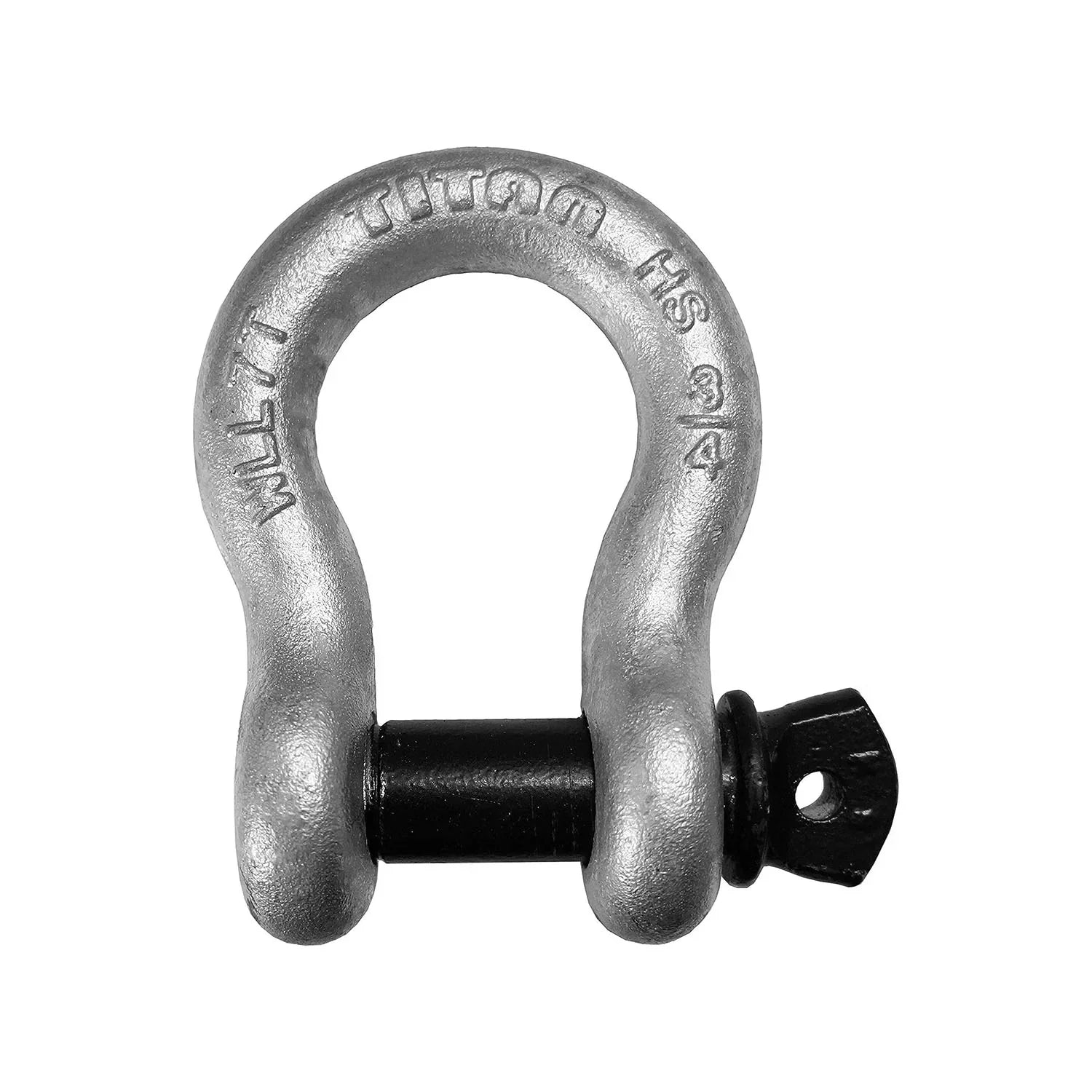

Titan 10319610 High Strength 10mm 3/8" Galvanised Bow Shackle 1.8T WLL
Titan 10319610 High Strength 10mm 3/8" Galvanised Bow Shackle 1.8T WLL
Couldn't load pickup availability
Titan High Strength Shackle 10319610
3/8" (10mm) | 4,000 LB Working Load Limit
The Titan Marine 10319610 is a premium, high-strength forged bow shackle engineered specifically for demanding marine anchoring and mooring applications. Unlike standard Grade A shackles, this high-tensile alloy version is designed to match or exceed the breaking strength of G4 (High Test) windlass chain, ensuring no weak links in your ground tackle system.
Key Features
- ✔ Black Pin Identification: Signature bold black pin denotes High Strength rating.
- ✔ G4 Compatibility: Strength exceeds G4 high-test marine chain.
- ✔ ASTM Galvanizing: Hot-dipped to ASTM A153 specifications.
- ✔ Load Rated: WLL and size permanently stamped on the bail.
Technical Specs
| SKU / MPN: | 10319610 |
| Bail Size: | 3/8" (10mm) |
| Pin Size: | 7/16" (11mm) |
| WLL (Working Load): | 4,000 lbs (1,816 kg) |
| Breaking Load: | ~20,000 lbs (5:1 Safety) |
| Certification: | RR-C-271 Type IV Grade A |
Compatibility & Application Guide
| Application | Recommended Use | Notes |
|---|---|---|
| Anchor Chain | 10mm (3/8") G4 / G43 Chain | Exceeds strength of the chain link. |
| Windlass Rodes | High Test (HT) Rodes | Bow design allows for better movement. |
| Mooring | Permanent Moorings | Check pin regularly for wear. |
OEM & Industry Cross Reference
| Manufacturer | CMP Group / Titan Marine |
| Part Number | 10319610 |
| UPC | 628309196103 |
| Ref Code | TTN-10319610 / 491-10319610 |
Questions & Answers
Is this a genuine original part?
Yes, this is an authentic Titan Marine product manufactured by the CMP Group, the industry leader in marine ground tackle.
How do I know if it is compatible?
This shackle has a 3/8" (10mm) body and an 11mm pin. It is designed to fit 10mm G4 chain. Please ensure your anchor shank or chain link can accommodate the 11mm pin diameter.
Why is the pin black?
The black pin is a specific visual indicator for Titan High Strength shackles, allowing boaters and inspectors to easily distinguish them from standard-strength Grade A shackles.
Note: Please verify your requirements against the dimensions provided. Never exceed the Working Load Limit (WLL). Available at 4boats.co.uk.
