Garmin Striker Vivid 5cv Fishfinder with GT20-TM Transducer GPS 010-02551-01
Garmin Striker Vivid 5cv Fishfinder with GT20-TM Transducer GPS 010-02551-01
Couldn't load pickup availability

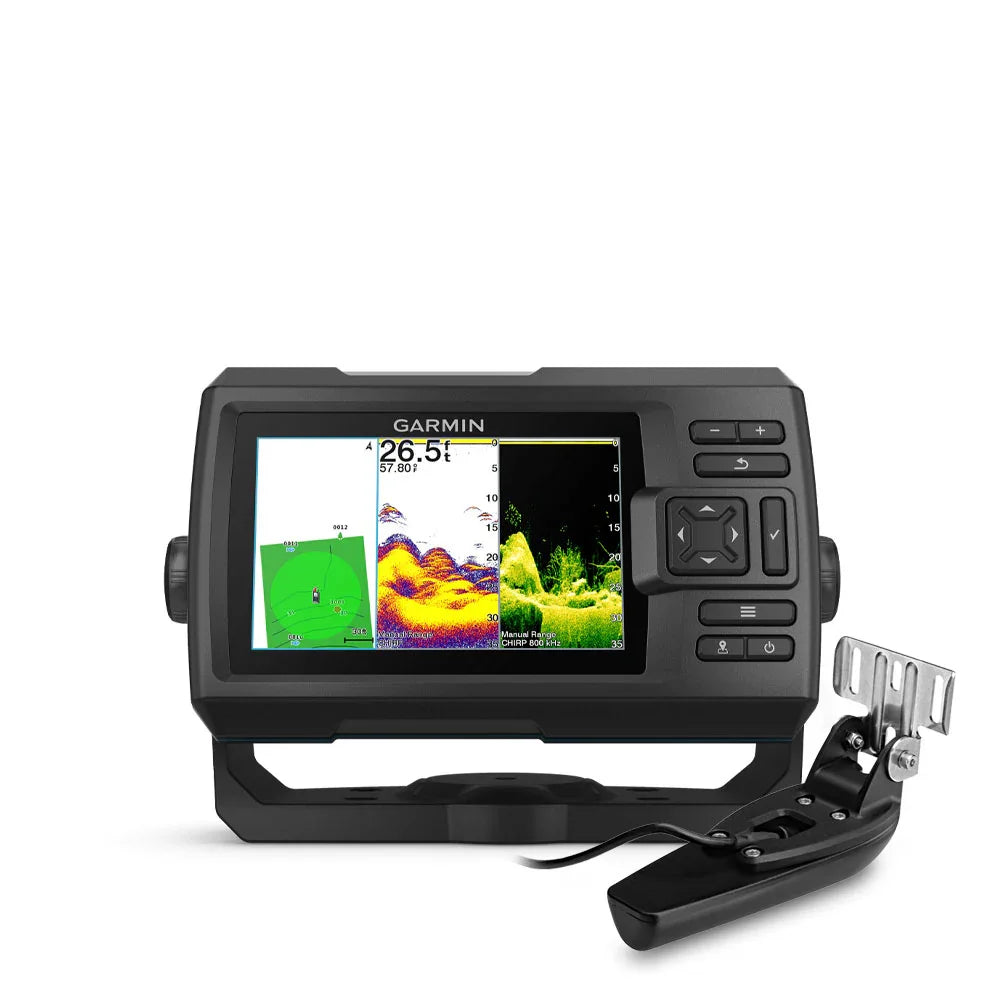

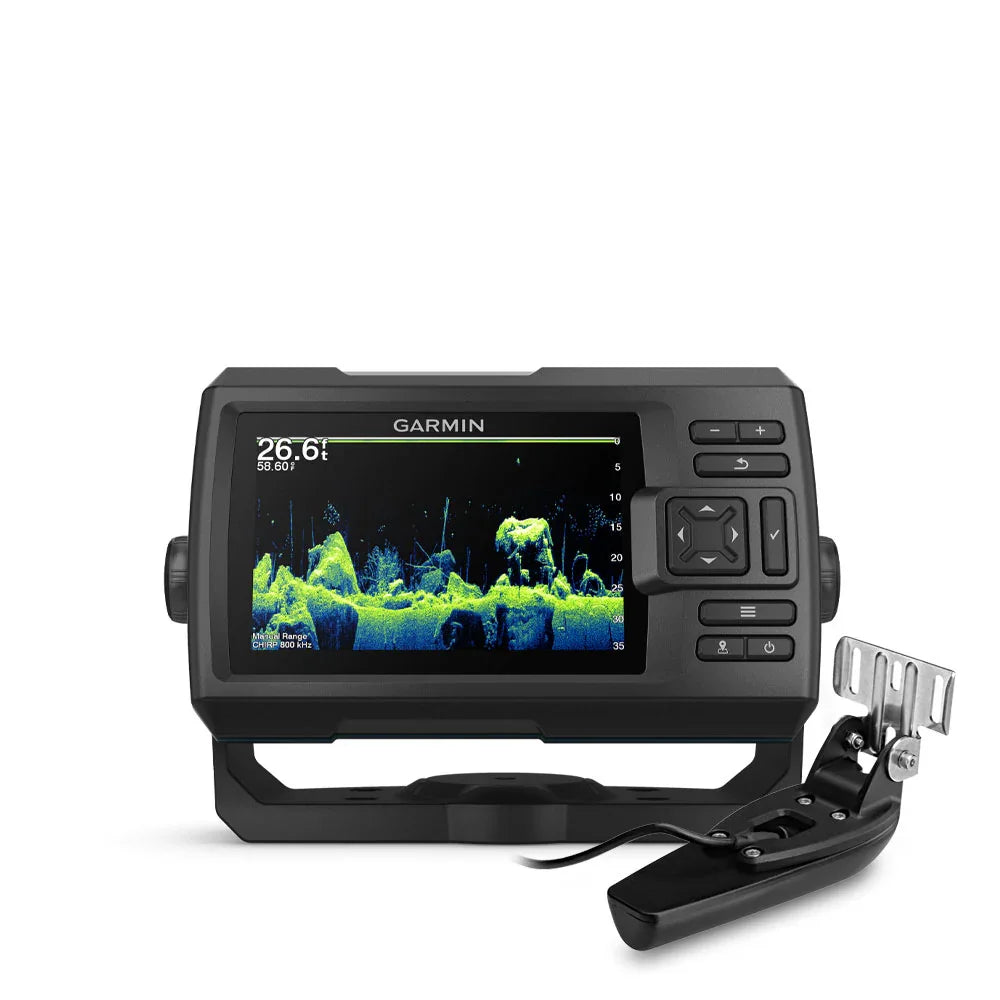

Garmin Striker Vivid 5cv (010-02551-01)
Includes GT20-TM Transducer & High-Sensitivity GPS
The Garmin STRIKER Vivid 5cv fishfinder allows you to see fish and structure in maximum detail. This high-performance marine unit features a bright 5-inch display and seven new vibrant color palettes, enabling you to distinguish fish from structure with superior contrast and clarity. Equipped with a built-in, high-sensitivity GPS, this unit not only finds fish but also marks hotspots and tracks your boat's speed.
Key Features
- ✔ 7 New High-Contrast Vivid color palettes
- ✔ Built-in Quickdraw Contours mapping (1' contours)
- ✔ High-sensitivity GPS for waypoints and routing
- ✔ Sunlight-readable WVGA display
- ✔ Includes tilt/swivel mount and GT20 transducer
Technical Specs
| Display Size: | 5.0" Diagonal |
| Resolution: | 800 x 480 pixels |
| Transmit Power: | 500 W (RMS) |
| Water Rating: | IPX7 |
| Waypoints: | 5,000 |
| Input Voltage: | 12V - 20V DC |
Compatibility & Sonar Support
| Sonar Type | Supported Frequencies | Depth Capacity |
|---|---|---|
| Traditional | 50/77/200 kHz (CHIRP) | ~1,900 ft (Freshwater) |
| ClearVü | 260/455/800 kHz | ~750 ft |
OEM Reference Data
| Manufacturer Part Number (MPN) | 010-02551-01 |
| UPC / EAN | 0753759268329 |
| Included Transducer SKU | 010-12087-01 / GT20-TM (4-pin) |
Questions & Answers
Is this a genuine Garmin part?
Yes, this is an authentic Garmin product (SKU 010-02551-01) supplied in the original retail packaging with all standard accessories.
Does this unit support external maps like BlueChart?
No. The STRIKER series is a fishfinder with GPS, not a chartplotter. It does not have an SD card slot for pre-loaded maps. It uses Quickdraw Contours to allow you to create your own maps as you boat.
What is the difference between Vivid and the previous Striker Plus model?
The Vivid series introduces 7 new high-contrast sonar color palettes (such as Lava, Caribbean, and Moss) which help distinguish fish and bottom structure much more effectively than standard colors.
Note: Professional installation of the transducer is recommended to ensure accurate depth readings at high speeds. 12V battery system required for operation.
