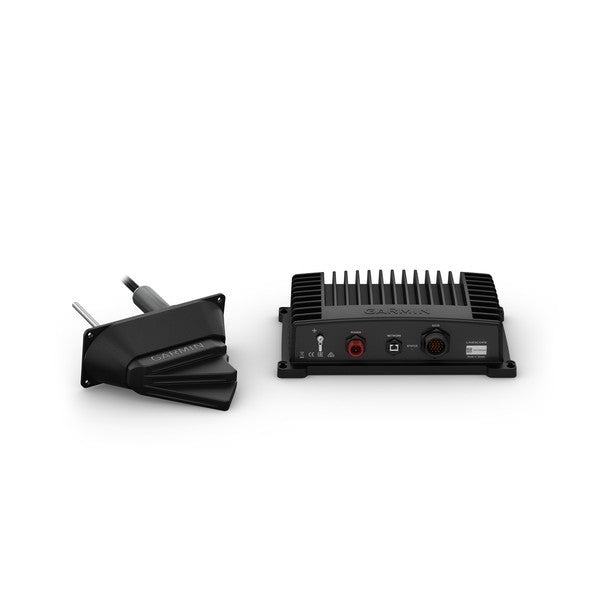

Garmin Panoptix LiveScope System LVS32 Thru-Hull Transducer 010-02233-00
Garmin Panoptix LiveScope System LVS32 Thru-Hull Transducer 010-02233-00
Couldn't load pickup availability
Garmin Panoptix LiveScope System (LVS32-TH)
Full Thru-Hull Scanning Sonar Kit | SKU: 010-02233-00
Experience the most revolutionary sonar technology on the water. The Garmin Panoptix LiveScope System provides real-time, easy-to-interpret scanning sonar images of fish swimming near clearly defined structure. This thru-hull version is designed for permanent installation, offering a sleek, low-profile setup that delivers crystal-clear imagery up to 200 feet in any direction—even while your boat is stationary.
Key Features
- ✔ LiveScope Forward: See out ahead of your boat.
- ✔ LiveScope Down: See directly below the vessel.
- ✔ AHRS Stabilization: Steady view in rough water.
- ✔ Vivid Palettes: High-contrast color options.
- ✔ Plug-and-Play: Connects via Garmin Marine Network.
Technical Specs
| Frequency: | 530 - 1,100 kHz |
| Transmit Power: | 500 W |
| Max Range: | 200 ft (61 m) |
| Beamwidth: | 20° x 135° |
| Water Rating: | IPX7 |
| Voltage: | 10-32 Vdc |
| Pins: | 21-pin Transducer |
Compatibility / Fitment Guide
| Garmin Series | Compatible Models |
|---|---|
| ECHOMAP UHD / UHD2 | 75cv, 75sv, 95sv series |
| ECHOMAP Ultra | 102sv, 122sv series |
| GPSMAP 7x2 / 9x2 | 722/922 Plus and xs Plus series |
| GPSMAP 12x2 / 12x3 | 1222, 1222xsv, 1223xsv series |
| GPSMAP 8400 / 8600 | 8410xsv, 8412xsv, 8416xsv, 8600 series |

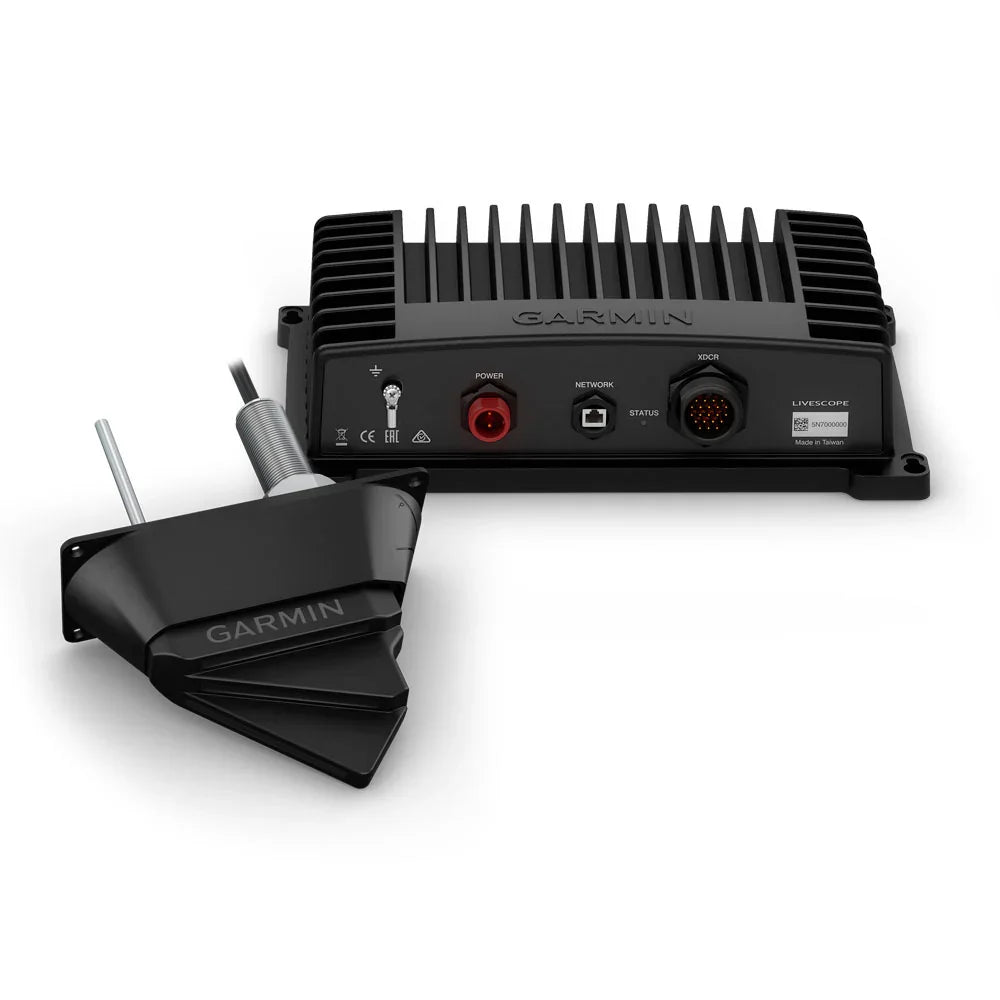

What's In The Box
- LiveScope GLS 10 Sonar Black Box
- Panoptix LVS32-TH Thru-Hull Transducer
- Thru-Hull Mount Hardware
- Power Cable (GLS 10)
- 2 Metre Garmin Marine Network Cable (Small Connector)
- Network Adapter Cable
- Documentation
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Garmin Panoptix LiveScope System, brand new in original packaging from 4boats.co.uk.
Does this require a separate black box?
No, this SKU (010-02233-00) is a complete system that includes the required GLS 10 sonar black box and the LVS32-TH transducer.
What is the maximum depth and range?
The system provides highly detailed imagery up to 200 feet (61 meters) in both Forward and Down modes.
Note: Please verify your chartplotter's network compatibility at 4boats.co.uk before purchasing. Professional installation is recommended for thru-hull components.
