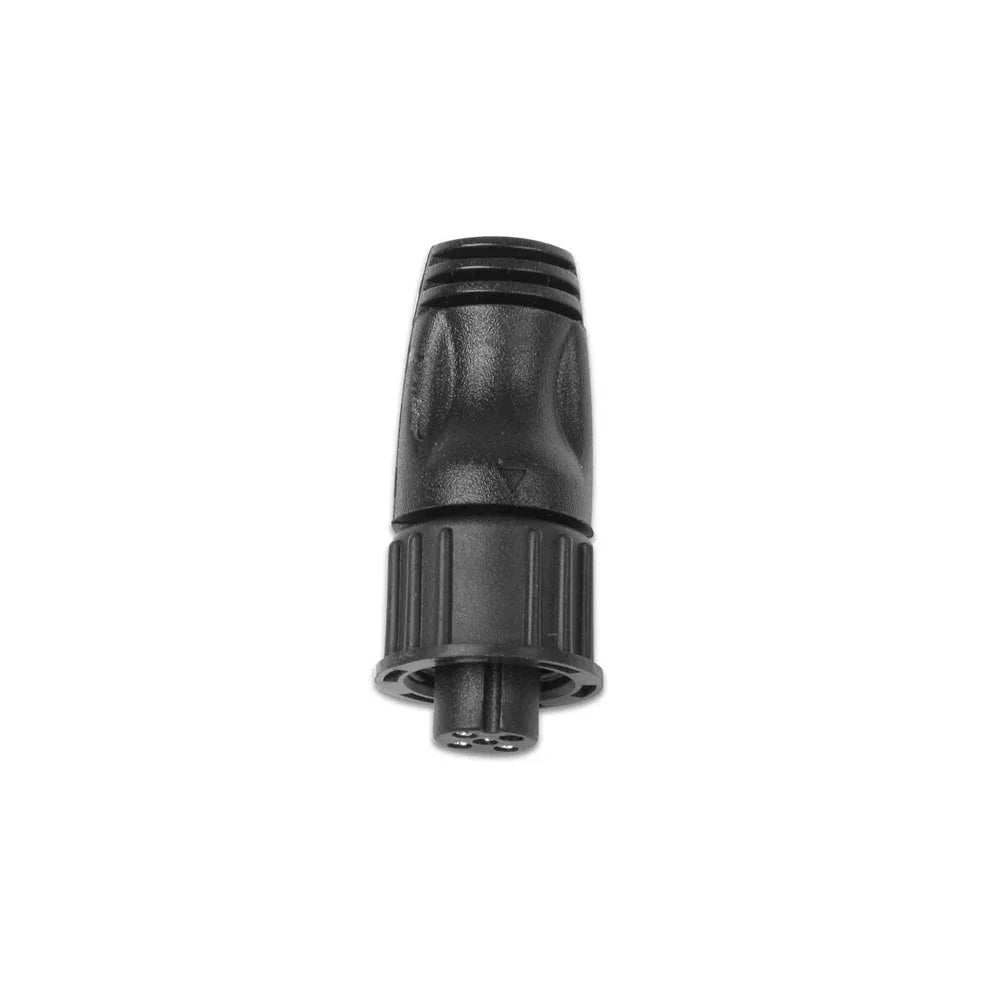

Garmin NMEA 2000 Female Terminator
Essential Network Backbone Component | Part # 010-11081-00
Maintain the integrity of your vessel's electronics with the Garmin NMEA 2000 Female Terminator. This critical component is designed to terminate one end of your NMEA 2000 backbone. By providing the required 120-Ohm resistance, it prevents signal reflections that can lead to data errors, erratic instrument readings, or complete network failure.
Key Features
- ✔ Prevents network signal reflection
- ✔ Standard NMEA 2000 Micro-C Connector
- ✔ Corrosion-resistant gold-plated contacts
- ✔ Simple screw-on installation
Technical Specs
| Connector Gender: | Female |
| Resistance: | 120 Ohm |
| Thread Type: | M12 (Micro-C) |
| Pin Count: | 5-Pin |
| IP Rating: | IPX7 Waterproof |
Compatibility / Fitment Guide
| Network Type | Device Support | Notes |
|---|---|---|
| NMEA 2000 (N2K) | Garmin echoMAP & GPSMAP Series | Standard Micro-C Fitment |
| Multi-Brand Networks | Lowrance, Simrad, Raymarine, B&G | NMEA 2000 Certified |
OEM Cross Reference
| Garmin MPN | 010-11081-00 |
| UPC | 753759078171 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Garmin OEM part, manufactured to ensure full compatibility and performance with NMEA 2000 marine electronics.
How do I know if it is compatible?
We recommend checking the SKU/MPN (010-11081-00). This terminator fits standard NMEA 2000 Micro-C backbone cables and T-connectors.
Why do I need two terminators on my network?
A properly installed NMEA 2000 backbone requires exactly two terminators—one at each physical end of the main trunk—to provide a total parallel resistance of 60 Ohms, which is necessary for clear data transmission.
Note: Please verify your original part number against the references above before purchasing. Distributed by 4boats.co.uk.
