PRECISION IMAGING: Features three scanning frequencies (455 kHz, 800 kHz, and 1,000 kHz) to optimize performance regardless of water depth or clarity.

Key Features

• ✔ Ultra-HD SideVü: 20% more range at 1,000 kHz
• ✔ High Wide CHIRP: Superior target separation
• ✔ All-In-One: Down, Side, and Traditional views
• ✔ Vivid Palettes: High-contrast color options
• ✔ Temperature: Integrated high-speed sensor

Technical Specs

Frequency	150-240 / 455 / 800 / 1000 kHz
Power	Trad: 350W / UHD: 500W
Pins	12-pin
Cable Length	25 ft (7.6 m)
Max Depth	Trad: 800' / SideVü: 500'
Deadrise	0° - 70° Transom

Garmin Series	Compatible Models	Notes
ECHOMAP UHD	72sv, 75sv, 92sv, 95sv	Supports UHD SideVü/ClearVü
ECHOMAP UHD2	62sv, 72sv, 92sv	Direct 12-pin connection
ECHOMAP Ultra	102sv, 122sv	Optimized performance
GPSMAP Series	7x3xsv, 9x3xsv, 12x3xsv, 8400xsv	"xsv" models only

Is this a genuine original part?

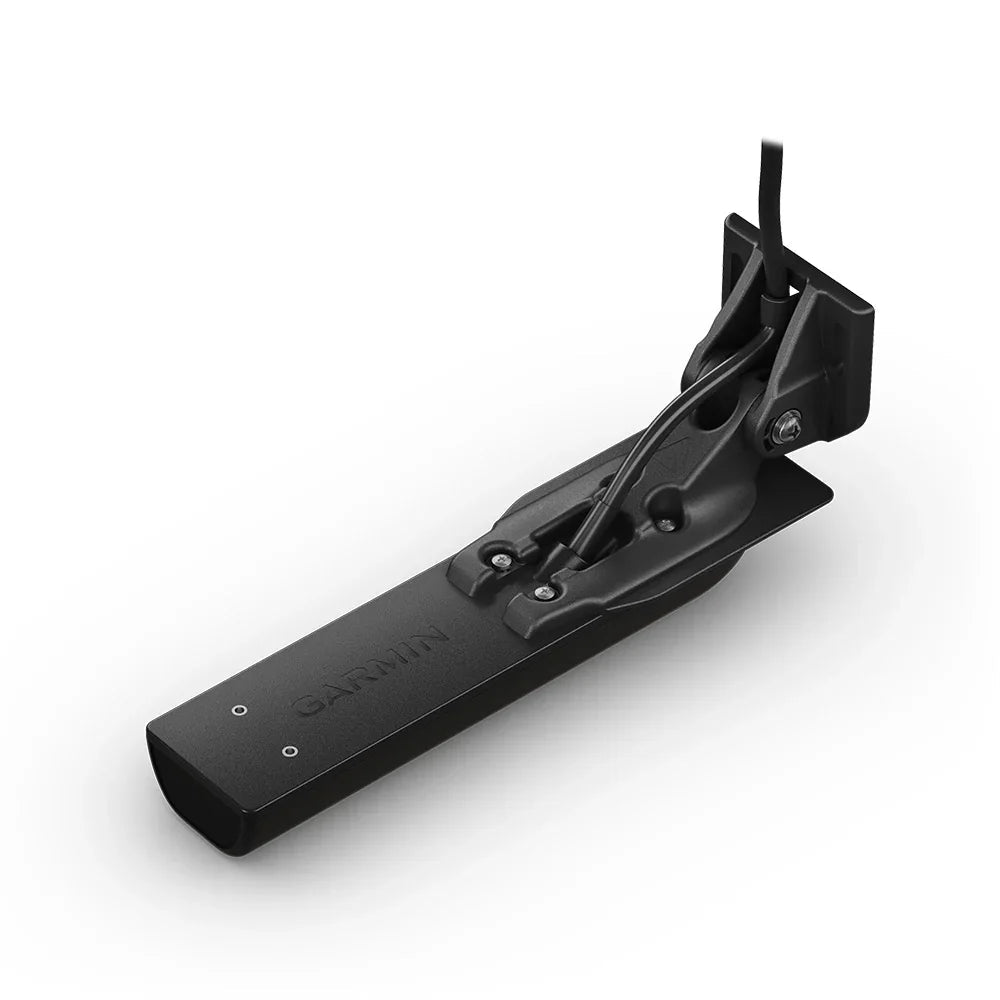

Yes, this is a genuine Garmin marine product (MPN: 010-13073-00), provided in original factory packaging with all standard mounting hardware.

How do I know if it is compatible?

This transducer uses a 12-pin orange connector. Check your chartplotter's port or existing cable. If your unit is an ECHOMAP UHD/Ultra or GPSMAP xsv series, it is a guaranteed fit.

What is the difference between the GT54 and GT56?

The GT56UHD-TM offers 20% greater range at 1,000 kHz for SideVü sonar and provides three scanning frequencies instead of two, allowing for better performance at a wider variety of depths.
