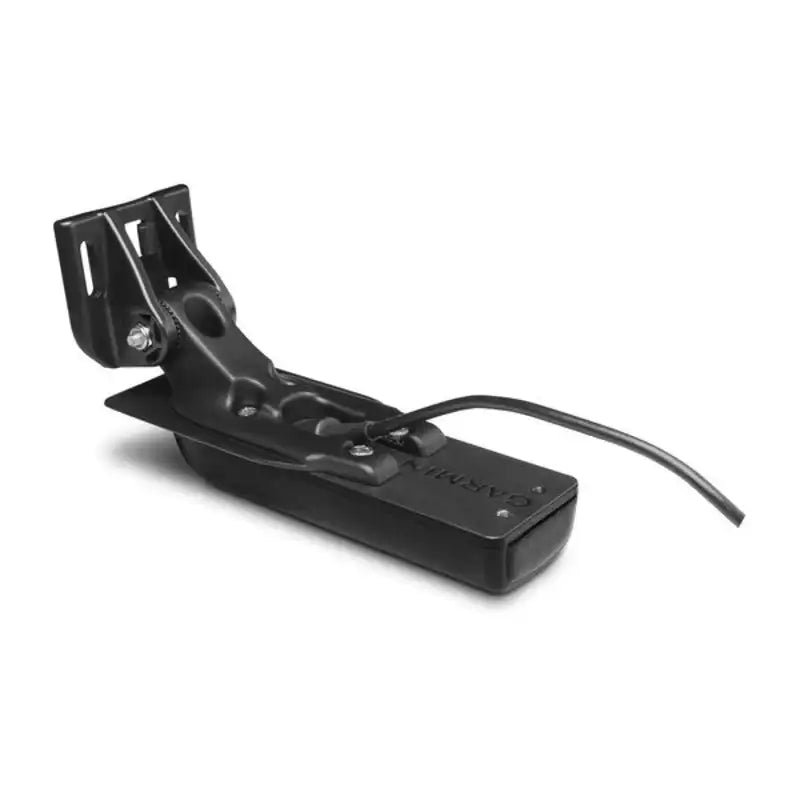

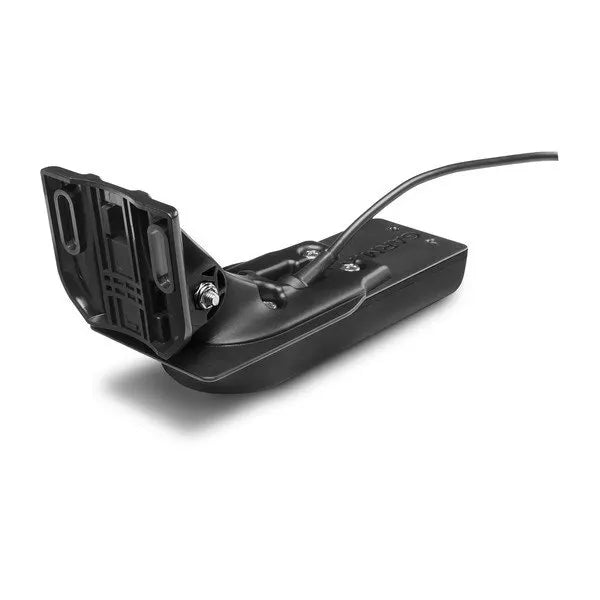

Garmin GT22HW-TM 8 Pin Transom Mount Transducer
Garmin GT22HW-TM 8 Pin Transom Mount Transducer
Couldn't load pickup availability
Garmin GT22HW-TM (8-Pin)
CHIRP High Wide & ClearVü Scanning Transducer
The Garmin GT22HW-TM is an essential tool for freshwater anglers who demand high-definition sonar and superior target separation. This 8-pin transducer combines High Wide CHIRP traditional sonar with CHIRP ClearVü scanning technology, providing picture-like images of structure and fish beneath the boat. Its compact design makes it equally effective for transom mounting or attachment to a trolling motor.
Key Features
- ✔ High Wide CHIRP (150-240 kHz)
- ✔ CHIRP ClearVü (455/800 kHz)
- ✔ Built-in fast response temperature sensor
- ✔ 8-Pin standard connector
- ✔ Dual mounting: Transom or Trolling Motor
Technical Specs
| Frequency (Traditional) | 150-240 kHz |
| Frequency (ClearVü) | 455/800 kHz |
| Power (Traditional) | 250 W |
| Power (ClearVü) | 350 W |
| Max Depth (Trad/CV) | 800ft / 500ft |
| Cable Length | 20 ft (6m) |
Compatibility / Fitment Guide
| Device Series | Model Application | Notes |
|---|---|---|
| ECHOMAP | CHIRP CV/SV, UHD CV/SV, Ultra Series | Direct 8-pin connection |
| STRIKER | STRIKER CV and SV Series | Standard 8-pin fitment |
| GPSMAP | 7x2xs, 9x2xs, 10x2xsv, 12x2xsv, 8400/8600xsv | Supports standard 8-pin sonar ports |
| Legacy Units | 4-pin or 12-pin Garmin devices | Requires adapter cable (sold separately) |
OEM Cross Reference
| Garmin Part Number | 010-12403-00 |
| Model Name | GT22HW-TM |
| UPC | 753759148584 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Garmin brand product, part number 010-12403-00, supplied in original retail packaging.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches or your device features an 8-pin orange sonar port, it is a guaranteed fit.
Can this be mounted to a trolling motor?

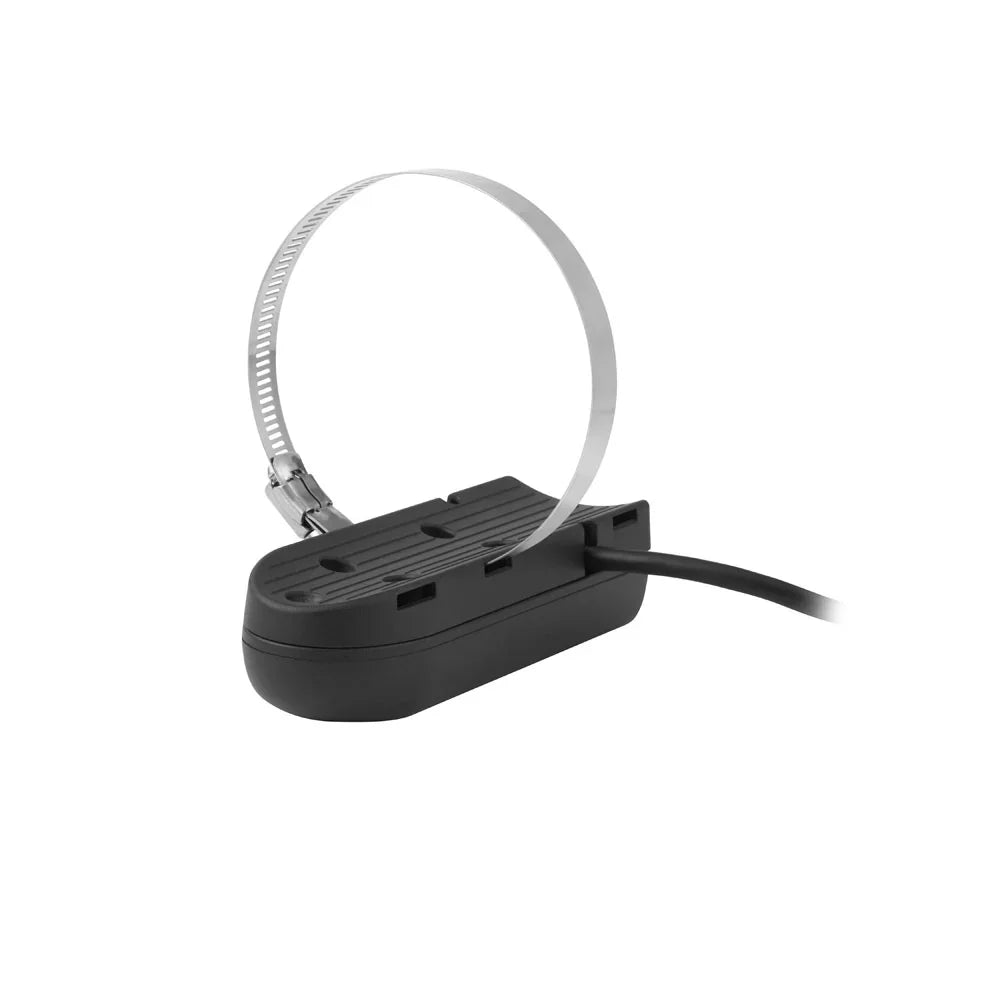

Yes, the GT22HW-TM package includes both a transom mount bracket and a trolling motor mount kit in the box.
Note: Please verify your original part number against the references above before purchasing. For any technical fitment queries, contact 4boats.co.uk support.
