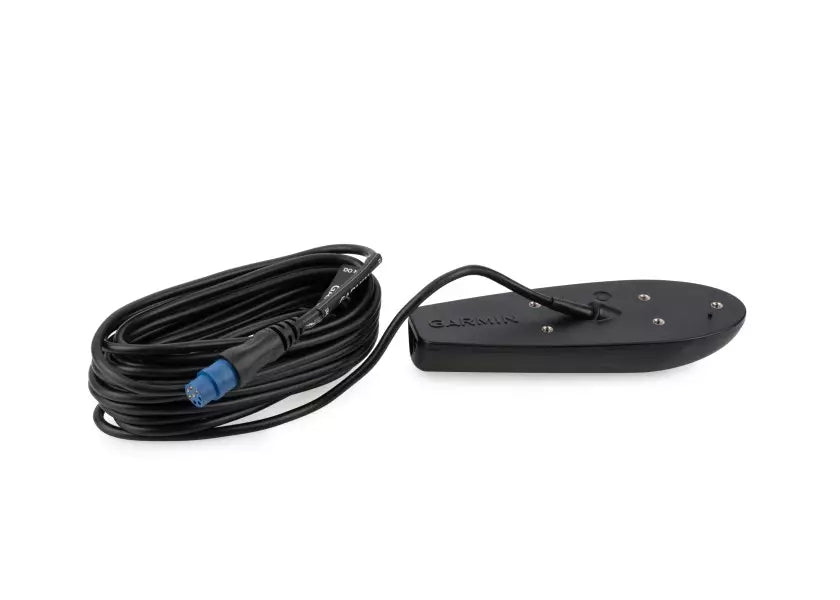

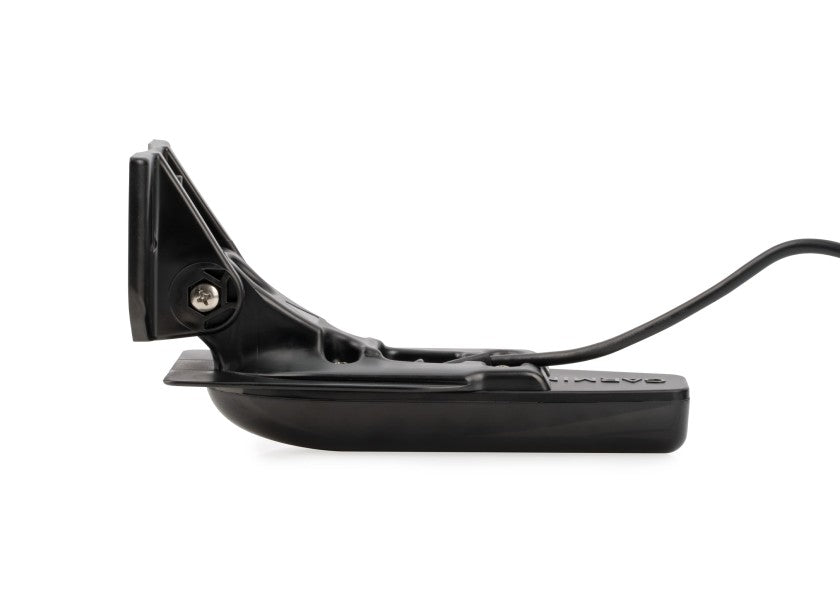

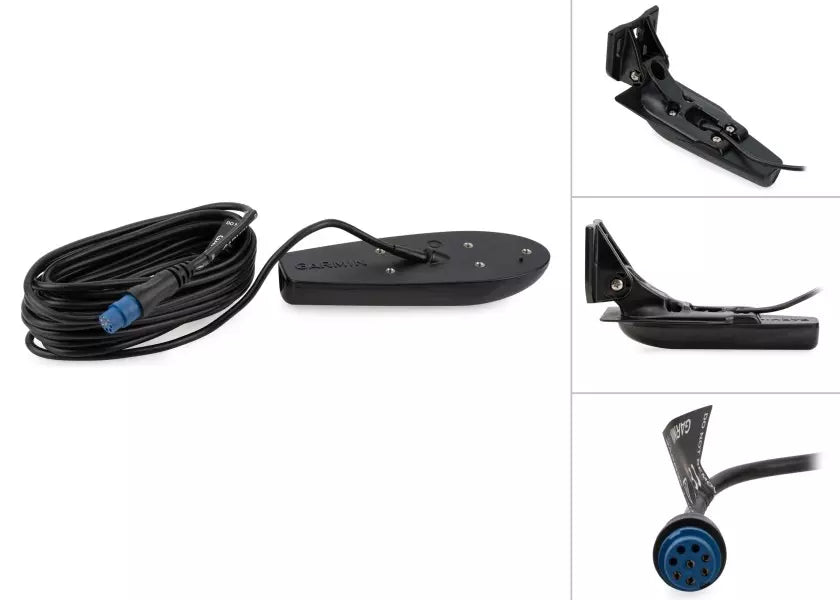

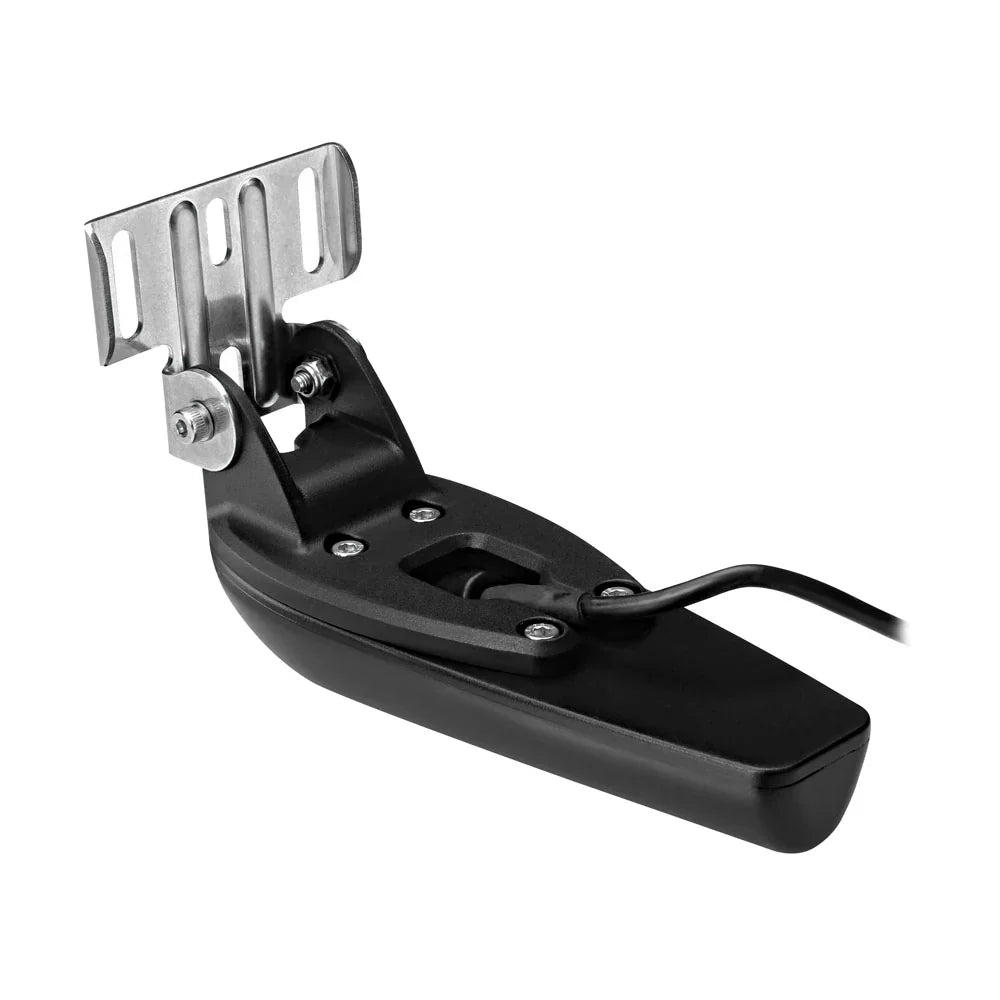

Garmin GT20-TM 8-Pin Transom Mount Transducer 010-01960-01 ClearVü CHIRP
Garmin GT20-TM 8-Pin Transom Mount Transducer 010-01960-01 ClearVü CHIRP
Couldn't load pickup availability
Garmin GT20-TM (8-Pin)
Premium ClearVü Scanning & Traditional Sonar
The Garmin GT20-TM is the ultimate choice for shallow water anglers seeking a blend of traditional sonar and high-definition scanning. This 8-pin transducer provides crisp fish arches alongside photographic-quality images of structure, objects, and fish passing beneath your vessel. Whether you are navigating murky estuaries or scanning lake beds, the integrated ClearVü CHIRP technology delivers superior target separation and clarity.
Key Features
- ✔ 8-Pin High-Speed Connection
- ✔ Dual Frequency (77/200 kHz) Traditional
- ✔ ClearVü CHIRP (455/800 kHz)
- ✔ Integrated Temperature Sensor
- ✔ Supports Transom & Trolling Motor Mount
Technical Specs
| Frequency: | 77/200 & 455/800 kHz |
| Power: | 500W (Traditional/CV) |
| Max Depth (Trad): | 1,900 ft |
| Max Depth (CV): | 750 ft |
| Cable Length: | 20 ft (6 m) |
| Transom Angle: | 0° - 70° |
Compatibility / Fitment Guide
| Series | Model/Application | Notes |
|---|---|---|
| echoMAP Series | 50dv, 70dv, CHIRP 7dv/7sv/9sv, UHD 72cv | Direct 8-pin connection |
| GPSMAP Series | 527xs, 547xs, 721xs, 741xs, 820xs, 840xs | "xs" models support sonar |
| GPSMAP xsv | 7607xsv, 7608xsv, 7610xsv, 7612xsv | High-end MFD integration |
| Sonar Modules | GSD 25 Premium Sonar Module | Network sounder compatible |
OEM Cross Reference
| Garmin MPN (8-Pin) | 010-01960-01 |
| Legacy Reference | 010-12087-01 / GAX1208701 |
| EAN/UPC | 753759152765 |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Garmin brand product, supplied in original retail packaging with all necessary mounting hardware.
How do I know if it is compatible?
Please check the connector on the back of your head unit. This transducer uses an 8-pin connector. If your device has a 4-pin port, you will require the 010-01960-00 model or an adapter cable.
Does it include both transom and trolling motor mounts?
Yes, the GT20-TM (010-01960-01) package includes both the standard transom mount and the trolling motor mount kit as standard.
Note: Please verify your original part number and pin count against the references above before purchasing. For technical support, visit 4boats.co.uk.
