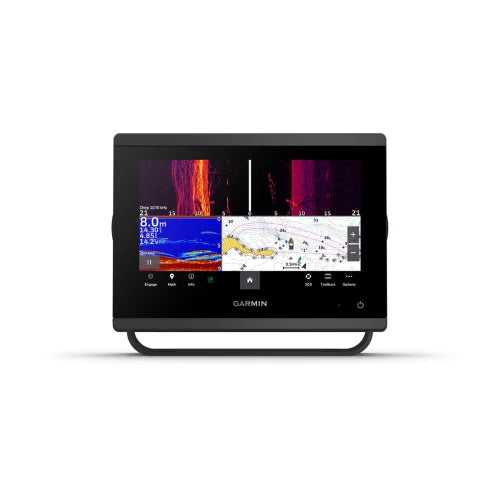

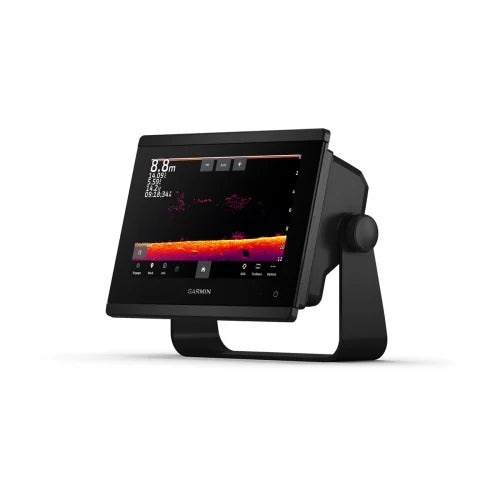

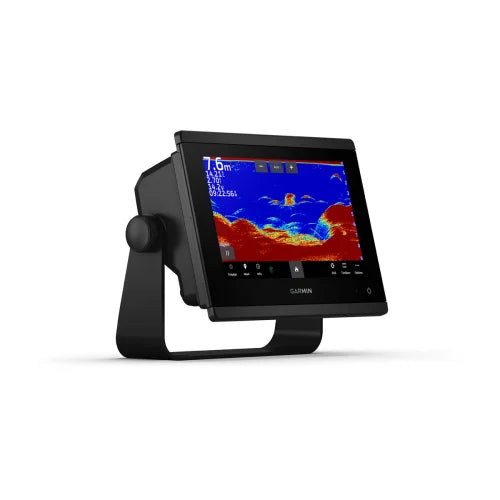

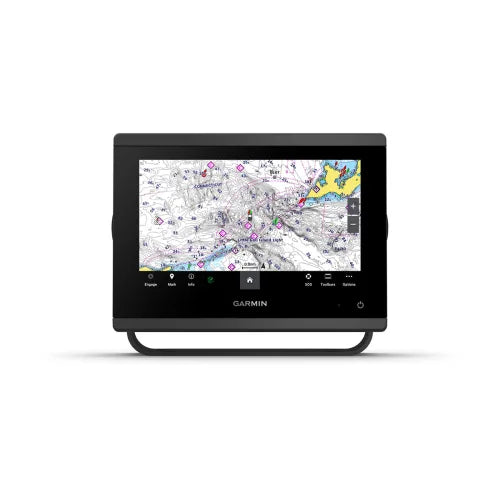

Garmin GPSMAP 723xsv (010-02365-02)
7" High-Resolution Chartplotter & Sonar Combo
Upgrade your helm with the Garmin GPSMAP 723xsv. Featuring a sleek, slimline design with edge-to-edge glass, this 7-inch touchscreen multifunction display offers 60% more pixels than previous generations, ensuring superior sunlight readability and clarity. Built for the modern mariner, it integrates seamlessly into your Garmin Marine Network, providing advanced sonar capabilities and professional-grade navigation in a compact footprint.
Key Features

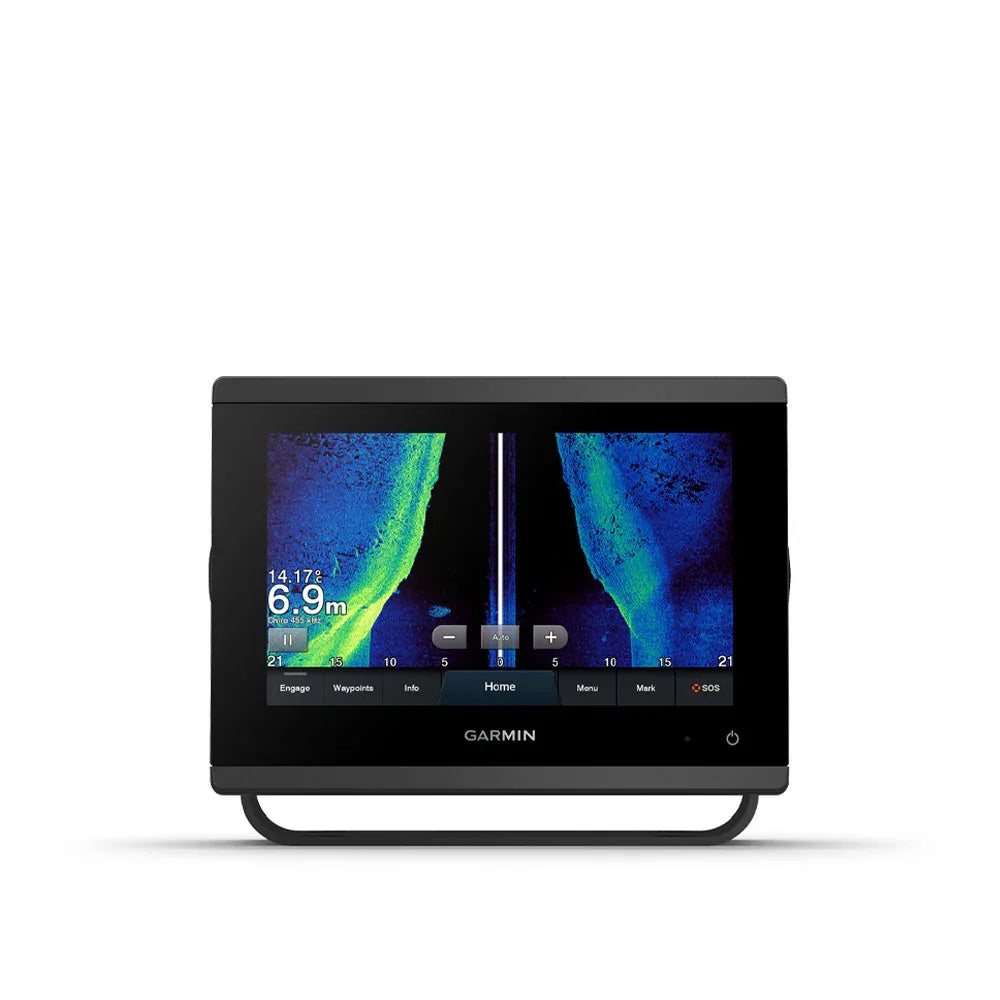

- ✔ Ultra High-Definition Sonar: Built-in SideVü & ClearVü
- ✔ Panoptix Support: Compatible with LiveScope™ systems

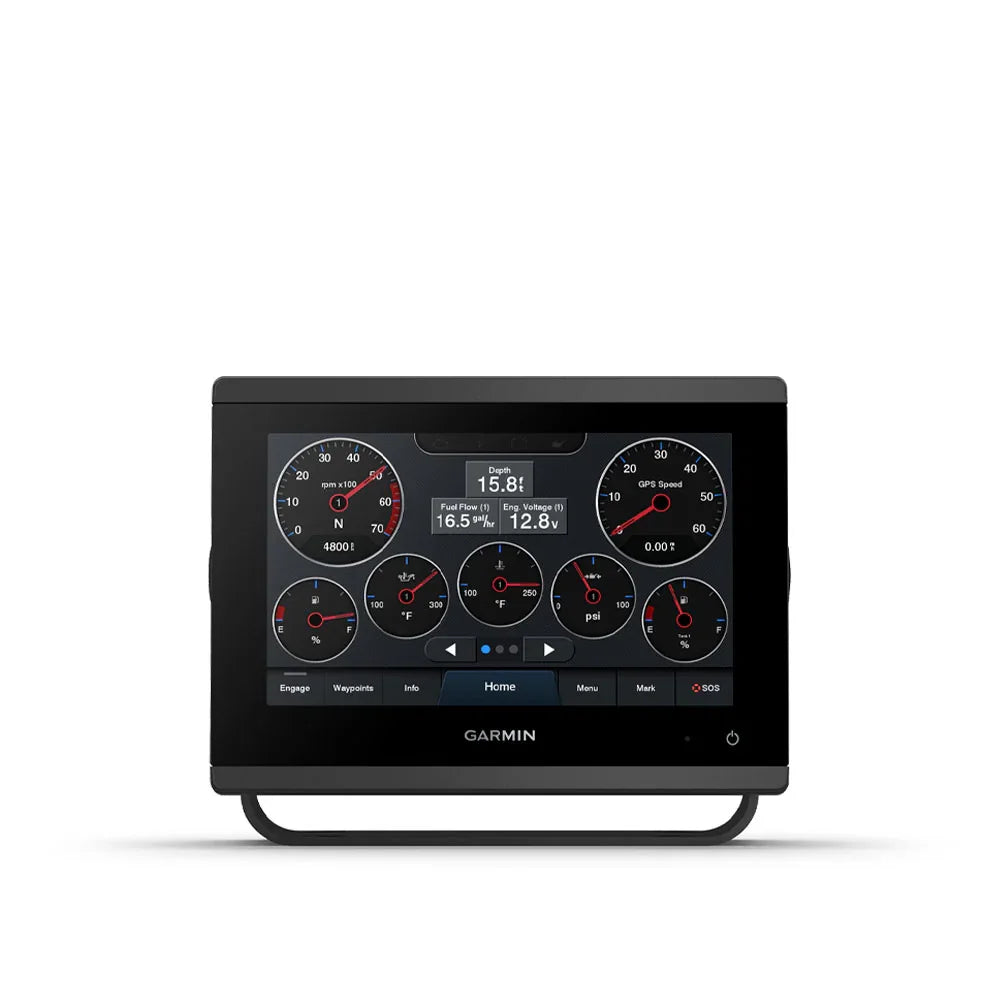

- ✔ J1939 Networking: Direct engine integration (Yamaha/etc.)
- ✔ OneHelm™: Control third-party digital switching
- ✔ Slimline Design: Easy retrofit in tight dash spaces
Technical Specs
| Display Resolution | 1024 x 600 pixels |
| Dimensions | 19.2 x 14.0 x 7.4 cm |
| Water Rating | IPX7 |
| Power Input | 10 to 32 Vdc |
| Typical Draw (12V) | 1.18 A |
| Max Power Usage | 35.9 W |
Compatibility & Networking
| Connection Type | Compatible Systems | Notes |
|---|---|---|
| NMEA 2000® | Autopilots, AIS, Fusion-Link™, Sensors | 1 Port |
| J1939 | Engine Data (Yamaha, etc.) | Dedicated Port |
| Marine Network | GMRâ„¢ Radars, Panoptix, Multiple Displays | 1 Port |
| Sonar (12-pin) | UHD SideVü, ClearVü, 1kW Traditional CHIRP | Transducer Sold Separately |
OEM Cross Reference
| Garmin Part Number | 010-02365-02 (Worldwide Basemap) |
| UPC | 753759250454 |
| Series Alternative | 010-02365-00 (Non-sonar version) |
Questions & Answers
Is this a genuine original part?
Yes, this is a brand new, genuine Garmin product in original retail packaging.
How do I know if it is compatible?
We recommend checking the SKU/MPN 010-02365-02. This unit is compatible with any boat utilizing a 12V or 24V DC power system and supports NMEA 2000/J1939 standard networking.
Does this unit include a transducer?
No, this specific part number (010-02365-02) is the head unit only. This allows you to select the transducer (transom, thru-hull, or in-hull) that best matches your specific hull and fishing needs.
Note: Please verify your installation space and power requirements before purchasing. Charts are based on the Worldwide Basemap unless optional BlueChart g3/Vision+ is added. 4boats.co.uk is an authorized retailer.
