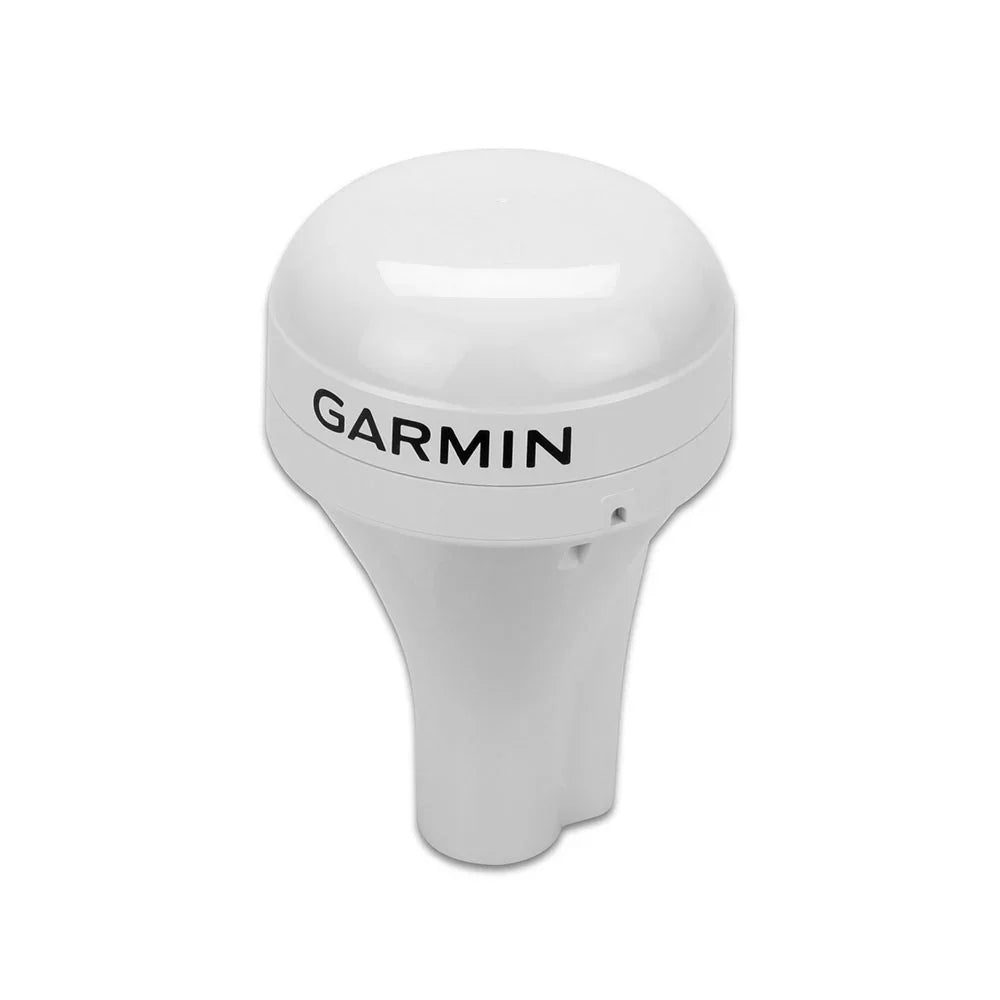

Garmin GPS 24xd HVS (010-02316-00)
High-Sensitivity Multi-Band GNSS Antenna - NMEA 0183
The Garmin GPS 24xd HVS is a premium, high-sensitivity GPS receiver and antenna designed specifically for marine environments requiring NMEA 0183 connectivity. Featuring dual-frequency multi-band GNSS technology, it delivers sub-meter position accuracy (< 1 meter) and provides consistent heading information even at low trolling speeds.
Key Features
- ✔ Multi-Band GNSS: High accuracy via L1 and L5 signals.
- ✔ 10 Hz Update Rate: Smooth position and velocity data.
- ✔ Magnetic Heading: Accuracy within 3 degrees for radar overlay.
- ✔ Multi-Constellation: Tracks GPS, GLONASS, Galileo, and BeiDou.

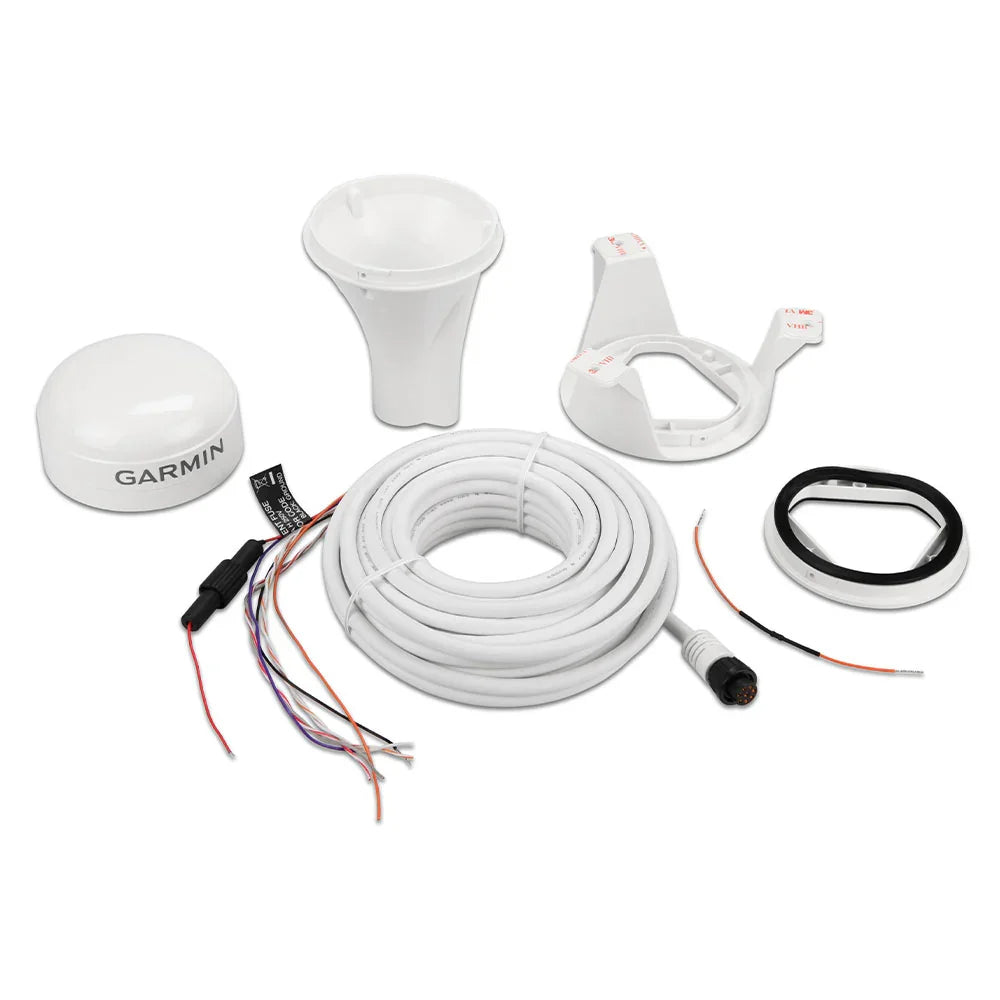

- ✔ Versatile Mounting: Pole, surface, or under-deck (fiberglass).
Technical Specs
| MPN: | 010-02316-00 |
| Input Voltage: | 8-33 Vdc (Unregulated) |
| Dimensions: | 91.6 mm x 49.5 mm |
| Weight: | 201 g (7.1 oz) |
| Cable Length: | 9.14 m (30 ft) |
| Waterproof Rating: | IPX7 |
Compatibility / Fitment Guide
| Protocol | Devices | Notes |
|---|---|---|
| NMEA 0183 | Garmin GPSMAP Series | Compatible with 4000, 5000, 6000, 7000 & newer series with NMEA 0183 ports. |
| NMEA 0183 | Third-Party Plotters | Raymarine, Simrad, Lowrance with NMEA 0183 Rx/Tx wires. |
| NMEA 0183 | Marine VHF Radios | Provides GPS data for DSC emergency functions. |
OEM Cross Reference
| Garmin (New Model) | 010-02316-00 / GPS 24xd HVS |
| Garmin (Legacy Model) | 010-01010-00 / GPS 19x HVS |
| Legacy Model | GPS 17x HVS |
Questions & Answers
Is this a genuine original part?
Yes, this is a genuine Garmin marine part, complete with full manufacturer documentation and mounting hardware.
How do I know if it is compatible?
We recommend checking if your device supports NMEA 0183 (bare wire) communication. This is the direct replacement for the discontinued GPS 19x HVS.
Can I change the update rate from 10 Hz to 1 Hz?
Yes. This unit includes an "Update Rate Select" cable. By installing the included resistor cable to the orange accessory wire, you can limit the output to 1 Hz at 4800 bps for older legacy systems.
Note: 4boats.co.uk - Please verify your system's protocol requirements (NMEA 0183 vs NMEA 2000) before purchasing. This HVS model is for NMEA 0183 (bare wire) installations.
