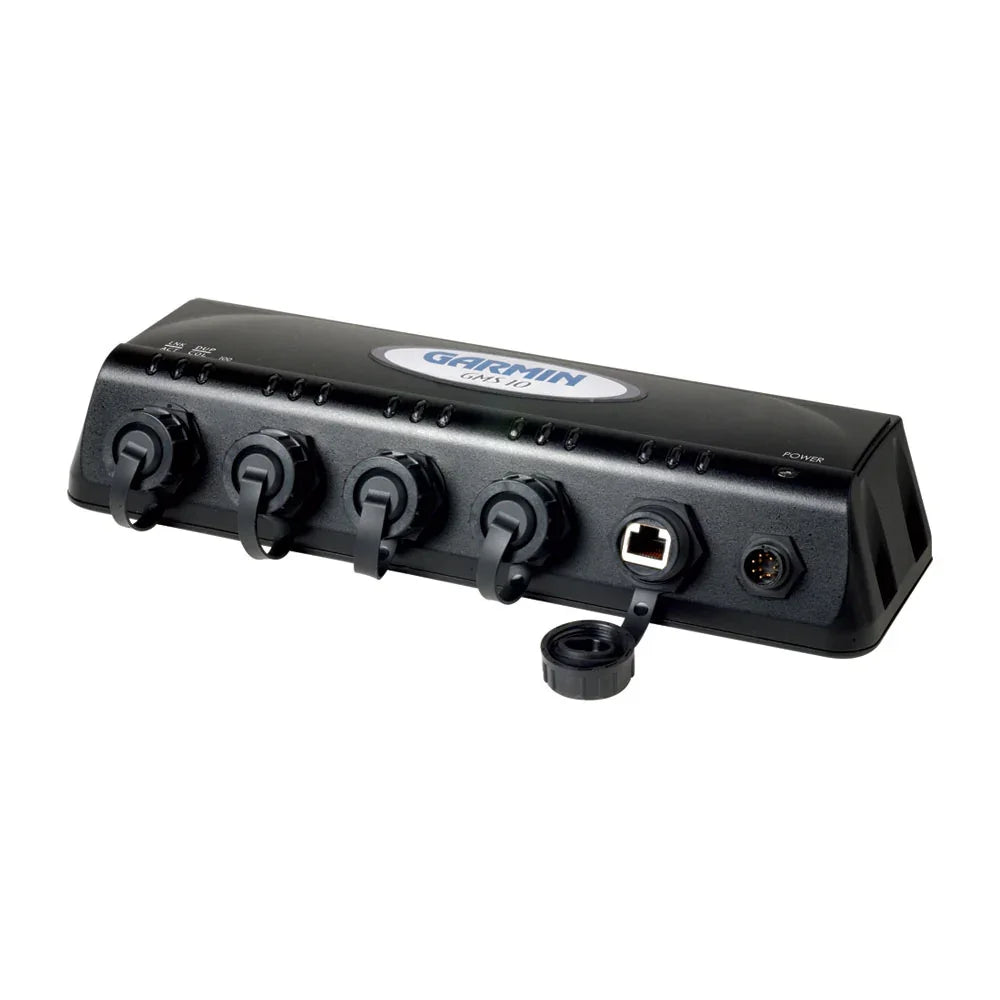

Garmin GMS 10 Marine Network Port Expander Switch 010-00351-00 5-Port IPX7
Garmin GMS 10 Marine Network Port Expander Switch 010-00351-00 5-Port IPX7
Couldn't load pickup availability
Garmin GMS 10 Network Port Expander
Genuine Garmin Marine Network Nerve Center - SKU 010-00351-00
The Garmin GMS 10 is the essential "nerve center" for any advanced marine electronics setup. This 100-Mbit switch is engineered to connect multiple multifunction displays (MFDs) and sensors over the Garmin Marine Network (GMN). By centralizing your data hub, you gain Ethernet-like transfer speeds that are significantly faster than standard marine systems, ensuring real-time sonar, radar, and charting data across all stations.
Key Features
- ✔ 5-Port high-speed expansion hub
- ✔ Completely Plug-and-Play installation
- ✔ Auto-detects all networked peripherals
- ✔ IPX7 Waterproof with sealed port covers
- ✔ Shares data between multiple GPSMAP units
Technical Specs
| Voltage | 10 - 35 VDC |
| Power Usage | 2.75 W (Max) |
| Data Speed | 10 / 100 Mbps |
| Waterproof | IPX7 Rating |
| Temp Range | -15°C to 70°C |
| Fuse | 2.0 Amp AGC/3AG |
Compatibility / Fitment Guide
| System Series | Device Categories | Notes |
|---|---|---|
| GPSMAP® | 3xxx, 4xxx, 5xxx, 6xxx, 7xxx, 8xxx, 9xxx | Full Data Sharing |
| ECHOMAP™ | Ultra, UHD, Plus (7x/9x) | Sonar & Map Sharing |
| GMR™ Radar | All Garmin Marine Network Radars | High Bandwidth Link |
| Sonar Modules | GSD 22/24/25/26, GLS 10, GCV 10/20 | Passes Control Signals |
OEM Cross Reference
| Garmin Part Number | 010-00351-00 |
| UPC Code | 753759045524 |
| EAN | 0753759045524 |
Questions & Answers
Is this a genuine original part?
Yes, this is a brand new, genuine Garmin factory original equipment item (OEM). It is not an aftermarket replacement.
How do I know if it is compatible?
The GMS 10 is compatible with all devices that use the standard Garmin Marine Network (large threaded RJ45 style connectors). Check your device's "Network" port for compatibility.
Does this switch need a separate power source?
Yes, the GMS 10 includes a dedicated 7-pin power/data cable that must be connected to a 10-35 VDC power supply. This allows the unit to pass control signals and power your sensors on or off automatically.
Note: Please verify your existing cable requirements. While this kit includes one 6ft network cable, additional cables may be required for complex installations on 4boats.co.uk.
