Garmin AIS 600 Power Data NMEA 0183 Cable 010-11422-00 2m Class B Transceiver
Garmin AIS 600 Power Data NMEA 0183 Cable 010-11422-00 2m Class B Transceiver
Couldn't load pickup availability

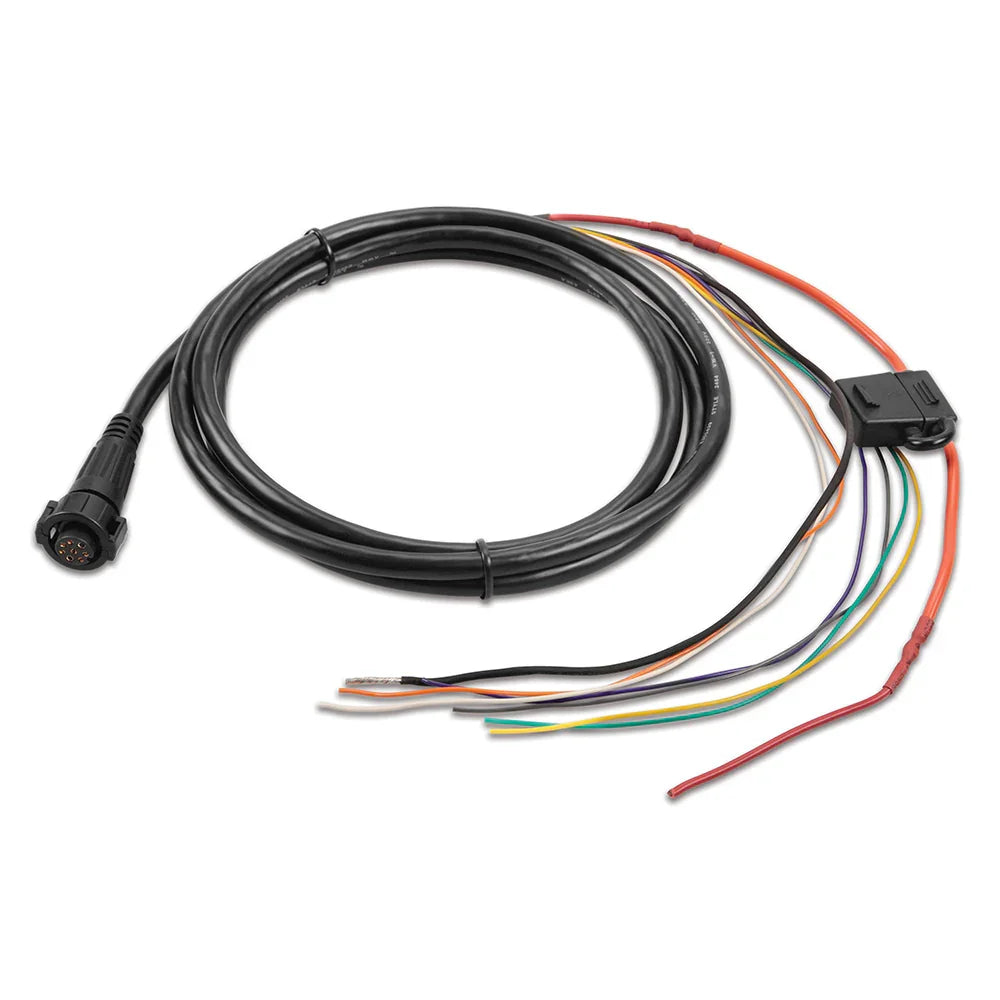

Garmin AIS 600 Power/Data Cable
Premium Quality Replacement Part - 010-11422-00
This genuine-spec replacement power and data harness is specifically engineered for the Garmin AIS 600 Class B Blackbox Transceiver. It provides a reliable connection to your vessel's DC power system while enabling critical NMEA 0183 communication with your chartplotter, PC, or other marine instrumentation.
Key Features
- ✔ Direct fit for AIS 600 Transceiver
- ✔ Supports 12V and 24V DC systems
- ✔ Built-in 5A fast-acting fuse
- ✔ Selectable 4800 or 38400 baud rate
Technical Specs
| Cable Length: | 2 Meters (6.5 ft) |
| Voltage: | 12 / 24 VDC |
| Fuse Rating: | 5 Amp |
| Wire Gauge: | 22 AWG |
| Protocol: | NMEA 0183 |
Compatibility / Fitment Guide
| Make/System | Model/Application | Notes |
|---|---|---|
| Garmin Marine | AIS 600 Blackbox Transceiver | Primary Application |
| NMEA 0183 Devices | VHF Radios / Chartplotters | Standard RS-422 interface |
Wiring Identification
| Wire Color | Function |
|---|---|
| Red | Power Positive (+) |
| Black | Ground Negative (-) |
| Gray | NMEA 0183 Tx A (+) |
| Pink | NMEA 0183 Tx B (-) |
| Green | Baud Rate Select (Default 38.4k / Low 4.8k) |
| Yellow | Power Toggle / Accessory On |
OEM Cross Reference
| Garmin Part Number: | 010-11422-00 |
| UPC: | 753759098797 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN (010-11422-00). This cable is designed exclusively for the Garmin AIS 600 transceiver. If you have a different AIS model, please contact us at 4boats.co.uk for assistance.
How do I change the NMEA 0183 baud rate?
By default, the cable outputs at 38,400 baud. If you need to limit the output to 4,800 baud for older equipment, connect the Green speed-select lead to the battery negative (-) terminal.
Note: Please verify your original part number against the references above before purchasing. Domain: 4boats.co.uk.
