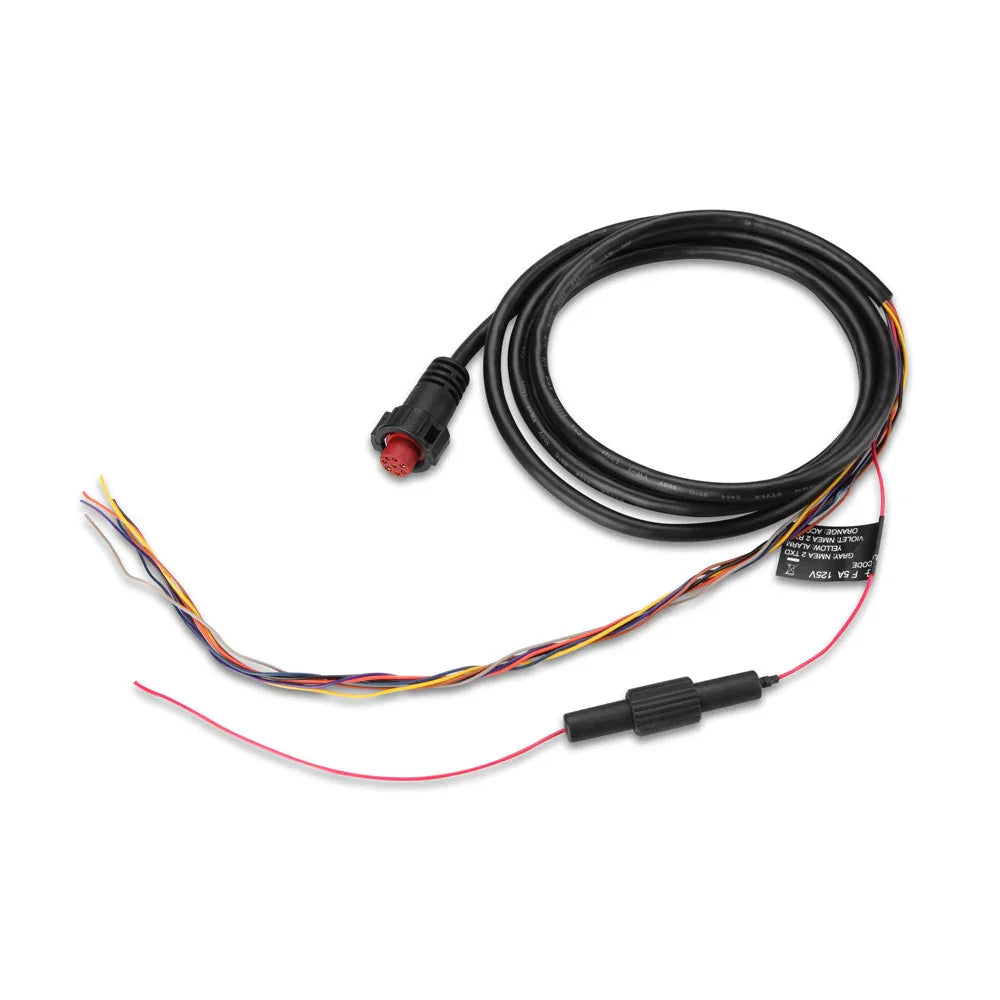

Garmin 8-Pin Power/Data Cable echoMAP GPSMAP 010-11970-00

Garmin 8-Pin Power/Data Cable echoMAP GPSMAP 010-11970-00

£25.99 GBP
£25.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Garmin 8-Pin Power/Data Cable

For selected echoMAP and GPSMAP displays

Genuine Garmin bare-wire power/data cable with an 8-pin display connector for selected echoMAP 50/70 and GPSMAP 5xx/7xx models.

CONNECTOR CHECK: This lead connects to the display's 8-pin power/data port, not its 8-pin transducer port. Confirm the rear socket label and Garmin part number.

Key Features

  • ✔ 8-pin Garmin display connector
  • ✔ Bare-wire power and data conductors
  • ✔ Replacement for Garmin 010-11970-00
  • ✔ For selected echoMAP and GPSMAP chartplotters
  • ✔ Genuine Garmin installation accessory

Technical Specs

Part type Power/data cable
Display connector Garmin 8-pin power/data
Cable end Bare conductors
Transducer use No
Garmin part 010-11970-00

Compatibility / Fitment Guide

Connection Compatible use Important exclusions
echoMAP 50dv, 50s, 70dv and 70s Confirm the exact model label; later ECHOMAP generations use different cables.
GPSMAP 5xx 527xs and 557 Do not substitute compatibility from another GPSMAP 5xx model without checking its parts list.
GPSMAP 7xx 721, 721xs, 751 and 751xs Use the installation guide for power, fuse and data-wire assignments.
Not compatible Transducer sockets; ECHOMAP units requiring threaded 4-pin power/data; devices using a different 8-pin keying An 8-pin count alone does not distinguish power/data from sonar.

Installation: match part 010-11970-00 in the chartplotter manual, identify the port labelled for power/data and follow Garmin's colour code and fuse specification. Individually insulate any unused data conductors.

Part Number Cross Reference

Garmin part number 010-11970-00
4Boats SKU 230-0101197000
Brand / supply Genuine Garmin accessory

Frequently Asked Questions

Is this an 8-pin transducer cable?
No. It is the chartplotter power/data lead.

Will it fit ECHOMAP Plus or UHD?
Not unless the exact model's Garmin parts list specifies 010-11970-00; those generations commonly use different connectors.

Are the ends pre-terminated for NMEA?
The display end is terminated; the installation end has bare conductors for the specified power/data connections.

Before ordering: compare the Garmin part number, connector pin count, keying and device documentation. Pin count alone is not a complete fitment check.
