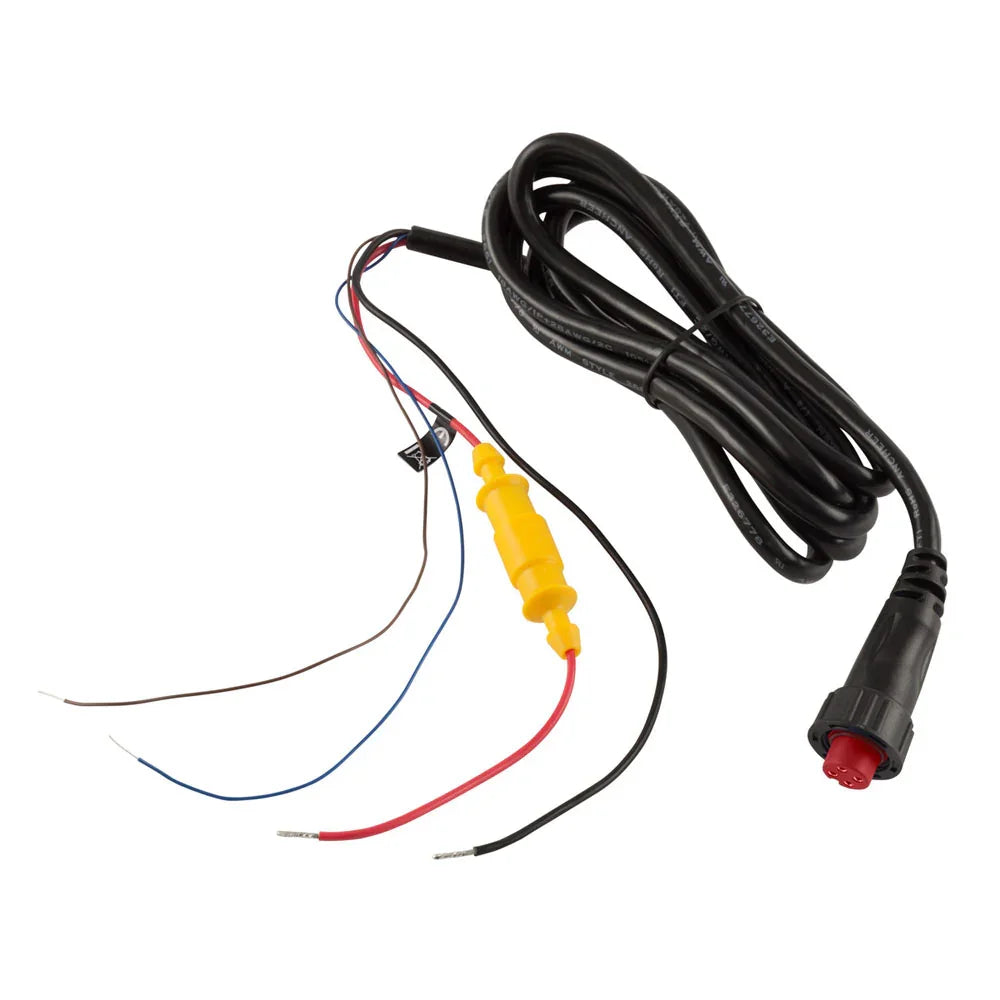

RELIABILITY: Features integrated NMEA 0183 wires for data transfer, allowing you to share waypoints and routes with other compatible marine electronics.

Key Features

• ✔ Threaded locking nut for vibration resistance
• ✔ Dual Function: 12V Power + NMEA 0183 Data
• ✔ Durable marine-grade outer jacketing
• ✔ Bare wire leads for custom installations

Technical Specs

Pin Count:	4-Pin
Connector:	Threaded Locking
Length:	6 ft (1.8m)
Voltage:	12V / 24V DC
Wires:	Power, Ground, RX, TX

Make/System	Model/Application	Notes
Garmin ECHOMAP UHD	72sv, 73sv, 74sv, 75sv, 92sv, 93sv, 94sv, 95sv	4-pin Threaded Only
Garmin ECHOMAP Plus	72sv, 73sv, 74sv, 75sv, 92sv, 93sv, 94sv, 95sv	Secure Threaded Fit
Garmin echoMAP CHIRP	72dv, 73dv, 74dv, 75dv, 72sv, 73sv, 74sv, 75sv, 92sv, 93sv, 94sv, 95sv	Standard Power/Data
Garmin GPSMAP	1022, 1022xsv, 1042xsv, 1222, 1222xsv, 1242xsv	Verify 4-pin Port

Is this a genuine original part?

This is a premium quality replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.

How do I know if it is compatible?

We recommend checking your device's power port. This cable is specifically for 4-pin ports that have an external thread for the locking collar. If your device uses a push-in style without threads, you may need part 010-12199-04 instead.

What do the blue and brown wires do?

The red and black wires provide power. The blue (TX) and brown (RX) wires are for NMEA 0183 data communication, allowing your chartplotter to talk to other devices like VHF radios or autopilots.
