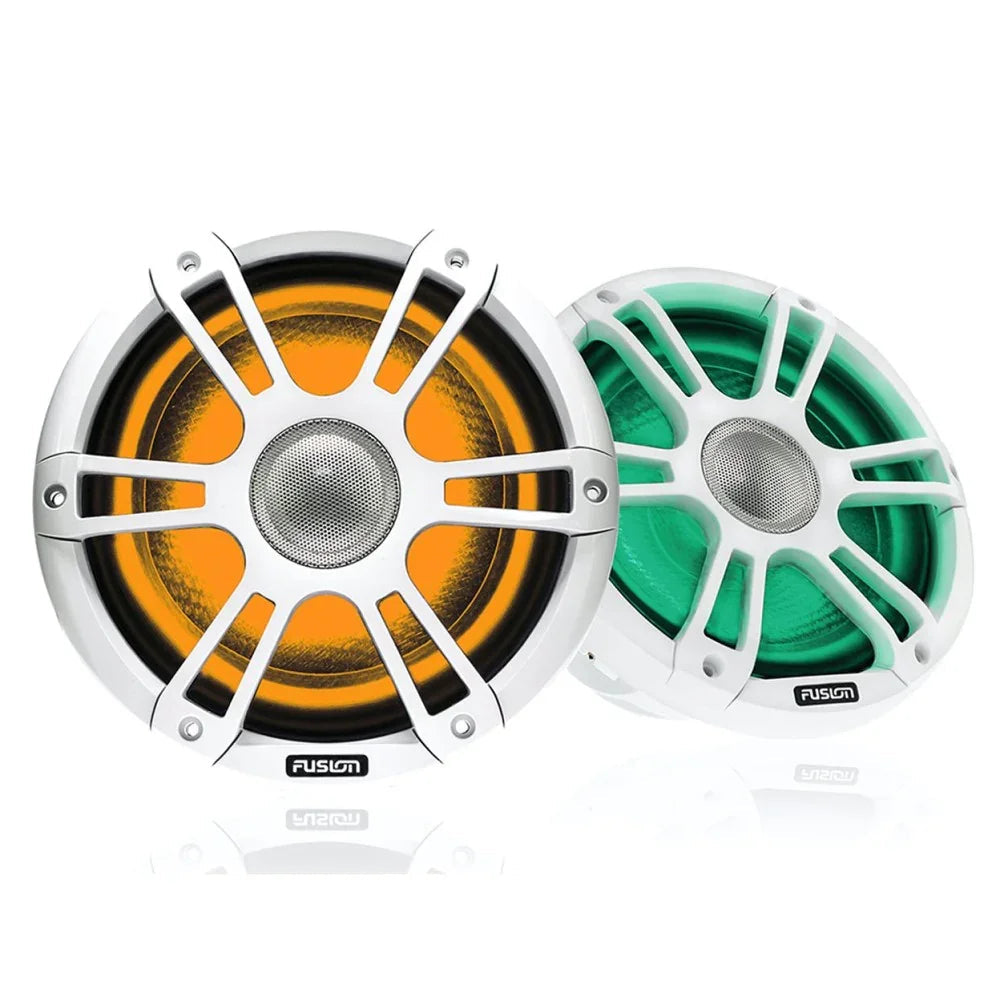

INNOVATION: Features industry-first CRGBW LED lighting, offering an unprecedented spectrum of colors from cool pastels to vibrant hues to match any mood on your vessel.

Key Features

• ✔ CURV Cone: Lighter and stronger for improved sound definition
• ✔ Silk Dome Tweeter: Smooth upper frequency response
• ✔ IP65 Rated: Water and dust resistant for marine use
• ✔ True-Marine™: Tested for salt, fog, and UV protection

Technical Specs

Peak Power	280 Watts
RMS Power	100 Watts
Frequency Response	60 Hz – 22 kHz
Impedance	4 Ohms
Sensitivity (1W/1M)	91 dB
LED Supply Voltage	10.8 - 16 VDC

System/Vessel	Requirement	Notes
Marine Vessels	156mm (6-1/8") Cutout	Standard 7.7" speaker hole
LED Control	MS-CRGBWRC (Optional)	Required for full lighting control
Amplification	25 - 120W RMS per channel	Signature Series Amps recommended

Is this a genuine original part?

This is a brand new, genuine Fusion (a Garmin brand) Signature Series 3 product, supplied in original retail packaging.

How do I know if it is compatible?

We recommend checking the SKU/MPN (010-02433-10) and ensuring your mounting cutout is 156mm (6.14 inches). This is the standard size for 7.7" marine speakers.

What makes CRGBW LEDs better than standard RGB?

CRGBW includes Cool White and Warm White LEDs in addition to standard Red, Green, and Blue. This allows for a much wider range of color blends, including more natural white tones and elegant pastel colors that standard RGB speakers cannot produce.
