RELIABILITY: Engineered by Garmin/Fusion for the harsh marine environment, featuring IPX6/IPX7 water resistance and UV-stable materials.

Key Features

• ✔ Multi-Zone™ Technology: Independent control of two audio zones.
• ✔ Built-in DAB+ Tuner: Access digital radio stations (where available).
• ✔ Bluetooth & ANT: Stream audio and control via Garmin watches.
• ✔ Class-D Amplifier: High efficiency with 180W peak power.
• ✔ Shallow Mount Speakers: Versatile install in thin wall cavities.

Technical Specs

Stereo Peak Power:	180W
RMS Output:	22W x 4 (at 4 Ohm)
Display:	2.3" Bonded Mono LCD
Speaker Peak Power:	80W
Speaker RMS:	20W
Frequency Resp:	45Hz - 16kHz
Water Rating:	IPX7 (Stereo) / IP65 (Speakers)

Application	Type	Notes
Standard Dashboard	Flush Mount	Retrofittable to Fusion MS-RA55 cutouts.
Speakers	6.5" Cutout	Requires 130mm (5.12") mounting diameter.
Networking	NMEA 2000	N/A (MS-RA60 does not support NMEA 2000).

Is this a genuine Fusion / Garmin part?

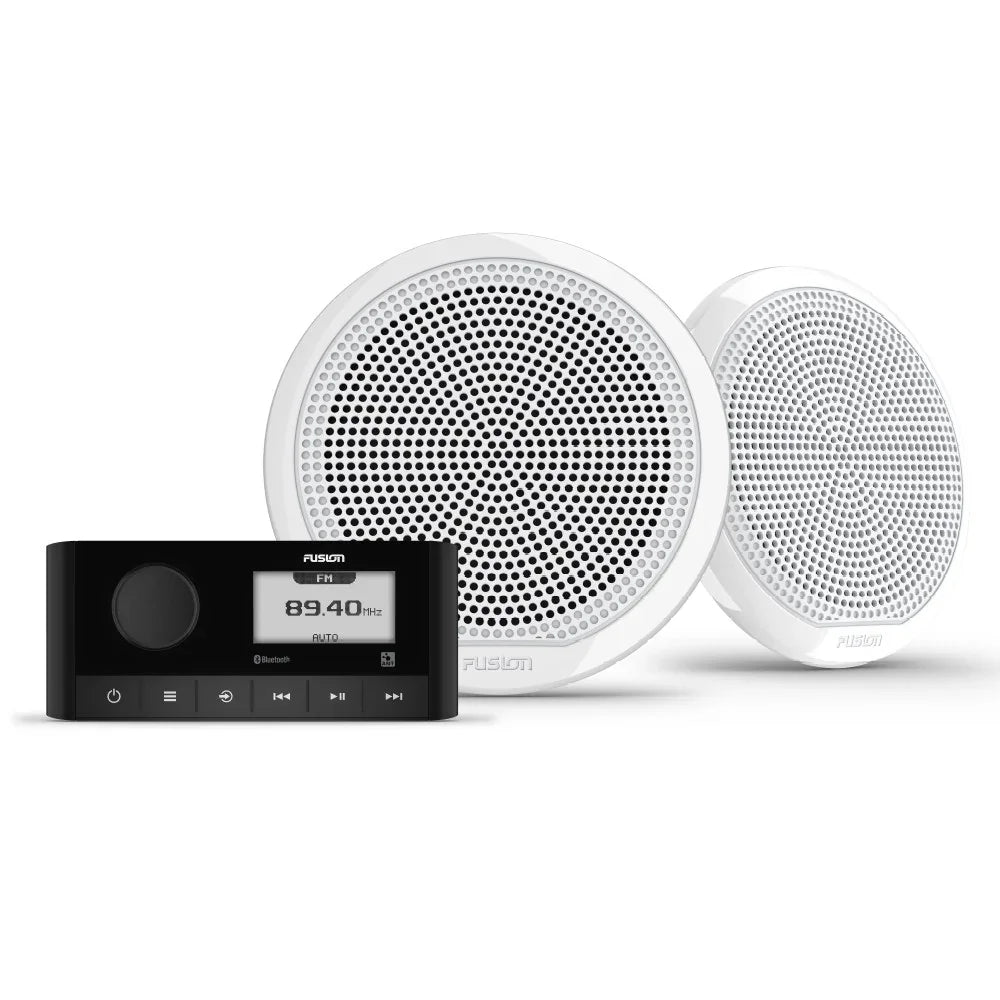

Yes, this is an original Fusion (by Garmin) factory-bundled kit. It includes a genuine MS-RA60 stereo and a pair of EL Series speakers.

Will the stereo fit in the hole from my old Fusion MS-RA55?

Yes, the MS-RA60 is specifically designed to fit the MS-RA55 mounting profile, making it a simple drop-in replacement without needing to modify your dashboard.

What is included in the box?

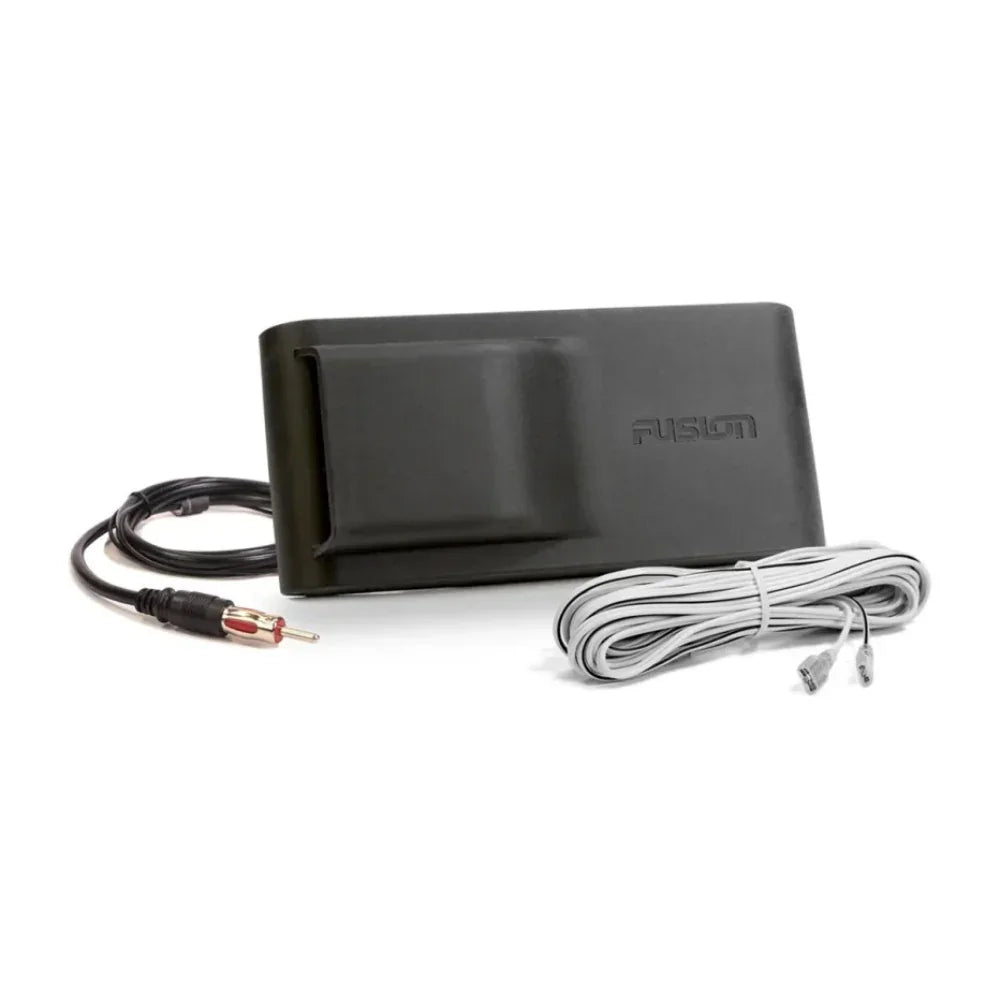

The kit includes the MS-RA60 marine stereo, a pair of EL Series Classic White speakers, an AM/FM stealth antenna, two 19ft (6m) speaker wires, dust cover, and all necessary wiring harnesses/mounting accessories.
