Fusion MS-CRGBWRC LED Lighting Control Module & Wireless Remote Marine 12V

Fusion MS-CRGBWRC LED Lighting Control Module & Wireless Remote Marine 12V

£49.00 GBP
£49.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

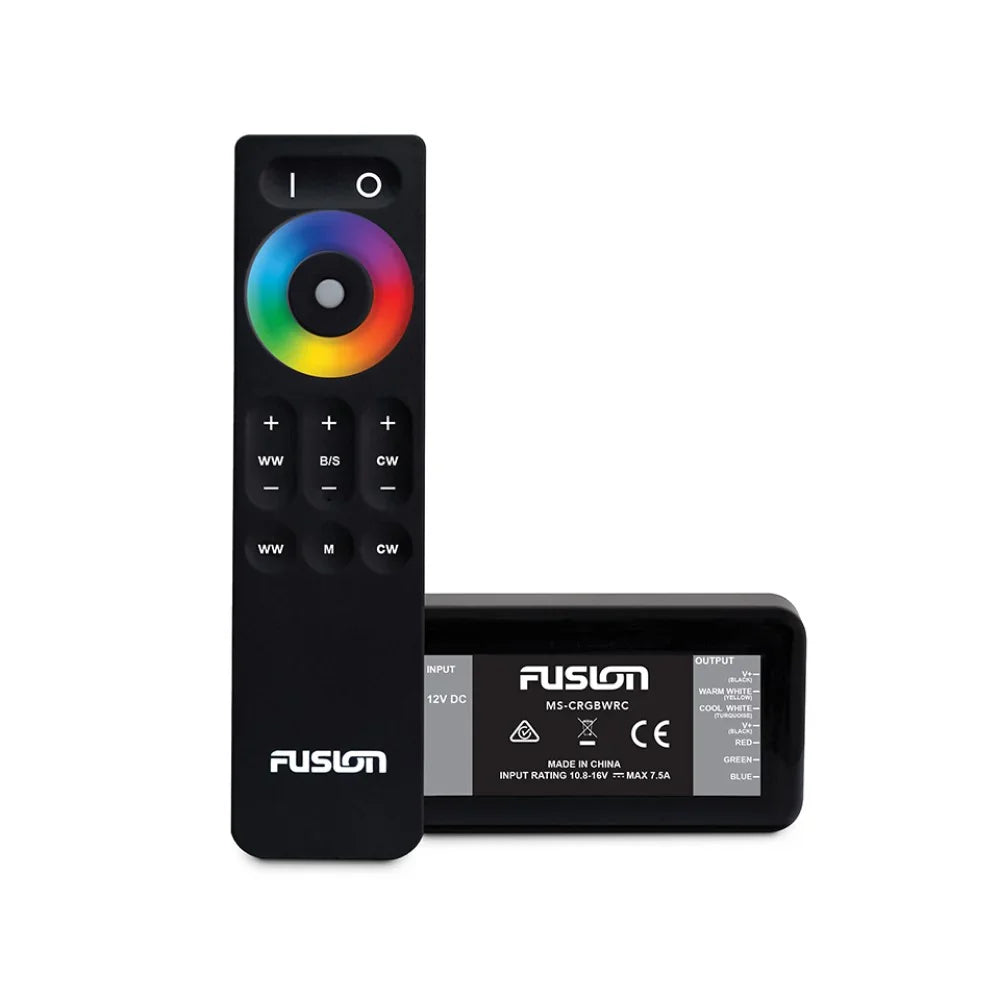

MS-CRGBWRC Lighting Control Module

Premium Wireless LED Control with CRGBW Technology

Upgrade your marine audio environment with the Fusion MS-CRGBWRC lighting control module. This advanced system allows for unprecedented control over your LED lighting, enabling the combination of standard RGB with both Cool White and Warm White for a sophisticated ambient atmosphere. Designed for seamless integration with Signature Series 3 and 3i hardware, it offers portable wireless convenience for your vessel.

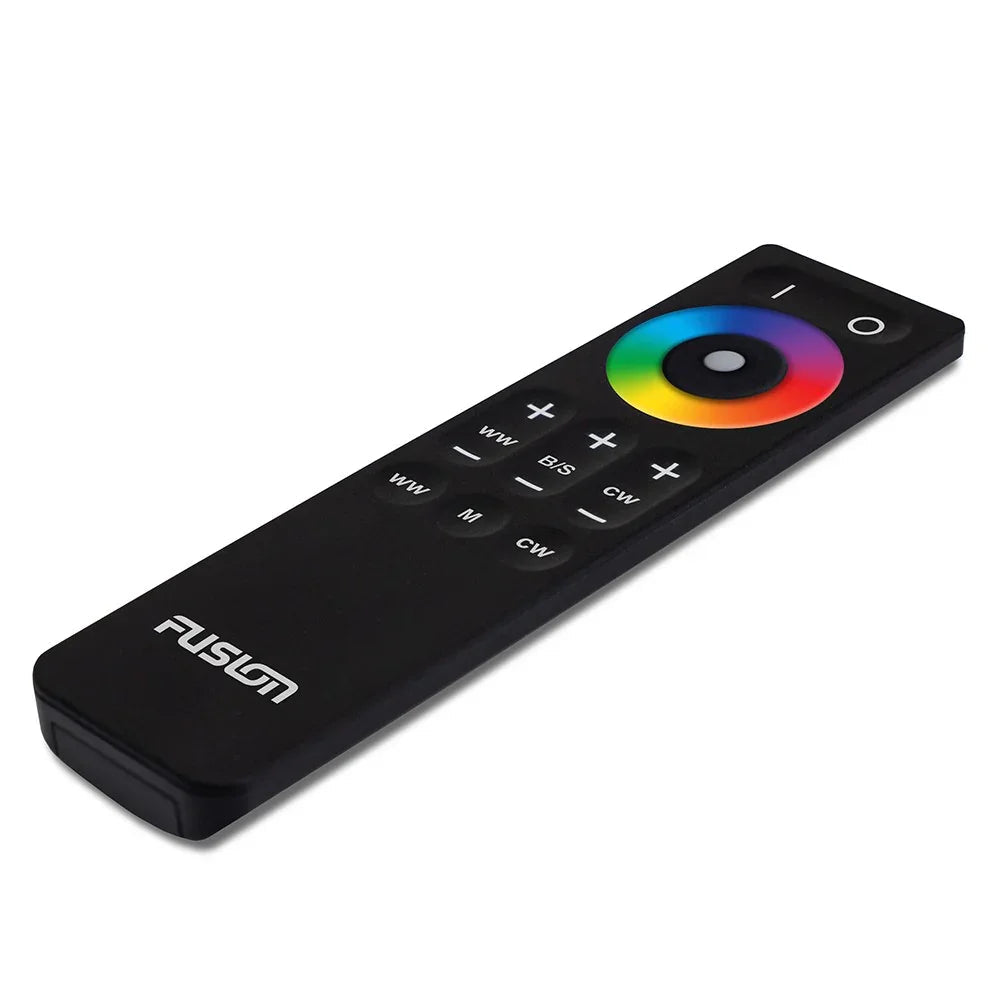

PRECISION CONTROL: Quickly adjust colors, brightness, and lighting patterns using the intuitive touch-capacitive color wheel.

Key Features

  • ✔ **CRGBW Support:** RGB + Cool White + Warm White
  • ✔ **25 Lighting Patterns:** Static and dynamic modes
  • ✔ **Wireless Range:** Operates up to 10m (30ft)
  • ✔ **Touch Controls:** Easy speed and brightness adjustments

Technical Specs

Input Voltage 10.8 to 16 VDC
Output Current 2A Max per color
Fuse Rating 7.5A (In-line)
Radio Frequency 2.4 GHz
Battery Type 2 x AAA (Not Incl.)
Operating Temp 0° to 50°C

Compatibility / Fitment Guide

Make/System Model/Application Notes
Fusion Signature Series 3 6.5", 7.7", 8.8" Speakers / 10", 12" Subs Full CRGBW functionality
Fusion Signature Series 3i Coaxial & Wake Tower Speakers Direct replacement
Universal Marine LED Standard 12V CRGBW / RGB Strips Up to 2A per channel

OEM Cross Reference

Fusion SKU MS-CRGBWRC
Garmin MPN 010-13060-00
GTIN 0753759247652

Questions & Answers

Is this a genuine original part?

This is a premium quality aftermarket replacement part distributed by 4Boats, designed to match the original equipment (OE) MS-CRGBWRC performance for marine lighting systems.

How do I know if it is compatible?

We recommend checking your speaker type. If you have Fusion Signature Series 3/3i speakers with the 6-pin LED connector, this module is the correct controller.

How many speakers can this module control?

The lighting control module can manage up to 10 CRGBW LED speakers (5 pairs) or 5 CRGBW subwoofers, provided the total current load does not exceed the fuse rating.

Note: Please verify your original part number against the references above before purchasing. Distributed by 4Boats (4boats.co.uk).
