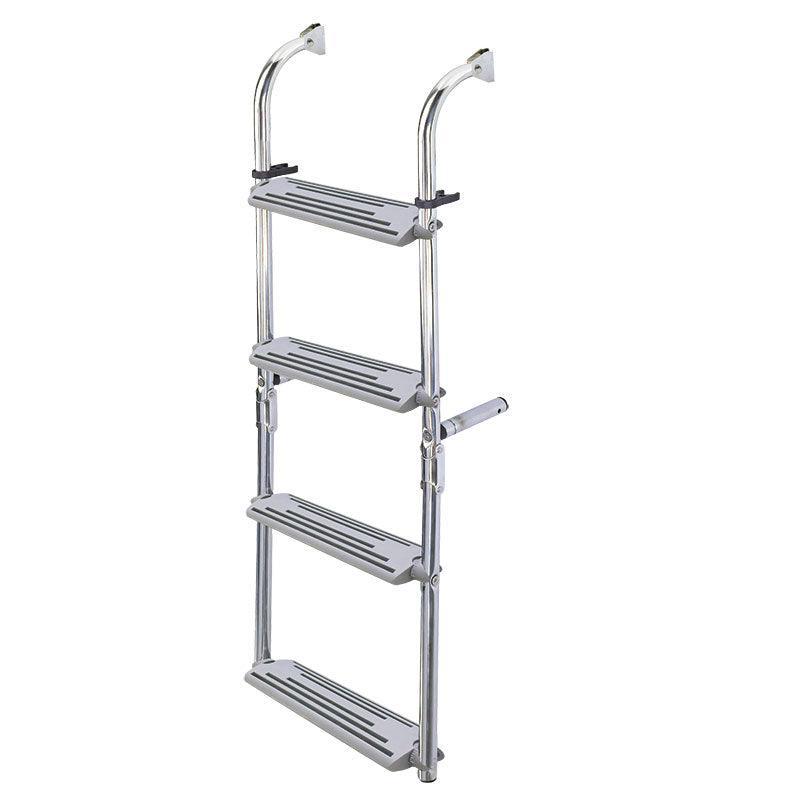

Foldable Ladders 90° 316 Stainless Boarding Ladder | 4Boats

Durable 316 (A4) stainless foldable boarding ladder with 90° hinge, designed for compact stowage and safe boarding from the water.

• 316 (A4) stainless steel construction, corrosion-resistant for marine use.
• 90° folding mechanism for low-profile, compact stowage when folded.
• Grey anti-slip step treads for secure footing when wet.
• Load rating: 150 kg (subject to correct installation).
• Tube diameter: 25 mm stainless tubing.
• Mounting: bolt-through stainless mounting plate; mounting brackets and stainless hinge pins included; nuts and backing plates not included; mounting hole centres (plate): 160 mm (centre-to-centre horizontal) × 40 mm (vertical); recommended bolt size: M8 marine-grade stainless steel.
• Sizes (step count - extended - folded projection - recommended transom height): 3-step - extended 900 mm (35.4 in) - folded projection 120 mm (4.7 in) - transoms 600-900 mm (23.6-35.4 in); 4-step - extended 1,200 mm (47.2 in) - folded projection 120 mm (4.7 in) - transoms 900-1,200 mm (35.4-47.2 in); 5-step - extended 1,500 mm (59.1 in) - folded projection 120 mm (4.7 in) - transoms 1,200-1,500 mm (47.2-59.1 in); 6-step - extended 1,800 mm (70.9 in) - folded projection 120 mm (4.7 in) - transoms 1,500-1,800 mm (59.1-70.9 in); 7-step - extended 2,100 mm (82.7 in) - folded projection 120 mm (4.7 in) - transoms 1,800-2,100 mm (70.9-82.7 in).
• Step spacing: nominal 300 mm (11.8 in) between treads.
• Care: rinse with fresh water after saltwater use, wipe dry and periodically inspect fastenings and hinge points; use a mild marine stainless cleaner for stubborn marks. Includes: ladder (selected size), stainless mounting brackets, hinge pins and user instructions.
